How to Use: Euhomy Ice Maker IM-06D Instruction Manual

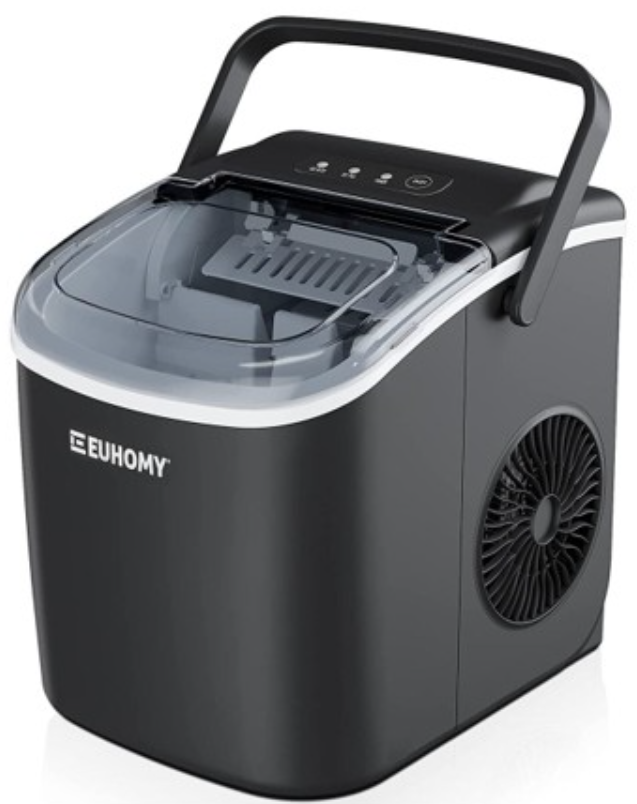

Euhomy Ice Maker IM-06D

Introduction

The euhomy Ice Maker IM-06D is a versatile and efficient countertop ice machine designed to deliver fresh, high-quality bullet-shaped ice cubes rapidly and conveniently. Engineered for both home and small commercial use, this portable ice maker stands out by producing up to 26 pounds of ice within 24 hours, with the first batch ready in as little as six minutes. Its compact design, combined with a built-in handle, makes it an ideal choice for kitchens, offices, RVs, parties, and outdoor events where a quick ice supply is essential.

Key benefits of the euhomy IM-06D include its rapid ice production cycle, automatic self-cleaning function, and user-friendly control panel with indicator lights for water level, ice fullness, and power status. The machine features a 1.2-liter water reservoir and an ice storage basket capable of holding approximately 1.3 pounds of ice, ensuring you always have ice within reach. With eco-friendly R600a refrigerant and energy-efficient performance, it offers a modern solution to daily ice needs.

Priced competitively within the $150 to $200 range, the euhomy Ice Maker IM-06D is widely available through major online retailers and specialty appliance stores, delivering excellent value for users seeking a reliable and compact ice-making appliance. Its blend of portability, speed, and maintenance ease targets busy households, small gatherings, and mobile lifestyles.

TECHNICAL PARAMETERS

• Model: IM06D
• Protection Type: I
• Power: 115V/60Hz
• Ice-Making Current: l.SA
• Ice-Harvest Current: 1.8A
• Refrigerant: R600a, 0.74oz/21g &,
• Design Pressure:
  • High Side: 290psig
  • Low Side: 88psig
• Vesicant: CsH10
• Net Weight: 6.2kg
• Dimensions: 222x294x290mm
• Enclosure: Plastic

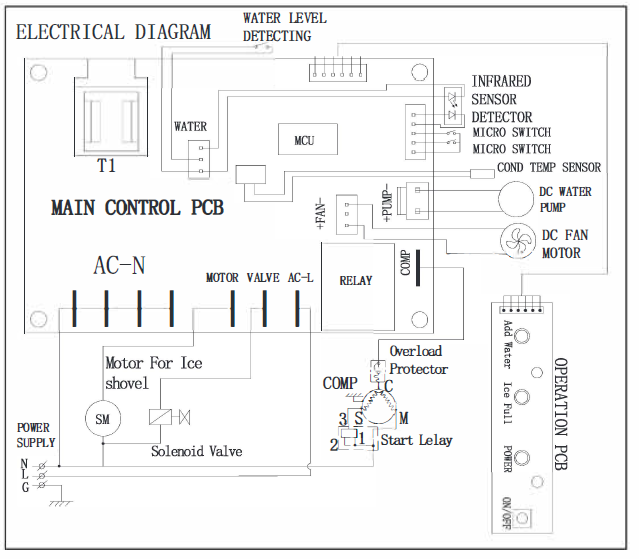

CIRCUIT DIAGRAM

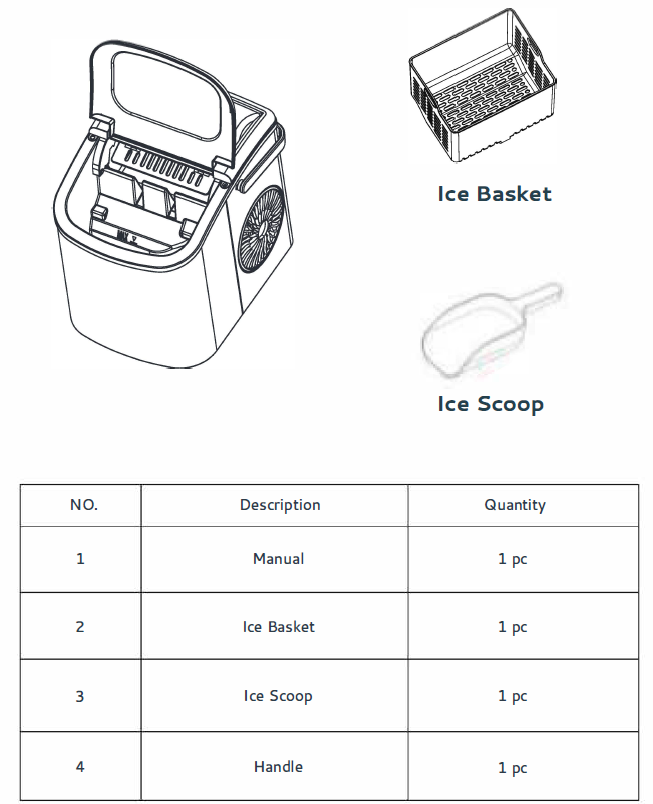

Packing List

ADDITIONAL ACCESSORIES

Safety Precautions

When using electrical appliances, basic safety precau­tions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using this or any appliance.

• Do not operate this or any other appliance with a damaged cord. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified individual to prevent a hazard.
• This ice maker must be positioned so that the plug is accessible. Connect to properly polarized outlets only. No other appliance should be plugged into the same outlet. Be sure that the plug is fully inserted into the receptacle.
• This ice maker must be positioned so that the plug is accessible. Connect to properly polarized outlets only. No other appliance should be plugged into the same outlet. Be sure that the plug is fully inserted into the receptacle.
• We do not recommend the use of an extension cord, as it may overheat and become a risk of fire. If you must use an extension cord, use No.14AWG minimum size and rated no less than 1875 watts.
• Unplug the ice maker before cleaning or making any repairs, or servicing.
• Exercise caution and use reasonable supervision when the appliance is used near children.
• Do not use your ice maker outdoors. Place the ice maker out of direct sunlight. Be sure that there is at least 4 inches of space between the back of your unit and the wall. Keep a minimum distance of 4 inches on each side of your unit clear.
• Do not use any liquid other than pure water to make ice cubes.
• Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not allow the ice maker to tip over or be knocked over.
• If the ice maker is brought in from outside in the wintertime, give it a few hours to warm up to room temperature before plugging it in.

Operation & Installation

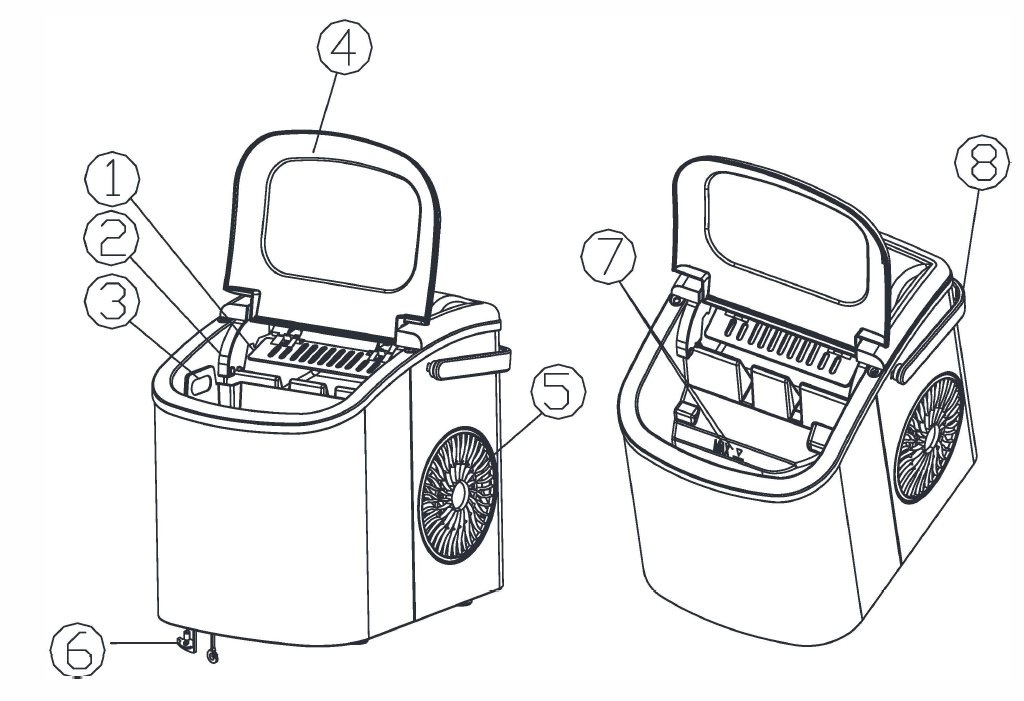

MAIN UNIT CONSTRUCTION

1. Ice scoop
2. Ice Full sensor
3. Ice basket
4. Top cover with a transparent window
5. Air exhaust
6. Water drain cap: at the bottom front of the unit
7. Maximum water level indicator:
   Remove the ice basket to see the water level mark.
8. Handle

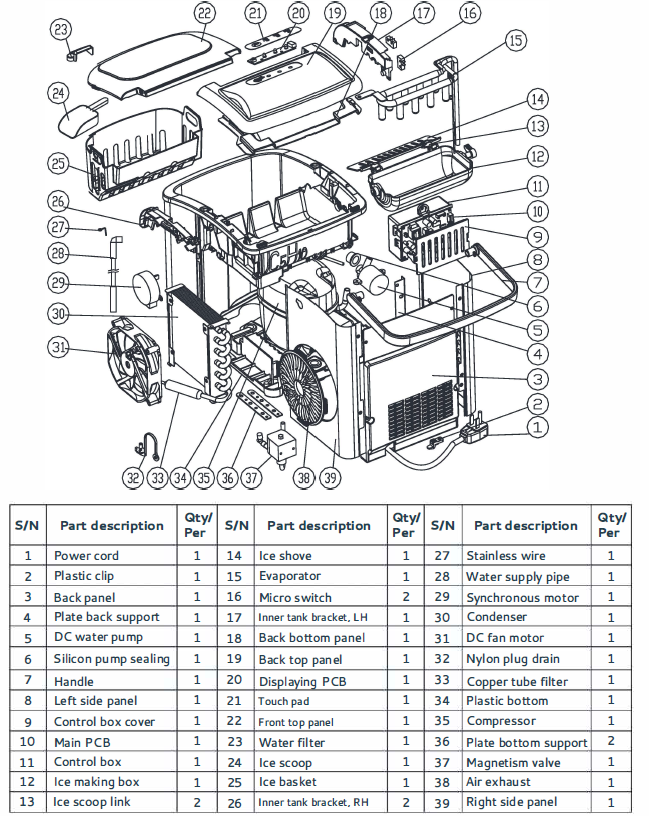

EXPLODED-VIEW DRAWING

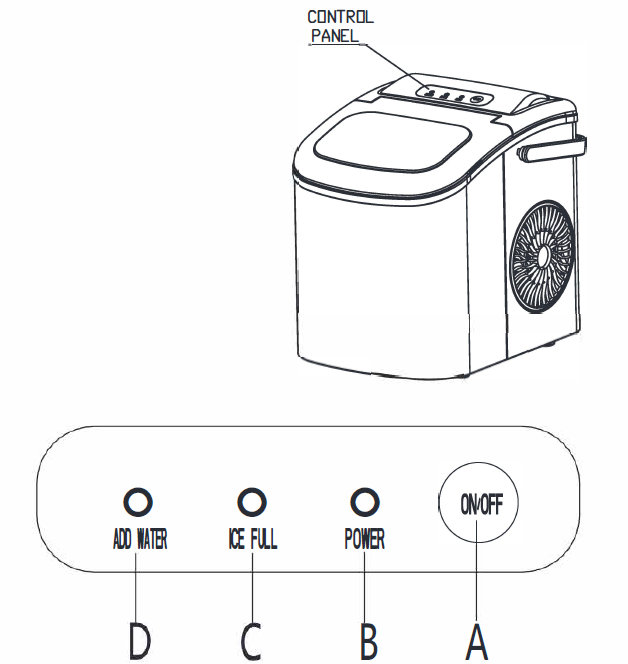

POSITION & FUNCTIONS OF CONTROL PANEL

Control panel: Easy-to-use, easy-to-read touch display.

• Power ON/OFF button
• Power indicator
• Ice Full indicator
• Add Water indicator

UNPACKING YOUR ICE MAKER

• Remove the exterior and interior packaging. Check if the ice basket and ice scoop are inside. If any parts are missing, please contact our customer service.
• Remove the tape securing the ice shovel, ice basket, and ice scoop. Clean the tank and ice basket.
• Put the ice maker on a flat, level countertop, out of direct sunlight and away from other sources of heat (e.g., stove, furnace, radiator). Ensure that there is a gap of at least 4 inches between the unit and any walls or other vertical surfaces. Keep the ice maker's cooling vents clear to ensure proper heat release and efficient performance.
• Allow one hour for the refrigerant fluid to settle before plugging the ice maker in.
• The appliance must be positioned so that the plug is accessible.

Maintenance & Tips

CLEANING AND MAINTAINING YOUR ICE MAKER

Before using your ice maker, it is strongly recommended to clean it thoroughly.

• Take out the ice basket.
• Clean the interior with warm, soapy water and a soft cloth. Use a mild dishwashing liquid or liquid hand soap for this purpose.
• Rinse the interior and inside parts with clean water. Drain out the water by unplugging the drain cap at the bottom front.
• The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm water.
• Dry the interior and exterior of the unit with a clean, soft cloth.

Pros & Cons of the euhomy Ice Maker IM-06D

• Fast Ice Production: Produces 9 bullet-shaped ice cubes in just 6 minutes, suitable for quick refreshment needs.
• High Capacity: Can produce up to 26 pounds of ice in 24 hours, ideal for parties and continuous use.
• Portable Design: Compact size (222x294x290mm) with a convenient handle enables easy transport for outdoor and indoor use.
• Automatic Self-Cleaning: Simplifies maintenance by reducing manual cleaning effort, ensuring hygienic ice production.
• Clear Indicators: Water level, ice full, and power lights help monitor operation status efficiently.
• Eco-Friendly Refrigerant: Uses R600a refrigerant, which is environmentally responsible and energy-saving.
• Value for Money: Competitively priced against similar portable ice makers, offering strong features for its cost.
• Cons: Ice storage capacity (1.3 lbs) might require frequent emptying during heavy use.
• Noise Level: Some users note moderate operational noise typical of compressor-based units.
• Limited Ice Shape Options: Produces only bullet-shaped ice, which may not suit all preferences.

Warranty

Euhomy offers a limited 1-year warranty ("warranty period") on all of our products purchased new and unused from Euhomy company, with an original proof of purchase, and where a defect has arisen, wholly or substantially, as a result of faulty manufacture, parts, or workmanship during the warranty period. The warranty does not apply where damage is caused by other factors, including,, without limitation:

• normal wear and tear;
• abuse, mishandling, accident, or failure to follow operating instructions;
• exposure to liquid or infiltration of foreign particles;
• servicing or modifications of the product other than by Euhomy;
• commercial or non-household use.

The Euhomy warranty covers all costs related to restoring the proven defective product through repair or replacement of any defective part and necessary labor so that it conforms to its original specifications. A replacement product may be provided instead of repairing a defective product. Euhomy's exclusive obligation under this warranty is limited to such repair or replacement. A receipt indicating the purchase date is required for any claim, so please keep all receipts in a safe place. Although greatly appreciated, the product registra­tion is not required to activate any warranty, and product registration does not eliminate the need for the original proof of purchase.  The warranty becomes void if attempts at repair are made by non-authorized third parties and/or if spare parts, other than those provided by Euhomy, are used.

You may also arrange for service after the warranty expires at an additional cost. These are our general terms for warranty service, but we always urge our customers to reach out to us with any issue, regardless of warranty terms. If you have an issue with an Euhomy product, please contact us (support@euhomy.com), and we will do our best to resolve it for you.

Customer Reviews of the euhomy Ice Maker IM-06D

Users frequently praise the euhomy Ice Maker IM-06D for its quick ice production and ease of use. Many highlight how the machine delivers ice in just 6 minutes, making it a perfect appliance for spontaneous gatherings and daily refreshment needs. The automatic cleaning function is also appreciated for reducing upkeep time.

Common complaints include the relatively small ice basket, which requires regular emptying to maintain continuous production, and occasional noise during operation, which is standard for portable compressor ice makers. The bullet ice shape is well-liked for drinks, although some users wish for more shape variety.

Typical star ratings hover around 4 to 4.5 stars out of 5, with several testimonials recommending the euhomy IM-06D for its reliability and compact convenience. Overall, it is regarded as an excellent purchase for home kitchens and recreational use, especially given its affordable price point and efficient performance.
