Introduction

Dear Customer, So lucky to meet you guys.Thanks for making a purchase on Euhomy !

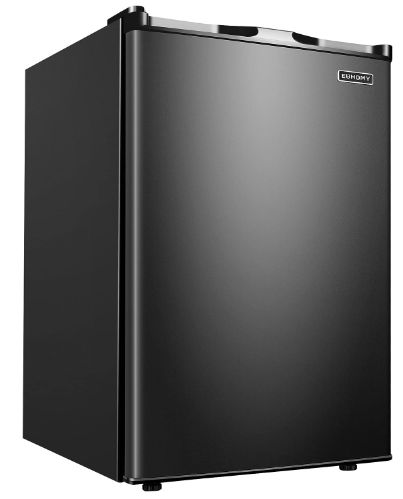

The Euhomy Upright Freezer MF-3.0-Y is a modern and efficient freezer designed for both residential and commercial use. This freezer has a spacious storage capacity of 3.0 cubic feet and features a sleek, upright design that fits perfectly in any kitchen or storage room. Its estimated price ranges from $400 to $500, making it an affordable option for those who need extra freezer space.

Parts & Features

Detailed Specifications

The Euhomy Upright Freezer MF-3.0-Y boasts several key features that make it a top choice for consumers. It has a temperature range of -11.2°F to 5°F, ensuring that your food stays fresh and frozen. The freezer also has a reversible door hinge, adjustable legs, and a recessed handle for easy installation and maneuverability. Its energy-efficient LED light and quiet operation (below 42dB) make it both eco-friendly and user-friendly.

Important safety instructions of Euhomy Upright Freezer MF-3.0-Y

WARNING: READ ALL OF THE INSTRUCTIONS BEFORE USING THIS APPLIANCE. WHEN USING THIS APPLIANCE, ALWAYS EXERCISE BASIC SAFETY PRECAUTIONS, INCLUDING THE FOLLOWING:
NOTE: If the refrigerator/freezer has been placed in a horizontal or tilted position for any period of time wait 24 hours before plugging the unit in.

• Use this appliance only for its intended purpose as described in this use and care guide.

• This freezer must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.

• Never unplug your freezer by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.

• Repair or replace immediately, all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length, the plug or the connector end.

• Unplug your freezer before cleaning or before making any repairs.

• Do not use any electrical device or any sharp instrument in defrosting your freezer.

• If your old freezer is not being used, we recommend that you remove the doors. This will reduce the possibility of danger to children.

• WARNING: After your freezer is in operation, do not touch the cold surfaces in the freezer compartment, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces.

  • Do not refreeze foods, which have been thawed completely. The United States Department of Agriculture in Home and Garden Bulletin No. 69 reads: “…You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold-below 40˚F”.

  • “…Thawed ground meats, poultry, or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, discard it. The food may be dangerous to eat.”

  • “…Even partial thawing and re-freezing reduce the eating quality of foods, particularly fruits, vegetables, and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as possible, to save as much of its eating quality as you can.

• This freezer should not be recessed or built-in an enclosed cabinet. It is designed for freestanding installation only.

• Do not operate your freezer in the presence of explosive fumes.

DANGER
Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors. Leave the shelves in place so that children may not easily climb inside.

Euhomy Upright Freezer MF-3.0-Y Installing your freezer

UNPACKING YOUR FREEZER

1. Remove all packaging material. This includes the foam base and all adhesive tape holding the freezer accessories inside and outside.

2. Inspect and remove any remains of packing, tape, or printed materials before powering on the freezer.

ADJUSTING YOUR FREEZER

• Your freezer is designed for freestanding installation only. It should not be recessed or built-in.

• Place the freezer on a surface strong enough to support it fully loaded.

• When moving the freezer, never tilt it more than a 45-degree angle. This could damage the compressor and the sealed system.

• If the freezer is tilted let it stand in an upright position for at least 24 hours prior to plugging in. This is to allow the refrigerant to settle.

PROPER AIR CIRCULATION

To assure your freezer works at the maximum efficiency it was designed for, you should install it in a location where there is proper air circulation, plumbing, and electrical connections. The following are recommended clearances around the freezer:

• Sides… 4” (102mm)

• Back. 4” (102mm)

• Top. 4” (102mm)

ELECTRICAL REQUIREMENT

• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with proper grounding to power the freezer.

• Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two plug outlet.

• This is a dangerous practice since it provides no effective grounding for the freezer and may result in a shock hazard.

USE OF EXTENSION CORD

• Avoid the use of an extension cord because of potential safety hazards under certain conditions. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot outlet that will accept the plug.

• The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance.

• DO NOT USE AN EXTENSION CORD LONGER THAN 12 FT.

INSTALL LIMITATIONS

• Do not install your freezer in any location not properly insulated or heated e.g. garage etc. Your freezer was not designed to operate in temperature settings below 55˚ Fahrenheit.

• Select a suitable location for the freezer on a hard even surface away from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances etc. Any floor unevenness should be corrected.

Freezer Feature and Use

OPERATING YOUR FREEZER

• Once the freezer is in its proper place, plug it in an electrical outlet having 115 volts and 15 amps.

• Set the temperature, on the temperature control knob. “1” is the warmest and “7” is the coldest. Initially set the temperature on “4”. Place food inside the freezer. After using the freezer for 24 hours set the freezer to your desired setting.

• In case you unplug your freezer or experience an electrical outage, allow 5 minutes before plugging it back in.

GENERAL FEATURES

Adjustable temperature dial: Your freezer will automatically maintain the temperature level you select. The temperature control dial has 7 settings plus OFF. “1” is the warmest, “7” is the coldest. Turning the dial to OFF stops cooling the freezer. Set the dial to “4” and allow 24 hours to pass before adjusting the temperature to your needs.
NOTE: If the freezer has been placed in a horizontal or tilted position for any period of time wait 24 hours before plugging the unit in.

NORMAL OPERATING SOUNDS YOU MAY HEAR

• Boiling water, gurgling sounds or slight vibrations are the results of the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.

DEFROSTING

• For most efficient operations and minimum energy consumption, defrost whenever the frost becomes 1/4” thick. Never use a sharp or metallic instrument to remove the frost, as it may damage the cooling coils.
  (A punctured coil will void the warranty). Use only a plastic scraper. Do not use boiling water as it may damage the unit.

• Remove the frozen food from the freezer and place it in a cooler to protect the food.

• Turn the temperature control to the OFF position and unplug the unit. Defrosting usually takes a few hours. To defrost faster keep the freezer door open.

NOTE

• Monitor the defrost pan to avoid overflow.

• When defrosting is complete, wipe the interior of the freezer with a soft cloth. Plug-in power cord back into the electrical outlet.

• Reset the temperature control to the desired setting.

• Return the food into the freezer.

DOOR ALIGNMENT

1. Your freezer has two leveling legs which are located in the front bottom corners of your freezer.

2. After properly placing your freezer in its final position, you can level your freezer.

3. Leveling legs can be adjusted by turning them counterclockwise to raise your freezer or by turning them clockwise to lower your freezer.

4. The freezer door will close easier when leveling legs are extended.

Levelling Euhomy Upright Freezer MF-3.0-Y

1. Remove the top hinge cover using a flat head screwdriver. Gently lift from the rear of the hinge and slide forward.

2. Loosen the top hinge screws using a Phillips head screwdriver.

3. Adjust the door or put a spacer in between and then tighten the screws.

4. Replace the top hinge cover by aligning the rear of the cover with the rear of the hinge. Press firmly on the front of the cover until it snaps in place.



FOOD STORAGE INFORMATION

FROZEN FOOD

• Wipe containers before storing to avoid needless spills.
• Hot food should be allowed to cool before storing in the freezer. This will prevent unnecessary energy use.
• When storing meats, keep in the original packaging or rewrap as necessary.
• Proper freezer storage requires correct packaging. All foods must be in packages, which do not allow the flow of air or moisture in, or out. Improper
• storage will result in odor and taste transfer and will result in the drying out of the improperly packaged food.
• Follow package or container instructions for proper storage.
• Packaging Recommendations:
• Plastic containers with airtight lids
• Heavy-duty aluminum foil
• A plastic wrap made from saran film
• Self-sealing plastic bags
• Do not refreeze defrosted/thawed foods.
• It is recommended that the freezing date be marked on the packaging.

These are some suggestions for safe storage:

• TV Dinners: 3 – 4 Months
• Fresh Shrimp, scallops, crawfish: 3 – 6 Months
• Hamburger & stew meats: 3 – 4 Months
• Ground Turkey, veal, pork: 3 – 4 Months
• Chops: 4 – 6 Months
• Steaks: 6 – 12 Months
• Chicken or turkey, whole: 1 year

CLEANING AND MAINTENANCE

WARNING
To avoid electric shock always unplug your freezer before cleaning. Ignoring this warning may result in death or injury.
CAUTION
Before using cleaning products, always read and follow the manufacturer’s instructions and warnings to avoid personal injury or product damage.

GENERAL

• Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use a sponge or soft cloth, dampened with the cleaning solution, to wipe down your freezer.

• Rinse with clean warm water and dry with a soft cloth.

• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or metal scouring pads. SOME of these chemicals may dissolve, damage, and/or discolor your freezer.

DOOR GASKETS

• Clean door gaskets every three months according to general instructions. Gaskets must be kept clean and pliable to assure a proper seal.

• Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket pliable and assure a good seal.

POWER INTERRUPTIONS

• Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC outlet when a power outage occurs. When power has been restored, replug the power cord to the AC outlet.

VACATION AND MOVING CARE

• For long vacations or absences, empty food from the freezer, move the temperature DIAL to the OFF position and clean the door gaskets according to the “General cleaning” section. Prop doors open, so air can circulate inside. When moving always move the freezer vertically. Do not move with the unit lying down. Possible damage to the sealed system could occur.

WARNING: If the outage is for a prolonged period, inspect and discard spoiled or thawed food in the freezer. Clean the freezer before reusing.

Troubleshooting

You may try to solve the following simple problems by yourself. If they cannot be solved, please contact the after-sales department.

Warranty

Euhomy offers a limited 1-year warranty (“ warranty period” ) on all of our products purchased new and unused from Euhomy company, with original proof of purchase and where a defect has arisen, wholly or substantially, as a result of faulty manufacture, parts or workmanship during the warranty period.

The warranty does not apply where damage is caused by other factors, including without limitation:

• normal wear and tear;

• abuse, mishandling, accident, or failure to follow operating instructions;

• exposure to liquid or infiltration of foreign particles;

• servicing or modifications of the product other than by Euhomy;

• commercial or non-household use.

Description

The Euhomy Upright Freezer MF-3.0-Y is equipped with four removable shelves, allowing for flexible storage options. Its adjustable leveling legs ensure stability on uneven surfaces. The freezer's transparent glass door provides a clear view of the contents inside, and its reversible door hinge allows for left or right swing, depending on your preference and space constraints. Its interior LED light illuminates the freezer compartment, making it easy to find what you need.

Euhomy Upright Freezer MF-3.0-Y Setup Guide

To set up the Euhomy Upright Freezer MF-3.0-Y, first choose a location that is dry, well-ventilated, and within reach of an electrical outlet. Then, adjust the freezer's leveling legs to ensure it stands stably. Next, plug in the freezer and set the temperature according to your preference. The freezer can be defrosted manually or automatically, depending on your chosen setting. Finally, load your food into the freezer and enjoy your extra freezer space.

Life tips

Pros & Cons

Pros

• Spacious storage capacity of 3.0 cubic feet
• Reversible door hinge for flexible installation
• Adjustable leveling legs for stability
• Interior LED light for clear visibility
• Quiet operation below 42dB

Cons

• May be too large for small kitchens or apartments
• May consume more energy than smaller freezer models
• Does not have a built-in water or ice dispenser
• May have a strong chemical smell upon initial use, which dissipates after a few days

Customer Reviews of Euhomy Upright Freezer MF-3.0-Y

Customers have praised the Euhomy Upright Freezer MF-3.0-Y for its spacious storage capacity, quiet operation, and reversible door hinge. However, some have criticized it for having a strong chemical smell upon initial use. Most common complaints include issues with the temperature control and the freezer's size being too large for small spaces.
