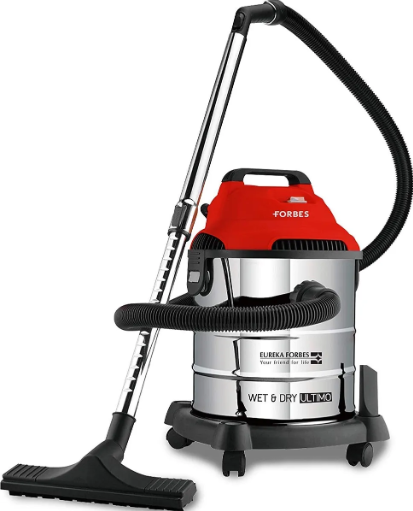

Introduction of Eureka Forbes Wet & Dry Ultimo VC

The Eureka Forbes Wet & Dry Ultimo VC is a versatile vacuum cleaner that offers powerful suction and efficient cleaning for both wet and dry surfaces. This state-of-the-art appliance is designed to make cleaning a breeze, with its user-friendly features, stylish design, and durable build. The estimated price of the Eureka Forbes Wet & Dry Ultimo VC is around $200, and it is now available in the market for purchase.

KNOW YOUR PRODUCT

Eureka Forbes Wet & Dry Ultimo VC Specifications

• Power: 1400 W

• Voltage: 220 V – 50 H

• Weight: 7.5 kg

• Suction Pressure*: 200 cm of WC (20 KPA)

• Large capacity for Water & Dust: 20 Litres

• Dimensions (L x B x H) in cm: 35 x 35 x 52

• Air Flow : 32 Litres / second

• Noise Level : <83 dB

At Mean Sea level. Colour of the product and accessories shown on the carton may vary from the actual product.

Eureka Forbes Wet & Dry Ultimo VC Description

The Eureka VC is a corded vacuum cleaner that comes with a powerful 1200-watt motor, providing exceptional suction power for deep cleaning of carpets, floors, and upholstery. It has a large dust container of 2.5 liters, which means less frequent emptying and more efficient cleaning. The vacuum cleaner also features a HEPA filter that traps 99.97% of dust, allergens, and bacteria, making it an excellent choice for people with allergies or respiratory problems.

The Eureka Forbes Wet & Dry Ultimo VC is equipped with a range of attachments, including a crevice tool, dusting brush, and upholstery tool, making it easy to clean hard-to-reach areas and delicate surfaces. It also has a blower function, which is useful for cleaning outdoor spaces, such as garages and patios.

ASSEMBLY & OPERATION

Connection

1. Insert the hose connector into the air inlet mouth as shown in the picture, and ensure that the connector is tightly fastened.



2. Revolve to left as shown in the picture below till you can pull the hose from the machine.



3. Connect all the accessories as shown in the picture.



How to dean dry dust?

• Use cartridge filter.

• Apply light pressure to the corresponding position of the bottom basket as shown below.



How to than Squid spills?

1.  Ensure that the power cord is disconnected from the power supply. (Figure 1)

2. Position the machine on the side, carefully insert the filter sponge in the bottom cover to ensure that the entire bottom part is covered. (Figure 2)

3.  When the water level reaches the maximum capacity, the safety valve will automatically start, then the suction will stop. Then turn off the switch, finally pour out the barrel of water. (Figure 3)

4. After each pouring, take off the sponge filter and twist dry with hand, then insert again as figure 2 shows to ensure the best water vacuum effect. (Figure 4)

5. Wash the filter sponge after passing through the sewage: Clean with soap water or cleaning fluid, twist and dry before re-use. (Figure 5)



Blowing function of Eureka Forbes Wet & Dry Ultimo VC

When you need to use the blowing function, open the shutter, insert the hose, revolve the hose till it is fastened with the suction hole as the below pictures indicate.

Adjust the airflow by pushing the sliding block up and down

Operation method for switch

Take out/assemble the head method

When you have to take out the head from the machine, pull the barrel clip to the suitable place, then take the head out.

Change the air outlet sponge

When the machine is used for a long time, it is necessary for you to change the air outlet sponge filter, preventing secondary pollution.

STORGE

1. Cable keeping method



2. Storge of cable and accessories



Setup Guide

1. Setting up the Eureka Forbes Wet & Dry Ultimo VC is straightforward and easy. Here are the steps to follow:
2. Remove the vacuum cleaner from the box and assemble the handle and wand.
3. Attach the desired attachment to the wand, such as the crevice tool or dusting brush.
4. Plug in the vacuum cleaner and turn on the power switch.
5. Select the appropriate mode for your cleaning task, either wet or dry.
6. Adjust the suction control as needed for different surfaces.

Maintenance

1. Clean the barrel, filter, and related accessories and check for holes that may leak vacuum. After each use, wash and dry the filter if necessary. Avoid using the wet filter anytime.

2. Check if the plug is damage-free and keep it in a suitable place.

3. Check for objects that jam the air inlet mouth after sucking. If any, please clean.

4. Use the machine gently, do not manhandle.

5. Keep the appliance in a dry environment.

6. The filter should be washed by clean and warm water when covered with dust. If necessary, use limitless scour to wash but avoid the corrosive scour. It is not advisable to immerse the entire head in the water to clean.

7. Do not keep the machine running for a long time. Breaks after 2 hours of running is advisable, or the life of the machine will be affected.

8. The suction will be weak after a long break of using the machine owing to a dirty filter. In order to avoid low suction, please wash and clean the filter frequently.

9. Discontinue usage and send the machine for repair if the machine experiences abnormal shaking, noise or a burning smell.

Maintenance of barrel and filter

Barrel cleaning

• Unfasten the barrel clip, lift the head up. (as the above picture)

• Take off the cartridge filter, clean the dust away from the dust barrel.

• Install the filter back to the barrel and place the head.



Cartridge filter cleaning

The filter should be washed with clean and warm water when covered with dust. If necessary, make use of the limitless scour to wash.

• Take off the filter

• Wash

• Dry



SAFETY INSTRUCTIONS

Basic Precautions

When using an electrical appliance, basic precautions should always be followed, including the following:

1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their

3. Children should be supervised, to ensure that they do not play with the appliance.

4. The company has built this product according to the state of the art and valid safety regulations, Despite the above, hazards for persons and assets can emanate from this cleaner if it is used in an improper manner or not in accordance with its intended use, or if the safety instructions are ignored.

5. The product is not explosion protected. Never use it in the presence of explosive dust, fluids or vapors.

6. The product may only be connected when the electrical data of the power supply coincide.

7. Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use.

8. Do not operate or leave the product in the rain.

9. Minimum safety distance between the product and water: 5 m.

10. Only operate the product if no persons are in water.

11. Never operate the product if either the electrical cable or the housing is defective.

12. Do not carry or pull the product by its electrical cable.

13. Route all cables such that damage is excluded and nobody can trip over them.

14. Never open the unit housing or its attendant components unless this is explicitly required in the operating instructions.

15. Never carry out technical modifications to the unit.

Characteristics

• Special accessory holder that can hold varied accessories very well

• Special rear blowing device

• Special rear cable keeping device

• Special easy release and locking system between the barrel and head

• Special rear detachable air-outlet shutter, making it easy for you to change the air outlet filter, preventing secondary pollution

• Flesh stylish appearance

Safety Instructions

1. Check before the operation that the local power supply is the same as the specifications on the rating label.

2. Do not use machines in combustible and explosive places; motor sparks may cause a fire.



3. Do not vacuum up objects as below:Do not jam the air inlet hole, it may cause high temperature and damage the motor.



4. Do not vacuum up objects as below:



   • Combustible and explosive objects such as lit cigarette



   1. Sharp objects



   1. Objects which easily attract the filter such as calcareousness powder, gesso and graphite powder that will block the ventilation and damage the motor.

Do not overturn the machine in case the water goes into the motor and damages the motor.

• Turn off the machine and remove the plug each time after using or when repairing.

• Keep the machine away from strong sunlight and high-temperature place as it may cause plastic distorting.



• Do not wrest, tramp or haul hose as it may damage the product.

• Do not immerse the barrel cap into the water or wash by water or water may go into the lactiferous parts and cause injury to The correct way is to immerse the dishcloth, then tweak it dry and wipe the dirty part gently.

Eureka Forbes Wet & Dry Ultimo VC TROUBLESHOOTING

Pros & Cons

Pros

• Powerful suction for deep cleaning
• Versatile wet and dry cleaning capabilities
• Large dust container for less frequent emptying
• HEPA filter for trapping allergens and bacteria
• Range of attachments for hard-to-reach areas and delicate surfaces

Cons

• Corded design may limit mobility
• May be too heavy for some users
• Higher price point compared to some other vacuum cleaners

Customer Reviews about Eureka Forbes Wet & Dry Ultimo VC

Customers generally have positive things to say about the Eureka Forbes Wet & Dry Ultimo VC. They appreciate its powerful suction, versatile wet and dry cleaning capabilities, and large dust container. However, some users have noted that the vacuum cleaner is heavy and may be difficult to maneuver, especially for those with mobility issues. Additionally, the corded design has been a point of contention for some customers, who prefer the convenience of a cordless vacuum cleaner.
