Introduction

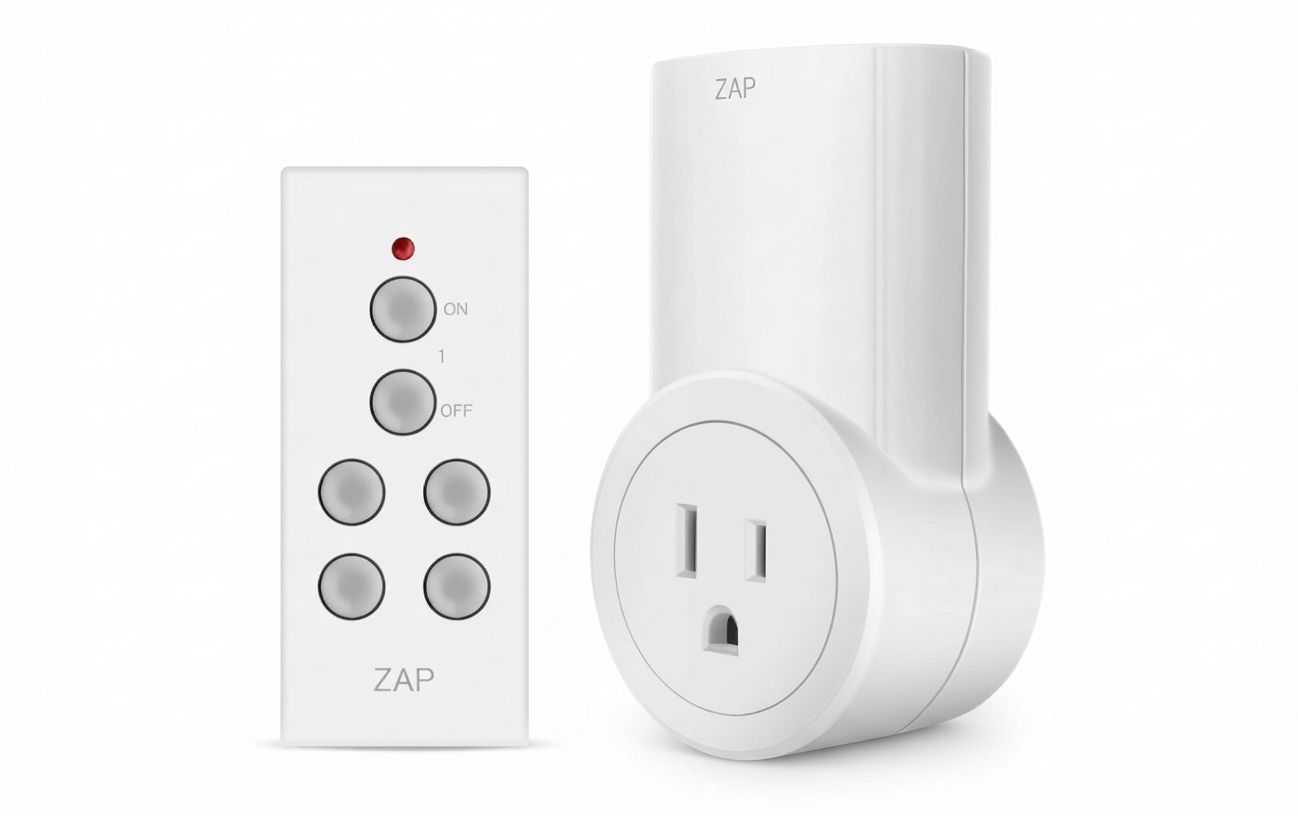

The Eleckcity Remote Outlet Switch Zap 5LX-S is a multifunctional and user-friendly device that enables remote control of your electrical appliances. This outlet switch features a streamlined and space-saving design, making it an ideal choice for any room in your home or workplace. The installation process is simple, the cost is reasonable, and the expected price is $25. The release date of the product has not been revealed yet.

Package Contents

• 5 x Remote Outlet Switch
• 2 x Remote Control
• 2 x 12V/23A Batteries
• 1 x User Manual

NOTE: The wireless range may be shortened by other electronic devices, appliances, walls, and other physical barriers.

Specifications

• Voltage: 120V ~ 60 Hz
• Maximum Current: 10A
• Maximum Power: 1200W
• Transmission Frequency: 433.92 MHz
• Remote Battery Power: 12V (23A)
• Remote Control Range: 100 feet (30 meters)*
• Operating Temperature: 32°~95°F (0°~35°C)
• Storage Temperature: -4°~167°F (-4°~75°C)

Function Diagram

1. Outlet
2. Power / Program Button
3. Outlet Indicator Light
4. Remote Control
5. On Buttons
6. Off Buttons
7.  Outlet Number

Description

The Eleckcity Remote Outlet Switch Zap 5LX-S is an essential item for individuals seeking to remotely manage their electrical equipment. Featuring a wireless range of up to 100 feet, this device allows you to conveniently control the power supply of your appliances from any location within your home or business. The device is small and stylish, allowing for convenient placement in any setting. Additionally, the installation process is straightforward, facilitated by the explicit directions outlined in the handbook.

Operation of Switch Zap 5LX-S

The outlets are pre-programmed for immediate use, but the configuration can be customized to meet your needs.

1. Install one 12V/23A battery to each remote control.



2. Plug each outlet into a powered socket.



3. Plug an appliance into each outlet. Keep the appliance switch to ‘ON’ in order to allow the outlet to control the device.



4. Press the ‘ON’ or ‘OFF’ button for the corresponding number on the remote. The indicator light on the corresponding outlet will turn on, confirming that the outlet is now in use.



Re-programming an Outlet

1. Unplug the device from the outlet.



2. Press and hold the programming button until the indicator light starts to blink.



3. Release program button, press the "ON" or "OFF" button for the desired number on the remote



4. Pairing is successful when the indicator light stops blinking.
   NOTE: You may repeat the re-programming steps to assign up to 10 outlets to a single number to simultaneously control multiple devices with a single click.



Resetting an Outlet

To remove an outlet from all demo control pairings:

1.  Unplug any devices connect to the remote outlet.



2. Remove the outlet from the power socket



3. Press and hold the program button.

4. Plug outlet back into power socket while continuing to hold program button.



5.  Hold the program button for approximately 5 seconds until the LED indicator begins to flash

6.  Program reset will be complete when the indicator light stops blinking.



Setup Guide

To install the Eleckcity Remote Outlet Switch Zap 5LX-S, follow these simple steps:

1. Insert the batteries into the remote control.
2. Plug the outlet switch into an electrical outlet.
3. Press the button on the remote control to pair it with the outlet switch.
4. Plug your appliance into the outlet switch.
5. Use the remote control to turn your appliance on or off.

Safety Information

IMPORTANT: Please read, understand, and comply with all of the instructions provided in this manual before using this device. Failure to comply with the instructions given in this manual and/or using the device in ways other than the ones mentioned herein may result in physical harm and/or damage to the device.

Important Safety Information

• The wireless range may be shortened by other electronic devices, appliances, walls, and other physical barriers.
• The outlets are intended for indoor use only.
• Avoid exposure to high-temperature sources, direct sunlight, or exposure to moisture.

• DO NOT exceed the maximum load current of 10A (approximately 1200W).

• DO NOT use appliances such as refrigerators, air conditioning units, and washing machines with outlets. Such appliances exceed the maximum load current of 10A (1200W).

• Keep out of reach of children.
• The outlets are best used in areas with proper air circulation.
• When cleaning, use a dry cleaning cloth to wipe the outlet and remote surfaces.
• For your safety, make sure the batteries within the remotes are correctly installed before use.
• DO NOT dispose of any part of this product in a fire.
• The remote is not compatible with rechargeable batteries.
• This device is not intended for use in areas with high humidity, such as bathrooms.
• For best performance, regularly change the batteries in the remote controls.
• If the remote is not in use for an extended period of time, remove batteries.
• Discard all parts of these products in accordance with local environmental regulations. Do not dispose of in regular household waste.
• These outlets are not compatible with the ZAP 3VX remote outlets.

Troubleshooting

Eleckcity Remote Outlet Switch Zap 5LX-S Warranty

Etekcity warrants all products to be of the highest quality in material, craftsmanship, and service for a minimum of 1 year, effective from the date of purchase. Warranty lengths may vary between product categories.  For specific warranty terms, please refer to your product’s listing page or operation manual. Under the limited warranty, Etekcity will replace or refund any product found to be defective due to manufacturer flaws based on eligibility.

Pros & Cons

Pros

• Allows you to control electrical appliances remotely
• Compact and sleek design
• Easy to install
• Affordable price
• Features an LED indicator

Cons

• Requires batteries for the remote control (not included)
• Has a limited wireless range of up to 100 feet
• Can only control one appliance at a time

Customer Reviews

Customers have praised the Eleckcity Remote Outlet Switch Zap 5LX-S for its ease of use, affordability, and convenience. Some common complaints include the limited wireless range and the fact that it can only control one appliance at a time. However, overall customers have been satisfied with the product and have recommended it to others.
