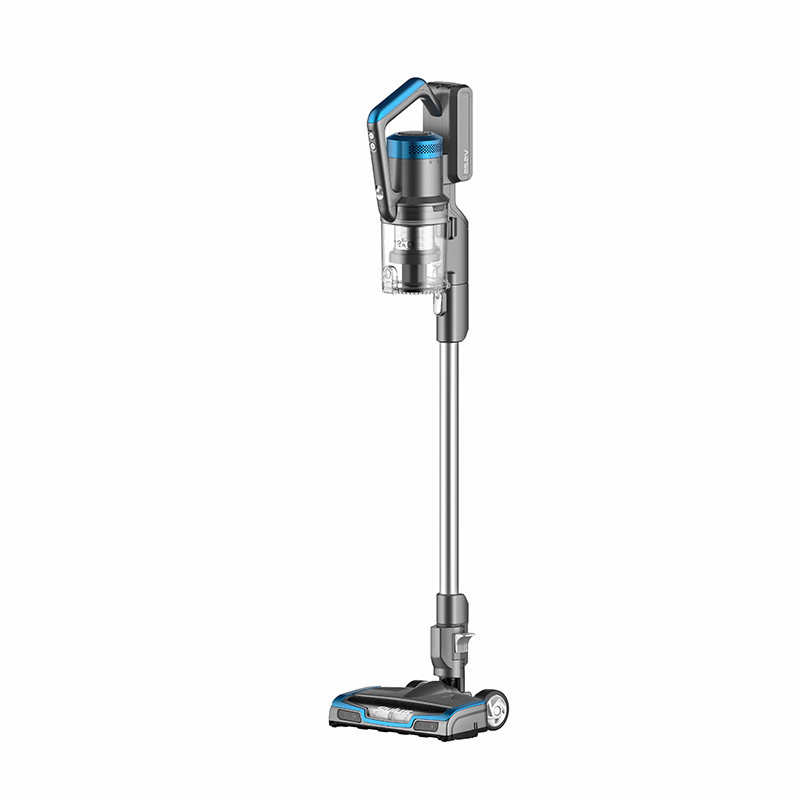

Introducing the Eureka Handheld Stick Vacuum Cleaner NEC 380

The Eureka Handheld Stick Vacuum Cleaner NEC 380 is the perfect solution for quick and easy cleaning around your home. This lightweight and versatile vacuum is designed to provide powerful suction and easy maneuverability, making it perfect for cleaning hard floors, carpets, and above-floor areas. With an estimated price range of $100 to $150 and a launch date set for late 2023, this vacuum is a must-have for anyone looking for a convenient and effective cleaning solution.

What comes in the carton

Eureka Handheld Stick Specifications

• Weight: 4.5 lbs
• Power: 220 watts
• Cord length: 20 feet
• Suction control: 2-speed setting
• Filtration: Washable and reusable filter
• Cleaning path width: 9 inches
• Dust cup capacity: 0.5 liters
• Included attachments: Crevice tool and dusting brush

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER
When using an electrical appliance, basic precautions should always be followed, including the following:

WARNING

• Prevent unintentional starting. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or
  energizing appliance that has the switch on invites accidents.

• Do not touch nozzle when the vacuum cleaner is on. Danger.

• Do not put any object into openings. Do not use with any openings blocked; keep free of dust, lint, hair and anything that may reduce air flow.

• Do not use outdoors or on wet surfaces.

• Do not operate the vacuum cleaner or charger if it has been damaged in any way.

• To avoid excessive heat and damage to the unit or battery, the vacuum cleaner will not operate while charging.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use only as described in this manual. Use only manufacturer’s recommended attachments.

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack”

• Do not pull or carry the charger by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.

• Do not run appliance over cord. Keep cord away from heated surfaces.

• This charger is not intended for use by travelers.

• Do not use extension cords or outlets with inadequate current-carrying capacity for the charger.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

•  Do not handle charger or vacuum cleaner with wet hands.

• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire,

• DO NOT MUTILATE OR INCINERATE BATTERIES. THEY BECOME DANGEROUS AT HIGH TEMPERATURES.

• Liquid ejected from the battery may cause irritation or burns. If the liquid gets on the skin, (1) seek medical attention, (2) wash quickly with soap and water, and (3) neutralize with a mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, 10 minutes.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause

• This product is functioning at temperature range within 40°F – 104°F.

• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F may cause explosion.

• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures

• Outside of the specified range may damage the battery and increase the risk of fire.

• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

• Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

• The terminals on both the vacuum cleaner and battery should be kept free and clean of objects. Do not insert metal objects inside the terminals

• This vacuum cleaner creates suction. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use without filters in place.

• Use extra care when cleaning stairs.

• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

• Store vacuum cleaner and charger indoors in a cool, dry area. To avoid electric shock and/or cleaner damage, do not expose to weather elements.

• Keep your work area well lit. Unplug electrical appliances before vacuuming them.

• Overcharging, short-circuiting, reverse charging, mutilating or incinerating the cells and the batteries must be avoided.

• If a cell ora battery has leaked or vented, it should be replaced immediately using protective gloves.

• If and when necessary, these cells or batteries must be replaced with identical new ones from the same manufacturer. If a cell or a battery to be replaced is connected with other cells or batteries in series, it is recommended that the other cells or batteries be replaced with new ones at the same time.

• Reverse polarity installation of the cell or the battery in the end product must be avoided.

• Do not incinerate this appliance even if it is severely damaged.

• Contact local waste facility before discarding in trash.

How to identify parts of your vacuum cleaner

Easy assembly of Vacuum Cleaner NEC 380

1. Slide wand onto hand vacuum until it clicks.

2. Push wand into motorized floor nozzle until it clicks.

How to install wall mount

• Choose location near power outlet.
  Locate point high enough on wall to allow wand and motorized floor nozzle to hang freely.

• Place mount against wall and use pencil to mark drill holes.

• Drill holes (with 1/4″ bit) and insert drywall anchors. Insert screws through holes on mount and tighten until firmly attached.

How to charge battery and store accessories

• Place assembled vacuum cleaner on wall mount.

• Plug charger into power outlet and then into charger port on handle .

• Loop charger cord into clips on sides of wall mount.

Battery indicator lights show level of charge

• A: Fully charged

• B: Half charged

• Indicator lights stop blinking when fully charged.

• Charge battery fully before using for the first time. This may take up to six hours.

How to use cleaner for cleaning floors

1. Click power button once to start (Fig 1).Vacuum starts on medium mode. Use mode button to switch between modes.



2. Using motorized floor nozzle, glide back and forth on area to be cleaned. Avoid oversized or sharp items (such as screws) with cleaner.

3. Twist wrist to engage swivel function.

4. When done, click power button once to stop motor.

Empty dust cup after every use

1. Click the dust cup release button, located on the front of the handle just above the dust cup and pull dust cup out. (Fig. 2).

2. Press lever to release bottom lid of dust cup to empty debris. (Fig. 2)



3. To place the dust cup back, angle it forward so the lower hook catches in the slot and then gently push it back towards the wand until you hear click indicating it is locked in place. (Fig. 3)

How to use hand vacuum and accessories

CAUTION
Moving parts! Always turn off hand vacuum before attaching accessories.

The hand vacuum can be used with or without tools.

• To use without tools, press release button and remove wand. Collect debris directly with hand vacuum nozzle (Fig. 4).

• To use tools with wand, press release button to remove motorized floor nozzle. Slide tool onto end of wand until it clicks (Fig. 5).

• To use tools with hand vacuum only, press release button to remove wand.

• Slide tool onto hand vacuum until it clicks.

• Use with or without wand.

2-in-1 upholstery tool: Use brush to vacuum blinds, vents or upholstered surfaces. Use felt portion to clean delicate surfaces. To switch between felt and brush portions, press thumb release and slide brush up or down.

How to use hand vacuum and motorized floor nozzle

Ideal for cleaning stairs

• Press release button to remove wand from hand vacuum. directly to hand vacuum until it clicks.

• Click power button once to start. Vacuum starts on medium mode. Use mode button to switch between modes depending on suction power desired.

Description

The Eureka Handheld Stick Vacuum Cleaner NEC 380 is a powerful and versatile cleaning solution that is perfect for quick and easy cleaning around your home. With a lightweight design and swivel steering, this vacuum is easy to maneuver and can reach tight spaces and above-floor areas with ease. The vacuum also features a 2-speed suction control, allowing you to adjust the suction power to suit different cleaning surfaces and tasks. The washable and reusable filter helps to keep maintenance costs low, and the 20-foot cord provides a convenient cleaning radius without the need for frequent re-plugging.

How to maintain your vacuum cleaner

CAUTION: Never operate vacuum cleaner without all filters, filter screen and dust cup in proper position.
WARNING: Moving parts! Recharge cleaner after each use.

Dust cup of Empty after each use

1. Click the dust cup release button, located on the front of the handle just above the dust cup and pull dust cup out.

2. Press lever to release bottom lid of dust cup to empty debris.



Washable dust cup filter clean monthly

1. Click the dust cup release button, located on the front of the handle just above the dust cup and pull dust cup out.

2. Lift out pre-motor filter and shake off dust frequently. Every three months rinse filter and dry THOROUGHLY.



Washable post-motor filter clean every 6 months

1. Twist filter cover and remove.
2. Lift out post-motor filter.
3. Shake to remove dust.
4. Every 6 months, replace filter or rinse and dry THOROUGHLY.

5. Reposition filter and cover and twist to ‘lock.’



How to maintain brushroll

To avoid unnecessary service calls, periodically check brushroll for debris. If brushroll gets clogged it will automatically shut off. Turn vacuum off and unplug before attempting to remove clog.

Brushroll maintenance clean frequently or when brushroll indicator light turns red

1. Place motorized floor nozzle upside down. Use scissors or knife to cut strings and threads

2. If debris cannot be removed easily, remove retainer clip to access brushroll. Using flathead screwdriver or coin, turn screw to the ‘unlock’ position.



3. Remove retainer clip and lift out brushroll to clean and remove debris.
   To reassemble
   • Align one end of brushroll with floor nozzle gear.
   • Press other end into slot.
   • Hook retainer clip under tab and press down.

   • Insert screw and turn to ‘lock’ position.



Eureka Warranty of Vacuum Cleaner NEC 380

Eureka subject to the terms and conditions herein, warrants this vacuum cleaner to be free from defects in material and workmanship for a term of two years from the date of original purchase when used in accordance with the Eureka operating and maintenance instructions and under normal household usage. This warranty is granted only to the original purchaser and members of immediate household, and is applicable only to original purchases from Eureka authorized resellers.

Pros & Cons

Pros

• Lightweight and versatile design
• Powerful suction control
• Swivel steering for easy maneuverability
• Washable and reusable filter
• Affordable price point

Cons

• Small dust cup capacity
• Short power cord
• No height adjustment for carpet cleaning

Eureka Handheld Customer Reviews

Customers love the Eureka Handheld Stick Vacuum Cleaner NEC 380 for its powerful suction, lightweight design, and affordable price point. However, some customers have noted that the dust cup capacity is small and the power cord is shorter than they would like. Additionally, some customers have had issues with the vacuum tipping over when using the hose attachment.

Most Common Complaints about Vacuum Cleaner NEC 380

The most common complaints about the Eureka Handheld Stick Vacuum Cleaner NEC 380 are related to the short power cord and small dust cup capacity. Some customers have also noted that the vacuum can tip over when using the hose attachment.
