Introduction

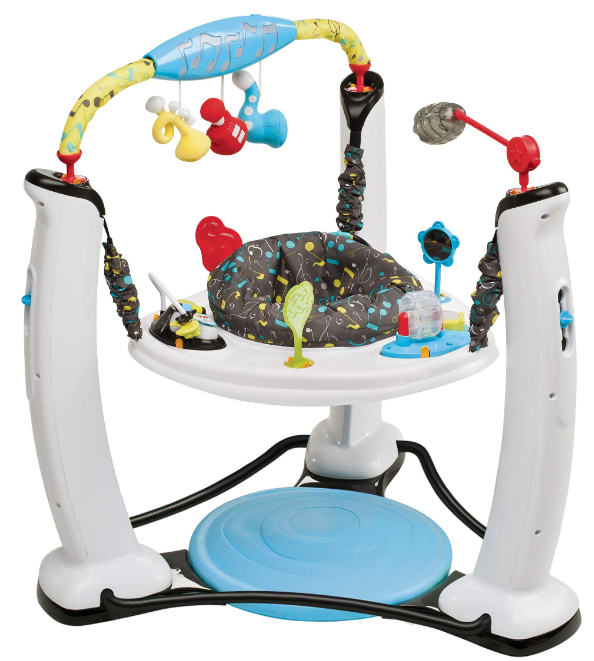

The Evenflo ExerSaucer Activity Centers Jump & Learn is a dynamic baby activity center designed to support learning, physical development, and growth. This multifunctional product serves as a jumper, activity center, and learning station, keeping babies entertained and active. Suitable for children aged 4 to 24 months, the ExerSaucer is known for its durability and comprehensive features. Retailing between $60 to $100, it’s an affordable investment for parents seeking a versatile and engaging activity center for their child.

Visual Glossary

Detailed Specifications

• Adjustable Height Settings: Adaptable for various stages of your baby’s growth.
• 360-degree Rotating Seat: Full access to toys and activities around the baby.
• Detachable Toy Trays: Customizable and easy-to-clean toy trays.
• Bouncing Action: Springs provide a gentle bouncing motion to promote physical activity.
• Interactive Toys: Includes lights, sounds, and music for sensory engagement.
• Storage Basket: Offers space to store toys when not in use.

Product Description

The Evenflo ExerSaucer Jump & Learn features a robust build and a wide base for enhanced stability. The seat rotates 360 degrees, allowing your baby to interact with all the toys seamlessly. Detachable toy trays can be removed for cleaning or replaced with new toys, adding variety to the play experience. The bouncing action helps develop coordination, while the lights and sounds stimulate sensory skills.

Setup Guide

1. Unpack Components: Carefully remove all pieces from the box.
2. Base Assembly: Follow the manual for proper base setup.
3. Seat Installation: Secure the seat using the provided hardware.
4. Attach Toy Trays: Snap the trays into the arms of the seat.
5. Adjust Height: Set the appropriate height based on your baby’s size.
6. Test for Safety: Ensure all parts are firmly attached before use.

Registration Information

Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our online registration at https://www.evenflo.com/registerproduct

WARNING
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

• NEVER leave child unattended. ALWAYS keep child in view while in the ExerSaucer®
• Read all instructions before assembly and use of the ExerSaucer.
• Keep instructions for future use.
• Keep children away from unassembled product.
• Adult assembly required. Take care when unpacking and assembling; contains small parts and some items with sharp edges.
• To prevent a possible choking hazard, remove and immediately discard packing material before using this product.
• STRINGS CAN CAUSE STRANGULATION!
  • DO NOT place the ExerSaucer anywhere near cords from window blinds, draperies, phone, etc.
  • DO NOT place items with a string around your child's neck such as hood strings or pacifier cords.
  • DO NOT suspend strings over product or attach strings to toys.
• NEVER use ExerSaucer near stairs or steps.
• NEVER use ExerSaucer near ranges, radiators, space heaters, and fireplaces or any other hot surfaces.
• NEVER use ExerSaucer in or near swimming pools or other bodies of water.
• DO NOT fill the ExerSaucer tray with water.
• DO NOT adjust height while baby is sitting in ExerSaucer.
• DO NOT use the ExerSaucer if it is damaged, broken, or missing any parts.
• NEVER use as a sled.
• DO NOT allow child to sleep in ExerSaucer.
• DO NOT spin baby in seat. Only permit baby to rotate the seat.
• For use by children who are at least 4 months old AND can hold up their head and neck unassisted.
• FALL HAZARD! Stop using ExerSaucer when your child reaches any of the following developmental stages:
  • Can walk;
  • Is over 30" (76 cm) tall;
  • Can stand flat-footed in the ExerSaucer in the highest adjustment level;
  • Can climb out of the product.
• Allow only the baby's toes to touch the base. DO NOT allow the baby to stand flat-footed on the base.
• DO NOT use or store this product outdoors.• To avoid tin-over nlace nroduct on flat level floor
• DO NOT mix old and new batteries.
• DO NOT mix alkaline and standard (carbon-zinc) batteries. Use only batteries of the same or equivalent type.
• DO NOT dispose of batteries in fire, as batteries may explode or leak.
• DO NOT use rechargeable batteries.
• DO NOT recharge non-rechargeable batteries.
• Promptly remove old batteries from the toy.
• Remove batteries before storing unit for a prolonged period of time.

Tools Required

• Phillips Screwdriver

CAUTION: Tighten all screws until snug; do not overtighten. Use only screws provided.
DO NOT USE POWER TOOLS.

Assembling the ExerSaucer

1. Locate two stabilizer tubes A and one pylon B.  Turn the pylon B upside down and insert one end of eachstabilizer tube A into the bottom of the pylon B, as shown. Make sure both stabilizer tubes are fully inserted into the bottom of the pylon.



2. Insert a foot C into the bottom of the pylon B, as shown. Secure with 0 8-06 25 mom screwe and D,as shown. 8-16 X 18 mm screws E. Tighten all five screws securely but do not overtighten. DO NOT USE POWER TOOLS.
   IMPORTANT: The foot MUST sit completely flat in the bottom of the pylon. If it is raised on either end, then one of the stabilizer tubes is not installed correctly or is not fully inserted. If this is the case, remove the stabilizer tube and reinstall until the foot fits over it correctly.
3. Locate the other two pylons B. One at a time, turn them upside down and completely insert the end of a stabilizer tube A in each pylon, as shown. Make sure the stabilizer tubes are fully inserted into the bottom of each pylon.

4. Locate the third stabilizer tube A and insert into both pylons B, as shown. Make sure the stabilizer tube is fully inserted into the bottom of each pylon.



5. Insert a foot C into the bottom of each pylon B, as shown. Secure each foot with one 8-16 X 75 mm screw D and four 8-16 X 18 mm screws E. Tighten all 10 screws securely but do not overtighten. DO NOT USE POWER TOOLS.
   IMPORTANT: Each foot MUST sit completely flat in the bottom of the pylon. If it is raised on either end, then one of the stabilizer tubes is not installed correctly or is not fully inserted. If this is the case, remove the stabilizer tube and reinstall until the foot fits over it correctly.
6. Place seat ring F upside down and locate the wheel holders G. Snap four seat wheels H into wheel holders, as shown.

7. Turn seat ring F right side up. Align the two triangles on the back of the seat ring with the two triangles on the label on the seat pad I. Snap the plastic tabs J on the pad over the pegs K on the seat ring. Continue this process until all tabs K are attached to all pegs.



8. Press assembled seat L down firmly onto the top of the tray M until it snaps into place and spins freely.
9. Lean the tray assembly N against one of the pylons, as shown.

10. Insert a strap O through a strap slot P in the tray N. Pull the strap completely through the tray making sure the strap anchor Q lies flat against the bottom of the tray, as shown. Repeat for the other two straps.



WARNING
To prevent injury, make sure all three strap anchors are completely inserted and resting against the bottom of the tray.

Adjusting the Height

Evenflo WARNING
During use, allow the baby's toes only to touch the base. DO NOT allow the baby to stand flat-footed on the base. As baby grows and becomes more active, raise the tray to the next level so that baby enjoys the most comfortable fit and maximum use of the spin, and bounce features.

• Discontinue use when baby can stand flat-footed at the highest setting.
• ALWAYS remove baby from ExerSaucer before adjusting. Unlock the adjustment knob A by turning to the right, then moving until the desired height is obtained (there are three positions). Turn the adjustment knob to the left to lock in place. Repeat the adjustment on the other two pylons.

Note: Make sure that all three legs are adjusted to the same position.
IMPORTANT: Always make sure the adjustment knobs are locked in position before placing the child in the activity center.

Attaching the Toys

Care and Maintenance

For Plastic Parts:
Wo seur Pe dean with cloth slightly moistened with mild soap and water. Allow to air dry. If musical toys fail to operate, check the batteries.
Note: ONLY the AAA batteries are replaceable. Dispose of old batteries safely. (SNOT 159 this 3-duct apart or damage, 0601200 (Mising and Call Evento ParentLink at 1-800-233-5921
BATTERY INFORMATION
Battery life varies with use. For best results, use alkaline batteries.
Safety Information: Batteries are small objects. Batteries must be replaced by adults. Follow the polarity (+/-) diagram in the battery compartment.
WARNING

• DO NOT mix old and new batteries.
• DO NOT mix alkaline and standard (carbon-zinc) batteries. Use only batteries of the same or equivalent type.
• DO NOT dispose of batteries in fire, as batteries may explode or leak.
• DO NOT use rechargeable batteries.
• DO NOT recharge non-rechargeable batteries.
• Promptly remove old batteries from the toy.
• Remove batteries before storing unit for a prolonged period of time.
• The supply terminals are not to be short-circuited.

Battery Replacement

To replace batteries, loosen screw and remove battery door. Discard old batteries properly and replace with 3 AAA alkaline or standard batteries. Replace door and tighten screw.

Troubleshooting

• Toy does not turn on or does not respond.
  • Make sure batteries are installed correctly.
  • Make sure battery cover is correctly secured.
  • Install new batteries. Toy makes improper responses.
  • Check or install new batteries.

Warranty

For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user (“Purchaser”) this Product (including any accessories) against defects in material or workmanship. Evenflo’s sole obligation under this express limited warranty shall be, at Evenflo’s option, to repair or replace any Product that is determined to be defective by Evenflo and determined to be covered by this warranty.

Repair or replacement as provided under this warranty is the exclusive remedy of the Purchaser. Proof of purchase in the form of a receipted invoice or bill of sale evidencing that the Product is within the warranty period must be presented to obtain warranty service. This express limited warranty is extended by Evenflo ONLY to the original Purchaser of the Product and is not assignable or transferable to subsequent purchasers or end users of the Product. For warranty service, contact Evenflo https://www.evenflo.com

ExerSaucer  Pros & Cons

Pros

• Versatile Design: Serves multiple functions for entertainment and learning.
• Height Adjustable: Grows with your child.
• Engaging Toys: Features interactive lights, sounds, and music.
• Durable Construction: Built to last with a stable base.
• Easy to Clean: Detachable trays simplify maintenance.

Cons

• Takes Up Space: Requires ample floor space due to its wide base.
• Assembly Required: Initial setup may take some time.
• Parts May Need Replacement: Springs or toys might wear out with extended use.

Customer Reviews

Parents widely appreciate the ExerSaucer for its ability to keep babies engaged and help with physical and cognitive development. The height adjustment and easy-to-clean trays are particularly praised. However, some mention that assembly can be challenging, and parts may require occasional replacement.

Common Complaints

• Complex Assembly: Some parents find setup confusing or time-consuming.
• Durability Issues: A few report springs or toys breaking over time.
