Fanttik Portable Power Station EVO300 Introduction

With the Fanttik EVO300, you can unlock the ultimate portable power solution and have a dependable partner for all your outdoor activities and emergency backup needs. Keeping you connected and energized in any circumstance, the EVO300's efficient and adaptable design makes it ideal for powering gadgets. this power station is perfect for camping trips, outdoor events, or as an emergency backup for your home. Equipped with a 299Wh capacity and multiple output options, the Fanttik EVO300 is a reliable and versatile power solution for various devices and appliances.

PACKAGE CONTENTS

Carefully check package contents, if anything is missing or damaged, please contact online customer service for support.

SPECIFICATIONS

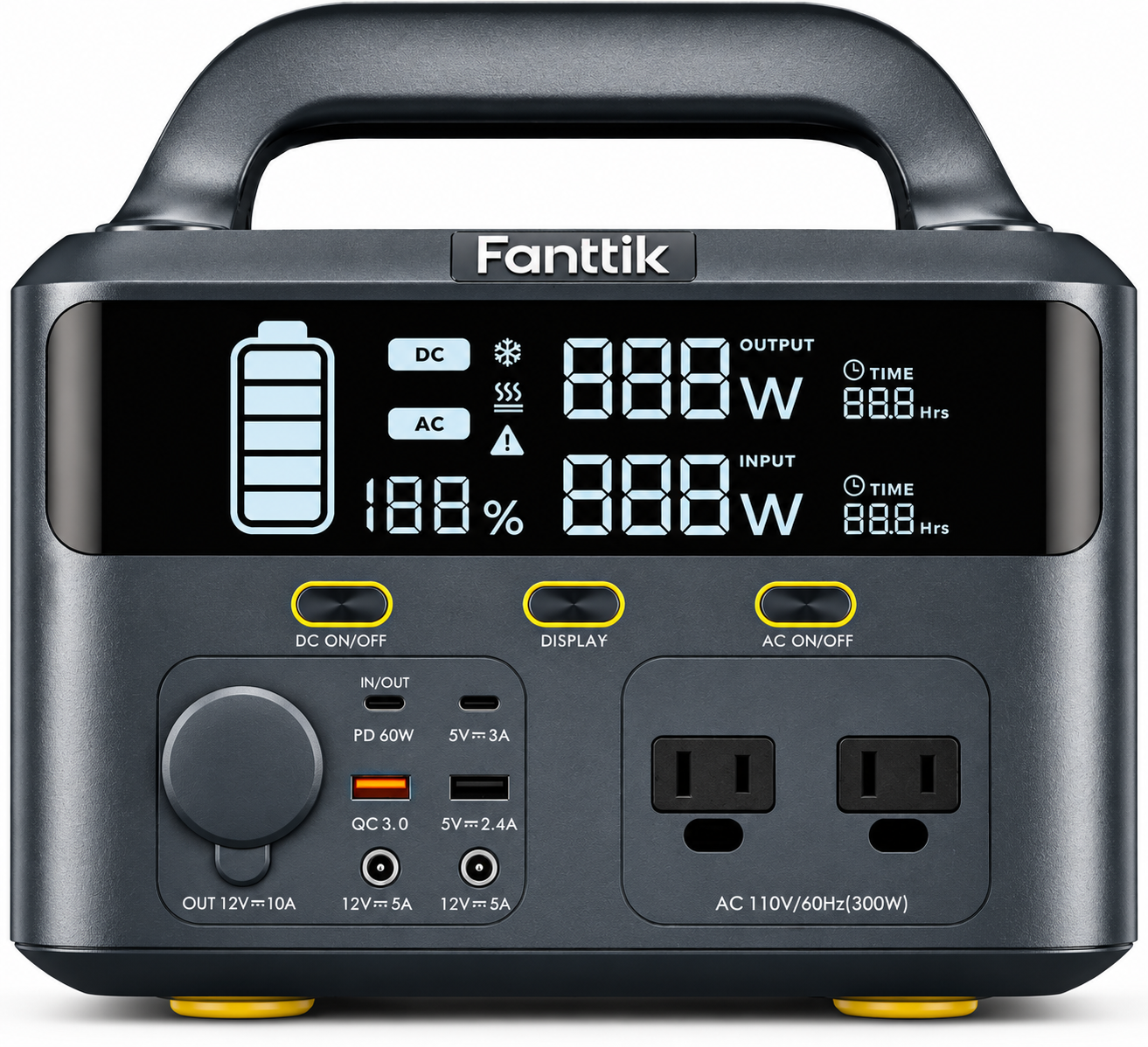

PRODUCT OVERVIEW

1. Display Screen
2. Display Button
3. DC Button
4. 5V/3A Input
5. PD 60W
6. 12V/10A Output
7. QC3.0 Output
8. 12V/10A Output(120W)
9. 5V/2.4A Output
10. AC Output
11. AC Button
12. Handle
13. LED Button
14. Floodlight
15. Anderson Port
16. DC 7909 Input

DISPLAY SCREEN

Description

With a sleek and lightweight design, the Fanttik Portable Power Station EVO300 is incredibly portable, weighing only 7.5 lbs (3.4 kg). Its outer casing is made from fire-resistant materials, providing an added layer of safety. To accommodate different power requirements, the device offers many output options: 1*110V AC, 2*USB-A, 2*USB-C, and 1*12V DC. The EVO300 also has an integrated LCD screen and LED flashlight that provide vital details like input/output power and battery life left.

LED Flashlight

To use the LED Flashlight, simply press the LED switch button to turn it on. There are 3 light modes including an SOS mode.

RECHARGING

Multiple Input choices are compatible for the EVO300 Power Station：

CHARGING DEVICES

EVO300 portable power station is a versatile product with different types of ports. Therefore, it is compatible and capable to charge multiple devices.Please note the EVO300 power station can't support devices rated over 300W.

• USB Port: Smartphone, tablets, smartwaches, digital cameras, E-readers, etc.



• DC Output (12V) : Drones, routers, car refrigerators, etc.



• AC Power : Laptops, displays, appliances, etc.

CHARGING MODES

it is highly recommended to fully charge EVO300 portable power station before activating it to charge other devices. To charge the EVO300 power station, users may choose wall charger, car charger, or solar panel. It may take 4-6 hours to reach a full charge with the included wall charge. (Solar panels’ efficiency might be impacted by weather issues)
Note: Please charge the product before use.

Charge with Solar Panel(not included)

1. Choose suitable solar panel(DC12~30V/120W)
2. Solar panels will perform better in open south-facing locations that get direct sunlight. Simply connect solar panels to your EVO300 portbale power station. 3. When the product is charged fully by the solar, it will stop charging automatically.

Notes

1. Recommended to charge the product under 0~40℃ temperature environment.
2. Charging times varies depending on the intensity of solar light.
3. Make sure that the positive and negative poles of solar panels are connected correctly.

Charge with AC wall Charger

1. Plug the product into socket via the AC wall charger.
2. Please unplug the charger when the recharging is finished.

Note: It is normal for this product to get warm during charging.

Charge the product only after starting the engine

1. Connect the product and the Cigarette Lighter Socket via the Car Cigarette Charging Cable.
2. Charge the product after starting the car.

Note: If the car battery is 12V, the product cannot be fully charged. If the car battery is 24V, the product can be fully charged.

Charge by the USB-C Port (PD60W)

1. Choose a USB-C Power Adapter(not included).
2. Connect the product and adapter through the PD60W Port with the original USB-C to USB-C cable.

Setup Guide

To operate the Fanttik Portable Power Station EVO300, follow these steps:

1. Charge the power station using the provided charger or a compatible solar panel.
2. Press and hold the power button for 3 seconds to turn it on.
3. Connect your device to the EVO300 using the appropriate output port (AC, USB, or DC).
4. Adjust the power output, if necessary, by pressing the "+" or "-" button next to the desired port.
5. To turn off the power station, press and hold the power button for 3 seconds.

Troubleshooting

1. Make sure the power button is turned on.
2. Make sure the AC and DC power button are on.
3. Check the battery capacity, if it’s lower than 10%, please recharge the product as soon as possible.

4. Make sure the load power connected didn’t exceed the limit power of the product, each port has a limit for the power connected.



SAFETY INSTRUCTIONS

IMPORTANT: Noncompliance may very likely lead to serious injury or death

• Do not disassemble, repair or modify the unit or the battery.
• Do not place the unit close to or in a fire or expose it to the heat. Keep out of direct sunlight.
• Do not charge, use or store the unit in a bathroom or in an area exposed to rain or moisture.
• Only use the output socket to power external devices. Never connect the output to mains power under any circumstance.
• Do not touch the unit or the plug-in points if your hands are wet.
• Do not connect any metallic objects to the AC input or output.
• Do not rub your eyes if fluids from inside the unit should get in your eyes.
• Do not dispose the unit together with household waste.
• Do not use any inappropriate power cords.
• Do not operate the unit if it is not functioning correctly.
• Do not move the unit if it is recharging or in use.
• Do not put fingers or hands into the product.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not disassemble the power pack, take it to a qualified service person when service or repair is needed. Incorrect reassembly may result in a risk of fire or electric shock.
• Use and store the unit only in a clean and dry environment. Do not use and store in dusty and wet environment.
• Check the unit prior to every use. Do not use the unit if it is damaged, broken.
• Do not use the unit if the power cord is damaged or broken.
• Keep the unit away from children. Do not let the children use the power supply unit.
• Keep this product away from pets.
• Do not use or store the unit in an area or environment with high temperature.
• Should fluid from inside of the unit come in contact with your skin or clothing, wash the affected areas with tap water.
• In a storm, unplug the power cord from the socket.
• Make sure that the device you are connecting is switched off before you connect
• WARNING: RISK OF EXPLOSIVE GASES.
• To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer of any equipment you intend to use in vicinity of the battery.
• Do not charge the unit via power supply system that operate outside of 100~240V.
• Do not place the unit on its sides or upside down while in use or storage.
• Do not use accessories for other use.
• If rust, peculiar odors, overheating or other abnormal circumstance are observed, stop using the unit immediately and contact the dealer or our customer  support.
• The unit complies with all legal requirements for transport of dangerous goods.
• Make sure that the unit is properly secured when transporting it in a motor vehicle.
• Only charge, use and store the unit within an ambient temperature of 0 to 40℃(32~104℉).
• Switch the unit off immediately if it has accidentally fallen, was dropped or was exposed to vibration. Carefully read the instructions for the electric devices that you intend to connect to your power supply unit.

Pros & Cons

Pros

• Compact and lightweight design
• Multiple output options
• Fire-resistant materials
• Built-in LED flashlight
• Affordable price range

Cons

• Lower capacity compared to some competitors
• No built-in solar panels

Customer Reviews

Customers have left excellent reviews for the Fanttik Portable Power Station EVO300, complimenting its price, portability, and versatility. Its reduced capacity in comparison to other power plants in the same price range has worried some consumers, nevertheless. When selecting a portable power station, it is crucial to take your unique power requirements into account.
