Introduction

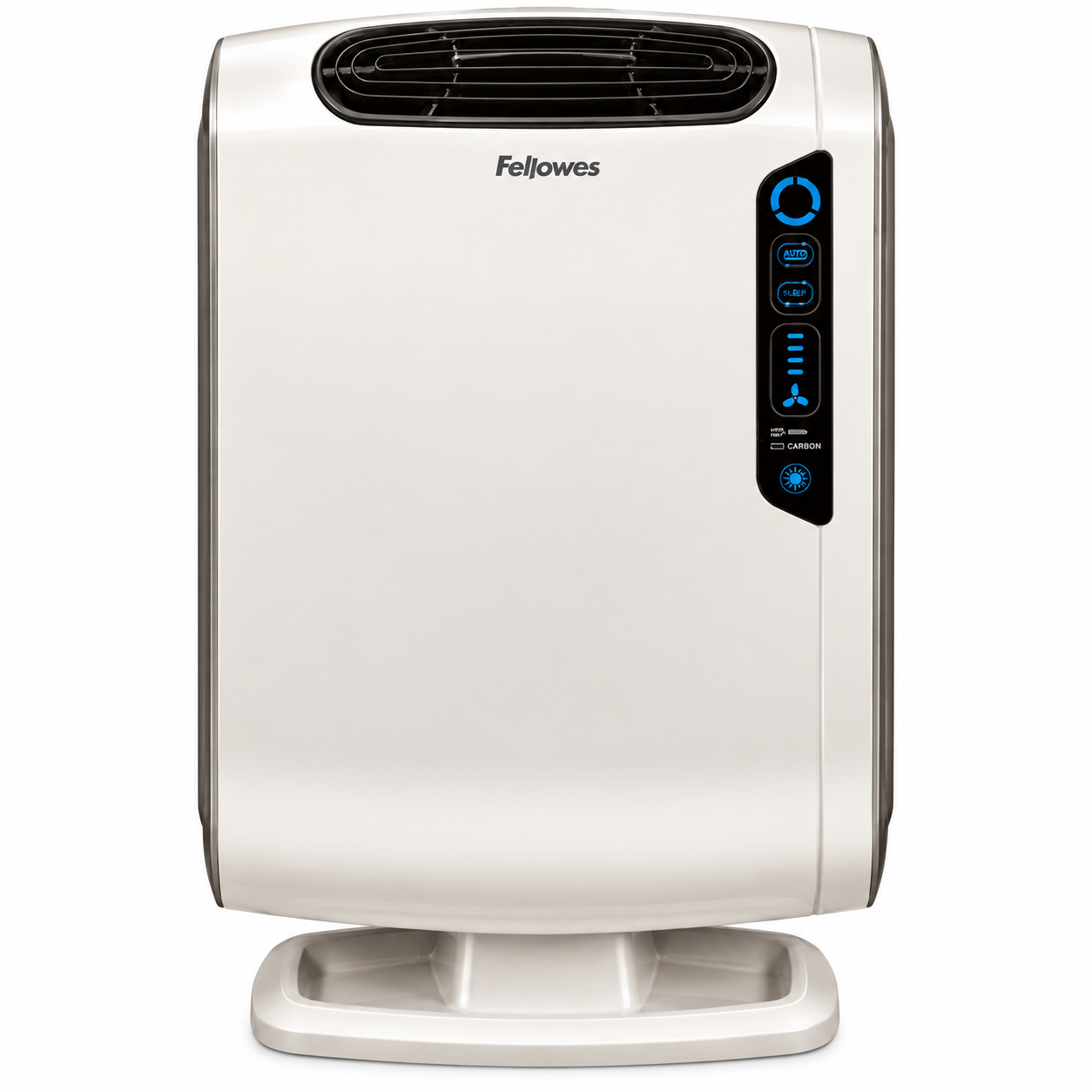

Fellowes AeraMax 200 Air Purifier, which has earned certification from the Asthma and Allergy Foundation of America (AAFA), also has easy filter replacement indicators, an automated fan speed adjustment based on air quality, and an Aera+ Mode for enhanced air turnover during peak allergy seasons. The silent operation and small design of the AeraMax 200 guarantee a healthier living environment.

PACKAGE CONTENTS

• Fellowes AeraMax Air Purifier
• True HEPA Filter with AeraSafe Antimicrobial Treatment (1 filter)
• Carbon Filter (1 filter)
• Instruction Sheet
• Survey Card

PRODUCT SPECIFICATIONS

FILTER SPECIFICATIONS

Fellowes AeraMax 200 Air Purifier Features

• Ultra-Quiet Operation
  This Fellowes AeraMax Air Purifier has a four-speed fan with ultra-quiet operation that is ideal for 24 hour use.
• Easy Maintenance
  For optimum performance, replace the True HEPA Filter when the HEPA Filter indicator has changed to red, or approximately every 12 months under normal usage conditions. Change the Carbon Filter when the Carbon Filter indicator has changed to red or approximately every 3 months under normal usage conditions.
• AeraSmart Sensor
  This air purifier is equipped with an air quality sensor that automatically adjusts the fan speed to keep your air purified. Blue, amber and red lights indicate the purity of your air.
• Four-Speed Setting
  From LOW for quiet, energy-efficient operation to TURBO for the most effective cleaning.
• Aera+ Mode
  Designed for peak allergy season conditions. Increases air turnover rate by 50% versus low fan setting mode to remove even more allergens from your air.
• Replacement Filter Indicator Lights
  Indicate when to replace the True HEPA Filter and Carbon Filter, depending on usage.

FOUR-STAGE PURIFICATION SYSTEM
Removes 99.97% of airborne pollutants.

• Carbon Filter
  Removes odors and captures large airborne particulates.
• True HEPA Filter
  Captures 99.97% of particles as small as 0.3 microns, including ragweed and other allergens, viruses, germs, dust mites, mold spores, pet dander, and cigarette smoke.
• AeraSafe Antimicrobial Treatment
  Built-in protection from the growth of odor-causing bacteria, mildew, and fungi on the True HEPA Filter.

• PlasmaTRUE Technology
  In the final stage of purification, Fellowes PlasmaTRUE Technology creates an ionized field to help safely remove airborne pollutants.



DISPLAY PANEL

1. AeraSmart SENSOR - Monitors the air quality and automatically adjusts the fan speed to keep your air purified. Blue, amber and red lights indicate the purity of your air. The unit is set to default to automatic operation when it is first turned on. If in manual operation, go back to auto at any time by pressing the auto icon.
2. Aera+ MODE - Designed for peak allergy season conditions. Increases air turnover rate by 50% versus low fan setting mode to remove even more allergens from your air. Switch to Aera+™ mode by pressing the  icon. To return to auto operation, press the  icon once more to turn off.
3. FAN SPEED INDICATOR - Shows current fan speed setting: low, medium, high or turbo speed.
4. MANUAL FAN SPEED ADJUSTMENT - Tap fan icon to manually select fan speed.
5. TRUE HEPA FILTER CHANGE INDICATOR - Amber and red lights indicate when to replace filter. The red indicator light will signal when to replace filter. (Recommended to replace filter every twelve months under normal usage conditions.) For replacement filters, see page 4.
6. CARBON FILTER CHANGE INDICATOR - Amber and red lights indicate when to replace filter. The red indicator light will signal when to replace filter. (Recommended to replace filter every three months under normal usage conditions.) For replacement filters, see page 4.
7. PlasmaTRUE TECHNOLOGY - Creates an ionized field to help safely remove airborne pollutants.

Fellowes AeraMax 200 Air Purifier Description

For usage in small to medium-sized rooms, the Fellowes AeraMax 200 Air Purifier is a strong and adaptable air purifier. It has a four-stage filtering system that effectively gets rid of a lot of different kinds of pollutants, such as germs, viruses, smells, and allergies. Additionally, the AeraMax 200 features an integrated air quality sensor that enables it to automatically modify the speed of its fan in response to variations in the quality of the air. This guarantees that your air is constantly clean and fresh and makes it simple to operate.

OPERATION

AUTOMATIC OPERATION
The unit is set to default to automatic operation when it is first turned on. The air purifier will automatically sense the amount of impurities in the air, and adjust the fan speed to keep your air purified.

MANUAL OPERATION
After you turn on the unit, you can switch to manual operation by tapping the fan icon to manually select fan speed.

• LOW, MEDIUM, OR HIGH SETTINGS
   These levels are recommended for standard daytime use. HIGH will activate automatically when sensors detect poor air quality.



• TURBO
  The Turbo level, the highest fan speed, can be activated manually for maximum air purification.



AeraSmart Sensor
Air quality indicator shows levels of air quality.

• The blue level indicates air is clean.
• Amber level indicates air quality is poor.
• The red level indicates high level of pollutants in the air.

Aera+ MODE
After you turn on the unit, you can switch to Aera+ mode by pressing the Aera+ mode icon ( ). To go back to auto operation, press Aera+ mode icon ( ) to turn off.

AIR PURIFIER SET-UP

NOTE: Follow these instructions for best results.

• Place unit at least 2 feet (½ meter) from the wall.
• Keep unit away from drafty areas.
• Keep curtains away from unit, as they may interfere with air intake/outlet.
• Place unit on a stable surface with plenty of air circulation.

1. Remove protective film from the control panel.

2. Pull out drawer.



3. Remove bag from filters drawer.



4. Insert Carbon Filter first and then True HEPA Filter.

5. Fully insert drawer into unit until click is heard.



6. Plug in the power cord to a wall outlet.

7. Turn unit on. Unit will beep.



   For approximately the first 4 minutes after turning the unit on, the auto icon will flash while the unit measures air quality.

8. Adjust louvers to direct air flow.



CARE AND MAINTENANCE

CLEANING

• Clean unit as necessary by wiping with a dry, soft cloth; for stubborn stains, use a warm, damp cloth.
• Do not use volatile fluids such as benzene, paint thinner, or scouring powder, as they may damage the unit surface.

• Keep the unit dry. Filter Replacement



The replacement filter indicators will signal when to replace the True HEPA Filter and/or Carbon Filter. The replacement period will vary depending on the hours of use and air quality. However, under normal usage, most True HEPA Filters need to be replaced annually, and Carbon Filters every three months. Do not wash and reuse the True HEPA  or Carbon Filters—they will not work effectively. Only use Fellowes brand AeraMax replacement filters.

WARNING: Before replacing any filters, make sure to remove the power plug from the wall outlet.

Replacement Procedure

1. Pull out drawer.



2. Pull out the filters that need to be changed.



3. Remove any packaging wrap from the new filter(s).
   For replacement filter part numbers.

4. Place the new filters in the main unit. (Carbon Filter should always be inserted first, then the True HEPA filter into drawer.)



5. To reset the filter light once a new True HEPA and/or Carbon Filter is installed:
   1. Be sure that drawer is closed.
   2. Turn on the unit.
   3. Locate the filter replacement icon on the display panel.
   4. Press and hold the filter replacement icon for 3 seconds until unit beeps. HEPA Filter icon will flash amber. Press filter icon area to alternate between HEPA and Carbon.

   5. Once desired filter is illuminated, press and hold for 3-5 seconds. A short beep will be heard and the light should turn off. Repeat process for each filter as needed.



SAFETY INSTRUCTIONS

Please read this manual carefully before using it. This product is for indoor use only.
IMPORTANT CAUTIONS AND INSTRUCTIONS FOR USING YOUR AIR PURIFIER
WARNING: Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire:

• Do not repair or modify the unit unless specifically recommended in this manual. All repairs should be completed by a qualified technician.
• The plug for this unit is polarized with one blade wider than the other. Do not force the plug into an electrical outlet.
• Do not alter the plug in any way. If the plug does not fit into the outlet, reverse the plug. If it still does not fit, contact a qualified technician to install a proper outlet.
• Do not use if the power cord or plug is damaged or the connection to the wall outlet is loose.
• Use AC 120V only.
• Do not damage, break, forcefully bend, pull, twist, bundle, coat, pinch, or place heavy objects on the power cord.
• Periodically remove dust from the power plug. This will reduce the chance that humidity will accumulate, which increases the risk of electric shock.
• If the power plug is damaged, it must be replaced by the manufacturer or a qualified technician.
• Remove the power plug from the outlet before cleaning the unit. When removing the power plug, grasp by holding the plug itself, never hold by the cord.
• Remove the power plug from the outlet when the unit is not in use.
• Do not handle the power plug with wet hands.
• Do not operate the unit when using indoor smoke-generating insecticides.
• Do not clean unit with benzene or paint thinner. Do not spray insecticides on the unit.
• Do not use the unit where it is humid or where the unit may get wet, such as in a bathroom.
• Do not insert fingers or foreign objects into the air intake or outlet.
• Do not use the unit near flammable gases. Do not use near cigarettes, incense, or other spark-creating items.
• Unit will not remove carbon monoxide emitted from heating appliances or other sources.
• Do not block the intake or outlet vents.
• Do not use near hot objects, such as a stove. Do not use where the unit may come into contact with steam.
• Do not use the unit on its side.
• Keep away from products that generate oily residue, such as a deep fryer.
• Do not use detergent to clean the unit.
• Do not operate without a filter.
• Do not wash and reuse the True HEPA Filter.
• Do not run power cord under carpets or cover with throw rugs.
• When moving machine, always lift using handle.

Troubleshooting

Before you call
Solutions to Common Problems
Review this list before you call for service. This list covers problems that are not the result of defective materials or workmanship.

LIMITED PRODUCT WARRANTY

Fellowes, Inc. (“Fellowes”) warrants the parts of the machine to be free of defects in material and workmanship and provides service and support for 3 years from the date of purchase by the original consumer. If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes’ option and expense, of the defective part.

This warranty does not cover damage caused by the use of non-Fellowes-approved filters or failure to follow the recommended replacement schedule.

Pros & Cons

Pros

• Effective at removing a wide range of pollutants
• Automatically adjusts fan speed in response to changes in air quality
• Sleek, modern design
• Easy to use and maintain

Cons

• May be too loud for some users on higher fan speeds
• Filters may need to be replaced frequently in high-use settings

Customer Reviews

Customers generally have positive things to say about the Fellowes AeraMax 200 Air Purifier. Many praise its effectiveness at removing allergens and improving air quality, and appreciate its automatic air quality sensor and easy-to-use controls. However, some users have noted that the AeraMax 200 can be quite loud on higher fan speeds, and that the filters may need to be replaced frequently in high-use settings. Overall, the AeraMax 200 is a well-regarded and highly effective air purifier that is well-suited to a variety of settings.
