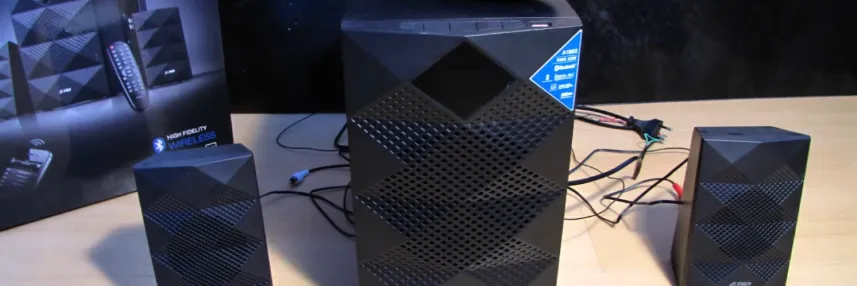

Introducing the Fenda 2.1 Computer Multimedia Speaker A180X

The Fenda 2.1 Computer Multimedia Speaker A180X is a high-quality speaker system designed for use with computers and other multimedia devices. With its powerful 2.1 channel sound and sleek design, the A180X is perfect for gaming, music, and movies. The speaker system is estimated to be priced around $60 and is set to launch in the next few weeks.

SYSTEM COMPOSITION

• Subwoofer unit: 1pc
• Plastic satellite speakers: 2pcs
• Remote control: 1pc
• Operation manual: 1pc
• 3.5mm to RCA stereo cable: 1pc
• RCA to RCA stereo cable: 1pc (optional)

Multimedia Speaker A180X Detailed Specifications

The Multimedia Speaker A180X features a 2.1 channel sound system with a total power output of 18W RMS. The system includes two satellite speakers and one subwoofer, providing clear and crisp sound with deep bass. The speakers have a frequency response of 80Hz-20kHz and an impedance of 4Ω. The system also includes a built-in amplifier and a 3.5mm auxiliary input for connecting to other devices.

• Output power(RMS): 14W+14WX2
  Speaker unit
• Full Range Speaker: 3", Subwoofer: 5.25"
  Frequency response
• Subwoofer: 35Hz-117Hz
• Satellite: 170Hz-20KHz
• Power supply: 120V/60Hz 0.6A
• Signal input: RCA jack
• S/N Ratio:≥70dB
• Separation:≥40dB
  Unit size
• Subwoofer: W173.5XD266XH278.5mm
• Satellite: W98XD80XH161mm
• Net Weight: 3.4kg

FEATURES

• Seamlessly stream music from your iPad, iPhone, Android device, laptop or other Bluetooth-enabled devices. No wires means your mobile devices stay mobile.
• Bluetooth enabled speaker allowed you to stream your music from your smart device.
• USB/FM/AUX you can plays your entire collection with ease

INSTALLATION GUIDE

1. Connect the satellite speaker cable to the output port of subwoofer in respective color port

2. Insert Input signal cable(RCA Socket) into subwoofer input port and the other end with output port of yourAudio/Video system in respective color port.



Safety Instructions

• Do not place the system in the high-temp and humid environment, prevent it from raining or rough handling and strong shock.
• In order to avoid electric shock and other accidents, do not open the right side panel cover for repair without any professional guidance.
• In case fragmaents or other liguids is accidentally sprinkled inside the cabinet, please switch off the power immediately In case of repair pls Come to the professional maintenance for help.
• Switch off the power and take off the plug from the power jack when the system is not on work.
• Keep it safe from water drops or splashing water, and no liquid container allowed to be put on its top side.
• Keep the cabinet vent far from the wall by 20mm at least and the air vent should not be blocked. Do not keep it close to the fire.

Front panel keys Fenda 2.1

1. Standby button
2. Source button
3. Play/Pause/FM auto scan/Bluetooth button
4. Previous button and Volume decrease
5. Next button and Volume increase

Function of Panel keys

• : Turn on/off unit.

• : Switch between BT, AUX, USB and FM mode.



• USB Mode: short press for play/pause music.
• FM Mode: Short press to start Auto Search & this will store the found frequencies (channels) automatically.
• Bluetooth mode: long press entering pairing mode ,display will flash fast short press to play/pause music.
• USB mode: Short press to decrease volume, long press to select previous song.
• FM mode: Short press to decrease volume, long press to select previous stored station.
• Bluetooth mode: Short press to decrease volume, long press to select previous song.
•
  • USB mode: Short press to increase volume, long press to select next song.
  • FM mode: Short press to increase volume, long press to select next stored station.
  • Bluetooth mode: Short press to increase volume, long press to select next song.

Multimedia Speaker A180X Remote control

Remote control keys function

• A. : Turn on/off unit.
• B. AUX, Bluetooth ,USB (For USB Mode) key: short press the keys to switch to respective modes.
• C. : press it to mute or unmute the sound.
• D. : decrease or increase master volume.
• E. Tune +/-: FM mode:
  • Fine Tuning: Short press to increase or decrease one step (100Khz),
  • Manual Tuning: Long press of this key works for Manual tuning.
• F. MEM: Short press of this key work to store tuned station through Fine or Manual tuning.
• G. CH+/-
  FM mode: select stored station.
• H. Scan
  FM mode: Short press to start Auto Search & this will store the found frequencies (channels) automatically.
• I. Enter: confirm selection and return to main screen.
• J. 0~9 number keys:
  • USB source: directly press numeric keys through remote to select your favorite song if you know the song number in the folder.The system will automatically play the last song of the folder if you press number excess of song number of that folder.
  • FM source: directly press numeric keys through remote to select your favorite station if you know the station
    number (1~100). Or press 3 or 4 digits of frequency to play that station, for example, 1026 for 102.6 MHz station.
• K. Play/Pause: USB and BT source, short press to play or pause.
• L. Prev: USB and BT source, short press to select previous song.
• M. Next: USB and BT source, short press to select next song.
• N. Folder A / * : USB source, short press to select next/previous folder.
• O. Reset: short press to go to default settings.

Notice: After switch to Bluetooth source,the unit will automatically search the Bluetooth device and connect it.If the device paired before. If can't find paired device,it will enter pairing mode automatically and theblue LED will flash quickly. Bluetooth device should active "Bluetooth" function during pairing andsearch for "Fenda A180X"

Compatibility: Compatible with Smartphones and tablets supporting Bluetooth (ADP) protocol

Multimedia Speaker A180X Detailed Description

The Fenda 2.1 Computer Multimedia Speaker A180X is a stylish and compact speaker system that is perfect for any desk. The satellite speakers have a glossy black finish and measure just 6.5 x 3.5 x 3.5 inches, making them easy to place on either side of your computer monitor. The subwoofer is slightly larger, measuring 8.5 x 6.5 x 5.5 inches, and can be placed on the floor or on a shelf. The system is easy to set up and use, with clear and intuitive controls for volume, bass, and treble.

Setup Guide A180X

To set up the Fenda 2.1 Computer Multimedia Speaker A180X, follow these simple steps:

1. Connect the satellite speakers to the subwoofer using the included cables.
2. Connect the subwoofer to your computer using the 3.5mm audio cable.
3. Turn on the speaker system using the power button on the subwoofer.
4. Adjust the volume, bass, and treble using the controls on the subwoofer or the remote control.

Troubleshooting

Multimedia Speaker WARRANTY

The warranty will be effective only if the warranty card is completed and returned to the company within 14 days from the date of purchase.We guarantee the provision of free services of * F80 product within the warranty period from its date of purchase from our Authorised Dealer. The period and conditions of our warranty service are as follow:

1. The warranty covers services by our * F80 Authorised Dealer. This warranty card together with the receipt must be presented when servicing is required. This warranty card is irreplaceable in the event of loss.
2. Repair services will be provided for defects arising from normal usage for the following period, commencing from the date of purchase from our f 580 Authorised Dealer. (Parts would be replaced when necessary)
   1. A. Parts: 1 year
   2. B. Technical service free: 1 year

Pros & Cons

Pros

• Powerful 2.1 channel sound with deep bass
• Sleek and compact design
• Easy to set up and use
• Affordable price

Cons

• No Bluetooth connectivity
• Remote control range could be better

Customer Reviews of Multimedia Speaker A180X

Customers have praised the Fenda 2.1 Computer Multimedia Speaker A180X for its excellent sound quality and stylish design. Some have noted that the remote control range could be better, but overall, the speaker system has received positive reviews.
