Introduction

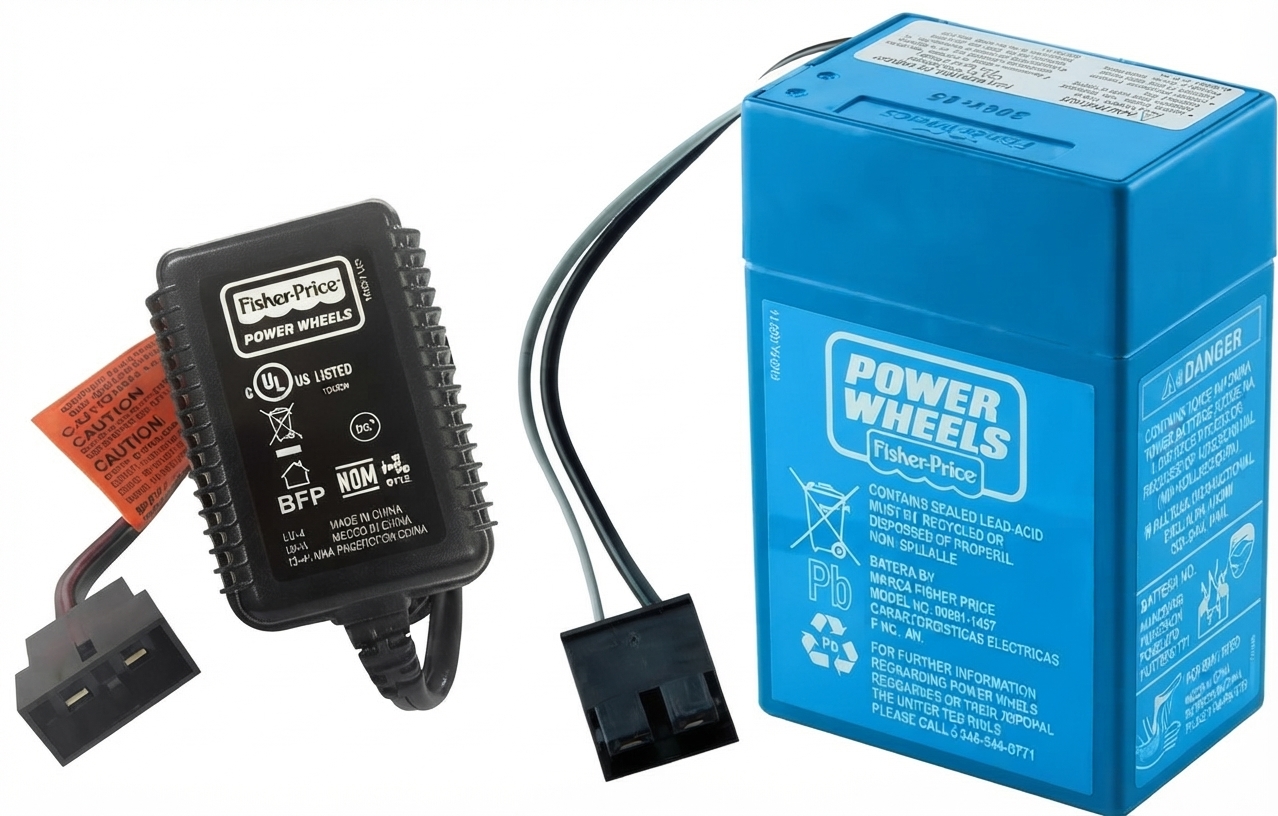

The Fisher-Price Power Wheels Battery P6828 is a high-performance, rechargeable battery designed for use with Power Wheels ride-on toys. This battery is suitable for both 6-volt and 12-volt Power Wheels vehicles, providing endless fun and excitement for your child. With an estimated price range of $40 to $50 and a launching date of January 2021, this battery is a must-have accessory for any Power Wheels owner.

Detailed Specifications

The Fisher-Price Power Wheels Battery P6828 features a 12-volt rechargeable battery with a capacity of 9.5 amp-hours. It comes with a 12-volt battery charger and a 2-year warranty. This battery is designed for use with Power Wheels ride-on toys and is suitable for both 6-volt and 12-volt vehicles. It provides a maximum of 2 hours of continuous use and can be fully charged in 14 hours.

Description

The Fisher-Price Power Wheels Battery P6828 is a high-quality, rechargeable battery designed for use with Power Wheels ride-on toys. This battery is suitable for both 6-volt and 12-volt Power Wheels vehicles, providing endless fun and excitement for your child. With a 2-year warranty and a 12-volt rechargeable battery with a capacity of 9.5 amp-hours, this battery is built to last. The battery charger is easy to use and provides a full charge in 14 hours, ensuring your child's Power Wheels vehicle is always ready for action.

Getting Started

To determine which type of vehicle you own, look at the underside of your vehicle and count the number of motors and gear boxes. (In most cases, the motors and gear boxes are located near the rear wheels.) Refer to the instructions in this booklet specific to your vehicle type.

1. 6 Volt (Standard) Vehicle - One Motor / One Gear Box
   • Requires one Power Wheels 6 volt battery with built-in thermal fuse for operation. See page 4 for further instructions.
2. Super 6 Volt Vehicle - Two Motors / Two Gear Boxes
   • Requires one Power Wheels 6 volt battery with built-in thermal fuse for operation. See page 5 for further instructions.
3. 12 Volt Vehicle - Two Motors / Two Gear Boxes

   • Requires two Power Wheels 6 volt batteries with built-in thermal fuses for operation. See page 5 for further instructions.



Note: We recommend replacing batteries in a 12 Volt vehicle as a set. Use of an old battery with a new battery can shorten battery life and decrease vehicle run time.

6 Volt (Standard) Vehicles Only

Your new Power Wheels battery has a built-in, self-resetting thermal fuse and an A-style connector. The A-style connector on this battery is not immediately compatible with the H-style connectors on your vehicle's motor harness and charger. To join the A-style connector on the battery to the H-style connectors on your vehicle or its charger, you must use the H-STYLE WIRE HARNESS CONVERTER (included).

The H-Style Wire Harness Converter has an A-style connector (black) at one end, and an H-style connector (white) at the other. See "Charging the Battery" on pages 9, 10, 11, 14, and 15 for detailed instructions for using the H-Style Wire Harness Converter to charge your battery and for operation of your 6 Volt (Standard) vehicle.

Super 6 and 12 Volt Vehicles

What Type of Motor Harness Connector Does Your Vehicle Have?

If your Super 6 Volt or 12 Volt vehicle is equipped with a white, H-style motor harness connector, do not charge this battery or install it in your vehicle. Do not use the H-Style Wire Harness Converter that came with this battery.

WARNING: Prevent Fires and Injuries Take your vehicle to a Power Wheels authorized service center to replace the electrical connectors and repair the wiring.

Remove any old battery(ies) from your vehicle and call Power Wheels® Consumer Affairs toll-free at 1-800-348-0751 for important information regarding a recall which affects your vehicle’s electrical system. Fisher-Price® will provide information and materials to upgrade your vehicle’s entire electrical system, free of charge.

If your vehicle's motor harness connector is equipped with a connector cover as pictured above this battery is not immediately compatible with the connectors on your vehicle's motor harness and charger. To join the connector on this new battery to your vehicle's motor harness or charger connector, you must use the H-STYLE WIRE HARNESS CONVERTER (included). You must also remove the black connector cover from your old battery(ies) and re-assemble it on the H-style end of the H-Style Wire Harness Converter. See page 6 for detailed instructions on removal and re-assembly of the connector cover(s).

If your vehicle has a connector that looks like the one pictured above, this battery is ready for use in your vehicle. See pages 9, 10, 13-15 for battery charging information.

Motor Harness Connector with Blue Cover

Your new Power Wheels® battery has a built-in, self-resetting thermal fuse and an A-style connector. The A-style connector on this battery is not immediately compatible with the H-style connectors and connector covers on your vehicle's motor harness and charger. To join the A-style connector on this battery to the H-style connectors and connector covers on your vehicle or its charger, you must use the H-STYLE WIRE HARNESS CONVERTER (included).

The H-Style Wire Harness Converter has an A-style connector (black) at one end, and an H-style connector (white) at the other.

The connector(s) on your old battery(ies) should be encased in a black cover. Follow these instructions to remove the black cover from your old battery connector(s) and re-assemble it to the H-style connector (white) on the H-Style Wire Harness Converter. If you have difficulty making this battery compatible with your vehicle’s electrical connector system, please contact your Power Wheels® Authorized Service Center. For the location of the Authorized Service Center nearest to you, please consult the listing in your vehicle Owner's Manual or call 1-800-348-0751.

Super 6 and 12 Volt Vehicles

• Loosen the screws in the black cover lid on your old battery connector using a Phillips screwdriver.
• Remove the screws, cover bottom and lid, and flexible tube from the old battery’s connector.

• Dispose of the used battery properly. See page 15 for important information.



Note to 12 Volt Vehicle Owners

Your vehicle requires two batteries and H-Style Wire Harness Converter for operation. Stack the two H-style connectors on the H-Style Wire Harness Converter (one included with each new battery) and press to join. (See inset.)

• With the Power Wheels® logo(s) facing up, fit the H-style connector(s) on the converter(s) into the black cover bottom. Firmly press the H-style connectors into the black cover bottom.



• Open the flexible tube along its side seam and fit the wire harness converter wires inside the tube.

• Do not slide the tube all the way down to the black cover bottom.



• Count up three rings from the bottom of the flexible tube. Fit the notch in the black cover lid around the tube near the third ring.



• Lower the black cover lid onto the black cover bottom and press into place.
• Insert the screws into the black cover lid and tighten with a Phillips screwdriver. Do not over-tighten.

• Pull on the flexible tube to make sure it is secured inside the black cover.  If the tube slides away from the black cover, remove the screws and black cover lid and repeat steps 3 through 5. Conversion of the H-Style Wire Harness Converter is complete.



See battery charging instructions on pages 9, 10, 12, 14, and 15. If you’ve purchased extra batteries and need additional black cover lids, bottoms, flexible tubes, or screws, please call Power Wheels® Consumer Affairs at 1-800-348-0751.

Setup Guide

To set up the Fisher-Price Power Wheels Battery P6828, follow these steps:

1. Insert the battery into the Power Wheels vehicle.
2. Connect the battery to the vehicle's electrical system.
3. Plug the battery charger into a standard electrical outlet.
4. Connect the battery charger to the battery.
5. Charge the battery for 14 hours before the first use.

Charging the Battery

WARNING PREVENT FIRE!

• Never alter this vehicle or its electrical system in any way. Alterations could cause a fire resulting in injury and could also ruin the electrical system.
• Use of the wrong type battery or charger could cause a fire or explosion, resulting in serious injury.
• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid (electrolyte). Dropping the battery could result in serious injury.
• Never lift or carry the battery by the wires or connector. This can damage the battery and possibly cause a fire resulting in injury. Lift and carry the battery by the case only.
• Never allow children to charge the battery. Battery charging must be done by adults only. A child could be injured by the electricity involved in charging the battery.
• Examine the battery, charger, and their connectors for excessive wear or damage each time you charge the battery. If damage or excessive wear is detected, do not use the vehicle until you have replaced the worn or damaged part as it could possibly cause a fire resulting in injury.

About Thermal Fuses

This Power Wheels® battery is equipped with a built-in, self-resetting thermal fuse. The thermal fuse is a safety device which automatically "trips" and shuts down the operation of the vehicle if the vehicle is overloaded or the driving conditions are too severe. Once a fuse has "tripped," it will automatically reset itself after approximately 25 seconds and allow the vehicle to resume normal operation. To avoid repeated automatic shutdowns, do not overload the vehicle by exceeding the maximum weight capacity as listed in your Owner's Manual or by towing anything behind the vehicle. Avoid severe driving conditions, such as driving up very steep hills or running into fixed objects, which can cause the wheels to stop spinning while power is still being supplied to the motors. If a new thermal fuse continually trips, please contact your local Power Wheels® Authorized Service Center. For the location of the Authorized Service Center nearest to you, please consult the listing in your vehicle Owner's Manual or call 1-800-348-0751.

To Charge

• Before charging a battery, examine the battery case for cracks and other damage which may cause sulfuric acid (electrolyte) to leak during the charging process. If damage is detected, do not charge the battery or use it in your vehicle. Battery acid is very corrosive and can cause severe damage to surfaces it contacts.
• Do not charge the battery on a surface which could be damaged by the acid contained inside the battery. Take precautions to protect the surface on which you charge the battery.
• Use only the Power Wheels® charger that came with your vehicle, or a replacement Power Wheels® charger of the same specifications, to charge your Power Wheels® batteries.
• The battery must be upright while charging.

6 Volt (Standard) Vehicles

• Use the H-Style Wire Harness Connector (included) to bridge the connectors on your battery and charger. Plug the A-style connector on the wire harness converter into the A-style connector on the battery. Plug the H-style connector on the other end of the wire harness converter into the H-style connector on your charger. Make sure all connectors are completely joined.
• Plug the charger into a standard wall outlet. Charge the battery for at least 18 hours, but not longer than 30 hours. Note: If power flow to the wall outlet is controlled by a switch, make sure the switch is ON.
• Once the battery is charged, disconnect the battery and charger connectors and unplug the charger from the wall outlet.
• Use the H-Style Wire Harness Converter to connect the battery to your vehicle's H-style motor harness connector, too. Leave the A-style connector on the wire harness converter plugged into the connector on the battery. Plug the H-style connector on the other end of the wire harness converter into your vehicle's motor harness connector. Consult your vehicle Owner's Manual for detailed battery installation, vehicle operation and use instructions.

Super 6 and 12 Volt Vehicles with Connector Covers

• Use the H-Style Wire Harness Converter included to bridge the connectors on your battery(ies) and charger. Plug the A-style connector on the wire harness converter into the A-style connector(s) on your new battery(ies). Plug the H-style connector (with black cover) at the other end of the wire harness converter into the H-style connector cover (with white cover) on your charger. Make sure all connectors are completely joined.
• Plug the charger into a standard wall outlet. Charge the battery for at least 18 hours, but not longer than 30 hours. Note: If power flow to the wall outlet is controlled by a switch, make sure the switch is ON.
• Once the battery is charged, disconnect the battery and charger connectors and unplug the charger from the wall outlet.
• Use the H-Style Wire Harness Converter to connect the battery(ies) to your vehicle's motor harness connector, too. Leave the A-style connector(s) on the wire harness converter(s) plugged into the connector(s) on the battery(ies). Plug the H-style connector (with black cover) on the other end of the wire harness converter into your vehicle's motor harness connector (with blue cover). Consult your vehicle Owner's Manual for detailed battery installation, vehicle operation, and use instructions.

Super 6 and 12 Volt Vehicles with A-Style Connectors

• Plug the battery and charger connectors together. Make sure the connectors are completely joined.
• Plug the charger into a standard wall outlet. Charge the battery for at least 18 hours, but not longer than 30 hours. Note: If power flow to the wall outlet is controlled by a switch, make sure the switch is ON.
• Once the battery is charged, disconnect the battery and charger connectors and unplug the charger from the wall outlet. Consult your vehicle Owner's Manual for detailed battery installation, vehicle operation, and use instructions. Note: Discard the H-style Wire Harness Converter included with this battery. It is not for use with Super 6 or 12 Volt vehicles equipped with A-style connectors.

Battery Use and Care

• If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal.
• If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician.
• If acid is internally ingested, give water, milk of magnesia, or egg whites immediately and call a physician. Never give emetics or induce vomiting. Call a physician.
• Charge a new battery for at least 18 hours before you use it in your vehicle for the first time. Never charge the battery longer than 30 hours. Overcharging or undercharging the battery may shorten battery life and decrease vehicle running time.
• After the first charge, recharge the battery after each use for at least:
  • 18 hours for a 6 Volt (Standard) vehicle;
  • 14 hours for a Super 6 or 12 Volt vehicle.
• You do not need to remove the battery from your vehicle to recharge it.
• The charger is not a toy.
• The battery must be upright while charging.
• Do not short circuit the battery's supply terminals.
• Do not allow the battery to run down completely before charging.
• Charge the battery before storing the vehicle.
• Charge the battery at least once per month, even if the vehicle has not been used.
• Leaving the battery in a discharged condition will ruin it.
• Always remove an exhausted battery from the vehicle. Battery leakage and corrosion can damage the vehicle.
• Do not store the battery on a surface which could be damaged by the acid contained in the battery. Take precautions to protect the surface on which you store the battery.
• Do not store the battery in temperatures above 75° F or below -10° F.
• Prevent the battery from moving freely inside the battery compartment. Always use the battery retainer to secure the battery in the battery compartment.
• Examine the battery, charger, and their connectors for excessive wear or damage each time you charge the battery. If damage is detected, do not use the charger or the battery until you have replaced the worn or damaged part.

CAUTION: Use the charger in dry locations only.

• Never alter this vehicle or its electrical system in any way. Alterations could cause a fire resulting in injury and could also ruin the electrical system.
• Use of the wrong type battery or charger could cause a fire or explosion, resulting in serious injury.
• Use of Power Wheels® components in products other than Power Wheels® vehicles could cause overheating, fire, or explosion.
• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid (electrolyte). Dropping the battery could result in serious injury.
• Never lift or carry the battery by the wires or connector. This can damage the battery and possibly cause a fire resulting in injury. Lift and carry the battery by the case only.
• Read the cautions on the back panel of the battery.
• Never allow children to charge the battery. Battery charging must be done by adults only. A child could be injured by the electricity involved in charging the battery.
• Examine the battery, charger, and their connectors for excessive wear or damage each time you charge the battery. If damage or excessive wear is detected, do not use the vehicle until you have replaced the worn or damaged part as it could possibly cause a fire resulting in injury.

Troubleshooting

Common problems with the Fisher-Price Power Wheels Battery P6828 include a weak battery, a faulty charger, and a damaged electrical system. To troubleshoot these issues, try the following solutions:

• Weak Battery: If the battery is weak, try charging it for a longer period of time. If the problem persists, replace the battery with a new one.
• Faulty Charger: If the charger is faulty, try using a different charger or check the outlet for power. If the problem persists, replace the charger with a new one.
• Damaged Electrical System: If the electrical system is damaged, check for loose connections and repair any damage. If the problem persists, replace the electrical system with a new one.

WARRANTY

This 6-month limited warranty covers the Power Wheels® 6 volt battery, purchased from Power Wheels® by the original purchaser, against defects in materials and workmanship.

Pros & Cons

Pros

• 12-volt rechargeable battery with a capacity of 9.5 amp-hours
• Suitable for both 6-volt and 12-volt Power Wheels vehicles
• 2-year warranty
• Easy-to-use battery charger

Cons

• Long charging time (14 hours)
• Limited compatibility with non-Power Wheels vehicles

Customer Reviews about Fisher-Price Power Wheels Battery P6828

"I bought this battery for my son's Power Wheels vehicle and it works great. The charging time is a little long, but it provides a full charge and lasts a long time. I highly recommend this battery." - John D.

"I was hesitant to buy this battery at first, but it has exceeded my expectations. The charger is easy to use and the battery lasts a long time. I would definitely buy this battery again." - Maria S.

The most common complaint about the Fisher-Price Power Wheels Battery P6828 is the long charging time (14 hours).
