Fisher&paykel HP24IDCHX4 Insert Range Hood User Manual

Content

Fisher & Paykel HP24IDCHX4 Insert Range Hood Manual

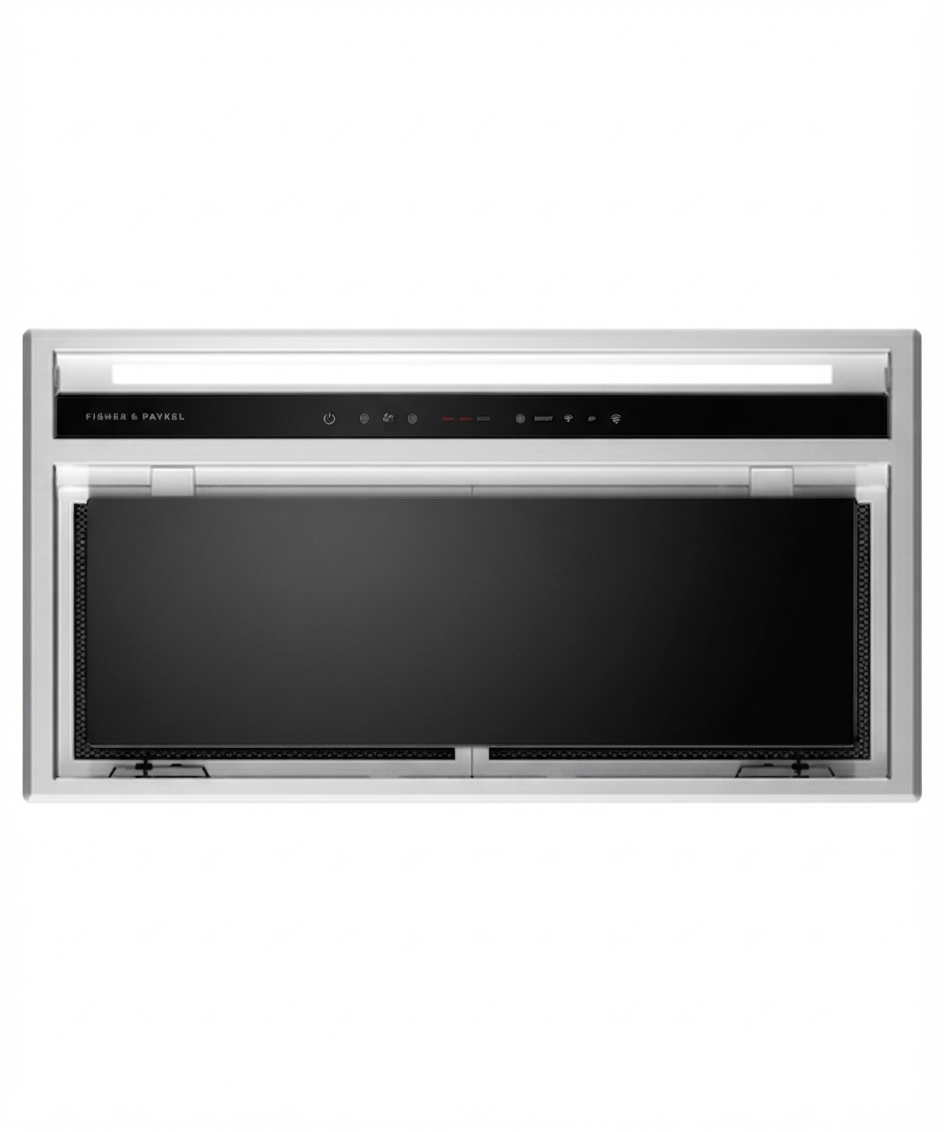

Introduction to the Fisher & Paykel HP24IDCHX4 Insert Range Hood

The Fisher & Paykel HP24IDCHX4 Insert Range Hood is a premium integrated ventilation solution designed for kitchens that need strong extraction without disrupting the cabinetry design. Built to fit neatly inside a custom hood enclosure, this 24-inch insert range hood combines a compact profile, stainless steel construction, and a clean built-in look that suits modern, transitional, and high-end kitchen layouts.

This model is well suited for homeowners, kitchen renovators, and designers who want a concealed range hood with dependable everyday performance. With 400 CFM airflow, perimeter extraction, dishwasher-safe mesh filters, and a three-speed fan with boost, it is built to handle steam, grease, and cooking odors from common stovetop cooking. The HP24IDCHX4 is especially useful in open-plan kitchens where quiet operation and a streamlined finish matter.

Its estimated price range is typically in the mid-premium category, often around the $800 to $1,000 range depending on retailer, region, and promotions. Availability is generally strong through appliance retailers, kitchen specialists, and the Fisher & Paykel dealer network. If you are comparing integrated ventilation options, the Fisher & Paykel HP24IDCHX4 Insert Range Hood stands out for its balance of design flexibility, strong airflow, and simple maintenance.

Specifications for Fisher & Paykel HP24IDCHX4 Insert Range Hood

Product type: 24-inch integrated insert range hood
Air movement: 400 CFM maximum airflow
Fan speeds: 3 speeds plus boost mode
Extraction type: Perimeter extraction for improved capture of smoke and grease
Filter type: Aluminum mesh filters, dishwasher safe
Number of filters: 2
Duct size: 6-inch round outlet
Ventilation type: Ducted with recirculation capability when fitted with optional accessories
Sound rating: About 1 sone on low speed and up to 7.5 sones at maximum output
Power: 120V, 60Hz, 15A electrical requirements
Dimensions: 20 7/8 inches wide, 12 7/16 inches high, 11 inches deep
Minimum installation height above cooktop: 24 inches is recommended in the installation guidance

In comparison with similar insert range hood models, the HP24IDCHX4 offers competitive airflow and a refined integrated design. It is a practical choice for users who want a 24-inch insert hood with strong capture performance rather than an oversized, visible canopy hood.

Troubleshooting Fisher & Paykel HP24IDCHX4 Insert Range Hood

If the range hood does not turn on, check that the unit is receiving power, the circuit breaker is not tripped, and the wall switch or control pad is functioning correctly. If airflow is weak, inspect the filters for grease buildup and confirm that the ducting path is not blocked or crushed.

Problem: Hood will not start. Solution: Verify power supply, breaker status, and control settings.
Problem: Poor extraction. Solution: Clean the filters, confirm proper duct installation, and use a higher fan speed when cooking with high heat.
Problem: Excessive noise or vibration. Solution: Check for loose mounting hardware, duct restrictions, or improper cabinet fit.
Problem: Odors remain after cooking. Solution: Run the hood for several minutes after cooking and clean grease filters regularly.

This model does not typically use consumer-facing error codes in the same way as many electronic appliances, so persistent issues usually point to installation, power, or airflow problems rather than a display fault. Preventive care includes cleaning the aluminum filters every few weeks, checking the ducting annually, and ensuring the hood is installed to the correct cabinet dimensions. Warranty support is generally handled through Fisher & Paykel service channels and authorized technicians. For help, use Fisher & Paykel customer support, an authorized service provider, or the retailer that supplied the unit.

Pros & Cons of the Fisher & Paykel HP24IDCHX4 Insert Range Hood

Pros

Compact integrated design keeps the kitchen looking clean and custom-built.
400 CFM airflow is strong enough for many everyday cooking tasks.
Perimeter extraction helps improve smoke and odor capture.
Dishwasher-safe filters make routine maintenance easier.
Three fan speeds plus boost provide flexible control.
Good value for buyers prioritizing aesthetics and performance together.

Cons

Installation requires accurate cabinet cutouts and proper duct planning.
It may be too compact for very heavy cooking or large commercial-style ranges.
Recirculation may require additional accessories, which can increase total cost.
Noise rises noticeably at maximum speed compared with low settings.

Compared with larger or more powerful alternatives, the Fisher & Paykel HP24IDCHX4 Insert Range Hood is best for users who want a refined built-in appearance and dependable ventilation rather than maximum industrial-level extraction.

Customer Reviews of the Fisher & Paykel HP24IDCHX4 Insert Range Hood

Customer feedback is generally positive, with many users giving it around 4 to 4.5 stars for design, fit, and everyday performance. Buyers frequently praise the sleek integrated look, the easy-to-clean filters, and the solid airflow for standard home cooking.

Common complaints focus on installation complexity and the fact that the hood can sound louder at higher fan speeds. Some users also note that recirculation setups may need extra parts. A typical review says, “It disappeared into the cabinetry beautifully and still clears steam quickly during weeknight cooking.” Another common sentiment is, “Great performance for the size, but make sure the installer follows the measurements exactly.”

For homeowners comparing built-in ventilation options, this model is a strong recommendation if design integration matters as much as extraction performance.

Quick Buyer Guide for the HP24IDCHX4 Insert Range Hood

If you are deciding whether to buy the Fisher & Paykel HP24IDCHX4 Insert Range Hood, focus on three points: cabinet compatibility, ventilation type, and cooking habits. It is an excellent match for custom kitchens, moderate-to-regular home cooking, and users who prefer a hidden appliance finish. It is less ideal for very large cooking surfaces or kitchens that need ultra-high airflow.

Best for: Custom kitchens, integrated cabinetry, and everyday cooking
Not ideal for: Heavy wok cooking, oversized ranges, or low-clearance installs
Key purchase tip: Confirm the cutout dimensions and duct size before ordering
Maintenance tip: Clean filters regularly to preserve airflow and reduce noise

PDF

Faqs

How do I install the fisher&paykel HP24IDCHX4 Insert Range Hood correctly for a new kitchen setup?

Start by confirming the cabinet opening, duct path, and power supply match the installation requirements in the product manual. The fisher&paykel HP24IDCHX4 Insert Range Hood should be mounted securely into a suitable insert housing, with proper clearance above the cooktop and enough room for ducting. For best results, have a qualified installer verify alignment, airflow direction, and electrical connections. A careful first-time installation helps reduce vibration, noise, and airflow loss.

What should I check if the fisher&paykel HP24IDCHX4 Insert Range Hood is not extracting smoke well?

If extraction feels weak, first check whether the grease filters are dirty or clogged, because blocked filters can reduce airflow quickly. Next, inspect the ducting for bends, restrictions, or loose connections that may be limiting performance. Make sure the hood is set to an appropriate fan speed for the amount of cooking smoke. If the unit is recirculating instead of ducted, confirm the carbon filters are installed and not overdue for replacement.

Which cooktops work best with the fisher&paykel HP24IDCHX4 Insert Range Hood for optimal performance?

The fisher&paykel HP24IDCHX4 Insert Range Hood is typically used with standard residential cooktops where the hood can be positioned to capture rising steam, grease, and odors effectively. For best performance, the hood should be wide enough or well-centered over the cooking surface, and installed at the correct height. It works especially well when the cooktop and hood are matched for airflow and ventilation needs, which helps improve smoke capture during everyday cooking.

How do I reduce noise from the fisher&paykel HP24IDCHX4 Insert Range Hood during cooking?

To reduce noise, run the fan at the lowest speed that still clears steam and smoke, since higher speeds naturally create more sound. Check that the hood is installed firmly, because loose mounting can cause rattling or vibration. Smooth, straight ducting also helps lower noise compared with tight bends or long restrictive runs. Cleaning the filters regularly can improve airflow, which lets the hood work more efficiently without needing to run at maximum power.

How often should I clean the filters on the fisher&paykel HP24IDCHX4 Insert Range Hood?

Grease filters should be cleaned regularly, especially if you cook often or prepare oily foods. A good rule is to inspect them monthly and clean them as soon as buildup becomes visible. If the hood uses charcoal or carbon filters for recirculation, those usually need replacement rather than cleaning, and the timing depends on usage. Keeping filters in good condition protects airflow, reduces odors, and helps the insert range hood maintain strong extraction.

Why does my fisher&paykel HP24IDCHX4 Insert Range Hood seem to leave cooking odors behind?

Lingering odors can happen if the hood is not capturing enough air at the source. Check that the hood is centered properly over the cooktop and that the fan speed is high enough for the type of cooking. Grease buildup, dirty filters, or a saturated carbon filter can also weaken odor control. If the kitchen is large or open-plan, you may need to run the hood a little longer after cooking to clear remaining smells.

What maintenance steps help extend the life of the fisher&paykel HP24IDCHX4 Insert Range Hood?

Regular maintenance starts with cleaning the grease filters and wiping the exterior surfaces to prevent buildup. Avoid harsh abrasive cleaners that can damage finishes or controls. Inspect the ducting periodically for leaks or blockages, and replace any worn filters on schedule. Also check that the fan and lighting work properly so small issues are caught early. Consistent care improves airflow, lowers strain on the motor, and helps the hood last longer.

Can the fisher&paykel HP24IDCHX4 Insert Range Hood be used in recirculating mode, and what do I need for that?

Yes, if the installation supports recirculation, the fisher&paykel HP24IDCHX4 Insert Range Hood can be configured to filter and return air to the kitchen instead of venting outside. In that setup, you usually need the correct recirculation kit and carbon filters to reduce odors. Recirculating mode is useful when external ducting is not possible, but it generally removes smoke and grease less effectively than a ducted installation, so filter care becomes even more important.
