Introduction

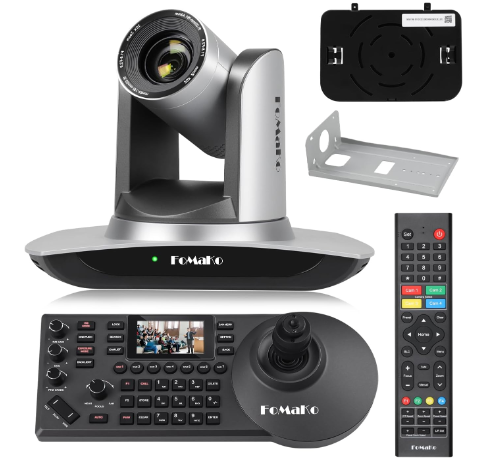

The FoMAKO PTZ Camera with AI Auto Tracking HDMI is a state-of-the-art camera designed for professional use. This camera features advanced AI auto-tracking technology, which can track and follow a moving object with precision. It also supports HDMI output, making it an ideal choice for live events, conferences, and broadcasting. The estimated price of this product is around $500, and it is expected to launch in the market soon.

Detailed Specifications

The FoMAKO PTZ Camera comes with the following key features:

• AI Auto Tracking technology
• HDMI output
• 1080p resolution
• 30x optical zoom
• Pan/Tilt range of 340°/120°
• Supports PoE+ (Power over Ethernet Plus)
• Built-in microphone
• IP66 weatherproof rating
• Supports RS485, RS232, and Pelco-D protocols
• Compatible with VISCA, PELCO-P, and PELCO-D control systems

Attentions

Improper operations may damage the product structure and result in mechanical failure. Please note the following tips:

• Do not move the camera by grabbing the head.
• Move the camera by holding the bottom with one or both hands.
• Please do not rotate the lens and holder manually, whether the camera is powered on or off; otherwise, it may damage the camera structure and result in the failure of camera self-check and the inability to start the camera.

This manual introduces functions, installations, and operations for this PTZ camera in detail. Please read this manual carefully before installation and use.

Cautions

1. Avoid damage to the product caused by heavy pressure, strong vibration, or immersion during transportation, storage, and installation.
2. The housing of this product is made of organic materials. Do not expose it to any liquid, gas, or solids which may corrode the shell.
3. Do not expose the product to rain or moisture.
4. To prevent the risk of electric shock, do not open the case. Installation and maintenance should only be carried out by qualified technicians.
5. Do not use the product beyond the specified temperature, humidity, or power supply specifications.
6. Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent if needed. Do not use strong or corrosive detergents to avoid scratching the lens and affecting the image.
7. This product contains no parts that can be maintained by users themselves. Any damage caused by dismantling the product by the user without permission is not covered by warranty.

Electrical Safety

Installation and use of this product must strictly comply with local electrical safety standards. The power supply of the product is ±12V, and the max electrical current is 2A.

FoMAKO PTZ Camera with AI Auto Tracking HDMI Install

1. Do not rotate the camera head violently, otherwise, it may cause mechanical failure.
2. This product should be placed on a stable desktop or other horizontal surface. Do not install the product obliquely, otherwise, it may display an inclined image.
3. Ensure there are no obstacles within the rotation range of the holder.
4. Do not power on before complete installation.

Magnetic Interference

Electromagnetic fields at specific frequencies may affect the video image. This product is Class A. It may cause radio interference in household applications. Appropriate measures are required.

Camera Introduction

1. Camera Lens
2. Power Light
3. Status Light
4. Infrared Receiver
5. Reserved Mounting Hole
6. Tripod Screw Hole
7. Screw Hole for Tripod
8. Safe Lock
9. 3G-SDI Output Interface
10. HDMI Output Interface
11. USB2.0 Interface (U disk storage)
12. LAN（NDI） Port
13. DC12V Input Power Supply Socket
14. Power Switch
15. Rotary DIP Switch
16. RS232 Control Interface (input)
17. RS232 Control Interface (output)
18. RS485 Input (left +, right -)
19. RS422 Input
20. Audio Input Interface (Line-in)
21. CVBS Output Interface (Reserved)

Interfaces and Connection

1. After power on and self-checking, the camera will automatically return to the preset 0 position if it’s pre-set.
2. The default address for the IR remote control is 1#. If the menu is restored to factory defaults, the remote control address will restore to 1#.

Description

The FoMAKO PTZ Camera is a high-performance camera designed for professional use. It features advanced AI auto-tracking technology, which can track and follow a moving object with precision. This camera supports HDMI output, making it an ideal choice for live events, conferences, and broadcasting. It has a 1080p resolution and a 30x optical zoom, providing clear and sharp images. The pan/tilt range of 340°/120° allows for a wide range of motion, making it suitable for large venues. This camera also supports PoE+ (Power over Ethernet Plus), making it easy to install and use. The built-in microphone and IP66 weatherproof rating make it suitable for outdoor use. It is compatible with VISCA, PELCO-P, and PELCO-D control systems, providing flexibility and versatility.

Mounting Brackets

Notes: Ceiling or wall mounting brackets can only be mounted on a template and concrete wall. For safety reasons, plasterboard is not recommended.

Wall Mounting

Ceiling Mounting

Product Overview

Model

Dimension of FoMAKO PTZ Camera with AI Auto Tracking HDMI

Accessory

Please check below standard and optional accessories when unpacking the box.

RS-232 Interface

RS-232 Interface Definition

RS232 Mini-DIN 8-pin Port Definition

RS232 (DB9) Port Definition

VISCA networking as shown below

Note: The camera has RS232 input and output interfaces, which can be cascaded according to the above methods.

Rotary DIP Switch

Note: After the video format is modified by rotating the dial code, it can take effect after power off and restart. Turn the dial to F, power off and restart, the menu can display the video format.

Main Features

This series of cameras have perfect functions, superior performance, and rich video output interfaces; Featuring advanced ISP processing algorithms, offering vivid and high-resolution video with a strong sense of depth and fantastic color rendition. It supports H.264/H.265 encoding, which makes motion video more fluent and clear under low bandwidth conditions.

• Full HD Resolution: 1/2.8 inch high-quality CMOS sensor. The resolution is up to 1920x1080 with a frame rate of up to 60fps.
• Multiple Optical Zoom Lens: 10X/12X/20X/30X optical zoom lens. The 5X zoom camera is with 72.5°FOV without distortion.
• Leading Auto Focus Technology: Fast, accurate, and stable auto-focusing technology.
• Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
• Multiple Video Output Interfaces: HDMI, SDI, LAN; Simultaneously output audio and video signal via HDMI, SDI, and LAN; SDI output could reach up to 100M with 1080P@60fps
• Multiple Audio/Video Compression Standards: Support H.264/H.265 video compression, up to 1920×1080 resolution 60fps; support AAC, MP3, and G.711A audio compression, 16000, 32000, 44100, 48000 sampling frequency
• Video / Audio Record and Store: USB2.0 interface supports U disk storage, real-time record and store (USB port can't use as USB signal out. If you want to use this camera as a USB camera, you need an SDI/HDMI to USB video capture card)
• Built-in Gravity Sensor: Support PTZ auto-flip function and easy installation.
• Multiple Network Protocol: Support ONVIF, GB28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT, NDI protocols; Support RTMP push mode, easy to be connected to a streaming server (Wowza, FMS); Support RTP multicast mode; Support network full command VISCA control protocol.
• Control Interface: RS422, RS485, RS232 (cascade connection)
• Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
• Quiet Pan / Tilt Movement: With high accuracy step driving motor, the camera can pan / tilt extremely quiet and smooth.
• Sleep function with low power: Support sleep/wake up function with low power consumption, less than 400mw.
• Multiple Presets: Up to 255 presets (10 presets via remote control).
• IR Remote Control: Users can use IR remote control to control the camera, can also do menu settings by HDMI and SDI Connection to display the device. (LAN connection can't use menu setting by IR Remote Control)
• Multiple Applications: Online-education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine.

Technical Parameter

Remote Control

Keys Introduction for IR Remote Control

After the camera starts normally, it receives and executes the infrared command. Press the button of the remote control, the remote control receiving indicator light flashes green, release the button, the indicator light stops flashing. You can use the infrared remote control to perform operations such as preset position setting, positioning, leveling, and tilting.

In this manual, “press the key” means a click rather than a long press, and a special note will be given if a long press for more than one second is required.

When a key combination is required, do it in sequence. For example, “【】+【#】+【F1】” means press “【】” first and then press “【#】” and lastly press “【F1】”.

1. Standby Key
   The camera enters standby mode if long press 3s on standby key; Long press 3s again on the standby key, the camera will self-check again and return to the HOME position (If preset 0 position is set, the camera will return to preset 0 position without operation within 12s).

2. Camera Selection



   • Select the camera address to control.

3. Focus Control



   • Auto: auto focus mode
   • Manual: manual focus mode
   • Focus + (near): Press 【FOCUS +】key (Valid only in manual focus mode)
   • Focus - (far): Press 【FOCUS -】key (Valid only in manual focus mode) Press and hold the keys, the action of focus will keep continue and stop as soon as the key is released.

4. Zoom Control



   • ZOOM +: press 【ZOOM +】key to zoom in
   • ZOOM -: press 【ZOOM -】key to zoom out Press and hold the keys, the action of focus will keep continue and stop as soon as the key is released.

5. Set and Clear Presets



   • Set Preset: press 【SET PRESET button, and then press the number key 0-9 to set preset positions. Note: 10 presets via remote control.

   • Call Preset: Press a number key 0-9 directly to call a preset position.
     Note: If the number key is not preset, it is invalid. Clear Preset: press 【CLEAR PRESET】button, and then press the number key 0-9 to clear preset positions.
     Note : press the【#】key three times continually to clear all presets.



6. Pan/Tilt Control



   • Up: press
   • Down: press
   • Left: press
   • Right: press
   • Back to middle position: press “【HOME】”
   • Press and hold the up/down/left/right key, the pan/tilt movements will keep running, from slow to fast, until it runs to the endpoint; stop as soon as the key is released.

7. Menu Setting



   • 【MENU】: Open / close the OSD menu
   • 【HOME】: Camera lens back to the middle position; Confirm button; Enter next menu
   • 【↑】【↓】：Choose item
   • 【←】【→】：Modify values
   • 【BLC ON/OFF】：Turn on or off the back light compensation

8. Camera Remote Control Address Setting



   • 【*】+【＃】+【F1】:Camera Address No.1
   • 【*】+【＃】+【F2】:Camera Address No. 2
   • 【*】+【＃】+【F3】:Camera Address No. 3
   • 【*】+【＃】+【F4】:Camera Address No. 4

9. Key Combination




   【#】+【#】+【#】: Clear all presets
   【*】+【#】+【6】: Restore factory defaults
   【*】+【#】+【3】: Menu set to Chinese
   【*】+【#】+【4】: Menu set to English
    【*】+【#】+【9】: Flip switch
   【*】+【#】+Auto: Enter aging mode
   【#】+【*】+Auto: Exit aging mode
   【*】+【#】+Manual: Restore the default user name, password, and IP address
   【#】+【#】+【0】: Switch the video format to 1080P60
   【#】+【#】+【1】: Switch the video format to 1080P50
   【#】+【#】+【2】: Switch the video format to 1080I60
   【#】+【#】+【3】:Switch the video format to 1080I50
   【#】+【#】+【4】: Switch the video format to 720P60
   【#】+【#】+【5】:Switch the video format to 720P50
   【#】+【#】+【6】:Switch the video format to 1080P30
   【#】+【#】+【7】: Switch the video format to 1080P25
   【#】+【#】+【8】:Switch the video format to 720P30
   【#】+【#】+【9】:Switch the video format to 720P25
   Note: If the address of former remote control is not address 1 but another one from 2, 3, 4, the corresponding camera address will restore to address 1 when all parameters are restored to factory default. User should change the remote control address to address 1.

Menu Introduction

Note: The modification valid only if exit the menu before save and power off.

1. Menu Control
   【MENU】: Enter / exit the OSD menu or return to the previous menu
   【HOME】: Enter next menu
   【↑】【↓】：Choose item
   【←】【→】：Modify values

2. English Menu



Network Configuration

Network Connection
(Network connection is a little difficult for new users, if you can't get success, please email us: [email protected] , we will email you more detail video or PDF instructions)

• Direct connection: Connect the camera and computer by network connecting cable.
• Internet connection mode: Connect the camera to Internet by Router or Switcher and user can login the device by browser web page.

Note: Please do not put the power cable and network cable in places where can be easily touched, to prevent video unstable signal transmission due to poor contact of cables.

Add network segment method

The computer must have the network segment where the camera IP address belongs to. The device will not be accessible if without the segment.
The camera default IP address is 192.168.5.163, segment 5 must be added in the computer.
Firstly open the window of Local Area Connection Properties on computer, select the “Internet protocol version 4(TCP/IPv4)”. Double click or click the property “Internet” protocol version 4 (TCP/IPv4) to enter into the Internet Protocol Version 4(TCP/IPv4) Properties window; select “Advanced” to enter into the Advanced TCP/IP Setting and add IP and subnet mask. Click the “Confirm” to finish the adding of IP segment. User can add the corresponding network segment according to the revised IP address of the camera.
Note: The IP address to be added cannot be same with that of other computers or devices. The existence of this IP address needs to be verified before adding.
To verify whether the network segment has been successfully added, click the “Start” and select “Operation” to input cmd, then click CONFIRM and open DOS command window, ping 192.168.5.26 and press Enter key to display information as shown below:

After camera power on and self-check, follow the steps above to verify network connection. Open DOS command window, ping 192.168.5.163 and press Enter key.

Web Login

• Web Client Login
  Input the default IP address 192.168.5.163 in the browser and click Enter button to enter into Web Client login page. User can login as administrator and normal user. If login as administrator (Default User name/Password: admin), users can preview, playback, and set configuration in the Web Client; If login in as normal user (Default User name/Password: user1 or user2), users can only preview, playback and logout, no option for configuration. Language Selection: click Chinese/English in the upper right corner of the login page to select the language type of the web interface.
• Web page login
  Enter user name and password, click and Sign (initial default user name and password: "admin", users can change the user name and password on their own after entering) into the Web client management interface.

Streaming

Video Stream Capture

1. Configurations -> Video Configure-> Video Encode



   Configure the parameters according to the network environment.
   Note: stream name live/av0 (live/ XXX)
   For example: The default IP address of the camera is 192.168.5.163. The way to obtain the RTSP video stream is as below rtsp://192.168.5.163:554/live/av0（av0 main stream） rtsp://192.168.5.163:554/live/av1 （av1 sub stream）
   The default IP address of the camera is 192.168.5.163. the way to obtain RTMP video stream is as below rtmp://192.168.5.163:1935/live/av0（av0 main stream） rtmp://192.168.5.163:1935/live/av1（av1 sub stream）

2. Configurations > Network Configure> SRT



   Configure the parameters according to the network environment; the default IP address of the camera is 192.168.5.163, and the way to obtain the SRT video stream is as follows: srt://192.168.5.163:9000

Push Video Stream

Configurations -> Video Configure-> Stream Publish

Push RTMP stream to public network server, the stream camera IP must be on the public network, otherwise it will fail to connect to server.
Host address: server address, which can be either a domain name or an IP address
Host port: server default port number
Stream name: live/test (live/ XXX) Username and password: the username and password set by the server, or leave it empty
Access url：rtmp://host domain name: host port/live/xxx Or (rtmp: //host IP address: host port/live/xxx)

NDI Configuration (for NDI camera only)
Configurations -> Video Configure-> NDI

Click the NDI enable switch and restart the camera to use the NDI function.

Software Upgrading

1. Log in to the web page and manage camera settings. The default page is preview interface, where users cam PTZ control, record video, preset camera positions and etc.

2. Configurations -> System Configure-> Update



3. Click "browse" to select .mrg update file, then click upgrade button to finish software upgrading.
4. Camera reboot after completion of firmware update. It prompts with "successful upgrade". Log in to check the firmware version to make sure software upgrade successful. Then click "restore factory default", reboot and restore parameters to factory default (default IP 192.168.5.163, user name: admin; password admin).

Serial Port Communication and Control

The camera could be controlled through RS232/RS485/RS422 interface; RS232 serial parameter are as follows:
Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None. After power on, the camera first goes left, then back to the middle position. Self-test is finished after the zoom moved to the farthest and then back to the nearest position. If the camera saved 0 preset before, it will be back to that position after initialization. At this point, the user can control the camera by the serial commands.

VISCA Protocol Return Command

VISCA Protocol Control Command

VISCA Protocol Inquiry Command

Note:[X] in the above table indicates the camera address to be operated,【y】=【x + 8】.

Pelco-D Protocol Command List

Pelco-P Protocol Command List

FoMAKO PTZ Camera with AI Auto Tracking HDMI Setup Guide

To set up the FoMAKO PTZ Camera, follow these steps:

1. Mount the camera on a tripod or wall mount.
2. Connect the camera to a power source using the included power adapter or PoE+ switch.
3. Connect the camera to a monitor or TV using an HDMI cable.
4. Connect the camera to a network using an Ethernet cable (if using PoE+).
5. Turn on the camera and use the remote control to adjust the settings.
6. Use the AI auto-tracking feature to track and follow moving objects.

Maintenance

Camera Maintenance

1. Please power off the camera and disconnect the power adapter and socket if it’s not used for a long period.
2. Use a soft cloth or tissue to clean the camera cover.
3. Wipe the camera lens with a soft, dry cloth when cleaning. If needed, gently wipe with a mild detergent. Avoid using strong or corrosive detergents to prevent scratching the lens and affecting video quality.

Troubleshooting

1. No Video Output
   • Check if the camera power supply is connected, the voltage is normal, and the power indicator is lit.
   • Verify if the machine performs a self-check after restarting.
   • Ensure the DIP switch at the bottom is set to the normal operating mode (refer to Table 2.2 and Table 2.3).
   • Check if the video output cable or video display is functioning correctly.
2. No Image Sometimes
   • Verify if the video output cable or video display is normal.
3. Video Dithering When Zooming In or Out
   • Check if the camera installation position is stable.
   • Ensure there are no shaking machines or objects around the camera.
4. Remote Control Not Working
   • Set the remote control address to 1 (if the machine is reset to factory defaults, the remote control address must also be reset to 1).
   • Check if the battery is installed or if it is low.
   • Ensure the menu is closed; camera control through the remote controller is only available after exiting the menu. If video output is from LAN, the menu will not be displayed and will automatically exit 30 seconds later, allowing remote control.
5. Serial Port Not Working
   • Verify the camera serial device protocol, baud rate, and address are consistent.
   • Check if the control cable is connected properly.
   • Ensure the camera is in the normal operating mode.

6. Cannot Log In to Web Pages



   • Check if the camera outputs video normally by connecting directly to a screen.
   • Ensure the network cable is connected properly (Ethernet port yellow light flashes to indicate a normal network cable connection).
   • Check if your computer is added to the same network segment and is consistent with the camera’s IP address.
   • Open a DOS command window by clicking "Start", selecting "Run", and typing "cmd"; then enter ping 192.168.5.163 and press Enter. A response indicates a normal network connection.
7. Zoom/Skype and Other Software Can't Recognize the Camera from PC via USB Connection
   • Most conference software only recognizes USB cameras. The USB port on this camera is only for recording and storing video. To use this camera as a USB camera, you need an SDI/HDMI to USB video capture card to convert the SDI/HDMI signal to a USB signal (HDMI to USB capture card is recommended for cost-effectiveness).
8. Can't Transmit Audio

   • Log in to the camera's webpage -> Configuration -> Audio Configure -> Enable, then reboot the camera. You can also adjust audio settings here.



9. Other Unknown Problems
   • Please email us at [email protected] for assistance with any issues.

Example: Streaming to Facebook

1. Connect the camera to the network and adjust it according to your network environment. You can choose DHCP or set your own IP address and DNS.



2. Create an event on Facebook and obtain the "stream key" and "server URL."



3. Fill these parameters into the "host address" and "stream name" of the camera, and change the port to 443.



Pros & Cons

Pros

• Advanced AI auto-tracking technology
• HDMI output
• 1080p resolution and 30x optical zoom
• Wide pan/tilt range
• Supports PoE+
• Built-in microphone and IP66 weatherproof rating
• Compatible with multiple control systems

Cons

• Higher price point compared to some other PTZ cameras.
• Needs a stable network connection for optimal performance.
