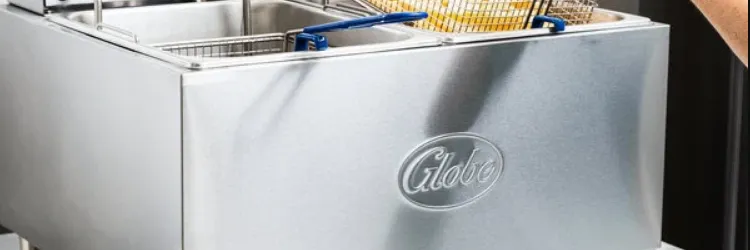

Introduction Of Globe Countertop Electric Fryers PF32E

Introducing the Globe Countertop Electric Fryers PF32E, a versatile and efficient appliance designed to make your cooking experience more enjoyable and convenient. This electric fryer is perfect for home use and is estimated to cost around $100 to $150. Although the exact launch date is not yet announced, it is expected to hit the market soon.

Product Details

• Model: PF32E
• Manufacturer: Globe
• Type: Countertop Electric Fryer
• Capacity: 4 Liters
• Wattage: 1500 Watts
• Voltage: 120V
• Cord Length: 3 feet
• Dimensions: 16.5 x 12.5 x 10.5 inches
• Weight: 9.5 pounds

Installation

UNPACKING

Unpack the fryer immediately after receipt.  If the machine is found to be damaged, save the packaging material and contact the carrier within fifteen (15) days of delivery.  Immediately contact Globe or your local dealer of the equipment.  You have no recourse to damage after fifteen (15) days.
TO AVOID SERIOUS PERSONAL INJURY

• Always install equipment in a work area with adequate light and space.
• Only operate on a solid, level, nonskid surface that is nonflammable and away from sinks and water hazards.
• Do not put fryer on a surface with wheels or casters.
• Do not position fryer where legs/feet will be close to edge of countertop. Legs/feet that extend or fall past edge of countertop can cause fryer to tip. Hot oil can spill which can cause severe burns.
• Never bypass, alter or modify this equipment including legs/feet in any way from its original condition.  Modification of any kind can create hazards and will void the warranty. Only use fryer after legs/feet have been installed per the Installation instructions.
• Never operate the fryer without all warnings attached to unit.

NOTICE: Local codes regarding installation vary greatly by area. The National Fire Protection Association, Inc, states in its NFPA 96 latest edition (see below) that local codes are “authority having jurisdiction” when it comes to requirements for installation of equipment. Therefore, installations should comply with all local codes. Once your electric fryer has been removed from the packaging, be certain that all protective plastics and residues are removed from all surfaces.
PROPER GROUNDING
THIS MACHINE IS PROVIDED WITH A THREE-PRONG GROUNDING PLUG.  THE OUTLET TO WHICH THIS PLUG IS CONNECTED MUST BE PROPERLY GROUNDED.  IF THE RECEPTACLE IS NOT THE PROPER GROUNDING TYPE, CONTACT AN ELECTRICIAN.  DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR  REMOVE THE THIRD GROUND PRONG FROM THE POWER CORD OR USE ANY ADAPTER PLUG

Electric fryer outside covering/containment unit, oils and baskets will be HOT during and after use. Use caution when approaching the unit.
Electrical

• Model PF10E
  The PF10E -120V Fryer is wired to use with a standard 120VAC receptacle and may be plugged in any convenient outlet. (USA only) This unit requires 14.2 amps to produce 1700 watts and should be used on a dedicated circuit.
• Models PF16E & PF32E
  The PF16E & PF32E -208/240V Fryers. (USA only) The PF16E requires 15.8A to produce 2900W-3800W and should be on a dedicated service. (USA only) The PF32E requires 31.6A to produce 5800W-7600W and should be on a dedicated service.

The installation of the fryer must conform to the NATIONAL ELECTRIC CODE AND ALL LOCAL ELECTRIC CODES AND ORDINANCES AND ALL THE LOCAL ELECTRICAL COMPANY RULES AND REGULATIONS. APPROVED FIRE SAFETY AND HOOD SYSTEMS SHOULD BE INSTALLED ACCORDING TO NFPA 96 STANDARDS.
NOTE: Double fryers (i.e. PF32E) have individually controlled heating elements, and dual power supply must be provided.
INSTALLATION AND ASSEMBLY OF THE FRYER

1. Read this manual thoroughly before installation and operation.  DO NOT proceed with installation and operation if you have any questions or do not understand everything in this manual.  Contact your local representative or Globe first.
2. Remove the fryer from the box. Once the fryer has been removed from the packaging, be certain that all protective plastics and residues are removed from all surfaces.
3. Inspect the fryer to ensure all parts have been provided.
4. Select a location for the fryer that has a level, solid, nonskid surface that is nonflammable and away from water hazards or sinks, and is in a well-lighted work area away from visitors.
5. Install the fryer in its location with at least 6'' between the appliance and the walls or other objects.
6. Proper connections and power supply are essential for efficient performance.
7. Make sure that the fryer is installed in a well ventilated area.
8. Make sure to take care in placing the fryer in an area that is open and not underneath a cabinet or any other overhang other than a vent hood.

Warning: This equipment, oil and its contents get EXTREMELY HOT so make sure all flammable/combustible materials are set away from this equipment.
COMMISSIONING
Commissioning of the new fryer is of the utmost importance. Commissioning is the thorough and methodical testing of the equipment, sub systems, and systems to ensure that the final product functions properly and safely at the work site. By identifying any potential problems (i.e.: equipment location, ventilation, local fire/electrical codes, installation, operator training and certification) prior to equipment being placed into service, costly outages and potential damages may be avoided. SAFETY ALWAYS.
Legs/Feet
Install legs/feet by screwing each leg into the threaded openings on the bottom of the fryer. Failure to use legs/feet will void warranty and could cause unsafe conditions.
Leveling
Level unit by adjusting the four legs/feet and tighten securely. The adjustable legs/feet have an adjustment of one inch for lineup with other Globe countertop lines. Check the legs/feet regularly to make sure they are tight. Make sure the work surfaces of the bench/table the fryers sits on are kept clean and maintained to avoid any accidents. Make sure the bench/table is adequately built to hold the weight of the fryer. Empty (without oil/shortening added) PF10E = 16.8 lbs, PF16E = 19.2 lbs, PF32E = 29.2 lbs.
IMPORTANT
Suitable Pans: Use only the fry baskets and fry pot provided with your fryer. DO NOT substitute the baskets or fry pot with any other container.
The fryer electrical head has two locating buttons that need to be aligned

1. Make sure the oil pan is placed into the fryer body evenly, and lower the element into the frying pot bay following the two simple steps . Points A, cradles and guides the head to the fryer body.
   NOTE: Easy push buttons to lock and unlock located on the operator right-side; lift and lower heating element for cooking or cleaning. Point A is the cradle pin guide. Point B determines the position of the head in either the working (Drip Oil) position or the cleaning (Remove Pot) position.
2. Place the electrical head into the supporting cradle brackets placing Points A into the element cradle pin guide; then gently pull the fryer electrical head forward to lock Point B into the first position

NOTE

• Point B allows the fryer head to stay in the raised (Drip Oil or Remove Pot) position, or by pushing and/or depressing the button and holding the insulated element handle, you can also lower the element into the pan and its operating position.
• These steps can be repeated in reverse for cleaning purposes.
• Point B has two level options: Fully raised 90° (Remove Pot position), allows pan to be removed; raised to 75° (Drip Oil position), allows for cleaning and draining oil/fat from the element.
• Make sure the fryer is off. It is now ready to be filled with the appropriate oil/shortening required. For shortening, it is advised to breakdown first to avoid overheating of the element.
• In the “Off” position, the fryer pot can be filled with the heating element up or down. Once the pot is full with appropriate cooking oil, carefully lower the heating element into the pot if up. Make sure the heating element is always fully covered with oil. Once the heating element is fully covered with oil, the fryer can then be turned “On”. Refer to the Operating Instruction in this manual to properly start and operate the fryer.

Safeguards & Safety Operating Instructions

The fryer does not contain any user-serviceable parts. Globe dealers or recommended qualified technicians should carry out repairs if necessary. Do not remove any components or service panels on this product.
DO NOT attempt to spray or pour water in or around the fryer. This is EXTREMELY dangerous as water and oil create a volatile reaction when combined.

Operating Instructions

Operating the Electric Fryer
Make sure all fryer parts are always cleaned thoroughly before use. Detergents can be used to break down cooking oil and ensure adequate cleaning. For further cleaning instruction, refer to the cleaning section of the manual.

Fryer Operation

1. Fill the pan with oil, fat or shortening until level indicator line is reached.
   1. Your choice of oil/fat will influence the quality of products cooked in the fryer. It will also influence the life of the oil/fat. Please be sure to regularly change oil/fat to maintain best cooking results and to avoid the breakdown down of oil/fat which will eventually lead to the oil igniting. - A non-golden color or dark, burnt areas on food may indicate that the oil/fat needs to be changed.
   2. If solid shortening is used, pack the fat around the heating element and set the thermostat between 200°F and 250°F. This will ensure the fat heats slowly and covers the element. Failure to do so will trip the Hi Limit protection switch.
   3. It is recommended that for preparation heat up, each day, fat is brought up to temperature steadily, particular when solids fats/shortening is used.
   4. Make sure oil/fat levels are maintained according to the indication marks in the pan. Over filling the oil pans will result in over flow from surge boiling once food product is lowered into the pan for cooking.
2. After proper oil/fat levels are obtained, make sure the heating element is lowered into the oil, turn the unit “On” and set the thermostat dial for desired cooking temperature. - While preheating, the amber light will stay on. When the selected temperature is reached, the indicator light will go out.
3. Once the oil/fat has reached the desired temperature, the baskets with food product can be lowered carefully into the oil/fat.
4. Only fill the baskets half way to ensure the best cooking results and to avoid surge boiling that can result in injury The fryer is thermostatically controlled and will operate according to the desired temperature setting, ensuring temperatures are maintained through cooking cycles. The fryer does not come equipped with a timer; make sure to observe fryer while cooking each product every time or use a regular cooking timer, record and repeat your data for cooking of your food products

5. Once the food is cooked, carefully lift the baskets from the oil/fat  and allow the baskets to rest on the supports This will allowany excess oil/fat to drain back into the oil pan.




   NOTE: If the temperature of the fat should get too high or if the elements are left “ON” in the raised position, or while cleaning, the “HI LIMIT” control will turn off the unit. If this occurs, turn the thermostat to “OFF” position, allow the fryer to cool and press the reset button on the back of the control box. To gain access to reset button, unscrew cover on back of control box. After resetting the unit, to protect reset button during operation, reinstall the cover over the reset button by screwing it back on control head. Normal operation can be resumed

NOTE: If the Hi Limit continually turns off the unit, please refer to the troubleshooting guide.
Low Usage / Between Frying
IMPORTANT: Turn fryer temperature down to 200°F between product frying to avoid burning oil and causing the fryer to be manually reset.

• For nightly shut-down or non-use storage, make sure to turn the unit “Off” and dial the thermostat to the “Off” position.
• Let the fryer and oil cool.
• Once cool, it may be necessary to cover the top of the fryer with a fryer cover/night guard. Fryer covers are an accessory that can be purchased separately through your fryer supplier or dealer.

Helpful Hints - Oil Deterioration

Signs of Oil Deterioration

• Oil darkens with use because the oil and food molecules burn when subjected to high / prolonged heat.
• The more an oil batch is used, the slower it will pour. Oil viscosity changes because of its molecular structure.
• Loose absorbent particles accumulate as sediment at the bottom of the fryer storage container or are suspended in the oil.
• When smoke appears on the oil’s surface (before the temperature reaches 190° C / 375°F) the oil in the fryer will no longer ef fectively deep fry food products.
• When the oil in your fryer omits a foul odor or if the oil smells like the food fried/cooked in it, the oil should be carefully discarded.

How to Safely Reuse oil

• Strain oil through a few layers of cheese cloth to catch any food particles. Only do this once the oil has cooled. DO NOT attempt to do this when the oil is in use or directly after.
• Shake off excess batter from food before putting into the fryer. This will reduce the amount of excess food particles
• Turn off the heat to the fryer once cooking is complete. Exposing oil to prolonged heat accelerates the life of the oil.
• Store oil in a cool, dark place. Once fryers are off and have cooled, cover the fryer with a guard/cover.
• Avoid iron or copper pots or pans for frying oil that is to be reused. These metals accelerate the life of the oil.

Cleaning Instructions

Caution

• ALWAYS unplug and allow the fryer and the oil to cool before cleaning.
• DO NOT use any cleaning fluids that can be harmful to you, others around you, or the environment.
• DO NOT hose down, immerse or pressure wash any part of the fryer.
• NEVER use a scrubber pad, steel wool or abrasive material to clean the fryer.

ALWAYS DISCONNECT OR UNPLUG THE ELECTRICAL POWER FROM THE FRYER BEFORE CLEANING.

RECOMMENDED CLEANING

CLEANING & MAINTENANCE
The fryer was designed for ease of disassembly and cleaning. The fryer should be cleaned after each day’s operation; however, it may require cleaning more often, depending on the volume of production. A clean fryer performs better and more safely, produces higher quality product and reduces maintenance costs. When cleaning, always consider safety first. Ensure all power is off and the unit has been disconnected from the power source.

1. Turn the thermostat to the “OFF” position, switch the on/off switch off, and disconnect from the power.
2. Allow the oil/fat to cool to a safe handing temperature.
3. Remove fry baskets and clean, using standard dishwashing detergent. Be sure to rinse thoroughly.
4. After the oil has cooled, use the insulated handle on the element assembly to raise heating element(s) to the first stop.
5. Allow the oil/fat to drain for several minutes and then raise heating element(s) to the full raised position. Be sure that the latch has properly engaged
6. Use gloves or pot holders to remove the fry tank and drain the fat. Depending on the oil/fat quality, this can either be replaced of filtered for further use.
7. For detail cleaning, the electrical head can be entirely removed from the fryer body.
   NOTE: The body, baskets and pans are dish machine washable or can be submerged in water for cleaning. Make sure to dry the body, baskets and pans fully before reassembling.
8. To prevent damage to the elements or switch on electrical head, be careful during cleaning.

Safeguards & Safety Instructions

When using electrical appliances, basic safety precautions should always be followed. Follow all safeguards and safety instructions including, but not limited to the following:
TO AVOID SERIOUS PERSONAL INJURY
During and after operation, the fryer reaches/has reached very high temperatures. The oil in the pan and all surfaces will be EXTREMELY HOT. Take extreme caution when operating. Let oil and unit cool before handling.

• DO NOT operate the fryer before reading the instruction manual first.
• DO NOT touch fryer, pot or oil while or after cooking, as all parts become EXTREMELY HOT.
• ALWAYS disconnect or unplug electrical power before cleaning, servicing or adjusting any parts or attachments.
• NEVER bypass, alter, modify or attach any unauthorized parts to this equipment. Doing so can create hazards and will void warranty.
• NEVER operate fryer with a damaged power cord or plug.
• NEVER leave the fryer on overnight or for prolonged periods of non-use.
• NEVER use the fryer as a heating source for your kitchen, space, or room.
• ALWAYS keep hands, hair and cloth away from heating elements.
• NEVER handle the unit, pot, and oil during and directly after use. ALWAYS allow the unit and oil to cool completely before handling.
• DO NOT use outdoors. For indoor use only.
• DO NOT Overload the frying pot with oil or food product. Hot oil will splatter causing serious injuries and burns.
• DO NOT pull/yank on any cord to disconnect. To disconnect, turn off all controls, then gently remove plug from wall outlet.
• Before handling and cleaning – Switch Off the power and disconnect from the main power. Unit must be unplugged and cool to touch. Allow time for the oil/shortening to cool as well; the unit will be too hot to handle immediately after use.
  Caution: When using electrical appliances, basic safety precautions should always be followed. DO NOT operate fryer if unit appears damaged or malfunctions in any manner. Call customer service for assistance.
• Close supervision is necessary when fryer is being used. Operator must be properly trained on all operational and safety procedures, especially when using near others.
• To protect against electrical shock, do not immerse cord, plugs or appliance in water, liquid or dish machine.
• Unplug the unit when not in use and before cleaning. Allow the unit and oil to cool before moving or cleaning.
• The use of any accessories or cooking pans, which are not recommended by the manufacturer, can cause fire or injuries.
• Do not allow power cord to hang over edge of table or counter, or to touch hot surfaces.
• Do not place the fryer in, on, or near open flames, electric burners, heated ovens, or other high temperature equipment or surroundings.
• Do not use fryer for anything other than frying; use with suitable fryer basket(s) and supervision.
• Globe takes every care to ensure that all products are safe. Steel cutting procedures used to manufacture these items results in sharp edges. These sharp edges are removed to the best of our ability however we insist the operator takes care when in contact with this piece of equipment.
• This unit has been equipped with a thermal cut-off safety device to avoid overheating and oil flash point.
• Do not use if the fryer oil smokes or gets too hot. Turn “Off,” unplug the unit , and have it checked by an authorized servicer.
• ALWAYS BE PREPARED in case of a fire, make sure to have the correctly rated fire extinguisher near by.
• DO NOT put fryer in water, as this will cause permanent damage to unit.

Detailed Description

The Countertop Electric Fryers PF32E is designed with a 4 Liter capacity and a powerful 1500 Watt element that ensures fast and even cooking. The adjustable temperature control and the indicator light make it easy to use, while the cool-touch handle provides a safe and comfortable grip. The removable oil tank and basket make cleaning a breeze, and the compact design allows for easy storage. This electric fryer is perfect for cooking a variety of foods, including french fries, chicken, donuts, and more.

Troubleshooting

Warranty

Globe Food Equipment Company (“GFE”) warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or workmanship for a period of 1 year. The labor warranty is one year from the original installation date or factory shipment date (not to exceed 18 months) whichever occurs first. Unit must be sent prepaid to GFE for repair. No mileage or travel time is paid.

Pros & Cons of Globe Countertop Electric Fryers

Pros

• Adjustable temperature control
• Indicator light for easy operation
• Cool-touch handle for safe handling
• Removable oil tank and basket for easy cleaning
• Compact design for easy storage

Cons

• May take up a lot of counter space depending on the size of your kitchen
• May not be suitable for large families or gatherings
• May produce strong odors when cooking certain foods
• May require frequent oil changes

Customer Reviews of Countertop Electric Fryers

Customers who have purchased the Globe Countertop Electric Fryers have praised its ease of use, fast cooking time, and easy cleaning. However, some customers have complained about the strong odors produced when cooking certain foods and the need for frequent oil changes. Despite these complaints, the majority of customers have given this electric fryer a positive rating and would recommend it to others.
