Gotrax Electric Scooter GXL V2

Introduction

The Gotrax Electric Scooter GXL V2 is a versatile and powerful electric scooter designed for both commuters and recreational riders. Launched in 2020, this scooter has quickly gained popularity due to its balance of performance, durability, and affordability. With an estimated price range of $300 to $400, it offers a compelling option for those looking to upgrade their daily commute or enjoy leisure rides.

The GXL V2 is engineered to handle various terrains, making it suitable for urban environments as well as light off-road adventures. Its robust construction and advanced features make it an excellent choice for riders seeking reliability and comfort. Whether you're navigating through city streets or exploring local trails, the Gotrax Electric Scooter GXL V2 is designed to provide a smooth and enjoyable riding experience.

Specifications

• Motor: 250W Rear Hub Motor
• Battery: 36V 5.2Ah Lithium-ion Battery
• Top Speed: Up to 15.5 mph (25 km/h)
• Range: Up to 9.6 miles (15.4 km) on a single charge
• Weight Capacity: 220 lbs (100 kg)
• Tires: 8.5-inch Pneumatic Tires
• Braking System: Dual Braking System (Hand-operated disc brake and foot-activated brake)
• Dimensions: 42.5 x 17 x 19 inches (folded), 42.5 x 17 x 45 inches (unfolded)

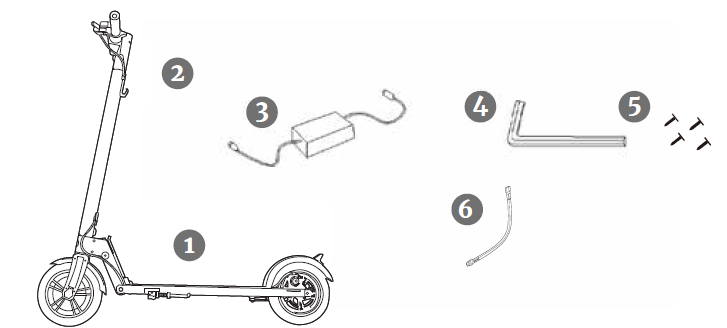

Unpack

You should find each of these items in your box:

1. Ekctric
2. Console &
3. Approved Power Adapter / Charging Unit
4. Albn Wrench
5. Screws
6. Tire Gauge Pipe

Remove all packaging material, then inspect each item for any accidental damage that may have occurred during shipping.

Get To Know Your Scooter

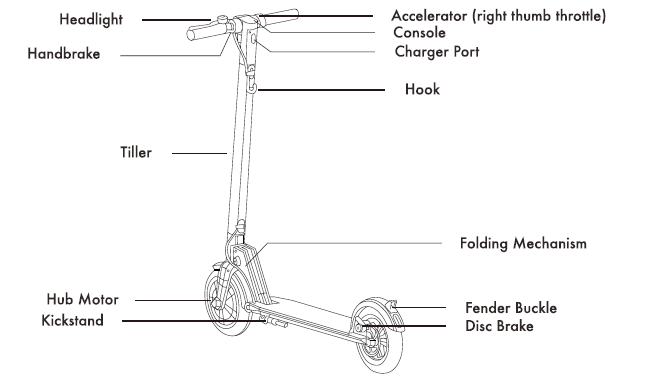

Features

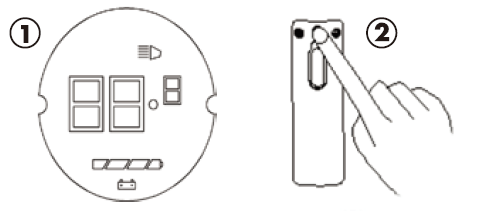

Scooter Console Functions

• To power the scooter on , press and hold the red button for 1 second.
• To power the scooter OR, press and hold the red button for 5 seconds.
• To power the headlight on or off, press the red button for 1 second while the power is on.

The console on the scooter displays speed in MPH, battery life, and the headlight.

When the scooter is powered on, press the power button 3 times to switch the speed unit display. The default speed unit is MPH; the console will display km/h after switching.

Maintenance & Repair

If you regularly clean and maintain your electric scooter, it will extend its life.

Cleaning and storage:
If the scooter is dirty, wipe it clean with a soft, damp cloth.

Brake Adjustments & Service:
If you notice you need brake adjustments or any service on your scooter, contact our customer service team, and we will adjust and repair your scooter. Do not repair your scooter yourself; this can void your warranty, and you risk damaging the scooter.

Tires: If you notice that the tire pressure is low, please fill to the recommended PSI on the side of the tire. Recommended PSI: 50 .DO NOT use alcohol, gasoline, kerosene, or other corrosive chemical solvents to clean the scooter. It can severely damage the appearance and structure of the scooter. Please do not use a pressure washer, as it may also cause damage to the electronics.

Storage: When you're not using your scooter, store it in a dry and cool location. Avoid storing your scooter outdoors because sun exposure can damage its appearance and may cause wear on the life of the battery and tires.

Tightening the Tiller:
If you notice that the tiller is loose or wiggles while riding, you can tighten the screws. Open the plastic cover, and use the Allen wrench to tighten the screws as shown in the figure below.

Battery Information

• Only use the approved Gotrax power adapter to charge your scooter; others may cause risk of fire & equipment may be damaged.
• Improper disposal of used batteries may seriously pollute the environment. Please comply with local disposal regulations.
• Make sure to store your scooter and power adapter in conditions that do not exceed 122 degrees Fahrenheit or below -4 degrees Fahrenheit.

Warning - Risk of Fire - No User Serviceable Parts. The prolonged exposure to UV Rays, Rain, and the Elements may damage the enclosed materials. Store indoors when not in use.

Troubleshooting

If you encounter issues with your Gotrax Electric Scooter GXL V2, here are some common problems and solutions:

• No Power: Check if the battery is fully charged. Ensure all connections are secure.
• Braking Issues: Inspect the brake pads and cables. Adjust or replace them if necessary.
• Tire Pressure: Maintain recommended tire pressure to ensure optimal performance and safety.

Always follow safety instructions and consult the user manual or contact customer support for further assistance.

We frequently update our user manuals at gotrax.com, and reserve the right to update and change manuals online. Please contact our customer service team if you are experiencing problems or need more detailed information. They can be reached at gotrax.com.

Warranty

For warranty information, please visit us at www.gotrax.com

Pros & Cons

Pros:

• Robust and durable construction
• Easy to assemble and fold
• Comfortable ride with pneumatic tires
• Dual braking system for enhanced safety
• Affordable price point

Cons:

• Limited range compared to higher-end models
• The weight could be lighter for easier portability
• No waterproof rating (use caution in wet conditions)

Customer Reviews

Customers have generally praised the Gotrax Electric Scooter GXL V2 for its reliability, ease of use, and value for money. Many reviewers have highlighted its smooth ride and effective braking system. However, some users have noted the limited range and heavier weight as potential drawbacks.

Common complaints include the need for more frequent battery charging and the lack of a waterproof design. Despite these, the overall consensus is positive, with many recommending it as a solid choice for everyday commuting and casual use.
