How to Use: Guardian Technologies Air Cleaning System Instruction Guide

Guardian Technologies Air Cleaning System

Introduction

The Guardian Technologies Air Cleaning System delivers advanced air purification designed to enhance indoor air quality for homes, dorms, and offices. Equipped with a multi-stage filtration process combining True HEPA filters, activated carbon pre-filters, and UV-C sanitizer technology, it effectively captures 99.97% of airborne allergens, dust, pollen, smoke, and pet dander while reducing odors and airborne germs. This system is ideal for allergy sufferers, pet owners, and anyone seeking cleaner, fresher air in medium to large rooms.

Unique selling points include its ultra-quiet operation, energy-efficient performance, and digital controls with timer and filter change indicators. The system’s UV-C light works synergistically with Titanium Dioxide to neutralize harmful bacteria, viruses, mold spores, and volatile organic compounds, making it a comprehensive solution for healthier living spaces. The Guardian Technologies Air Cleaning System also stands out for its sleek tower design that fits seamlessly into any modern home environment.

Target users range from individuals with respiratory sensitivities to families aiming to maintain a clean air environment. The product is available at major retailers and online, with estimated pricing between $120 and $180 depending on model and features, offering excellent value for its performance and warranty coverage.

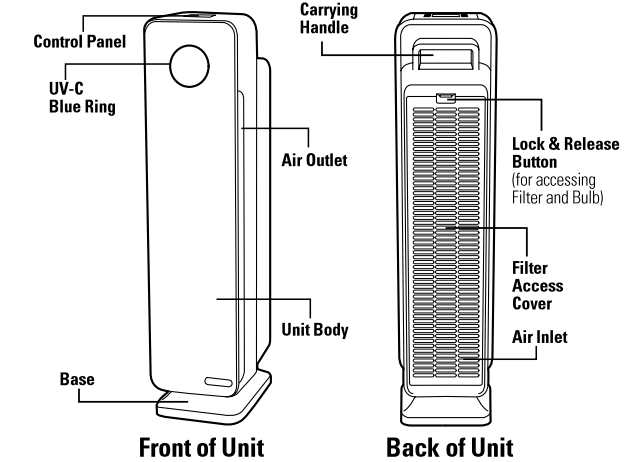

PRODUCT SPECIFICATIONS AND PARTS

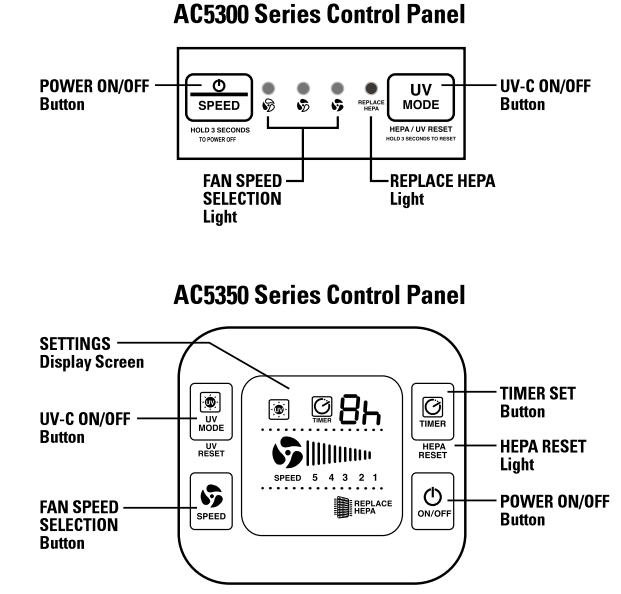

CONTROLS

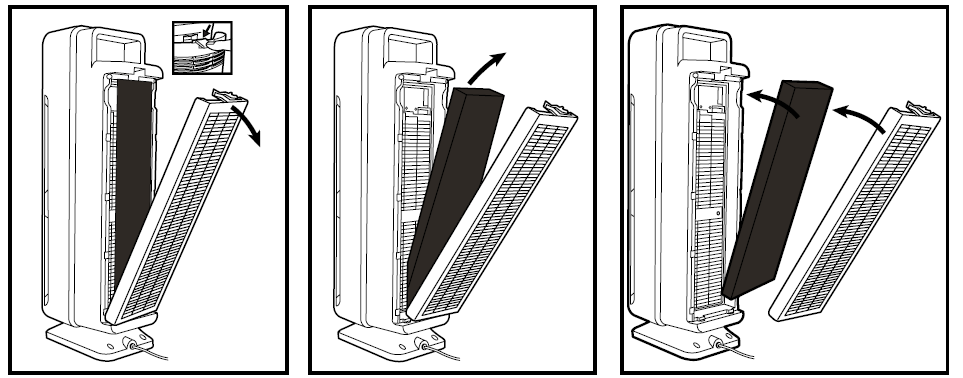

INSTALLING & REMOVING COMBINATION FILTER

The Air Cleaner will beep for 30 seconds,, and the Replace HEPA light will flash REPLACEEPA continuously,, ly indicating that it is time to replace your filter. Replace the filter according to directions,, then restart the system. See specific model instructions.
(E-7/E-8). Depending on usage, the filter will last approximately 6 months.

1. Turn off and unplug the unit.
2. Press the Lock & Release Button and remove the Rear Cover from the unit.
3. Insert the filter system into the unit. Consult the arrow on the filer for the correct installation direction.
4. Reattach the Rear Cover of the unit and securely latch it into place.

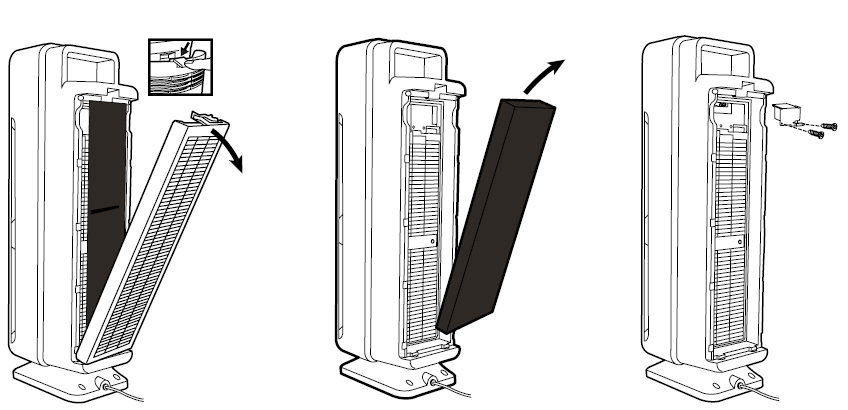

INSTALLING & REMOVING UV-C BULB

1. Remove the Rear
   Cover of the unit by pushing the lock &Release Button.
2. After removing the Rear Cover from the unit, remove the Combination Filter.
3. After removing the Combination Filter, use a Philips head screwdriver to remove 2 screws and detach the UV-C Metallal Shield.

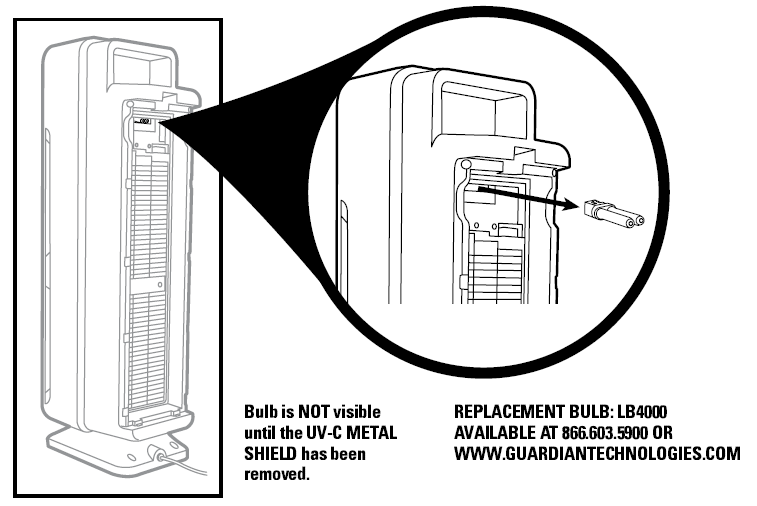

4. The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and pulling the bulb straight out of the unit.
5. The UV-C Bulb is reinstalled by sliding it, horizontally, back into the slots at the top of the unit.

CLEANING & MAINTAINING

THE COMBINATION FILTER
The air purifier should be cleaned at least once every month,, and the outer Pre-/Charcoal Filter attached to the HEPA Filter should be cleaned every month. More frequent cleaning may be requireddepending on environmental conditions.

PRE-/CHARCOAL FILTER
Clean with the brush attachment of your vacuum cleaner. This will remove lint and dirt.

TRUE HEPA FILTER

• Remove the Combination Filter from the back of the unit.
• Remove the Pre-/Charcoal Filter to expose the HEPA filter.
• When the HEPA Filter turns from white to grey or black,, it should be replaced with a new one. If the HEPA filter is still white, it does NOT need to be replaced.
• IMPORTANT: Do NOT try to wash and re-use the Combination Filter. Please contact Customer
• Service at 1.866.603.5900 or visit us at www.guardiantechnologies.com to purchase a replacement filter.
• Replacement filter: FILTER C (FLT5000) or FILTER C PET (FLT5250PT)

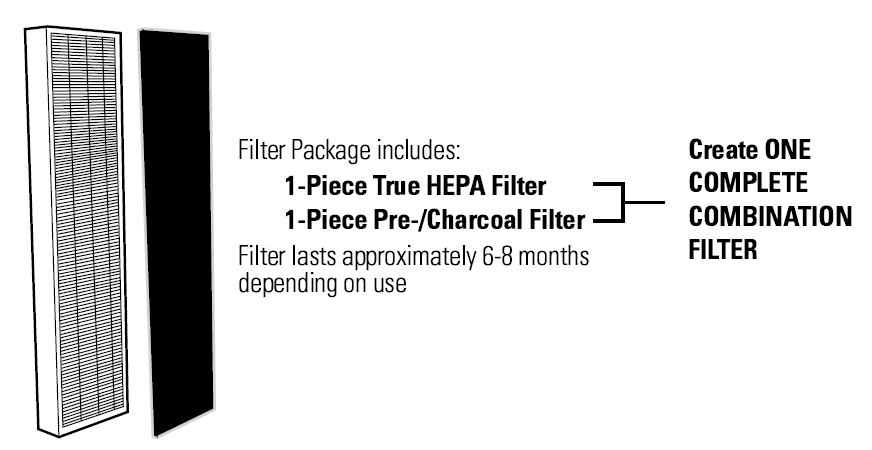

• NOTE: The Combination Filter is one filter system. The multiple layers include: the
• Pre-/Charcoal Filter and the True HEPA Filter.

AIR PURIFIER
Use a clean, dry, soft cloth to wipe the external surface of the unit.

Clean Air Delivery Rate

From air cleaner to air cleaner, compare the CADR numbers. First,, look athe t the suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air. This air cleaner is suggested for use in a single, closed room up to 199 square feet.  Higher CADR rates provide improved performance in all room sizes. Portable air cleaners will be much more effective in rooms when all the doors and windows are closed. sed

TOBACCO SMOKE: 129

• This value represents performance that can be expected within the first 72 hours of operation. Subsequent| use may vary with use.
• Tested per ANSI/AHAM AC-1 National Standard

What is CADR?
CADR stands for "Clean Air Delivery Rate,* which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficiently the air purifier captures fine particles from things like tobacco smoke and plant pollens from the room.

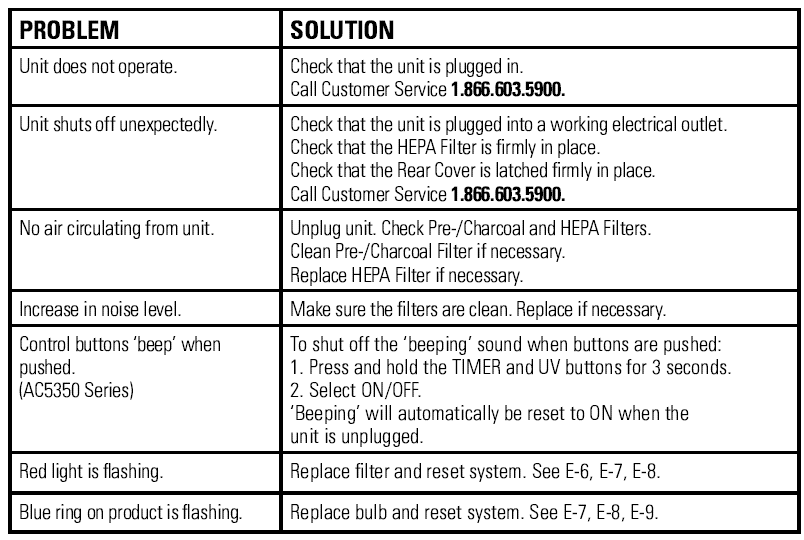

TROUBLESHOOTING GUIDE

LIMITED WARRANTY

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. Save your original sales receipt to validate the start of the warranty period. Warranty is not valid without a receipt. If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty does not cover unauthorized repairs. The warranty does not include unusual wear, damage resulting from an accident o or, or unreasonable use of the product. This warranty only covers the product when used with genuine Guardian Technologies accessories. This warranty covers products that were purchased from authorized distributors. This warranty gives you specific legal rights,, and you may also have other rights (other rights may vary from state to state in the U.S.A.S.)).

The product warranty registration can be completed online at www.guardiantechnologies.com.. We consider the registration process important to ensuring superior service to our customers; however,, submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above. To submit a product under warranty,, the complete machine must be delivered to GuardianTechnologies LLC. Please include complete information,, including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt,, along with your name,  address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll-free to the number listed below..
Guardian Technologies LLC

• 26251 Bluestone Blvd. Euclid, OH 44132
• 1.866.603.5900
• www.guardiantechnologies.com
• This warranty can be registered online at www.guardiantechnologies.com.
• Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

Detailed Specifications of Guardian Technologies Air Cleaning System

• Filtration: True HEPA filter captures 99.97% of particles down to 0.3 microns, including dust, pollen, and allergens
• Pre-filter: Activated carbon filter traps odors, smoke, and volatile organic compounds (VOCs)
• UV-C Light Technology: Works with Titanium Dioxide coating to enhance germicidal effect, reducing airborne bacteria, viruses, and mold spores
• Room Coverage: Effective for spaces up to 870 sq. ft. (depending on model), with up to 4.8 air changes per hour in smaller rooms (~150-180 sq. ft.)
• CADR Ratings: Smoke 99-105 CFM, Dust 118-125 CFM, Pollen 125 CFM (varies by model)
• Operation Modes: Multiple fan speeds (up to 5 speeds), digital control panel with timer, filter change indicator, and optional UV-C light control
• Noise Level: Ultra-quiet, ranging approximately 40 dB on the lowest setting to 55 dB at the highest
• Dimensions & Weight: Tower design, around 22-28 inches tall; weight ~8.6 lbs
• Warranty: 3-year limited warranty with genuine replacement parts recommended for optimal performance
• Certifications: EPA, CARB, Energy Star, AHAM certified,, ensuring ozone-free operation and energy efficiency

Compared to similar products, the Guardian Technologies Air Cleaning System excels in combining HEPA filtration with UV-C sanitizing and odor reduction in one unit, making it a versatile choice against basic HEPA-only purifiers or single-function devices.

Pros & Cons of Guardian Technology's Air Cleaning System

• Pros:
  • Highly effective True HEPA filter captures microscopic allergens and dust
  • UV-C light enhances air sanitation by reducing airborne germs and mold spores
  • Activated carbon filter effectively neutralizes household odors and VOCs
  • Quiet operation suitable for bedrooms and workspaces
  • Energy-efficient with multiple speed settings and timer controls for user convenience
  • Strong 3-year warranty and reliable customer support
• Cons:
  • UV-C light usage is optional and may be turned off by users concerned about UV exposure
  • Replacement filters and UV-C bulbs incur additional cost and need periodic changing (every 6-8 months)
  • Some models are better suited for medium-sized rooms; larger spaces may require more powerful units.
  • Digital controls may have a learning curve for some users
• Value for Money: Provides a competitive balance of advanced features and price, making it a cost-effective choice against premium alternatives like Levoit Core 300 or Dyson purifiers.

Customer Reviews & Feedback on Guardian Technologies Air Cleaning System

Users consistently praise the Guardian Technologies Air Cleaning System for its noticeable improvement in air quality, especially in removing allergens and odors. Many highlight the system’s silent operation during sleep and its user-friendly digital interface. Star ratings often average between 4 to 4.5 out of 5.

Common positive remarks focus on effective allergy relief and reduced dust accumulation in living areas. Several customers commend the multi-stage filtration and UV-C sanitizer as key benefits improving home comfort.

Frequent complaints include the necessity to regularly replace HEPA filters and UV-C bulbs, which some find moderately expensive. A few users note that the air purifier’s performance is optimized for rooms under 200 sq. ft., recommending larger models for bigger spaces. Occasional reports mention that the UV-C light can be intimidating for some,, but is easily disabled.

Overall, most purchasers recommend the GuGuardia Technological Sliding System for those seeking reliable, allergy-focused air purification with advanced germ-killing technology.
