Introduction

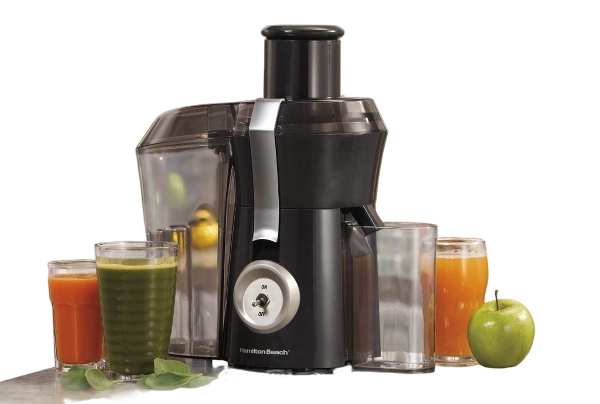

The Hamilton Beach Big Mouth Juice Extractor 67650 is a powerful and efficient juicing solution designed for quick and easy juice preparation. Featuring an extra-large 3-inch feed chute, this juicer allows you to process whole fruits and vegetables with minimal prep time. Its robust 1.1 horsepower motor ensures maximum juice extraction, while the dishwasher-safe components make cleanup a breeze. Ideal for health enthusiasts, this juicer is priced at approximately $82.99.

Parts and Features

WARNING: Micro-mesh strainer basket may fly apart during use if it is damaged, resulting in the risk of cuts and bruises. To reduce the risk of personal injury:

• Always inspect micro-mesh strainer basket before each use.
• Never use a cracked, bent, or damaged micro-mesh strainer basket.

Hamilton Beach Big Mouth Juice Extractor 67650 Specifications

• Motor Power: 800 watts
• Chute Size: 3 inches (extra-wide)
• Speed Settings: 2 speeds
• Dishwasher Safe Parts: Yes
• BPA-Free Materials: Yes
• Dimensions: 14.46 x 10.46 x 16.46 inches
• Weight: 9.9 lbs

Description

The Hamilton Beach Big Mouth Juice Extractor 67650 features a sleek and compact design that fits well in most kitchen environments. The extractor comes with a large pulp container that allows for continuous juicing without the need for frequent emptying. The stainless steel strainer and easy-to-clean parts make maintenance a breeze. Additionally, the BPA-free materials ensure health and safety while juicing.

How to Assemble

1. Place strainer bowl on top of the motor base. Then place the stainless steel strainer basket inside the strainer bowl.
2. With hands on outer edge, press strainer basket down firmly to latch into position.
3. Place the juicer cover over the strainer bowl, positioning the feed chute over the strainer basket, and lower into position.
4. Raise the locking latches up to lock into place.
5. Place the pulp container into position by tilting the container slightly.
6. Place a glass or other container under the juice spout. Slide the food pusher down the feed chute by aligning the groove in the food pusher with the small ridge on the inside of the top of the feed tube.

HINT: To minimize cleanup, place a plastic grocery bag in the pulp container to collect the pulp.

How to Use

Wash fruits and vegetables.
NOTE: Most fruits and vegetables such as apples, carrots, and cucumbers will not need to be cut since they will fit into feed chute whole. It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in unit to minimize impact on juice flavor.

1. Ensure that unit is correctly assembled (see page 5) and place a glass or container under spout.
2. WARNING Laceration Hazard.
   Never use fingers to push food down the feed chute or to clear the feed chute. Always use the food pusher provided.
3. Plug cord into 120-volt AC outlet. Turn ON/OFF switch to ON.
   With the motor running, place food down the feed chute. Using food pusher, gently guide food down feed chute. To extract the maximum amount of juice, always push food pusher down slowly.
   Juice will flow into glass and separated pulp will accumulate in pulp container.

NOTE: Pulp container can be emptied during juicing by turning juice extractor OFF () and then carefully removing pulp container. (Replace empty pulp container before continuing to juice.)

How to Disassemble Hamilton Beach

1. Turn juice extractor OFF () and unplug. Allow strainer basket to stop turning.
2. Release locking latches.
3. Move the locking latches down.
4. Lift off the cover.
5. Remove the pulp container by sliding away from motor base.
6. Lift off the strainer bowl with the strainer basket still in place.
7. To remove the strainer basket, turn the strainer bowl upside down and carefully remove the strainer basket. (It is recommended to remove the strainer basket over a sink.)

Setup Guide

1. Assembly: Remove all parts from the packaging and wash them thoroughly before use. Assemble the juicer by placing the pulp container, strainer, and juice container in their respective positions.
2. Configuration: Plug in the juicer and ensure all parts are securely locked into place.
3. Operation: Feed large chunks of produce through the chute while selecting either the high or low speed setting based on the type of produce being juiced.
4. Pairing: No additional pairing required; simply plug in and use.

Care and Cleaning

WARNING Shock Hazard.
Do not immerse motor base in water or any other liquid.

DISHWASHER-SAFE
DO NOT use the “SANI” setting when washing in the dishwasher. “SANI” cycle temperatures could damage your product. Do not place the motor base in the dishwasher. Some part distortion may occur if your household dishwasher’s temperature is higher than normal or if the parts are placed too close to the heating element.

STRAINER BASKET

CAUTION:  Laceration Hazard.

• The center of the strainer basket contains small, sharp blades to process fruits and vegetables during the juicing function. Do not touch blades when handling the strainer basket.
• The cleaning brush included with the unit is the most effective way to clean the strainer basket.
• Using the brush, hold the strainer basket under running water and brush inside and outside of the basket. Always treat the strainer basket with care; it can be damaged easily.
• Discoloration of the plastic may occur with some fruit and vegetables. To help prevent this, wash all parts immediately after use.
• To assist with cleaning, soak the strainer basket in hot, soapy water for approximately 10 minutes immediately after juicing is completed.

• If pulp is left to dry on the basket it may clog the fine pores of the filter mesh, thereby lessening the effectiveness of the juice extractor.



Juicing Tips, Techniques, and Recipes

PURCHASING AND STORING FRUITS AND VEGETABLES:

• Always wash fruits and vegetables before juicing.
• Always use fresh fruits and vegetables for juicing.
• To save money and obtain fresher produce, purchase fruits or vegetables that are in season.
• Keep your fruits and vegetables ready for juicing by washing them before storing.
• Most fruits and hardier-type vegetables can be stored at cool room temperature. More delicate and perishable items such as tomatoes, berries, leafy greens, celery, cucumbers, and herbs should be stored in the refrigerator until required.

PREPARING FRUITS AND VEGETABLES:

• It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in juice extractor to minimize impact on juice flavor.
• All fruits with pits and large seeds such as nectarines, peaches, apricots, plums, and cherries MUST be pitted before juicing.

HINT: Your juice extractor makes invigorating, frothy orange juice. Simply peel the oranges and juice. For best results, refrigerate oranges before juicing.

The following drink recipes yield a single serving of 6 to 10 ounces (170–300 ml). If sugar or honey is listed, add to juice after juicing.

Eye-Opener

• 2 carrots
• 1 apple
• 1 tangerine, peeled

Winter Blue Zing

• 2 apples
• 1/4 cup (59 ml) blueberries
• 1 orange, peeled

Liquid Fire

• 1 medium tomato
• 1/2 jalapeno pepper
• 1 handful parsley
• 1/2 cucumber

Orchard Blend

• 2 apples
• 2 pears

Vineyard Pop

• 1 cup (237 ml) grapes
• 1 pear

The Health Club

• 1/2 of a 6-ounce (170 g)
• bag spinach
• 3 carrots

Sour Grapes

• 1 lime, peeled
• 2 cups (473 ml) red grapes

USING THE PULP:

• The remaining pulp left after juicing fruits or vegetables is mostly fiber and cellulose which, like the juice, contain vital nutrients necessary for the daily diet and can be used in many ways. However, like the juice, pulp should be used that day to avoid loss of vitamins.
• There are a number of recipes that use pulp. You can also use pulp to thicken casseroles or soups.
• Pulp is great used in the garden for compost.

SOY MILK, ALMOND MILK, AND RICE MILK:
Your juice extractor may be used to make soy milk, almond milk, and rice milk. One cup of soybeans, almonds, or rice must be soaked in four cups of water for 24 to 48 hours in the refrigerator. Slowly pour one cup of the soaked mixture at a time into the food chute. The liquid extracted from the soaked mixture is the “milk.”

NOTES:

• Almonds must be soaked 24 to 48 hours before juicing.
• Soy milk should be boiled to improve the flavor.
• Vanilla, honey, and sugar may be added to enhance the flavor of each milk type.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electric shock, do not immerse cord, plug, or motor base in water or other liquid.
6. Turn the appliance OFF(), then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contact with moving parts.
8. Never feed food into food chute by hand. Always use the food pushers.
9. Always make sure the juice extractor is properly and completely assembled before the motor is turned ON. The unit will not turn ON unless properly assembled. Do not release safety locking arm while juice extractor is in operation.
10. Be sure to turn switch to OFF () position after each use of your juice extractor. Make sure the motor stops completely before disassembling.
11. Do not put fingers or other objects into the juice extractor feed chute while it is in operation. If food becomes lodged in the opening, use food pusher to push it down. When this method is not possible, turn the motor OFF ( ), unplug the cord from the outlet, and disassemble juicer to remove the remaining food.
12. Do not use appliance for other than intended use.
13. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
14. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
15. Do not use outdoors.
16. Do not let cord hang over edge of table or counter, or touch hot surfaces, including stove.
17. Do not leave juice extractor unattended while it is operating.
18. Blades are sharp; handle carefully. Do not touch the small cutting blades in the base of the stainless steel strainer basket.
19. Keep hair, clothing, and jewelry, as well as spatulas and other utensils, away from feed chute during operation to prevent the possibility of severe injury to persons and/or damage to the appliance.
20. Do not use the appliance if the rotating strainer basket or juice cover is damaged or has visible cracks.
21. Always use the juice extractor on a dry, level surface.
22. Do not operate without the pulp container in place.
23. Do not place on or near a hot gas or electric burner or in a heated oven.
24. Check that the appliance is OFF () before plugging cord into wall outlet. To disconnect, turn the control to OFF (); then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
25. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

This product is intended for household use only.

WARNING Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety pur-pose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the counter-top or tabletop where it can be pulled on by children or accidentally tripped over.

The electrical rating of this appliance is listed on the bottom panel of the unit. The strainer basket is a delicate screen. If bent or damaged, do not use, as it could break into small pieces and cause personal injury and/or damage the appliance. Call our toll-free customer service number to order a new basket. Replace basket when it shows signs of wear.

This machine is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in after 15 minutes to resume normal operation.

WARNING:  Cut or Crush Hazard.
Extra-wide feed chute. Do not place hands or fingers down feed chute. Always use the food pusher. Failure to follow this instruction can result in serious personal injury.

Troubleshooting

Hamilton Beach Big Mouth Juice Extractor 67650 Warranty

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and three (3) years from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

Pros & Cons

Pros

• Efficient Juicing: The 800-watt motor ensures quick and efficient extraction of juice.
• Easy Cleanup: Dishwasher-safe parts make cleaning a hassle-free process.
• Large Chute: The 3-inch chute allows for whole fruits and vegetables to be juiced without pre-chopping.
• Affordable: Priced competitively within the market range.

Cons

• Noise Level: Some users report that the juicer can be quite loud during operation.
• Pulp Container Space: The pulp container may fill up quickly with certain types of produce, requiring frequent emptying.
• Storage Space: The juicer's dimensions may require significant storage space in smaller kitchens.

Customer Reviews

Users generally praise the Hamilton Beach Big Mouth Juice Extractor 67650 for its ease of use, powerful motor, and efficient juicing capabilities. However, some common complaints include the noise level during operation and the need for frequent emptying of the pulp container.
