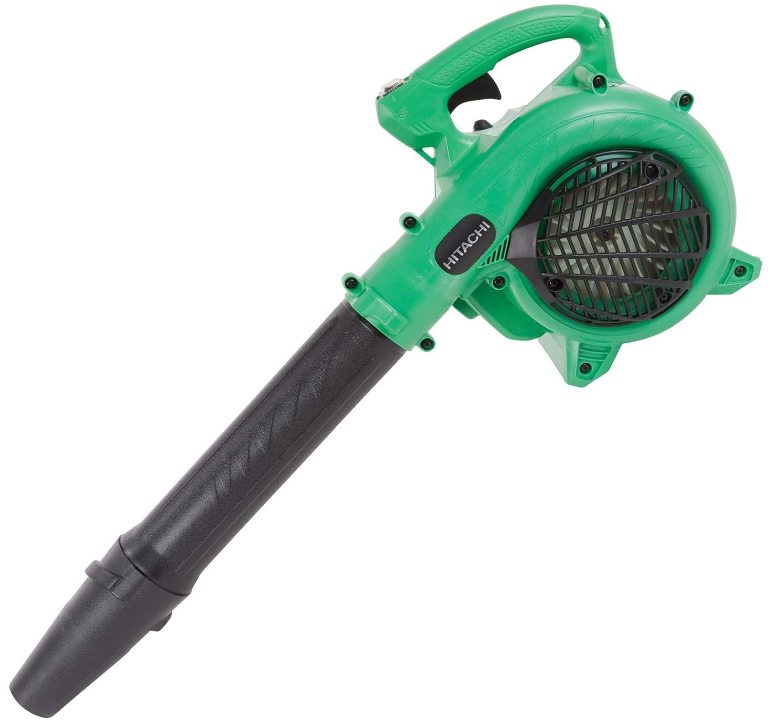

Introduction of the Hitachi Gas Powered Leaf Blower RB24EAP

Hitachi Gas is a powerful and efficient tool designed for homeowners and professionals alike, making yard maintenance a breeze. With a lightweight design and a 23.9cc engine, it delivers impressive airflow of up to 441 CFM at 170 MPH, ensuring quick and effective leaf removal. The blower features a comfortable grip and easy-start technology for user convenience. The Hitachi RB24EAP is priced at approximately $199.00.

Symbol

NOTE: Some units do not carry them.

Symbols			WARNING The following show symbols used for the machine. Be sure that you understand their meaning before use.
			It is important that you read, fully understand and observe the following safety precautions and warnings. Careless or improper use of the unit may cause serious or fatal injury.		WARNING    DANGER Hot surfaces; The muffler and surrounding cover may become extremely hot. Always keep clear of exhaust and muffler area, otherwise serious personal injury may occur.
			Read, understand and follow all warnings and instructions in this manual and on the unit.		Keep all children, bystanders and helpers 50 ft (15 m) away from the unit. If anyone approaches you, stop the engine immediately.
			Always wear eye, head and ear protectors when using this unit.		Use anti-slip and sturdy footwear.
			WARNING    DANGER Keep hands off from rotating fan.

WHAT IS WHAT

Since this manual covers several models, there may be some diff erence between pictures and your unit. Use the instructions that apply to your unit.

1. Fuel cap
2. Throttle trigger
3. Starter handle
4. Fuel tank
5. Carburetor
6. Air cleaner
7. Handle
8. Suspension eyelet
9. Ignition switch
10. Straight pipe
11. Conic pipe
12. Guard net
13. Spark plug
14. Chock knob
15. Priming bulb
16. Recoil starter
17. Handling instructions

Specifications

1. Equivalent noise level/vibration level are calculated as the time-weighted energy total for noise/vibration levels under various working conditions with the following time distribution: 1/7 Idle, 6/7 racing.
2. ANSI B175.2

All data subject to change without notice.

Description

The Hitachi Gas Powered Leaf Blower RB24EAP features a robust 23.9cc PureFire II engine that provides ample power for blowing leaves and other debris. The blower boasts an impressive air speed of up to 170 mph and an air volume of up to 441 cfm, making it capable of handling heavy-duty tasks. Its ergonomic design and padded handle reduce user fatigue, allowing for extended use without discomfort.

The blower also includes a large 17.6 fl oz fuel tank, ensuring you can work for extended periods without needing to refuel. With a noise level of 89 dB, it is relatively quiet compared to other gas-powered leaf blowers on the market.

ASSEMBLY PROCEDURES

Blowpipes to the main body

(Fig. 1)

1. Inspect the main body and accessories.
2. Connect straight pipe (1) securely.
3. Align projection (2) in the straight pipe with groove (3) on the blower housing and slide the pipe into the blower housing.
4. Rotate the pipe clockwise to lock it into place.

Conic pipe to straight pipe

(Fig. 2)


• Align groove (5) on the conic pipe (6) and projection (4) on the straight pipe (1) and rotate the conic pipe in place.

Fuel

WARNING

• This unit is equipped with a two-stroke engine. Always run the engine on fuel, which is mixed with oil.
  Provide good ventilation, when fueling or handling fuel.
• Fuel contains highly flammable and it is possible to get terious personal injury when inhaling or spilling on your body.
  Always pay attention when handling fuel. Always have good ventilation when handling fuel inside the building.

(Fig. 3)

• Always use branded 89-octane unleaded gasoline.
• Use genuine two-cycle oil or use a mix between 25:1 to 50:1, please consult the oil bottle for the ratio or the Hitachi dealer.
• If genuine oil is not available, use an anti-oxidant added quality oil expressly labeled for air-cooled 2-cycle engine use (JASO FC GRADE OIL or ISO EGC GRADE). Do not use BIA or TCW (2-stroke water-cooling type) mixed oil.
• Never use for four-stroke engine oil or waste oil.
• Always mix fuel and oil in a separate clean container.

Always start by filing half the amount of fuel, which is to be used. Then add the whole amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of fuel.
Mix (shake) the fuel mix thoroughly before filling the fuel tank.

Fueling

WARNING
Always shut off the engine and let it cool for a few minutes before refueling.

• Slowly open the fuel tank, when filling up with fuel, so that possible overpressure disappears.
• Tighten the fuel cap carefully, after fueling.
• Always move the unit at least 10 ft (3 m) from the fueling area before starting.
• Do not smoke and/or allow flames or sparks near fuel when handling or filling fuel.
• Always wash any spilled fuel from clothing immediately with soap.
• Be sure to check for any fuel leaking after refueling.

Before fueling, clean the tank cap area carefully, to ensure that no dirt falls into the tank. Make sure that the fuel is well mixed by shaking the container, before fueling.

Starting

CAUTION
Do not start if the pipe and guard net is obstructed.

1. Check the switch (7) to the ON position. (Fig. 4)




   Push the priming bulb (8) several times so that fuel flows through the bulb or return pipe (9). (Fig. 5)



2. Set the choke lever to the CLOSED position. (Fig. 6)



3. Pull the recoil starter briskly, taking care to keep the handle in your grasp and not allowing it to snap back. (Fig. 7)



4. When you hear the engine want to start, return the choke lever to the RUN position (open). Then pull the recoil starter briskly again.
   WARNING
   • Never start or run the engine inside a closed room or building and/or near the inflammable liquid. Breathing exhaust fumes can kill.
   • Do not allow the rope to snap back in and always hold the unit firmly.
     NOTE
     If the engine does not start, repeat procedures from 2 to 4.
5. After starting the engine, allow the engine about 2–3 minutes to warm up before subjecting it to any load.

If the engine stops and is hard to restart straightaway, allow it to cool before trying again.

Operating blower

(Fig. 8)

• A low speed should be used to blow leaves and dry grass.
• A medium speed should be used to clean wet leaves and grass.
• A high speed should be used when moving gravel, dirt, or other heavy materials.

WARNING

• Do not direct the discharge of air toward people or pets.
• The unit should be operated in a well-ventilated area.
• Never perform assembly or disassembly procedures with the engine running or serious personal injury may result.
• Never touch the muffler, spark plug, or other metallic parts while the engine is running or immediately after shutting off the engine.

CAUTION
This blower has been designed and adjusted to be used with all blowing pipes attached. It must never be operated without the straight pipe, and blow head.

Stopping

(Fig. 9)

• Decrease engine speed and run at an idle for a few minutes, then turn off the ignition switch and keep pressed until the engine comes to a complete stop.

Setup Guide

To operate the Hitachi Gas Powered Leaf Blower RB24EAP,

1. Start by assembling the unit according to the provided instructions. Ensure all parts are securely attached before use.
2. Fill the fuel tank with the recommended type and amount of gasoline, then prime the engine as instructed.
3. Pull the starter cord to start the engine and adjust the choke as necessary.
4. Once running, adjust the throttle control to your desired speed.
5. Always wear protective gear such as gloves, safety glasses, and ear protection when operating the blower.

Hitachi Gas Powered Leaf Blower RB24EAP MAINTENANCE

MAINTENANCE, REPLACEMENT, OR REPAIR OF THE EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY ANY NONROAD ENGINE REPAIR ESTABLISHMENT OR INDIVIDUAL.

Carburetor adjustment

(Fig. 10)

In the carburetor, fuel is mixed with air. When the engine is test run at the factory, the carburetor is basically adjusted. A further adjustment may be required, according to climate and altitude. The carburetor has one adjustment possibility:

T = Idle speed adjustment screw.

Idle speed adjustment (T)
Check that the air filter is clean. If adjustment is required, turn the IDLE speed Adjustment Screw (T) close (clockwise) to increase engine speed, and open (counterclockwise) to decrease engine speed. Standard Idle rpm is 2800-3200 rpm.

RECOMMENDATION:
CARBURETOR ADJUSTMENT NEEDS THE SKILL OF EXPERIENCED OR WELL-TRAINED PEOPLE, IR IS RECOMMENDED TO TAKE THE UNIT TO THE HITACHI DEALER.

Air filter

(Fig. 11)

The air filter must be cleaned from dust and dirt to avoid:

• Carburetor malfunctions
• Starting problems
• Engine power reduction
• Unnecessary wear on the engine parts
• Abnormal fuel consumption

Remove the air cleaner cover by pushing and pulling back the tab on the top.
Clean the air filter daily or more often if working in exceptionally dusty areas.

Cleaning the air filter

• Open the air filter cover and the filter. Rinse it in warm soap suds.
• Check that the filter is dry before reassembly.
• An air filter that has been used for some time cannot be cleaned completely.
• Therefore, it must regularly be replaced with a new one. A damaged fi lter must always be replaced.

Fuel filter

(Fig. 12)

Drain all fuel from the fuel tank and pull the fuel fi lter line from the tank. Pull the filter element out of the holder assembly and rinse the element in warm water with detergent. Rinse thoroughly until all traces of detergent are eliminated. Squeeze, do not wring, away excess water, an allow the element to air dry.

NOTE
If element is hard due to excessive dirt buildup, replace it.

Spark plug

(Fig. 13)

The spark plug condition is infl uenced by:

• An incorrect carburetor setting
• Wrong fuel mixture (too much oil in the gasoline)
• A dirty air fi lter
• Hard running conditions (such as cold weather)

These factors cause deposits on the spark plug electrodes, which may result in malfunction and starting diffi culties. If the engine is low on power, diffi cult to start or runs poorly at idling speed, always check the spark plug fi rst. If the spark plug is dirty, clean it and check the electrode gap. Re-adjust if necessary. The correct gap is 0.024˝ (0.6 mm). The spark plug should be replaced after about 100 operation hours or earlier if the electrodes are badly eroded.

NOTE
In some areas, local law requires using a resistor spark plug to suppress ignition signals. If this machine was originally equipped with resistor spark plug, use same type of spark plug for replacement.

Maintenance schedule
Below you will fi nd some general maintenance instructions. For further information please contact your Hitachi dealer.

Daily maintenance

• Clean the exterior of the unit.
• Check the dust cover for damage or cracks.
  • Change the cover in case of impacts or cracks.
• Check that nuts and screws are suffi ciently tightened.

Weekly maintenance

• Check the starter, especially the cord.
• Clean the exterior of the spark plug.
• Remove the spark plug and check the electrode gap. Adjust it to 0.024˝ (0.6 mm), or change the spark plug.
• Clean the air fi lter.

Monthly maintenance

• Rinse the fuel tank with gasoline, and clean fuel fi lter.
• Clean the exterior of the carburetor and the space around it.

Quarterly maintenance

• Clean the cooling fi ns on the cylinder.
• Clean the fan and the space around it.
• Clean the muffl er of carbon.

CAUTION
Cleaning of cylinder fi ns, fan and muffl er shall be done by a Hitachi Authorized Service Center.

NOTE
When ordering the parts to your nearest dealer, please use the item No. showing on the parts breakdown section in this instruction.

WARNINGS AND SAFETY INSTRUCTIONS

Operator safety

• A dust fi lter mask should be worn during operation.
• Always wear a safety face shield or goggles.
• Always wear heavy, long pants, boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair so it is above shoulder length.
• Do not operate this tool when you are tired, ill or under the infl uence of alcohol, drugs or medication.
• Never let a child or inexperienced person operate the machine.
• Wear hearing protection. Pay attention to your surroundings. Be aware of any bystanders who may be signaling a problem. Remove safety equipment immediately upon shutting off engine.
• Wear head protection.
• Never start or run the engine inside a closed room or building. Breathing exhaust fumes can kill.
• Keep handles free of oil and fuel.
• Keep hands away from moving part or heated area.
• Do not grab or hold the unit by the blow pipe.
• When the unit is turned off make sure the engine has stopped before the unit is set down.
• When operation is prolonged, take a break from time to time so that you may avoid possible Hand-Arm Vibration Syndrome (HAVS) which is caused by vibration.

WARNING

• Antivibration systems do not guarantee that you will not sustain Hand-Arm Vibration Syndrome (HAVS) or carpal tunnel syndrome. Therefore, continual and regular users should monitor closely the condition of their hands and fi ngers. If any symptoms of the above appear, seek medical advice immediately.
• If you are using any medical electric/ electronic devices such as a pacemaker, consult your physician as well as the device manufacturer prior to operating any power equipment.

Unit/machine safety

• Inspect the entire unit/machine before each use. Replace damaged parts. Check for fuel leaks and make sure all fasteners are in place and securely tightened.
• Replace parts that are cracked, chipped or damaged in any way before using the unit/ machine.
• Make sure the safety guard is properly attached.
• Keep others away when making carburetor adjustments.
• Use only accessories as recommended for this unit/machine by the manufacturer.

WARNING
Never modify the unit/machine in any way. Do not use your unit/machine for any job except that for which it is intended.

Fuel safety

• Empty the fuel tank before storing the tool. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
• Fuel contains highly fl ammable and it is possible to get the serious personal injury when inhaling or spilling on your body. Always pay attention when handling fuel. Always have good ventilation when handling fuel inside building.
• Mix and pour fuel outdoors and where there are no sparks or fl ames.
• Use a container approved for fuel.
• Do not smoke or allow smoking near fuel or the unit/machine or while using the unit/machine.
• Wipe up all fuel spills before starting engine.
• Move at least 10 ft (3 m) away from fueling site before starting engine.
• Stop engine before removing fuel cap.
• Store unit/machine and fuel in area where fuel vapors cannot reach sparks or open fl names from water heaters, electric motors or switches, furnaces. etc.

WARNING
Fuel is easy to ignite or get explosion or inhale fumes, so that pay special attention when handling or fi lling fuel.

Blowing safety

• Operate unit/machine only at reasonable hours-not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances. Usual recommendations are 9:00 a.m. to 5:00 p.m., Monday through Saturday.
• Never direct discharge of air toward bystanders nor allow anyone near the area of operation. Use care in directing discharge to avoid glass enclosures, automobiles, etc.
• Stay alert for uneven sidewalks, holes in terrain or other unstable condition when using the tool.
• Take all possible precautions when leaving the tool unattended such as stopping the engine.
• Never operate the tool without guards, blow pipes or other protective device in place. (If so equipped.)
• Keep others including children, animals, bystanders and helpers outside the 50 ft (15 m) hazard zone. Stop the engine immediately if you are approached.
• Always keep the engine on the right side of your body.
• Keep fi rm footing and balance. Do not overreach.
• Keep all parts of your body away from the muffler.
• Always carry a fi rst-aid kit when operating any power equipment.
• Never start or run the engine inside a closed room or building and/or near infl ammable liquids. Breathing exhaust fumes can kill.

Maintenance safety

• Maintain the unit/machine according to recommended procedures.
• Disconnect the spark plug before performing maintenance except for carburetor adjustments.
• Keep others away when making carburetor adjustments.
• Use only genuine Hitachi replacement parts as recommended by the manufacturer.

CAUTION
Do not disassemble the recoil starter. You may get a possibility of personal injury with recoil spring.

Transport and storage

• Carry the unit/machine by hand with the engine stopped and the muffl er away from your body.
• Allow the engine to cool, empty the fuel tank, and secure the unit/machine before storing or transporting in a vehicle.
• Empty the fuel tank before storing the unit/ machine. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
• Store unit/machine out of the reach of children.
• Clean and maintain the unit carefully and store it in a dry place.
• Make sure engine switch is off when transporting or storing.

If situations occur which are not covered in this manual, take care and use common sense. Contact your Hitachi dealer if you need assistance. Pay special attention to statements preceded by the following words:

WARNING
Indicates a strong possibility of severe personal injury or loss of life, if instructions are not followed.

CAUTION
Indicates a possibility of personal injury or equipment damage, if instructions are not followed.

NOTE
Helpful information for correct function and use.

WARNING

IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury!
This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.

Troubleshooting

Common issues with the Hitachi RB24EAP include difficulty starting the engine or reduced airflow.

1. If the engine won't start, check that there is sufficient fuel and that the choke is properly set. Ensure there are no blockages in the air intake or exhaust.
2. If airflow is weak, inspect the nozzle and tube for any debris or blockages.
3. Regular maintenance such as cleaning filters and checking for worn parts can help prevent these issues.
4. Always refer to the user manual for specific troubleshooting instructions and safety warnings.

Hitachi Gas Powered Leaf Blower RB24EAP Pros & Cons

Pros

• Powerful 23.9cc engine for efficient leaf-blowing
• High air speed and volume capabilities
• Ergonomic design for reduced user fatigue

Cons

• Heavier than some electric or battery-powered models
• Noisy compared to electric models
• Requires regular maintenance
• Emits emissions due to gas-powered operation

Customer Reviews

Customers praise the Hitachi Gas Powered Leaf for its powerful performance and ease of use. Many reviewers highlight its ability to handle thick layers of leaves and other heavy debris with ease. However, some users have noted that it can be quite heavy and requires regular maintenance to keep it running optimally.
