Introduction

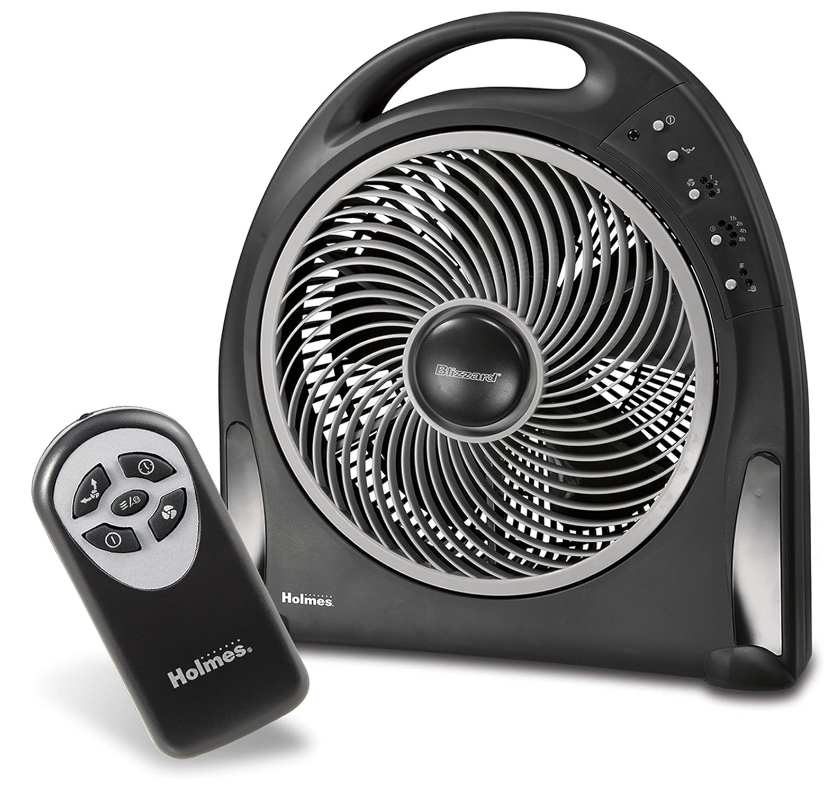

The Holmes Blizzard Power Fan HAPF624R is a powerful and efficient fan designed to provide optimal airflow in any room. Featuring a sleek design and a 3-speed motor, it allows users to customize their cooling experience. The fan's oscillation feature ensures an even distribution of air, making it perfect for larger spaces. With its compact size and lightweight construction, it's easy to move from room to room. The Holmes Blizzard Power Fan is priced at approximately $49.99, offering great value for effective cooling solutions.

Detailed Specifications

Power Fan comes with several key features that enhance its performance and usability. Here are some of the detailed specifications:

• Powerful Motor: 12-inch blade diameter with a high-velocity motor.
• Speed Settings: Multiple speed settings for customizable airflow.
• Air Flow: Capable of moving up to 3000 CFM of air.
• Durable Design: Sturdy construction with a heavy-duty base for stability.
• Ease of Use: Simple and intuitive control panel.
• Energy Efficiency: Designed to be energy-efficient while providing maximum airflow.

FEATURES

OPERATING INSTRUCTIONS

1. Set the fan on a dry, level floor.
2. Plug cord into any standard 120 volt AC outlet.
3. To turn the fan on, press the On/Off button ().
4. Press the Fan Speed button () to select the desired speed setting:
   • Low
   • Medium
   • High
5. Press the Timer button () to begin the timer sequence to off setting. Continue to press until the desired time remaining is selected. The time settings cycle in durations of 1,2,4 or 8 hours and will be indicated by the appropriate LED illumination. The timer can be set up to 8 hours.
6. Press the Sleep/Breeze button () to randomly mimic the natural feeling of the wind.
7. Press the Oscillation button () to operate the rotating front grill. When rotating, the airflow will cover a wider area and help to circulate air throughout the room.
8. To stop the fan, press the On/OFF button ().

Fig. 1

1. Rotating Grill
2. Blade (not shown)

3. Fan Handle
   Fig. 2



4. Power Button
5.  Oscillation Button
6. 3-Speed Button
7. Adjustable Timer
8. 2-Breeze Mode Button

9. Remote Control




   Fig. 3



10. Remote Control Storage

Description

Holmes Blizzard is designed with both functionality and aesthetics in mind. Its sleek and robust design makes it a versatile addition to any room. The fan features a 12-inch blade diameter, which is optimized for maximum air circulation. The high-velocity motor ensures that the fan can handle large spaces efficiently, making it perfect for home, office, or outdoor use. The fan’s multiple speed settings allow users to adjust the airflow according to their needs, providing flexibility and comfort.

REMOTE CONTROL

This remote control (see Fig. 2) requires 2 AAA batteries, 1.5V (not included).

Battery Replacement

• Remove battery cover from remote control.
• Remove old batteries from the remote control.
• Insert two new batteries, pressing them firmly into their slot.
• Replace the battery cover.
• For your convenience, a remote control holder is integrated into the back of the fan housing.

NOTE:

• Replace all batteries of a set at the same time.
• Being careful not to bend or damage the contact spring, clean the battery contacts and devices' contacts prior to installing the batteries.
• Remove the batteries from the equipment when it is not being used for an extended period of time.
• Remove the used batteries promptly.
• Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries.
• Do not discard used batteries into household trash containers. Contact your local government for disposal or recycling practices in your area.

Setup Guide

To operate the Holmes Blizzard Power Fan HAPF624R, follow these steps:

1. Unbox the fan and ensure all parts are included.
2. Place the fan on a flat surface, ensuring stability.
3. Plug in the fan and turn it on using the control panel.
4. Adjust the speed settings according to your preference.
5. For optimal performance, place the fan at least 3 feet away from any obstructions.

CLEANING

Follow these instructions to correctly and safely care for your fan. Please remember:

REPLACEABLE FUSE

If your (5 Amp, 125 Volt) replaceable fuse blows, please order a new fuse at 1-800-546-5637. Follow the below instructions to replace the fuse on the plug.

User Servicing Instructions

1. Unplug your fan. Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord.
2. Open fuse cover, located on the top of the plug, by using your thumb or a flathead screwdriver to slide the cover down towards the prongs.
   NOTE: Ensure that fuse cover is completely open before attempting to remove fuse.

3. Remove fuse carefully by using a small screwdriver to pry the fuse out of the compartment by the metal ends of the fuse.(see Figure 4)



4. Place plug on a solid, flat surface. Insert new 5 Amp, 125 Volt fuse into fuse compartment and use a small screwdriver to secure the metal ends of the fuse into the compartment.
   CAUTION: Risk of fire. Replace fuse only with 5 Amp, 125 Volt fuse.
5. Slide fuse cover closed completely. If fuse cover is difficult to close, make sure fuse is secured in place completely by pressing down on metal ends of the fuse.
6. Risk of fire. Do not replace attachment plug. Contains a safety device (fuse) that should not be removed. Discard product if the attachment plug is damaged.

FAN CLEANING

• Always unplug the fan before cleaning.
• Do not allow water to drip on or enter into fan housing.
• Be sure to use a soft cloth moistened with a mild soap solution.
• Do not use any of the following as a cleaner: gasoline, thinner, or benzene.

Clean the fan grill, housing and base with a soft, damp cloth. DO NOT ATTEMPT TO REMOVE THE FAN BLADE. Please use caution around the motor housing area. Do not allow the motor or other electrical components to be exposed to water.

FAN STORAGE

When storing your fan in the off season, it is important to keep it in a safe dry location. It is important to protect the fan head from dust. We strongly recommend using the original box from purchase.

Important Safety Instructions

PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken including the following:

1. Read all instructions before using this appliance.
2. Use fan only for purposes described in the instruction manual.
3. To protect against electrical shock do not immerse unit, plug or cord in water or spray with liquids and plug the appliance directly into a 120V AC electrical outlet.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use, when moving fan from one location to another, before putting on or taking off parts and before cleaning.
6. Avoid contact with moving parts.
7. Do not operate in the presence of explosive and/or flammable fumes.
8. To avoid fire hazard, NEVER place the cord under rugs or any parts near an open flame, cooking or other heating appliance.
9. Do not operate any appliance with a damaged cord or plug after the appliance malfunctions, or has been dropped/damaged in any manner. Discard fan or return to an authorized service facility for examination and/or repair.
10. Do not run cord under carpeting. Do not cover cord with throw rugs, runner, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
11. The use of attachments not recommended or sold by the appliance manufacturer may cause hazards.
12. Do not let the cord hang over the edge of a table, counter or come in contact with hot surfaces or leave exposed to high traffic areas.
13. Do not use outdoors.
14. To disconnect, grip plug and pull from wall outlet. Never yank on cord.
15. Always use on a dry, level surface.
16. Do not operate fan until fully assembled with all parts properly in place.
17. This product is intended for household use ONLY and not for commercial or industrial applications.
18. WARNING: To reduce the risk of electrical shock and injury to persons, do not use in window.
19. WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
20. This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the product. If the replacement fuse blows, a short circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS

THIS APPLIANCE HAS A POLARIZED PLUG (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet.

DO NOT ATTEMPT TO MODIFY THIS PLUG OR DEFEAT THIS SAFETY FEATURE IN ANY WAY.

Troubleshooting

If you encounter any issues with your HAPF624R, here are some common problems and solutions:

• No Power: Check if the fan is properly plugged in and if the outlet is working.
• Vibration: Ensure the fan is placed on a level surface and that all screws are tightened.
• Noisy Operation: Check for any loose parts or debris. Clean the fan blades if necessary.
• Low Airflow: Adjust the speed setting or ensure there are no obstructions blocking airflow.

Holmes Blizzard Power Fan HAPF624R Pros & Cons

Pros

• High Airflow Capacity: Moves up to 3000 CFM of air, making it ideal for large spaces.
• Durable Construction: Sturdy base and heavy-duty materials ensure long-lasting performance.
• Multiple Speed Settings: Allows for customizable airflow to suit different environments.
• Energy Efficiency: Designed to be energy-efficient while providing maximum airflow.

Cons

• Noise Level: Can be noisy on higher speed settings.
• Weight: Due to its robust design, it can be heavy and difficult to move around.
• Limited Portability: Not designed for frequent relocation due to its size and weight.

Customer Reviews

Customers have generally praised the Holmes for its powerful airflow and durability. Here are some common praises and complaints:

• "This fan is a beast It cools down my entire living room in no time." - John D.
• "I was surprised by how sturdy it is. The base is heavy and keeps it stable even on higher speeds." - Sarah K.

Some users noted that it can be quite loud on the highest speed setting and that it is not the most portable fan due to its weight.

WARRANTY INFORMATION

3 YEAR WARRANTY
Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a period of three years from the date of purchase.
