Introduction

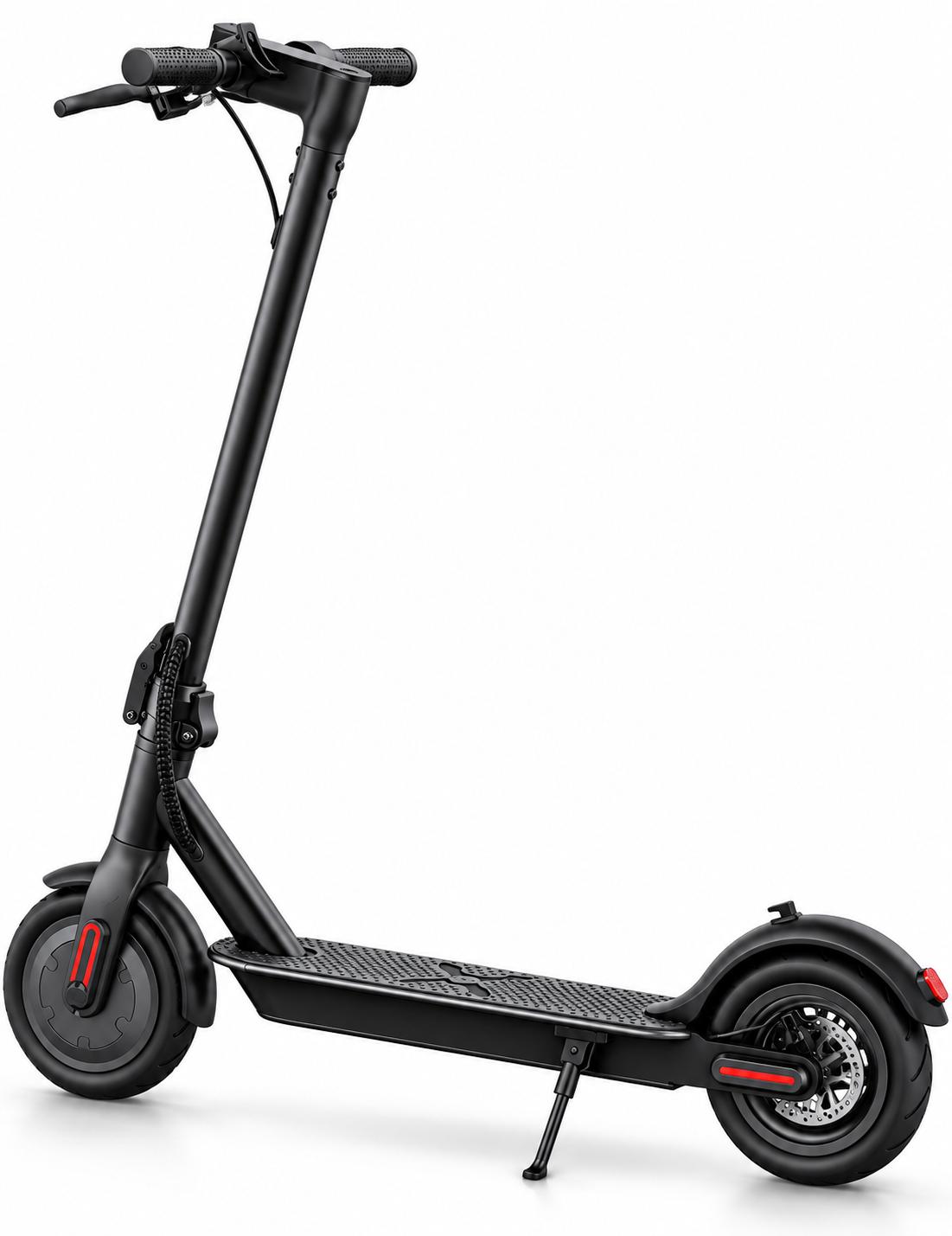

The Hover-1 Electric Folding Scooter H1-JNY is a sleek and portable electric scooter designed for urban commuting. With a powerful motor that allows for speeds up to 15 mph and a range of approximately 16 miles on a single charge, it combines performance with convenience. Its lightweight, foldable design makes it easy to carry and store, while the LED display provides essential ride information. The Hover-1 Electric Folding Scooter is priced at $479.99, making it a practical choice for eco-friendly transportation.

PACKAGE CONTENTS

  • Hover-1 Jive Electric Folding Scooter
  • Charging Cable
  • Charger
  • Air Pump
  • Operation Manual

Your Hover-1 Jive’s serial number is stamped respectively on the bottom of the platform. Record the serial number in the designated area of the “WARRANTY” section of this manual in the event that your Hover-1 Jive is lost or stolen.

PARTS LIST

  • Scooter Frame
  • Handle Bar Assembly
  • Charger + Charging Cable
  • Allen Wrench & Bolts
  • Air Pump

HOVER-1 JIVE DIAGRAM


FEATURES/PARTS

  1. LED Display
  2. Bell
  3. Brake Handle
  4. Handlebars(L)
  5. Handlebars(R)
  6. Throttle
  7. Power Button
  8. Folding Clip
  9. Steering Column
  10. Folding Lock
  11. Scooter Platform
  12. Kickstand
  13. Folding Hook
  14. Brake Light

Control Panel Instructions


Hover-1 Electric Folding Scooter H1-JNY LED DISPLAY


CRUISE CONTROL ICON

To activate the cruise function: When the product reaches a constant speed, press and hold the throttle down for 6 seconds, you will hear a beep confirming cruise mode is activated. To deactivate this function press the throttle down once or squeeze the brake handle.

SPECIFICATIONS

Model:H1-JVE
Net Weight:26.0 lbs (11.8 kg)
Max Supported Weight:264 lbs (120 kg)
Min Supported Weight:44 lbs (20 kg)
Max Speed:Up to 16 mph (25 km/h)
Max Distance RangeUp to 16 miles (25 km)
Battery Type:Lithium-ion
Motor Power:300W Brushless Motor
Battery Voltage:36 V
Battery Capacity:6Ah
Power Requirement:AC 100-240V, 50/60 Hz
Folding Size:(41.7in. x 16.9in. x 18.8in.)
(106cm x 43cm x 47.8cm)
Open Size:(41.7in. x 16.9in. x 43.2in.)
(106cm x 43cm x 109.8cm)
Tire Type:Inflated Rubber Tires
Tire Size:8.5” Front & Rear
 Tire inflation pressure:340KPa
Brake Type:Handle Activated Rear Disk

CHARGING YOUR JIVE

CHARGING THE DEVICE

  • Ensure that the charging port is clean and dry.
  • Make sure that there is no dust, debris, or dirt inside the port.
  • Plug the charger into a grounded wall outlet.
  • Connect the cable with the power supply (100V ~ 240V; 50/60 Hz).
  • Align and connect the 1-pin charging cable to the charging port of the Jive Scooter.
  • (DO NOT FORCE OR BEND THE CHARGING CABLE AS IT MAY CAUSE THE PRONGS TO BEND OR BREAK.)
  • The charging indicator light on the charger itself should change to RED, indicating that your device is now being charged.
  • When the RED indicator light on your charger turns GREEN, then your device is fully charged.
  • After fully charging your Jive Scooter, unplug the charger from your device and from the power outlet.

CAUTION

Only use the included charging cable and charger to charge your Hover-1 Jive. Using any other unauthorized charger may damage your Hover-1 Jive.

WARNING

Any Jive that does not work properly can cause you to lose control and fall. Inspect the entire device thoroughly before every ride, and do not ride it until any problems have been corrected.

Description

The Hover-1 Electric Folding Scooter H1-JNY boasts a sturdy yet lightweight aluminum frame, ensuring durability without compromising portability. The scooter features an intuitive control panel with a clear LCD display showing speed, battery level, and mode selection. It also includes a bright LED headlight for visibility during nighttime rides. The ergonomic handlebars are designed for comfort, and the adjustable height setting accommodates riders of various sizes.

The scooter's design emphasizes safety with a robust braking system and reliable motor performance. Additionally, it comes with a kickstart feature to prevent accidental starts.

PREPARING YOUR SCOOTER

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY

ATTACHING THE HANDLEBAR KIT
Attach the handlebar kit by placing it into the steering column, align the front and back screw holes, and tighten the 4 screws into place.


PINCH POINTS

Some parts of your Hover-1 Jive can injure you if mishandled. Moving and folding parts can cut skin. Clamps and pivoting parts such as brake levers can pinch. When folding and unfolding your Hover-1 Jive, Please watch for pinch points where possible injury may be sustained. Do not leave your hand in these areas during folding or unfolding.


FOLDING & UNFOLDING

FOLDING & UNFOLDING YOUR JIVE SCOOTER

To unfold your Jive, press down on the folding clip and pull the steering column up. Raise the safety lock up and push it into place to secure the steering column. You will hear a “click”, indicating the steering column is locked. Ensure the steering column is secured in place.


HIGH-SPEED MODE

To active high-speed mode, ensure the Jive is powered on and not in motion. Press the power button twice, the high-speed mode indicator should light up on your display to indicate it is activated.

CRUISE CONTROL

To activate the cruise function: When the product reaches a constant speed, press and hold the throttle down for 6 seconds, you will hear a beep confirming cruise mode is activated. To deactivate this function press the throttle down once or squeeze the brake handle.

KICK TO START

For safety reasons, the scooter will not accelerate unless it is already moving at least 1.8mph (3km/h). You must first kick off the ground and then press the throttle in order to ride the scooter.

BEFORE RIDING

Before each cycle of operation, the operator shall perform the pre-operation checks specified below:

  • That all guards and pads originally supplied by the manufacturer are in the proper place and in serviceable condition.
  • That the area that the unit is to be operated in is safe and suitable for safe operation.
  • That the braking system is functioning properly.
  • That all safety labels are in place and understood by the operator and any passenger.
  • That any and all axle guards, chain guards, or other covers or guards supplied CARE & MAINTENANCE by the manufacturer are in place and in serviceable condition.
  • The tires are in good condition, inflated properly, and have sufficient tread remaining.

WARNING
Any Jive Scooter that does not work properly can cause you to lose control and fall. Do not ride a Jive with a part that is damaged; replace the damaged part before riding. It is important that you fully understand all elements of your Jive scooter. If these elements are not used correctly, you will not have full control of your Jive. Before you ride, learn the functions of the various mechanisms on your scooter. Practice using these elements of your Jive at slower speeds in a flat, open area before taking the device out in public areas.

PRE-RIDE CHECKLIST

Ensure that your Jive is in proper working order each and every time you ride. If a part of the Jive scooter does not function correctly, please contact our Customer Support Center.

  • Ensure the battery is fully charged before riding your scooter.
  • If the Jive scooter is not used for an extended period of time, you may need to recharge the battery every 2 months to maintain the battery life.
  • Please wear all appropriate safety and protective gear as previously mentioned in the User Manual before operating your device.
  • Make sure to wear comfortable clothes and flat closed-toe shoes when operating your device.
  • Please carefully read the Operation Manual, which will assist in explaining the basic working principles and provide tips on how to best enjoy your experience.

RIDING YOUR JIVE SCOOTER

FAILURE TO FOLLOW ANY OF THE FOLLOWING SAFETY PRECAUTIONS CAN AND MAY LEAD TO DAMAGE TO YOUR DEVICE, VOID YOUR MANUFACTURER’S WARRANTY, LEAD TO PROPERTY DAMAGE, CAUSE SERIOUS BODILY INJURY, AND CAN LEAD TO DEATH.

OPERATING YOUR DEVICE

Make sure the device is fully charged before the first initial use. Before turning on your Jive scooter, ride it like a normal kick scooter to get comfortable with the device before using it with the motor. When comfortable riding the scooter, power it on. For the motor to activate, you must first start riding the scooter and then push the throttle down with your thumb. To slow down the scooter, disengage the Throttle and squeeze the Brake handle to engage the disk brake. The Brake is pressure sensitive so a tighter grip means more stopping power.

  • To turn, use the handlebar to turn in the direction you wish to turn.
  • The Jive scooter can be operated manually if you do not wish to use the motor.
  • As you get comfortable on the device, you will notice it becomes easier to maneuver. Remember at higher speeds, it is necessary to shift your weight to overcome the centrifugal force.
  • Prepare to brace yourself if you encounter bumps or uneven surfaces, then dismount and carry your Jive to a safe operating surface.

WARNING: Do not turn sharply or at high speeds to avoid danger. Do not turn or ride quickly along slopes, as it may cause injury.

WEIGHT AND SPEED LIMITATIONS

Speed and weight limits are set for your own safety. Please do not exceed the limits listed in the “Specifications” section of this manual.

WARNING

Overweight exertion on the device may increase the possibility of injury or product damage. OPERATING RANGE The following are some of the major factors that will affect the operating range of your device.

  • Terrain: Riding distance is highest when riding on a smooth, flat surface. Riding uphill and/or on rough terrain will reduce distance significantly.
  • Weight: A lighter user will have further range than a heavier user.
  • Ambient temperature: Please ride and store the device under recommended temperatures, which will increase driving distance; battery life, and overall performance of your device.
  • Speed and Riding Style: Maintaining a moderate and consistent speed while riding produces maximum distance. Traveling at high speeds for extended periods, frequent starts and stops, idling and frequent acceleration or deceleration will decrease the overall distance.
  • Do not attempt to stop suddenly as this may lead to injury or damage to your brake discs.

WARNING
Proper use of your brake is vital to ensure safe, efficient stopping. To avoid misuse and potential injury, do not apply sudden or excessive force to your brake. Apply the brake gradually and give yourself enough room to come to a complete stop safely. Please follow all local, state, and federal laws in regard to recycling, handling, and disposing of Lithium-ion batteries.

WARNING: SEEK IMMEDIATE MEDICAL ASSISTANCE IF YOU ARE EXPOSED TO ANY SUBSTANCE THAT IS EMITTED FROM THE BATTERY.

SAFETY ALERTS

While riding your Jive Scooter, if there is a system error or illegal operation performed the device will prompt the user in a variety of ways. The following are common occurrences where you will see Safety Alerts. These notices should not be ignored, but appropriate action should be taken to correct any illegal operation, failure or errors.

  • Prohibited riding surfaces (uneven, too steep, unsafe, etc.)
  • The battery voltage is too low.
  • The device is still charging.
  • Overheating or motor temperature is too high.
  • When the battery is about to run out of power, the battery icon will flash.
  • If any or both tires are blocked, the device will stop after 10 seconds.
  • When the battery level has depleted below protection mode, the device motor will power off after 15 seconds.

While sustaining a high discharge current during use (such as riding up a steep slope for a long period of time), the device motor may slow down or shut off because of high temperature.

HELMETS SAVE LIVES!

Always wear a properly fitted helmet that complies with CPSC or CE safety standards when you ride your scooter.

Correct Fitting: Make sure your helmet covers your forehead.


Incorrect Fitting: The forehead is exposed and vulnerable to serious injury.


WARNING: As with all mechanical components, the Hover-1 Jive is subjected to wear and high stresses. Different materials and components may react to wear or fatigue in different ways. If the design life of a component has been exceeded, it may suddenly fail possibly causing injuries to the rider. Any form of crack, scratch, or change of coloring in highly stressed areas indicates that the life of the component has been reached and should be replaced. Do not ride in an abusive manner.

CAUTION: In this manual, the CAUTION sign indicates a hazardous situation that, if not avoided, can cause minor or moderate injury.

WARNING

In this manual, the WARNING sign indicates a hazardous situation that, if not avoided, can cause death or serious injury. Great care should be taken with the Hover-1 Jive when folding or unfolding. If you do not understand how to operate the levers, please visit http://www.hover-1.com/

DO NOT RIDE YOUR HOVER-1 JIVE WITHOUT ALL RELEASES SECURELY LOCKED.

WARNING: PLEASE READ THE USER MANUAL THOROUGHLY.

Failure to follow the basic instructions and safety precautions listed in the user manual can lead to damage to your device, other property damage, serious bodily injury, and even death. Thank you for purchasing the Hover-1 Jive. Please read all instructions carefully before using and retain this manual for future use and reference.

This manual applies to the Hover-1 Jive.

  • In order to avoid dangers that are caused by collisions, falls, and loss of control, please learn how to ride the Jive safely.
  • You can learn operating skills by reading the product manual and watching videos.
  • This manual includes operating instructions and precautions. Users must read it carefully and follow the instructions.
  • All users are responsible for any consequences caused by violating warning contents or prompt operations. Hover-1 can not be held liable.

ATTENTION

  1. Use only the supplied charger with this scooter. Charger Manufacturer: DONGGUAN GREEN POWER ONE CO., LTD Model: GA20-4201500T
  2. The operating temperature range of the charger is 32 ­ 104° F (0 ­40° C).
  3. The operating temperature range of the E-Scooter is 32 ­ 104° F (0 ­ 40° C).
  4. Do not ride on icy or slippery surfaces
  5. Read the operation manual and warning labels before riding.
  6. Store the Jive in a dry, ventilated environment.
  7. When transporting the Jive, avoid violent crashes or impacts.

LOW-TEMPERATURE WARNING

  • Low temperature will affect the lubrication of moving parts inside the Jive, increasing internal resistance. At the same time, in low temperatures, the discharge capacity and the capacity itself of the battery will be significantly decreased.
  • Use caution when riding the Jive in cold temperatures (below 40 degrees F).
  • Doing so may increase the risk of mechanical failures of the scooter, which may lead to damage to your device, other property damage, serious bodily injury, and even death.

SAFETY INSTRUCTIONS

  • Keep the device away from heat sources, direct sunlight, humidity, water, and any other liquids.
  • Do not operate the device if it has been exposed to water, moisture, or any other liquids to prevent electric shock, explosion, and/or injury to yourself and damage to the device.
  • Do not use the device if it has been dropped or damaged in any way.
  • Repairs to electrical equipment should only be performed by the manufacturer. Improper repair voids the warranty and may place the user at serious risk.
  • Do not puncture or harm the exterior surface of the product in any way.
  • Keep the device free from dust, lint, etc.
  • Do not use this device for anything other than its intended use or purpose. Doing so may damage the device or lead to property dam, injury, or death.
  • This product is not a toy. Keep out of reach of children.
  • Do not expose batteries, battery packs, or batteries installed to excessive heat, such as direct sunlight, or open flame.
  • Do not allow hands, feet, hair, body parts, clothing, or similar articles to come in contact with moving parts, wheels, or drive-train, while the Jive is running.
  • Do not operate, or allow others to operate, the Hover-1 Jive, until the user understands all instructions, warnings, and safety features described in this manual.
  • Check with your doctor if you have a medical condition that could affect your ability to use the Hover-1 Jive.
  • Persons with head, back, or neck ailments or prior surgeries to those areas of the body are not recommended to use this Hover-1 Jive.
  • Do not operate if you are pregnant, have a heart condition, or have both.
  • Persons with any mental or physical conditions that may make them susceptible to injury or impair their physical or mental capabilities to recognize, understand and perform all of the safety instructions and to be able to assume the hazards inherent in unit use, should not use the Hover-1 Jive.

NOTES: In this manual, the above symbol with the word “NOTES” indicates instructions or relevant facts the user should remember prior to using the device.

CAUTION: In this manual, the above symbol with the word “CAUTION” indicates a hazardous situation that, if not avoided, can cause minor or moderate injury.

WARNING: In this manual, the above symbol with the word “WARNING” indicates a hazardous situation that, if not avoided, can cause death or serious injury.

SERIAL NUMBER

Please keep the serial number on file for warranty claims as well as proof of purchase.

WARNING: Prolonged exposure to UV rays, rain, and the elements may damage the enclosure materials stored indoors when not in use.

  • Make sure you read this complete manual before riding your Hover-1 Jive. Failure to do so, or failure to follow its guidelines could lead to serious injury or death.
  • The Jive is a personal transporter. Our technology and production processes are developed with strict testing for each Jive scooter.
  • Operating the Jive without following the contents of this manual may lead to damage to your Jive scooter or bodily injury.

SAFETY PRECAUTIONS

  • The first rule in safe riding is to use common sense.
  • Different localities and countries have different laws governing riding electric transportation devices on public roads.
  • You should check with local officials to ensure you are complying with local traffic law requirements.
  • Hover-1 is not liable for tickets or violations given to riders who do not follow local laws and regulations.
  • For your safety, always wear a helmet that meets CPSC or CE safety standards.
  • In the event of an accident, a helmet can protect you from serious injury and in some cases, even death.
  • Obey all local traffic laws. Obey red and green lights, one-way streets, stop signs, pedestrian crosswalks, etc.
  • Ride with the traffic, not against it.
  • Ride defensively; expect the unexpected.
  • Give pedestrians the right of way.
  • Do not ride too close to pedestrians and alert them if you intend to pass them from behind.
  • Slow down at all street intersections and look to the left and right before crossing.
  • Your Jive electric folding scooter is not equipped with reflectors. It is not recommended that you ride in conditions of low visibility.
  • If you are riding your scooter in low-visibility conditions, ensure your LED light is turned on, and that you are wearing bright, reflective clothing.

WARNING

When you ride in low-visibility conditions such as fog, dusk, or night, you might be difficult to see, which could lead to a collision. To increase your level of safety, be sure to wear bright, reflective clothing when riding in poor lighting conditions.

Think about safety when you ride. You can prevent many accidents if you think about safety. Below is a helpful checklist for riders.

SAFETY CHECKLIST

  • Do not ride above your skill level. Ensure you have had enough practice with all functions and features of your Jive.
  • Do not ride too fast with increased speed comes increased risk. If you are moving at a higher speed, small bumps can turn into large impacts, leading to a higher risk of injury if an accident occurs.
  • Do not ride with pets.
  • Before stepping on your Jive, make sure it is placed flat on level ground and the power is on.
  • Do not try to open or modify your Jive scooter. Doing so voids the manufacturer warranty and may cause your Jive to fail, resulting in injury or death.
  • Do not use the Jive in a manner that would put people or property in danger.
  • If you and your friend(s) are riding Jive scooters together, be sure to keep a safe distance between each other to prevent collisions, property damage, serious injuries, or even death.
  • Be sure to keep your feet on the scooter at all times. Moving your feet off your scooter while driving is dangerous and may cause the scooter to stop or veer sideways.
  • Do not operate the Jive while under the influence of drugs and/or alcohol.
  • Do not operate the Jive when you are restless or sleepy.
  • Use your best judgment to keep yourself out of dangerous situations with your Jive.
  • Do not ride your Jive scooter off of curbs, ramps, or attempt to operate in a skate park, empty pool, or in any way similar to a skateboard. Misuse of your Jive, voids the manufacturer’s warranty and may lead to injury or damage.
  • Do not abuse your Jive, doing so can damage your unit and cause failure to the operating system which may lead to injury. Physical abuse, including dropping your Jive scooter, voids the manufacturer’s warranty.
  • Do not operate in or near puddles of water, mud, sand, stones, gravel, debris, or near rough and rugged terrain.
  • The Jive can be used on paved surfaces that are flat and even. If you encounter uneven pavement, please lift your Jive scooter over and past the obstruction.
  • Do not ride in inclement weather: snow, rain, hail, sleek, on icy roads, or in extreme heat or cold.
  • Bend your knees when riding on the bumpy or uneven pavement to absorb the shock and vibration and help you keep your balance.
  • If you are unsure if you can safely ride on a specific terrain, step off and carry your Jive.

ALWAYS BE ON THE SIDE OF CAUTION

WARNING

Proper use of your brake is vital to ensure safe, efficient stopping. To avoid misuse and potential injury, do not apply sudden or excessive force to your brakes. Apply your brakes gradually and give yourself enough room to come to a complete stop safely.

  • Do not attempt to ride over bumps or objects greater than ½ in. even when prepared and bending your knees.
  • PAY ATTENTION look at where you are riding and be conscious of the road conditions, people, places, property, and objects around you.
  • Do not operate the Jive scooter in crowded areas.
  • Operate your Jive scooter with extreme caution when indoors, especially around people, property, and narrow spaces.
  • Do not operate the Jive while talking, texting, or looking at your phone.
  • Do not ride your Jive scooter where it is not permitted.
  • Do not ride your Jive near motor vehicles or on public roads.
  • Do not travel up or down steep hills.
  • The Jive is intended for use by a single individual, DO NOT attempt to operate the Jive with two or more people.
  • Do not carry anything while riding the Jive scooter.
  • Individuals with a lack of balance should not attempt to operate the Jive scooter.
  • Pregnant women should not operate the Jive scooter.
  • Young children and the elderly should not operate the Jive.
  • At higher speeds, always take into consideration longer stopping distances.
  • Do not attempt to jump on or off your Jive scooter.

WARNING
When you ride in low-visibility conditions such as fog, dusk, or night, you might be difficult to see, which could lead to a collision. In addition wear bright, reflective clothing when riding in poor lighting conditions.

  • Do not attempt any stunts or tricks with your Jive scooter.
  • Do not ride the Jive in dark or poorly lit areas.
  • Do not ride the Jive near or over potholes, cracks, or uneven pavement or surfaces.
  • Do not operate your Jive scooter off-road.
  • Do not turn sharply, especially at high speeds.
  • Do not exceed the maximum or minimum weight limits.
  • Avoid driving the Jive in unsafe places, including near areas with flammable gas, steam, liquid, dust, and fiber, which could cause fire and explosion accidents.
  • Do not operate near swimming pools or other bodies of water.
  • Keep safe brake distance during wet weather

WARNING
There may be an additional risk of injury if you use your scooter incorrectly. This includes, but is not limited to:

  • Jumping your scooter
  • Riding over debris or obstacles
  • Performing stunts
  • Riding in off-road terrain
  • Riding fast
  • Racing other riders
  • Riding in an unusual manner

The aforementioned examples add stress to each part of your scooter and can lead to long-term damage to the device. Damage to your scooter can lead to an accident or increase your risk of injury. To decrease your risk of injury, use your scooter correctly.

WARNING

To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than one rider.

Setup Guide

To operate the Hover-1 Electric Folding Scooter H1-JNY, follow these steps:

  1. Unbox and inspect the scooter for any damage.
  2. Charge the scooter for at least 4 hours before first use.
  3. Adjust the handlebar height according to your preference.
  4. Turn on the scooter by pressing the power button and wait for the LCD display to light up.
  5. Use the kickstart mechanism to activate the motor when you're ready to move.
  6. Use the throttle to control speed and the brakes to slow down or stop.

For pairing with the mobile app (if applicable), refer to the user manual provided with the scooter for detailed instructions.

CARE & MAINTENANCE

  • Do not expose the device to liquid, moisture, or humidity to avoid damage to the product’s internal circuitry.
  • Do not use abrasive cleaning solvents to clean the device.
  • Do not expose the device to extremely high or low temperatures as this will shorten the life of the electronic device, destroy the battery, and/or distort certain plastic parts.
  • Do not dispose of the device in the fire as it may explode or combust.
  • Do not expose the device to contact with sharp objects as this will cause scratches and damage.
  • Do not let the device fall from high places, as doing so may damage the internal circuitry.
  • Do not attempt to disassemble the device.
  • Use only the charger provided by Hover-1.
  • Using only the manufacturer’s authorized replacement parts with installation performed by dealers or other skilled persons.

WARNING

  • Avoid using water or other liquids for cleaning. If water or other liquids enter the Jive, it will cause permanent damage to the internal components.

  • Users who disassemble the Jive scooter without permission will void the warranty.

BATTERY CARE / MAINTENANCE

BATTERY SPECIFICATIONS

  • Battery Type: Rechargeable lithium-ion battery
  • Charge Time: Up to 5 hours
  • Battery Voltage: 36V
  • Battery Capacity: 6 Ah
  • Working Temperature: 32°F – 104°F
  • Charging Temperature: 32°F – 104°F
  • Storage Time: 1 year
  • Storage Temperature: -4°F – 104°F
  • Storage Humidity: 5% – 95%

BATTERY MAINTENANCE

The lithium-ion battery is built into the device. Do not disassemble the device to remove the battery or attempt to separate it from the device.

  • When charging the device, please use the enclosed 1-pin charging cable or otherwise ensure that the battery charging conditions are met.
  • Do not connect or attach the device or the battery to a power supply plug or directly to a car’s cigarette lighter.
  • Do not place the device or batteries near a fire, or in direct sunlight. Heating the device and/or the battery can cause additional heating, breaking, or ignition of the battery inside the device.
  • Do not continue charging the battery if it does not recharge within the specified charging time. Doing so may cause the battery to become hot, rupture, or ignite.

To preserve natural resources, please recycle or dispose of batteries properly. This product contains lithium-ion batteries. Local, state or federal laws may prohibit the disposal of lithium-ion batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options.

WARNING
Failure to follow the safety precautions listed below could lead to serious bodily injury and/or death.

  • Do not attempt to modify, change, or replace your battery.
  • Do not use your device if the battery begins to emit odor, overheat, or begins to leak.
  • Do not touch any leaking materials or breathe fumes emitted.
  • Do not allow children and animals to touch the battery.
  • The battery contains dangerous substances, do not open the battery or insert anything into the battery.
  • Please only use the charger provided by Hover-1.
  • Do not attempt to charge the device if the battery has discharged or emits any substances. In that case, immediately distance yourself from the battery in case of fire or explosion.
  • Lithium-ion batteries are considered to be hazardous materials. Please follow all local, state, and federal laws in regard to recycling, handling, and disposing of Lithium-ion batteries.
  • This battery charger can be used by children aged 15 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: SEEK IMMEDIATE MEDICAL ASSISTANCE IF YOU ARE EXPOSED TO ANY SUBSTANCE THAT IS EMITTED FROM THE BATTERY.

Troubleshooting

Common issues and their solutions:

  • No Power: Check if the scooter is fully charged or if there is a loose connection in the battery or charging cable.
  • Braking Issues: Ensure proper function of both disc brake and regenerative braking; consult user manual or contact customer support if issues persist.
  • Display Malfunction: Restart the scooter by turning it off and on again; if problems continue, refer to user manual troubleshooting section or contact support.

Instructions & Warnings

  • Always wear protective gear including helmets and knee pads.
  • Avoid riding in heavy rain or wet conditions.
  • Keep children away from the scooter when it is in use.

WARRANTY

For warranty information, please visit us at: http://www.hover-1.com/

Pros & Cons

Pros

  • Portability: Easy folding mechanism makes it perfect for storage and transport.
  • Performance: Smooth acceleration and reliable braking system.
  • Comfort: Ergonomic design with adjustable handlebar height.
  • Visibility: Bright LED headlight for safe nighttime rides.
  • Affordability: Priced competitively compared to other scooters in its class.

Cons

  • Range Limitation: Maximum range of 12 miles which may not be sufficient for longer commutes.
  • Weight Capacity: Limited to riders weighing up to 264 lbs (120 kg).
  • No Off-Road Capability: Designed primarily for urban use on flat surfaces.

Customer Reviews

Many customers have praised the Hover-1 Electric Folding Scooter H1-JNY for its ease of use, comfortable ride, and value for money. However, some users have noted limitations such as range and weight capacity. Common complaints include occasional issues with the display screen and minor assembly required out of the box.

Faqs

What is the top speed of the Scooter H1-JNY?

The top speed of the Hover-1 Electric is up to 18.6 mph (30 km/h).

How long does it take to fully charge the scooter?

The battery takes approximately 4 hours to fully charge.

Can I adjust the height of the handlebars?

Handlebars are adjustable to accommodate riders of different sizes.

What safety features does this scooter have?

The Hover-1 Electric Folding Scooter H1-JNY includes a dual braking system with disc brake and regenerative braking, as well as a bright LED headlight for visibility.

How much does the Hover-1 Electric Folding Scooter H1-JNY weigh?

The exact weight of the scooter is approximately 35 lbs (15.9 kg), making it lightweight and portable.

Can I fold this scooter for storage?

The scooter has an easy fold design that makes it convenient for storage and transport.

What kind of tires does this scooter come with?

The Hover-1 Electric Folding Scooter H1-JNY features 8.5-inch rubber tires designed for a comfortable ride on urban surfaces.

Is there a kickstart feature on this scooter?

There is a kickstart mechanism to prevent accidental starts and ensure safe operation.

Jump starter GBX45 1250A

AC1900 Mesh Wi-Fi Router-Extender COVR-L1900 Guide

Leave a Comment

Name

Email

Comment
