Introducing the Edifier Multimedia Speaker M601DB

The Edifier Multimedia Speaker M601DB is a high-performance, sleek, and stylish audio solution for your desktop or home entertainment setup. These speakers offer a perfect blend of modern design and advanced technology, providing crystal-clear sound for all your multimedia needs. With an estimated price range of $150 to $200 and a launching date in Q2 2021, the M601DB speakers are poised to redefine your audio experience.

Specifications

• Total watts (peak): 220W
• Total watts (RMS): 110W
  • (R/L: 20W+20W
  • SW: 70W)
• Frequency response: R/L: 140Hz-20KHz
• SW: 50Hz-170Hz
• Audio inputs: Line In, AUX, Optical, Coaxial, Bluetooth Declaration for EU
• Frequency Band: 2.402GHz ~ 2.480GHz
• RF Power output: ≤20 dBm (EIRP)

There is no restriction of use.

Box contents

Note: Images are for illustrative purposes only and may differ from the actual product.

Edifier Multimedia Speaker M601DB Illustration

1. Pairing button (subwoofer pairing with active speaker) The active speaker has been paired with the subwoofer before leaving factory. The wireless connection is supposed to resume automatically when both active speaker and subwoofer are powered on, and the red indicator will be constantly lit. If the wireless connection fails to resume, please follow the steps below to complete the pairing again.
   • Power on the subwoofer, the status indicator should blink slowly, which means no active wireless connection;
   • Press the "Pair" button on the back panel of the subwoofer to put it into pairing mode. The status indicator will blink rapidly;
   • Press the "Pair" button on the back panel of the active speaker to put it into pairing mode;
   • Wait until the status indicator is lit constantly. Then the pairing is done and wireless connection is made.
2. Status indicator
3. Power switch
4. Power cable
5. Bass adjustment
6. Power cable
7. Power switch
8. AUX input
9. Line In input
10. Optical input
11. Coaxial input
12. Status indicator
13. Pairing button (subwoofer pairing with active speaker)

14. Connect to passive speaker



15. Volume down button
    • Press: volume down
    • Press and hold for around 3 seconds to disconnect Bluetooth (Bluetooth mode)
16. Power on/off / mode switch / mode indicator
    • Press: mode switch
    • Bluetooth: blue light flashes
    • AUX: green light flashes once
    • Line In: green light flashes twice
    • Optical: red light flashes once
    • Coaxial: red light flashes twice
    • Press and hold: power on/off

17. Volume up button
    Press: volume up



Remote control

1. Power on/off
2. Volume up
3. Previous track/next track (Bluetooth mode)
4. Play/pause  (Bluetooth mode)
5. Volume down
6. Line In mode
7. AUX mode
8. Coaxial mode
9. Optical mode
10. Bluetooth mode
    • Press: Bluetooth mode Press and hold: disconnect Bluetooth (Bluetooth mode)
11. Mute/mute off

Battery loading: Please refer to the illustration to open the battery compartment, insert the CR2032 battery and close the compartment.

WARNING!

1. Don’t swallow the battery; danger of chemical burn.
2. The product includes a wafer battery. Swallowing this battery may lead to injury or death. Do not place the new or old battery in where children can get to it.
3. Don’t use the product if the battery cover is missing or not closed, and keep the remote inaccessible to children.
4. Please go to the hospital immediately if the battery is swallowed.

Note

1. Do not place the remote control in places that are hot and humid.
2. Do not charge the batteries.
3. Remove the batteries when unused for a long period of time.
4. The battery should not be exposed to excessive heat such as direct sun, fire or similar.
5. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

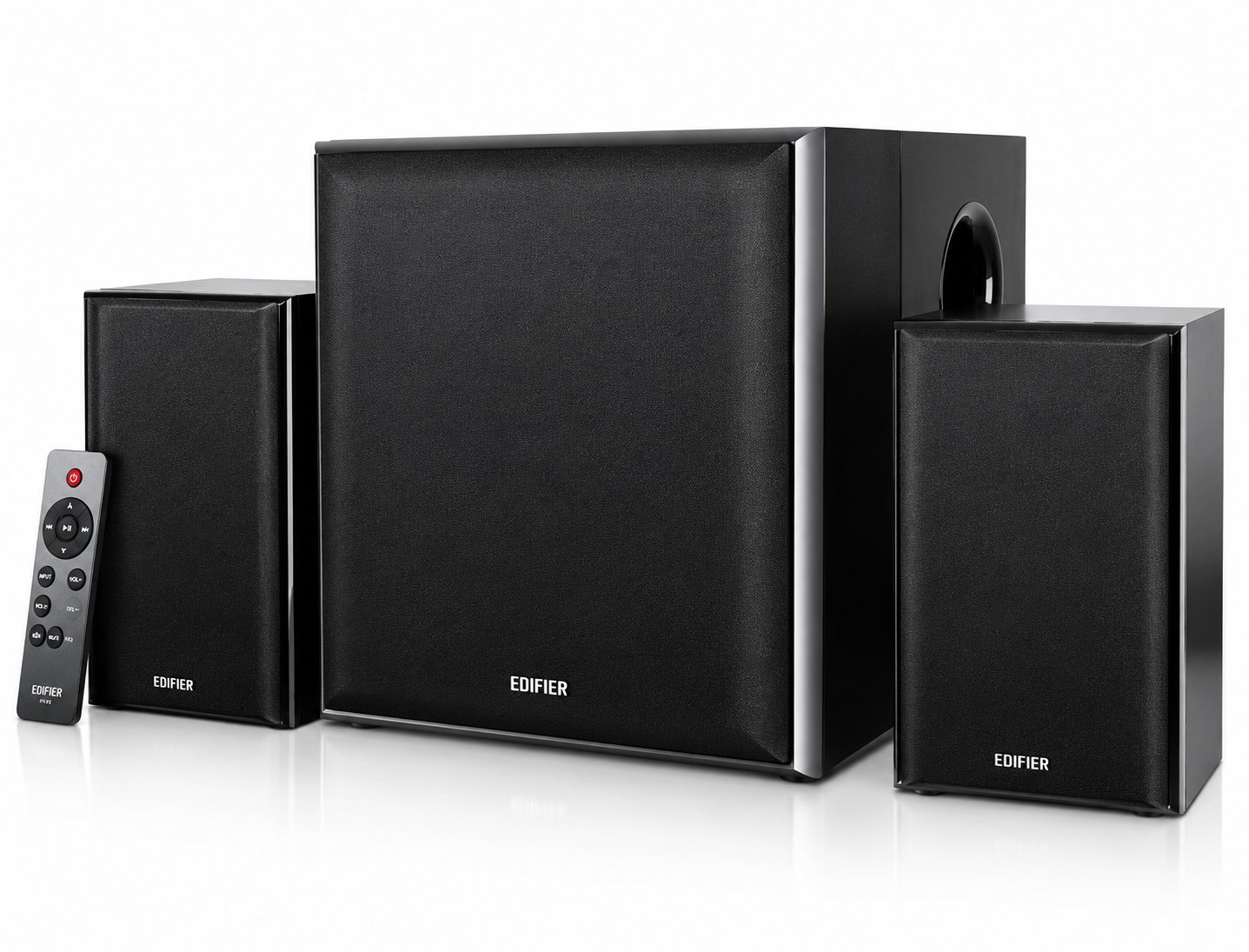

Description Edifier Multimedia Speaker M601DB

The Edifier M601DB speakers feature a 3-inch woofer and a 19mm silk dome tweeter in each speaker, delivering accurate and detailed sound reproduction. These speakers support multiple input sources, including Bluetooth 4.0, optical, coaxial, and dual RCA inputs, offering flexibility for connecting various devices. The M601DB speakers also come with a wireless remote control, allowing you to adjust volume, switch input sources, and control playback from a distance.

Connection

Audio inputs

1. AUX/Line In mode
   • Press the "POWER" button on the active speaker, or press the "AUX" or " " button on the remote control to switch to AUX or Line In mode (the green indicator will flash and then will be steady lit);
   • Connect audio source (mobile phone, tablet, etc.) to the "AUX" or "Line In" input port (note color matching) on the rear panel of the active speaker using audio cable;
   • Play music on the connected device and adjust the settings to a desired level.
2. Optical mode
   • Press the "POWER" button on the active speaker, or press the "OPT" button on the remote control to switch to optical mode (the red indicator will flash once and then will be steady lit);
   • Connect audio source (DVD, Set Top Box, etc.) to the "OPT" input port on the rear panel of the active speaker using fiber optic audio cable;
   • Play music on the connected device and adjust the settings to a desired level.
3. Coaxial mode
   • Press the "POWER" button on the active speaker, or press the "COAX" button on the remote control to switch to coaxial mode (the red indicator will flash twice and then will be steady lit);
   • Connect audio source to the "COAX" input port on the rear panel of the active speaker using coaxial cable (coaxial cable not included);
   • Play music on the connected device and adjust the settings to a desired level.
4. Bluetooth mode
   • It is Bluetooth mode by default when powered on for the first time; You can also press the "" button on the active speaker, or press the "POWER" button on the remote control to switch to Bluetooth mode (the blue indicator will flash rapidly);
   • Set your Bluetooth device to search for and connect to "EDIFIER M601DB", after pairing is successful, the blue indicator will be steady lit.
   • Play music on the connected device and adjust the settings to a desired level.
   • To disconnect Bluetooth, please press and hold "" on the active speaker for around 3 seconds, or press and hold the "" button on the remote control.

Note

• To enjoy all Bluetooth functions of this product, please ensure your audio source device has A2DP (Advanced Audio Distribution Profile) and AVRCP(Audio Video Remote Control Profile) profiles.

• Bluetooth connectivity and compatibility may differ amongst different source devices, depending on the software versions of source devices.

• Only the standard PCM audio signals (44.1KHz/48KHz) function in optical/coaxial mode.

Troubleshooting

No sound

• Check if the speaker is ON.
• Try to turn up the volume using the volume control or remote control.
• Ensure the audio cables are firmly connected and the input is set correctly on the speaker.
• Check if there is a signal output from the audio source.

Cannot connect via Bluetooth

• Make sure the speaker is switched to Bluetooth input. If it is in other audio input modes, Bluetooth will not connect. Disconnect from any Bluetooth device by pressing and holding the " " button, then try again.
• Effective Bluetooth transmission range is 10 meters; please ensure that operation is within that range.
• Try another Bluetooth device for connection.

The M601DB does not turn on

• Check if main power is connected, or if the wall outlet is switched on.

Noise coming from speakers

EDIFIER speakers generate little noise, while the background noise of some audio devices are too high. Please unplug audio cables and turn the volume up, if no sound can be heard at 1 meter away from the speaker, then there is no problem with this product.

Pros & Cons

Pros

• High-quality sound with clear mids, highs, and deep bass.
• Multiple input sources and wireless remote control.
• Stylish and modern design that complements any desktop or home setup.
• Easy setup and installation.
• Edifier's one-year warranty and excellent customer support.

Cons

• No built-in microphone for voice assistant integration.
• No USB input for direct connection to computers or other devices.
• The wireless remote control may require direct line-of-sight for proper operation.
• May not provide sufficient volume for larger rooms or gatherings.

Customer Reviews Edifier Multimedia Speaker M601DB

Customers have praised the Edifier M601DB speakers for their excellent sound quality, easy setup, and modern design. However, some users have expressed concerns about the limited volume output and the need for direct line-of-sight for the wireless remote control. Overall, the M601DB speakers have received positive feedback for their value and performance.
