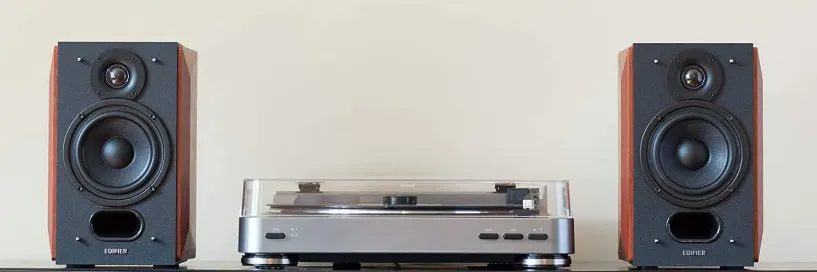

Introducing the Edifier Passive Bookshelf Speaker P12

The Edifier Passive Bookshelf Speaker P12 is a high-quality speaker system designed for audiophiles who demand the best in sound quality. These speakers are perfect for use in a home theater setup, on a desktop, or in a professional studio environment. With an estimated price range of $200 to $300 and a launch date set for late 2022, the P12 speakers are an excellent investment for anyone looking to upgrade their audio experience.

Specifications

• Frequency response: 55Hz-20KHz
• Output sound pressure level: About 79dB (1W/1M)
• Rated power: 5W-20W
• Impedance: 6 ohms
• Frequency division point: 1500Hz
• Bass unit: 4 inch (116mm)
• Treble unit: ∅ 19mm silk film tweeter

Detailed Specifications

The Edifier Passive Bookshelf Speaker P12 features a 5.5-inch woofer and a 1-inch silk dome tweeter, delivering a frequency response range of 50Hz to 20kHz. The speakers have a nominal impedance of 8 ohms and a sensitivity of 85dB, making them compatible with a wide range of amplifiers. The P12 speakers also feature a bass reflex design, which helps to deliver deep, rich bass tones. With a compact bookshelf form factor, these speakers are easy to place in any room or studio.

Unpack the box

Box Contents

Operational Guide

1. This product is passive speaker and should be connected to power amplifier for use.
2. This product's rated impedance is 602 and maximum input power is 20W+ 20W, please select the power amplifier matched with this product and ensure output power of its connector not higher than this product's maximum input power, otherwise it will damage the product.
3. For the optimum stereo listening experience, the distance between the left and right speaker should be shorter than that between the speaker and audience, simultaneously make the left and right speaker be at the same distance with the audience.
4. Before connecting the speakers, turn off power amplifier and adjust its volume to the minimum level; after the connection is complete, turn on power amplifier and gradually increase the volume to an appropriate level.
5. When connecting, please pay attention to the positive and negative pole and confirm that the connection is secure.
6. This product can be mounted onto the wall; select appropriate screws based on wall structure to fix in the wall, and then align the speakers onto the screws (screws not included).

Warning: Please ensure the speakers be securely fixed onto the wall to avoid damage.

Edifier Passive Bookshelf Speaker P12 Detailed Description

The Edifier Passive Bookshelf Speaker P12 is designed with high-quality materials, including MDF wood and a durable vinyl finish. The speakers feature a classic, timeless design that will complement any home or studio decor. The P12 speakers are easy to set up and use, with high-quality gold-plated speaker terminals that ensure a secure and stable connection. With their powerful sound and compact design, the P12 speakers are an excellent choice for anyone looking to upgrade their audio experience.

Important safety instruction

1. Please read the instructions carefully. Keep it in safe place for future reference.
2. Use only accessories approved by the manufacturer.
3. Install the instrument properly by following the instructions in the device connection section.
4. Using the product in a 0-35 C environment is recommended.
5. To reduce the risk of fire and electric shock, do not expose the product to rain or moisture.
6. Do not use this product near water. Do not immerge the product into any liquid or have it exposed to dripping or splashing.
7. Do not install or use this product near any heat source (e.g. radiator, heater, stove, or other devices that generate heat).
8. Do not place any object filled with liquids, such as vases on the product; neither should any open fire, such as lighted candles be placed on the product.
9. Do not block any ventilation openings. Do not insert any object into ventilation openings or slots. It may cause fire or electric shock.
10. Keep sufficient clearance around the product to maintain good ventilation (minimum 5cm is recommended).
11. Do not force a plug into the jack. Before connection, check for blockage in the jack and whether the plug matches the jack and is oriented to the right direction.
12. Keep the provided accessories and parts (such as screws) away from children to prevent from being swallowed by mistake.
13. Do not open or remove the housing yourself. It may expose you to dangerous voltage or other hazardous risks. Regardless the cause of damage (such as damaged wire or plug, exposure to liquid splash or foreign object falling in, exposure to rain or moisture, product not working or being dropped, etc.), the repair has to be performed by an authorized service professional immediately.
14. Never use strong acid, alkali, gasoline, alcohol, or other chemical solvents to clean the product surface. Use only neutral solvent or clear water for cleaning.

Troubleshooting

No sound

1. Ensure audio source and connecting cable are normal.
2. Ensure signal output of audio source is normal.
3. Ensure volume of power amplifier or audio source has been adjusted to the minimum level.
4. Please turn off the power amplifier and restart it.

Edifier Passive Bookshelf Speaker P12 Pros & Cons

Pros

• High-quality sound with deep, rich bass tones
• Compact bookshelf form factor is easy to place in any room or studio
• High-quality materials and durable construction
• Compatible with a wide range of amplifiers
• Easy to set up and use

Cons

• May require a separate amplifier for optimal performance
• May be too powerful for some desktop setups
• Not wireless, so a wired connection is required
• May not be suitable for very large rooms or spaces

Customer Reviews

Customers who have purchased the Edifier Passive Bookshelf Speaker P12 have praised its high-quality sound and durable construction. Many have noted that the speakers are easy to set up and use, and that they deliver powerful, rich bass tones. Some have noted that the speakers may be too powerful for some desktop setups, but that they are an excellent choice for a home theater or professional studio setup. The most common complaint about these speakers is that they are not wireless, so a wired connection is required.
