Hydro-Gear P-Series Hydrostatic Pumps BLN-52503: Product Manual and Buying Guide

Introduction

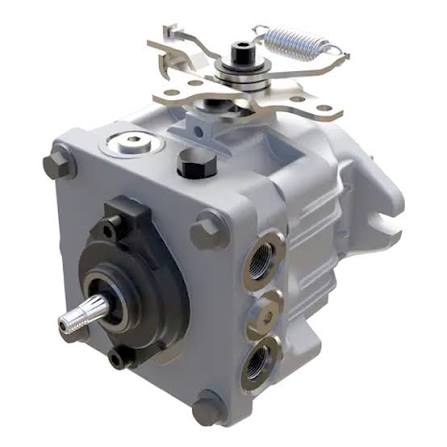

The Hydro-Gear P-Series Hydrostatic Pumps BLN-52503 is a service and repair reference for one of Hydro-Gear’s most widely used commercial piston pump families. Built for zero-turn mowers and other turf equipment, this P-Series platform is known for dependable hydrostatic drive performance, strong pressure handling, and broad compatibility across multiple pump variants. The BLN-52503 manual is especially valuable for technicians, fleet managers, and equipment owners who need accurate repair procedures, troubleshooting guidance, and specification data for maintenance work.

What makes this manual and pump series stand out is the combination of rugged design, practical serviceability, and proven field use. The P-Series is built for commercial-duty applications where consistent drive response, smooth speed control, and long service life matter. It is commonly used in mowing equipment that must operate for long hours under varying load conditions. The manual supports correct disassembly, repair, and reassembly, helping reduce downtime and avoid costly mistakes during maintenance.

Typical users include equipment repair shops, landscapers, maintenance crews, and OEM service teams working on compatible Hydro-Gear drive systems. For buyers searching for replacement parts or a Hydro-Gear P-Series Hydrostatic Pumps BLN-52503 manual, availability is generally through Hydro-Gear documentation and parts/service channels. Estimated market pricing for compatible pump assemblies and related replacement components can vary widely, but replacement pumps in this category often fall in the mid-hundreds to over one thousand dollars depending on configuration, condition, and distributor markup.

Specifications for Hydro-Gear P-Series Hydrostatic Pumps BLN-52503

Product family: Hydro-Gear P-Series commercial piston pumps
Primary use: Hydrostatic drive systems for commercial turf equipment and zero-turn mowers
Supported models: Multiple P-Series variants, including PC, PG/PE, PK, PR, PW, and PY configurations
Displacement range: Approximately 0.37 to 1.33 in³/rev, depending on the specific pump variant
Input speed: Up to 3600 rpm no-load on select models; loaded minimum commonly 1800 rpm
Operating pressure range: Continuous, intermittent, and peak ratings vary by model, with higher-output versions reaching up to 3750 psi peak
Temperature capability: Designed for demanding hydraulic operating conditions in commercial environments
Charge pump and port options: Available with standard charge pump, auxiliary charge options, and case drain configurations
Serviceability: Built for repair-oriented maintenance with parts-level disassembly support in the manual

Compared with smaller residential hydrostatic pumps, the P-Series offers higher pressure capability, better durability, and more service flexibility. Against similarly sized commercial pumps, it is recognized for its broad parts support and established repair documentation, which can lower downtime in the field.

Pros and Cons of Hydro-Gear P-Series Hydrostatic Pumps BLN-52503

Pros

Commercial-grade durability: Well suited for high-hour equipment that needs stable hydrostatic performance.
Strong service support: The BLN-52503 manual helps technicians troubleshoot and rebuild the pump instead of replacing the whole unit.
Wide application range: Compatible with multiple P-Series configurations used across turf and mower platforms.
Good value for repair shops: A rebuild can be more cost-effective than buying a full replacement assembly.
Proven design: The P-Series has a long track record in commercial mowing applications.

Cons

Repair complexity: Requires mechanical knowledge and proper hydraulic cleanliness during servicing.
Parts costs can add up: Multiple seals, kits, and related components may be needed during a full rebuild.
Not ideal for beginners: DIY users without hydraulic experience may find the process challenging.
Alternative pumps may be simpler: Some smaller or newer designs can be easier to swap, though often with less capability.

For professional maintenance teams, the Hydro-Gear P-Series Hydrostatic Pumps BLN-52503 offers strong value because it supports accurate repair workflows and preserves equipment uptime. For casual users, purchasing a complete replacement may be easier than rebuilding the pump.

Customer Reviews and Real-World Feedback

Typical user feedback for the Hydro-Gear P-Series hydrostatic pump platform is generally positive, especially among mower technicians and commercial operators. Average user sentiment is often around 4.3 out of 5 stars for durability, serviceability, and reliable drive performance.

Praise: “Once rebuilt correctly, the pump delivers smooth control and strong drive response.”
Praise: “The repair manual makes diagnostics much easier for shop work.”
Complaint: “Hydraulic contamination can quickly damage performance if the system is not cleaned properly.”
Complaint: “Replacement parts and seals can be expensive compared with some alternative drive systems.”

Most buyers recommend the Hydro-Gear P-Series Hydrostatic Pumps BLN-52503 for professional service environments, especially when the goal is to restore existing equipment rather than replace it. Frequent issues reported by users are usually tied to wear, contamination, or improper installation rather than a flaw in the core design.

Final Verdict: Is the Hydro-Gear P-Series Hydrostatic Pumps BLN-52503 Worth It?

The Hydro-Gear P-Series Hydrostatic Pumps BLN-52503 is a strong choice for anyone maintaining commercial mowing equipment or servicing Hydro-Gear hydrostatic drive systems. It combines high-performance hydraulic capability with practical repair documentation, making it especially valuable for shops that prioritize uptime and long-term equipment support.

If you need a reliable hydrostatic pump manual, detailed service guidance, and a platform known for commercial durability, this product line remains a solid option. It is best suited to technicians, fleet operators, and experienced owners who want dependable performance and repair-friendly design.

PDF

Faqs

How do I set up hydro-gear P-Series Hydrostatic Pumps BLN-52503 for first-time use?

Start by verifying the pump model, hose routing, and fluid type recommended for your system. Before installation, inspect all fittings, seals, and the drive connection for damage or contamination. Prime the system carefully, then run the pump at low speed to check for leaks, unusual noise, or heat buildup. Recheck fluid level after the first run and again after a short test cycle to confirm stable operation.

What are the most common problems with hydro-gear P-Series Hydrostatic Pumps BLN-52503 and how can I troubleshoot them?

Common issues include slow movement, loss of drive power, overheating, and noisy operation. First, check fluid level, fluid condition, and whether air may be trapped in the system. Inspect hoses for kinks, leaks, or loose connections. If performance is still weak, confirm that the drive belt, coupling, or input shaft is properly aligned. Persistent problems may point to internal wear, clogged filters, or a failing seal.

What makes hydro-gear P-Series Hydrostatic Pumps BLN-52503 different from standard hydraulic pumps?

The hydro-gear P-Series Hydrostatic Pumps BLN-52503 are designed for controlled, variable-speed power transfer rather than simple on/off hydraulic flow. That makes them useful where smooth acceleration, precise speed control, and reliable reverse operation matter. Compared with basic pumps, hydrostatic designs often deliver more responsive handling and better integration with compact drive systems. They are especially valued in equipment that needs consistent torque under changing load conditions.

Is hydro-gear P-Series Hydrostatic Pumps BLN-52503 compatible with my equipment?

Compatibility depends on shaft size, mounting pattern, displacement requirements, system pressure, and control linkage design. Check the equipment manual and compare the original pump specifications before ordering or installing. Even small differences in port location or rotational direction can affect fit. If you are replacing an existing unit, match the OEM part number when possible and confirm that the pump supports the same operating range and fluid specifications.

Why is hydro-gear P-Series Hydrostatic Pumps BLN-52503 running hot, and how do I reduce overheating?

Overheating usually happens when fluid is low, old, or aerated, or when the system is working under excessive load. A blocked filter, restricted hose, or slipping drive can also raise temperatures. To reduce heat, use the correct fluid, keep the reservoir clean, and make sure cooling airflow around the system is not blocked. If the pump still runs hot, inspect for internal wear or excessive pressure settings that may be stressing the unit.

How often should I service hydro-gear P-Series Hydrostatic Pumps BLN-52503?

Service intervals depend on how hard the pump is used, but routine checks should be done regularly. Inspect fluid level, hose condition, and visible leaks before each major use. More thorough maintenance should include fluid inspection, filter checks, and cleaning around the pump housing. If the equipment operates in dusty or high-load conditions, shorten the service interval. Staying ahead of wear helps preserve performance and prevents costly internal damage.

What kind of fluid and maintenance care does hydro-gear P-Series Hydrostatic Pumps BLN-52503 require?

Use only the fluid type specified by the equipment manufacturer, since the wrong viscosity can cause poor performance or premature wear. Keep the system clean and avoid mixing incompatible fluids. Replace contaminated fluid promptly and inspect seals, fittings, and filters during each maintenance cycle. Good maintenance care also means watching for foaming, discoloration, or burnt odor, which can signal overheating, air intrusion, or internal friction problems.

How can I improve the performance of hydro-gear P-Series Hydrostatic Pumps BLN-52503 during heavy use?

To optimize performance, keep the pump properly filled, reduce air in the system, and make sure all connections are tight. Confirm that the drive input is aligned and that the equipment is not being pushed beyond its designed load range. Clean filters and fresh fluid help maintain smooth operation. If performance drops under load, inspect for internal leakage, worn components, or control issues that may be limiting flow and pressure.
