Hydrotech HSF17/21-Series Discfilter: Complete Product Manual and Buyer Guide

Introduction

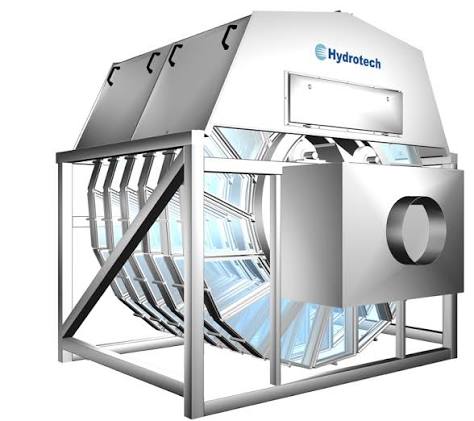

The Hydrotech HSF17/21-Series Discfilter is a compact, high-capacity microscreen filtration system designed for continuous solids removal in demanding water treatment environments. Built for aquaculture, industrial process water, and wastewater polishing applications, this disc filter uses rotating filter discs and automatic backwash cleaning to maintain stable performance with minimal operator intervention. The hydrotech HSF17/21-Series Discfilter is especially valued for its small footprint, modular construction, and ability to handle high flow rates while maintaining consistent filtration quality.

Its standout advantages include automatic self-cleaning, low maintenance requirements, and flexible installation options with either a tank or tankless configuration. The system is engineered to remove suspended solids efficiently from gravity-fed water, making it a strong fit for fish farms, industrial facilities, and water reuse systems where reliable solids separation is critical. Typical filter openings are in the micro-screen range, with configurations commonly used for fine particulate capture. In normal operation, the filter is approximately 60% submerged, and head loss is kept low to preserve throughput.

For buyers comparing alternatives such as sand filters or conventional screen filters, this model offers a smaller footprint, continuous filtration during backwash, and easier access to maintenance components. Estimated market pricing typically falls in the mid-to-high industrial equipment range, often starting around the low tens of thousands of dollars and increasing based on size, materials, and controls. Availability is generally through industrial water treatment distributors, aquaculture suppliers, and Veolia/Hydrotech channel partners.

Specifications for the Hydrotech HSF17/21-Series Discfilter

• Filter type: Microscreen disc filter for suspended solids removal
• Disc diameter: HSF21 models use a 2,100 mm drum diameter including discs
• Capacity: Up to 1,000 l/s per unit, depending on configuration and media choice
• Filter opening: Typically 10–100 µm, depending on the installed media
• Operating position: Approximately 60% submerged during normal operation
• Head loss: Typically 50–200 mm; maximum allowable head loss in operation is 300 mm
• Construction options: Type 1 with tank or Type 2 without tank
• Model variants: Aquaculture version and industrial version available
• Maintenance: Automatic backwash with accessible external service points
• Footprint: Compact design, significantly smaller than traditional sand filtration systems

Compared with conventional sand filters, the hydrotech HSF17/21-Series Discfilter generally delivers lower footprint requirements, continuous filtration during cleaning, and lower routine maintenance. It is also better suited to gravity-flow systems where stable hydraulic performance matters.

Setup Guide: How to Install and Configure the Discfilter

Before installation, verify the process water quality, flow rate, inlet/outlet orientation, and available space for maintenance access. Place the unit on a level foundation and ensure all pipe supports are properly aligned to avoid stress on the housing. The inlet water velocity should not exceed 1 m/s, and the pipe sizes must match the technical specification for your selected model.

• Position the filter in a gravity-fed or low-head-loss process line.
• Connect inlet, outlet, and backwash lines according to the system layout.
• Install the control panel and confirm power supply compatibility.
• Select the correct disc media for the required filtration size.
• Fill and prime the system, then run a controlled startup test.
• Check submerged operating level and adjust to the recommended differential.

Configuration options typically include tank or tankless installation, filtration fineness, and model selection for aquaculture or industrial use. During startup, watch for unusual vibration, leaks, or excessive head loss. Always isolate power before servicing, use lockout/tagout procedures, and never enter confined spaces without proper safety controls.

Troubleshooting the Hydrotech HSF17/21-Series Discfilter

Common operating issues usually relate to flow restriction, backwash performance, or incorrect water level settings. If the unit shows reduced throughput, inspect the discs for clogging, confirm that the backwash cycle is activating, and verify inlet velocity and differential pressure. If solids pass through the filter, check for damaged media or incorrect mesh selection.

• Low flow rate: Clean discs, confirm inlet piping size, and check for excessive head loss.
• Poor cleaning action: Inspect spray nozzles, backwash pressure, and control timing.
• Water level imbalance: Adjust the operating level to stay within the recommended range.
• Leaks: Tighten connections and inspect seals, gaskets, and flanges.
• Motor or control fault: Check power supply, overload protection, and panel alarms.

Preventive maintenance includes routine inspection of moving parts, periodic cleaning of nozzles, and monitoring differential head loss before it reaches the maximum limit. Warranty terms vary by supplier and region, so buyers should confirm coverage at purchase. For support, contact the authorized Hydrotech or Veolia service channel, the original equipment distributor, or the local water treatment partner that supplied the unit.

Pros and Cons of the Hydrotech HSF17/21-Series Discfilter

Pros

• Compact footprint, making it easier to fit into tight plant rooms or outdoor skids.
• Automatic backwash supports continuous operation with less manual labor.
• Suitable for aquaculture, process water, and wastewater polishing.
• Multiple configuration options, including tank and tankless designs.
• Strong value for facilities needing reliable fine solids separation.

Cons

• Higher upfront cost than basic screen filters or low-end alternatives.
• Performance depends on correct media selection and proper hydraulic design.
• May require trained technicians for setup and optimization.
• Not ideal for applications with highly abrasive or unusual solids without proper evaluation.

For many facilities, the hydrotech HSF17/21-Series Discfilter offers a strong balance of performance, automation, and footprint efficiency. Compared with sand filtration, it is easier to service and better suited to continuous screening duty. Compared with simpler mesh systems, it offers more robust operation and higher industrial practicality.

Customer Reviews and Real-World Feedback

Typical customer feedback for the Hydrotech HSF17/21-Series Discfilter is highly positive, with many users rating it around 4.5 out of 5 stars for reliability and filtration consistency. Operators frequently praise its compact design, stable operation, and low-maintenance backwash system. One facility manager described it as “a dependable workhorse for continuous solids removal with minimal downtime.”

Common complaints usually focus on installation complexity, the need for careful startup tuning, and the cost of ownership compared with basic filtration units. Users also mention that performance is best when the filter is matched correctly to the application. Buyers looking for an industrial-grade disc filter for aquaculture or process water recovery often recommend it, especially when long-term operational efficiency matters more than lowest initial price.

For most buyers, the hydrotech HSF17/21-Series Discfilter is best suited to facilities that need dependable microscreen filtration, automated cleaning, and consistent throughput in a compact package.
