Intro of the IFB Appliances Convection Microwave Oven 23SC3

The IFB 23SC3 Convection Microwave Oven is a versatile and efficient kitchen appliance designed to simplify cooking tasks. With a 23-liter capacity and a powerful 900-watt output, it offers a range of cooking modes including microwave, grill, and convection. Its touch-key control panel provides easy operation, while the stainless steel cavity ensures durability. The IFB 23SC3 is an excellent choice for those seeking a reliable and feature-rich microwave oven. The cost of the IFB 23SC3 Convection Microwave Oven is approximately $299.99.

Specifications

Note: The above quoted may be further confirmed or updated.

Description

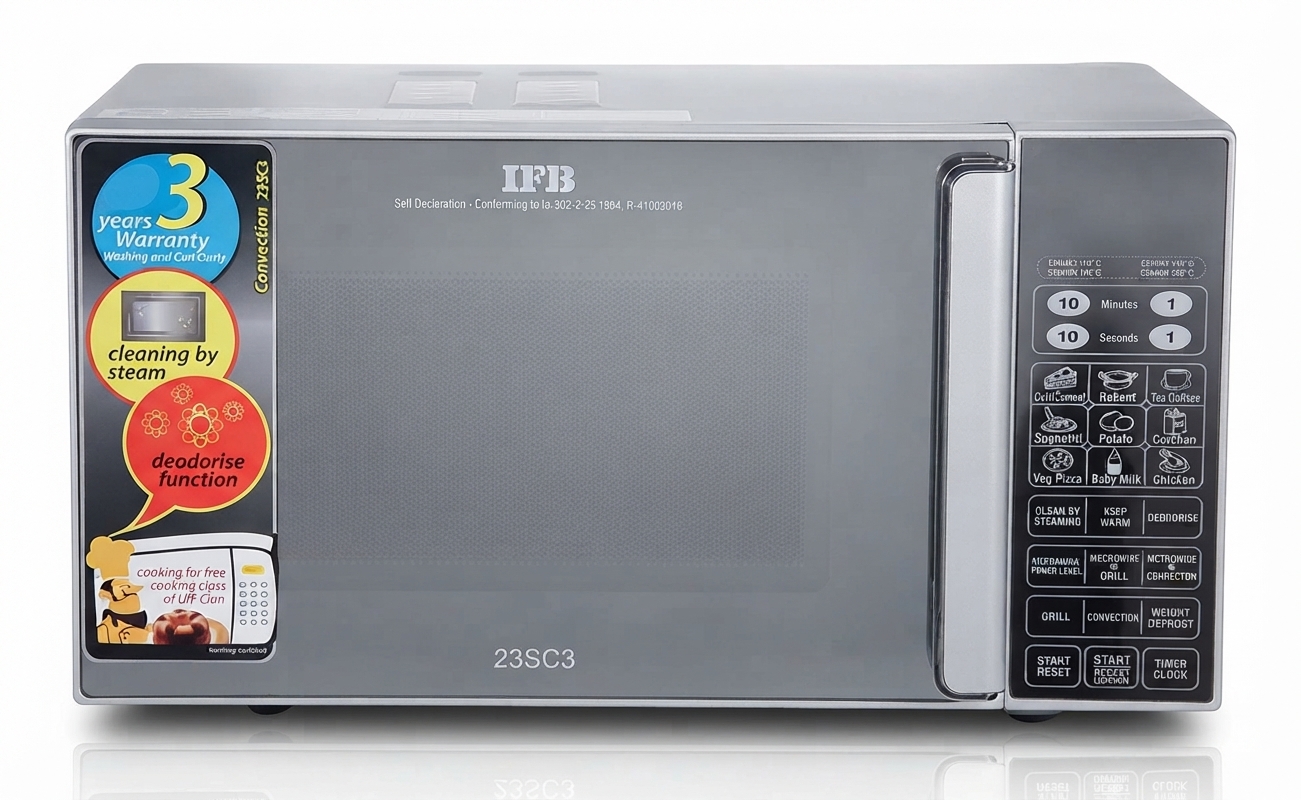

The IFB Appliances Convection Microwave Oven 23SC3 boasts a sleek and durable design with a user-friendly control panel. The stainless steel cavity ensures better reflection and even cooking. The oven comes with a turntable that rotates during cooking to ensure uniform heating. The child safety lock feature adds an extra layer of security, preventing accidental start-ups. The auto cook menu offers pre-set cooking options, making it easier to prepare a variety of dishes.

INSTALLATION

BEFORE YOU USE YOUR MICROWAVE

1. This microwave oven must be placed on a flat stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
2. Do not place the oven where heat moist.or high humidity are generated, or near combustible materials.
3. Remove all the packaging materials from the microwave oven
4. WARNING:
   Check the oven for any damage such as Misaligned or bent door
   Damaged door seals and sealing surface Broken or loose door hinges Latches and dents inside the cavity or on the door
   Note: if there is any damage ,do not operate the oven and contact qualified service personnel.
5. Install turntable roller support and glass tray in their proper position.

6. Plug power cord into a dedicated 15-amp electrical outlet.



7. Make sure that the power supply cord is undamaged and does not run under the even or over any hot or sharp surface.
8. The socket must be easily accesible so that it can be easily unplugged in an emergency.

9. For correct operation the microwave oven must have sufficient air flow.




   Do not cover or block any openings on the appliance.
   Do not remove the feet.

10. Do not use the oven outdoors

GROUNDING INSTRUCTIONS

This appliance must be grounded. The oven is equipped with a cord that has a grounding wire with a grounding plug. It must be plugged into a properly installed and grounded wall receptacle. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape path for the electric current. It is recommended that a separate circuit, serving only the oven, be provided. Using a high voltage is dangerous and may result in a fire or other accidents, causing damage to the oven.

Warning: Improper use of the grounding plug can result in a risk of electric shock.

Note

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service technician.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to follow the electrical connection procedures.

The wires in this main cable are color-coded as follows:

• Green and Yellow = Earth
• Blue = Neutral
• Brown = Live

Radio Interference

Operation of the microwave oven may cause interference with your radio, TV, or similar equipment. If interference occurs, it can be reduced or eliminated by following these steps:

1. Clean the door and sealing surface of the oven.
2. Reorient the receiving antenna of the radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on different branch circuits.

Before You Call for Service

If the oven fails to operate, follow these steps:

1. Ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these are functioning properly, test the outlet with another appliance.
3. Ensure that the control panel is programmed correctly and that the timer is set.
4. Ensure that the door is securely closed, engaging the door safety lock system. Otherwise, microwave energy will not flow into the oven.

If none of the above steps resolve the issue, contact a qualified technician. Do not attempt to adjust or repair the oven yourself.

This format presents the text clearly, with proper headings and bullet points for better readability and organization.

IMPORTANT SAFETY INSTRUCTIONS

Basic Safety Precautions for Using Electrical Appliances

When using electrical appliances, basic safety precautions should always be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when it is empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard.
5. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given, so that the child is able to use the oven safely and understands the hazards of improper use.
6. WARNING: When the appliance is operated in combination mode, children should only use the oven under adult supervision due to the high temperatures generated.
7. To reduce the risk of fire in the oven cavity:
   • a. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
   • b. Remove wire twist-ties from paper or plastic bags before placing the bag in the oven.
   • c. If smoke is observed, switch off or unplug the appliance and keep the door closed to stifle any flames.
   • d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
8. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
9. Microwave heating of beverages can result in delayed eruptive boiling. Therefore, care must be taken when handling the container.
10. Do not fry food in the oven. Hot oil can damage oven parts and utensils and may even cause skin burns.
11. Eggs in their shells and whole hard-boiled eggs should not be heated in microwave ovens, as they may explode, even after microwave heating has ended.
12. Pierce foods with heavy skins, such as potatoes, whole squashes, apples, and chestnuts, before cooking.
13. The contents of feeding bottles and baby jars should be stirred or shaken, and the temperature should be checked before serving to avoid burns.
14. Cooking utensils may become hot due to heat transferred from the heated food. Potholders may be needed to handle the utensils.
15. Utensils should be checked to ensure they are suitable for use in the microwave oven.
16. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation that involves the removal of any cover providing protection against exposure to microwave energy.
17. This product is classified as Group 2 Class B ISM equipment. Group 2 includes all ISM (Industrial, Scientific, and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material and spark erosion equipment. Class B equipment is suitable for use in domestic establishments and establishments directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes.
18. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
19. Children should be supervised to ensure they do not play with the appliance.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

MICROWAVE COOKING TECHNIQUES

Microwave Cooking Tips

• Stirring:
  Stir foods such as casseroles and vegetables while cooking to distribute heat evenly.
• Arrangement:
  Arrange unevenly shaped foods, such as chicken pieces or chops, with the thicker, meatier parts toward the outside of the turntable where they receive more microwave energy.
• Shielding:
  Shield food with narrow strips of aluminum foil to prevent overcooking (e.g., poultry wing tips, the ends of poultry legs, and corners of square baking dishes). Use only small amounts of aluminum foil. Larger amounts can damage your oven.
• Turning:
  Turn foods over midway through cooking to expose all parts to microwave energy. This is especially important for large items such as roasts.
• Standing:
  Foods cooked in the microwave build up internal heat and continue to cook for a few minutes after the oven stops. Let foods stand to complete cooking, especially foods such as roasts and whole vegetables. Roasts need this time to finish cooking in the center without overcooking the outer areas.
• Liquids:
  All liquids, such as soup or hot chocolate, should be shaken or stirred when cooking is complete. Let liquids stand for a moment before serving.
• Food Doneness Signs Include:
  • Food steams throughout, not just at the edge.
  • Center bottom of the dish is very hot to the touch.
  • Poultry thigh joints move easily.
  • Meat and poultry show no pinkness.
  • Fish is opaque and flakes easily with a fork.

Defrosting Tips

Defrosting in a microwave is fast and hygienic, preventing the growth of bacteria while retaining the natural texture and flavor of the food. It offers quick and complete defrosting.

• Foods must be weighed correctly.
• Remove food to be defrosted from the packaging material.
• Allow the food to stand for a few minutes to thaw completely.
• Space the food to be thawed in a circular pattern.
• Place larger or thicker pieces on the outer edge of the dish.
• When defrosting, stir or turn the food halfway for even defrosting.
• Separate the pieces as they thaw.
• Remove small pieces that have thawed to prevent them from cooking.

Grilling Tips

• Marinate foods only in the refrigerator. Reserve a portion of the marinade, before raw meat is placed in it, for later use in basting or as a dip for cooked food.
• To avoid flare-ups and charred food, remove visible fat from meat.
• Do not partially cook, unless the food will go immediately onto the grill.
• If cooking ahead, cook completely, then cool down quickly for reheating later.
• Serve food from the grill on a clean platter, not one that has raw, possibly contaminated juices on it.

Convection Tips

• Always preheat the oven before putting food in (unless your recipe directs otherwise).
• As with any recipe, check the food about 5-10 minutes before the expected finish time due to variables such as:
  • The temperature of the food when first placed in the oven.
  • The quantity of food in the oven.
  • Your preferred level of "doneness."
• The more food in the oven at one time, the longer the cooking time.

UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwaves, allowing energy to pass through the container and heat the food.
2. Microwaves cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used in microwave cooking, as they may contain small metal fragments which could cause sparks or fires.
3. Do not use recycled paper products when microwave cooking, as they may contain impurities that could ignite and cause fires.
4. Round or oval dishes are recommended over square or oblong ones, as food in the corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. However, be careful not to use too much foil, and always keep a distance of at least 1 inch (2.54 cm) between the foil and the oven cavity.

The list below is a general guide to help you select the correct utensils:

• Combination: Applicable for both "microwave + grill" and "microwave + convection" cooking.

IFB Appliances Convection Microwave Oven 23SC3 PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Shaf
5. Control Panel
6. Wave Guide
7. Glass Tray
8. Grill Heater
9. Baking plate

CONTROL PANEL

• DISPLAY SCREEN
  • Displays cooking time, power, indicators, and present time.
• NUMBER PADS
  • Touch the number pads to enter clock time or cooking time.
• AUTO COOK PADS
  • Touch the menu pad to set auto cook.
• MICROWAVE POWER LEVEL
  • Touch to select the microwave power level.
• MICROWAVE + GRILL
  • Touch to set one of two combination cooking programs with grill and microwave.
• MICROWAVE + CONVECTION
  • Touch to select one of four combination cooking settings with microwave and convection.
• GRILL
  • Touch to set a grill cooking program.
• CONVECTION
  • Touch to set a convection cooking program.
• CLEAN BY STEAMING
  • Touch to set a cleaning program using steam.
• TIMER/CLOCK
  • Touch to set the kitchen timer or to set the clock.
• WEIGHT DEFROST
  • Touch to defrost food based on the weight of the food.
• DEODORIZE
  • Touch to set the deodorize function.
• STOP/RESET
  • Touch once to stop the cooking program temporarily, or touch twice to cancel all previous settings altogether. It is also used to set and release the childproof lock.
• START / EXPRESS COOKING
  • Touch to start a program, or touch a number of times to start the oven at full power level for quick cooking.
• KEEP WARM
  • Press to set the oven to operate in Keep Warm mode.

HOW TO SET THE OVEN CONTROLS

Beeps During Oven Settings

• One Beep: The oven accepts the entry.
• Two Beeps: The oven does not accept the entry. Please check and try again.

Setting the Clock

When the oven is first plugged in, the display will briefly show "CLOCK" and "1:00", allowing you to reset the clock.

1. Touch the STOP/RESET pad.
2. Touch and hold the TIMER/CLOCK pad for 3 seconds.
3. Touch the number pads to enter the correct clock time.
4. Touch the TIMER/CLOCK pad once to confirm.

Microwave Cooking

Microwave cooking allows you to customize the cooking power and time. First, select a power level by touching the MICROWAVE POWER LEVEL pad a number of times (see the table below). Then, touch the number pads to enter the desired cooking time. The longest cooking time is 99 minutes and 99 seconds.

Example: Suppose you want to cook for 5 minutes at 60% power level:

1. Touch the STOP/RESET pad.
2. Touch the MICROWAVE POWER LEVEL pad repeatedly until "P-60" appears on the display screen.
3. Touch the number pads to enter the cooking time (5:00).
4. Touch the START/EXPRESS COOKING pad.

Notes:

1. During microwave cooking, touch the MICROWAVE POWER LEVEL pad to check the cooking power.
2. To temporarily stop a cooking process, touch the STOP/RESET pad once. To restart, touch the START/EXPRESS COOKING pad, or touch STOP/RESET twice to cancel the program altogether.
3. After the total cooking time has elapsed, the system will beep and display "END". The beeps will continue every two minutes until the door is opened or any pad is touched.

Grill

Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages, and pieces of chicken. It is also suitable for hot sandwiches and au gratin dishes. The longest cooking time is 99 minutes and 99 seconds.

Example: Suppose you want to program grill cooking for 12 minutes:

1. Touch the STOP/RESET pad once.
2. Touch the GRILL pad once (GRILL will appear on the display screen).
3. Touch the number pads to enter the desired cooking time.
4. Touch the START/EXPRESS COOKING pad.

Note: Grill cooking power is set by the system.

Microwave + Grill

This feature allows you to combine grill and microwave cooking on two different settings by touching the MICROWAVE + GRILL pad once or twice. The longest cooking time is 99 minutes and 99 seconds.

Combination 1: 30% time for microwave cooking, 70% for grill cooking. Applicable for cooking fish and au gratin.

Example: Suppose you want to set combination 1 cooking for 25 minutes:

1. Touch the STOP/RESET pad.
2. Touch the MICROWAVE + GRILL pad once (C-1, GRILL, MICRO will appear on the display screen).
3. Touch the number pads to enter 25:00.
4. Touch the START/EXPRESS COOKING pad.

Combination 2: 55% time for microwave cooking, 45% for grill cooking. Applicable for cooking pudding, omelets, baked potatoes, and poultry.

Example: Suppose you want to set combination 2 cooking for 12 minutes:

1. Touch the STOP/RESET pad.
2. Touch the MICROWAVE + GRILL pad twice (C-2, GRILL, MICRO will appear on the display screen).
3. Touch the number pads to enter 12:00.
4. Touch the START/EXPRESS COOKING pad.

Convection Cooking

The longest cooking time is 99 minutes and 99 seconds. During convection cooking, hot air is circulated throughout the oven cavity to brown and crisp foods quickly and evenly. This oven can be programmed for ten different cooking temperatures.

Example: Suppose you want to cook at 180°C for 40 minutes:

1. Touch the STOP/RESET pad.
2. Touch the CONVECTION pad repeatedly until the desired cooking temperature (180°C) appears on the display screen.
3. Touch the number pads to enter the cooking time (40:00).
4. Touch the START/EXPRESS COOKING pad.

Note:

1. After the total time has elapsed, the system will beep and display "END". The beeps will continue every two minutes until the door is opened or any pad is touched.
2. You can check the convection temperature while cooking by touching the CONVECTION pad.

Preheat and Cook with Convection

Your oven can be programmed to combine preheating and convection cooking operations.

Example: Suppose you want to preheat to 170°C and then cook for 30 minutes:

1. Touch the STOP/RESET pad.
2. Touch the CONVECTION pad repeatedly until the desired temperature (170°C) appears on the display screen.
3. Touch the START/EXPRESS COOKING pad. "PREH" will flicker on the display screen until the designated temperature is reached.
4. Open the door and place the food into the oven.
5. Touch the number pads to enter the cooking time (30:00).
6. Touch the START/EXPRESS COOKING pad.

Microwave + Convection

The longest cooking time is 99 minutes and 99 seconds. This oven has four pre-programmed settings that make it easy to cook with both convection heat and microwave automatically. Touch MICROWAVE+ CONVECTION pad repeatedly to select temperature as follows:

Example: Suppose you want to bake a cake for 24 minutes on COMB3:

1. Touch the MICROWAVE + CONVECTION pad repeatedly until 170°C appears on the display screen.
2. Touch the number pads to enter the cooking time (24:00).
3. Touch the START/EXPRESS COOKING pad.

NOTE: After total time elapsed, the system will sound beeps with END in display. And the beeps will continue to sound every two minutes automatically until the door is opened or any pad is touched. You can check the convection temperature while cooking is in progress by touching the MICROWAVE + CONVECTION pad.

Weight Defrost

Weight defrost allows you to defrost food based on the food weight you entered. The food weight varies between 100g and 1800g.

Example: Suppose you want to defrost fish weighing 600g:

1. Place the fish in the oven.
2. Touch the WEIGHT DEFROST pad until 600 appears on the display screen.
3. Touch the START/EXPRESS COOKING pad.

Note: After defrosting for about 2/3 of the total time, the system will sound to remind you to turn over the food. The system will pause until you touch the START/EXPRESS COOKING pad to resume defrosting.

Multi-Stage Cooking

Your oven can be programmed for up to 3 automatic cooking sequences.

Example: Suppose you want to set the following cooking program:

1. Touch the STOP/RESET pad.
2. Enter a microwave cooking program without touching START/EXPRESS COOKING.
3. Enter a grill cooking program without touching START/EXPRESS COOKING.
4. Enter a convection program without preheating.
5. Touch the START/EXPRESS COOKING pad.

Note: Auto Cook, Weight Defrost, Express Cooking, Deodorize, and Steam Cleaning functions cannot be set in a multi-stage cooking program. If the stages of the cooking program are two or more, the display will show "MEM" to indicate.

Auto Cook

For food or the following cooking modes, it is not necessary to program the duration and cooking power. Simply touch the menu icon pad for the desired food, and enter the weight or amount of food. The system has 9 menu options.

Steps

1. Touch the Menu pad once or repeatedly to select the weight or amount of the food to be cooked.
2. Touch the START/EXPRESS COOKING pad.

Auto Cook Menu

NOTE: Auto cook depends on a number of factors such as voltage fluctuation, the shaping and placing of food, if the cooking is not entirely satisfactory; adjust cooking time a little bit.

OTHER CONVENIENT FEATURES

Child Proof Lock

The child-proof lock prevents unsupervised operation by children.

• To Set the Child Proof Lock:
  Touch and hold the STOP/RESET pad for 3 seconds. A beep will sound, and the indicator light "LOCK" will turn on. In this locked state, all pads are disabled.
• To Release the Child Proof Lock:
  Touch and hold the STOP/RESET pad for 3 seconds. A beep will sound, and the indicator light "LOCK" will turn off.

Express Cooking

Use this feature to conveniently microwave food at 100% power.

• Touch the START/EXPRESS COOKING pad in quick succession to set the cooking time. The maximum cooking time is 10 minutes.
• The oven will auto-start 2 seconds after the cooking time is entered.

Deodorize Function

1. Touch the STOP/RESET pad.
2. Touch the DEODORIZE pad. "DEO" and "5:00" will appear on the display screen.
3. Touch the START/EXPRESS COOKING pad.

Cleaning Function with Steam

The steam cleaning function generates steam, which settles on the oven cavity's surface and is absorbed by grease and grime. Once absorbed, the steam loosens the grime, making it easy to wipe clean, leaving the oven hygienically clean.

Instructions to Use the Steam Clean Function:

1. Place 100-150ml of water in a microwave-safe bowl on the turntable inside the oven.
2. Set the CLEAN BY STEAMING program, which is an automatic 5-minute program.
3. After 5 minutes, the microwave will beep. Do not open the door immediately; let the steam remain enclosed for 5 more minutes.
4. Afterward, open the door and wipe the inside walls of the cavity, which will be covered with water vapor.

Keep Warm Function

To use this function, follow the instructions below:

1. Press the KEEP WARM function option once.
2. Press the START/EXPRESS COOKING pad.

Note: The default setting time for the keep warm function is 30 minutes. If you want to change the time, press the KEEP WARM function option once and enter the desired time (maximum 99 minutes and 99 seconds). Then press START/EXPRESS COOKING.

Kitchen Timer

1. Touch the TIMER/CLOCK pad once. "TIMER" will appear on the display screen.
2. Touch the number pads to enter the time you want (maximum 99 minutes and 99 seconds).
3. Touch the START/EXPRESS COOKING pad.

Note: After the time has elapsed, the buzzer will sound two beeps to remind you.

To Stop the Oven While It is Operating

1. Touch the STOP/RESET pad once. You can restart the oven by touching the START pad.
   Touch the STOP/RESET pad twice to erase all instructions.
2. Open the oven door. You can restart the oven by closing the door and touching the START/EXPRESS COOKING pad.

Note: The oven stops operating when the door is opened.

Overheating Protection

During cooking, if the temperature inside the cavity exceeds 250°C, the display will show "E01," and a buzzer will sound. Eliminate the problem and touch the STOP/RESET pad to return the oven to normal operation.

Sensor Malfunction Protection

In case of a short or open circuit, the system enters malfunction protection mode. The display will show "E03," and a buzzer will sound. Eliminate the problem and touch the STOP/RESET pad to return the oven to normal operation.

Cooling Feature

The microwave oven's control system includes a cooling feature. After any cooking mode with a cooking time of more than 2 minutes, the oven fan will run for about 3 minutes automatically after cooking finishes to cool the oven and prolong its lifespan.

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the
   control panel, leave oven door open to prevent oven from accidentally turning on
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adverselyaffect the life of the appliance and possibly result in a hazardous situation.
12. Please do not dispose this appliance into the domestic rubbish bin, it should be disposed to the particular disposal center provided by the municipalities.

WARRANTY of Microwave Oven 23SC3

IFB Industries Limited. ("The Company") warrants to the original domestic purchase of this microwave oven ("Appliances") that it is free from defects in workmanship & materials. During 12 months from the date of purchase of the new microwave oven model, all the parts of the microwave oven and 36 months on Magnetron & Cavity, shall be replaced or repaired free of charge, on intimation to the Company / Company's authorized service centre  nearest to the place where the appliance is installed This warranty is subject to Limitations of Warranty.

Setup Guide

To set up your IFB Appliances Convection Microwave Oven 23SC3, follow these steps:

1. Place the oven on a flat, stable surface.
2. Ensure the oven is at least 10 inches away from any wall to allow for proper ventilation.
3. Plug in the oven and check for any signs of damage or wear.
4. Read the user manual to understand the various settings and functions.
5. Test the oven by reheating a small amount of water to ensure it is working correctly.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the
   1. Door (bent),
   2. Hinges and latches (broken or loosened),
   3. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Troubleshooting

If you encounter any issues with your IFB Appliances Convection Microwave Oven 23SC3, here are some common problems and their solutions:

• Issue: Oven not turning on. Check if the oven is properly plugged in and if there are any issues with the power supply.
• Issue: Uneven cooking. Ensure the turntable is in place and that the dish is centrally positioned.
• Issue: Loud noise during operation. Check if the oven is clean and free from any obstructions.

Always refer to the user manual for detailed instructions and warnings.

IFB Appliances Pros & Cons

Pros

• Compact design suitable for small kitchens.
• Multiple cooking functions including convection, microwave, and grill.
• Auto cook menu for easy meal preparation.
• Child safety lock for added security.
• Affordable price point compared to other similar models.

Cons

• Some users may find the interface complex.
• Limited capacity compared to larger models.
• Cleaning the stainless steel cavity can be challenging.

Customer Reviews

Customers have generally praised the IFB Appliances Convection Microwave Oven 23SC3 for its performance and value for money. However, some users have noted that the interface could be more intuitive, and cleaning the oven can be a bit tricky. Overall, it is a reliable choice for those looking for a versatile microwave oven with convection capabilities.

Common complaints include issues with customer service and occasional noise during operation, but these are not widespread.
