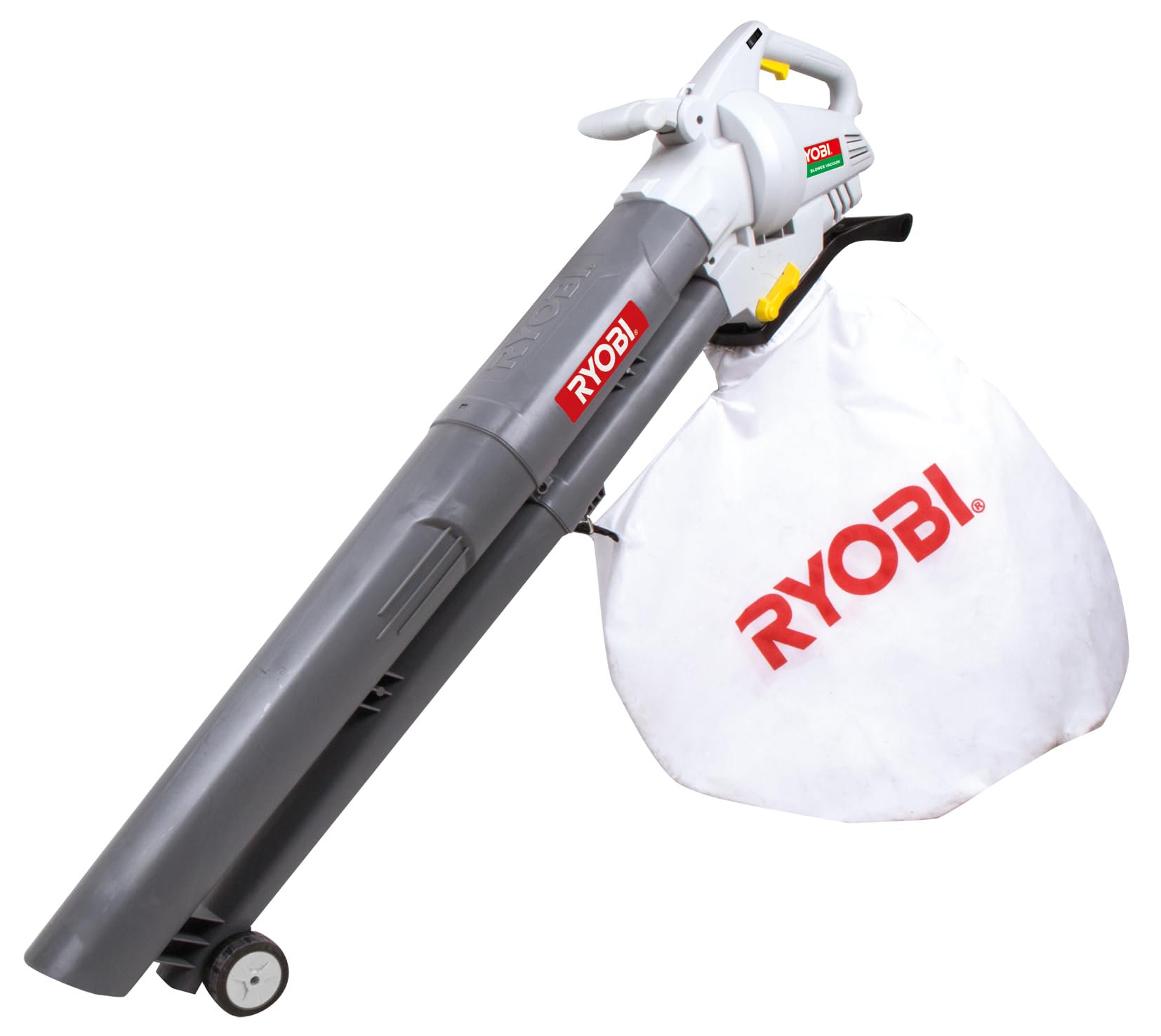

Introdcution of Ryobi Electric Mulchinator Blower RESV1300

The Ryobi Electric Mulchinator Blower RESV1300 is a powerful and versatile tool that is perfect for keeping your yard clean and tidy. This blower has a mulching capability that reduces leaves and debris up to 16:1, making it easier to dispose of and saving you time and effort. The blower also has a variable speed trigger, allowing you to control the airspeed for maximum efficiency. With a price point around $99 and a launching date of October 2021, this blower is a great value for homeowners and professionals alike.

KNOW YOUR UNIT

APPLICATION: This unit is intended for household purpose only. Use for cleaning of yards, garages, shops, porches, patios, etc.

SPECIFICATIONS

ACCESSORIES/REPLACEMENT PARTS

Assembly Instructions

ATTACHING AND REMOVING THE BLOWER/VACUUM TUBE

WARNING: To avoid serious personal injury, the blower/vacuum tube and vacuum bag must be used when operating this unit.

ATTACHING

NOTE: The Blower/Vacuum Tube comes unassembled on this unit. Installation is required to provide safe and easy use for the operator.

1. Remove the screws and nuts provided from the hardware pack.

2. Insert the blower/vacuum tube all the way into the opening on the motor housing until the holes in the tabs on the blower/vacuum tube align with the screw holes in the housing (Fig. 1).

3. Insert the two (2) 8-32 x 3/4" slotted T20 Torx screws into the right side of the motor housing and the two (2) nuts into the left side of the motor housing (Fig. 2).



4. Tighten the screws firmly. Do not over-tighten.

5. Install the 2 (two) remaining self-tapping 8-16 x 3/4" slotted T20 Torx screws into the holes on either side of the housing (Fig. 2). Tighten until snug, do not over-tighten.

Removing

NOTE: It may be necessary to remove the Blower/Vacuum Tube to clear a blocked tube or impeller.

WARNING: To avoid serious personal injury, be sure the unit is in the off position and unplugged before removing tubes.

1. Remove the 2 (two) self-tapping screws from either side of the housing.

2. Remove the 2 (two) screws and nuts holding the blower/vacuum tube on the housing (Fig. 1).
   NOTE: Keep the hardware in a safe place for future use.



3. Remove the blower/vacuum tube from the motor housing.

4. Replace Blower/Vacuum Tube before use.

Attaching and Removing the Vacuum Bag

Attaching

NOTE: The Vacuum Bag comes unassembled on this unit. Installation is required to provide safe and easy use for the operator.

1. Attach the vacuum bag to the vacuum bag hook on the blower/vacuum tube (Fig. 3).



2. Slide the vacuum bag tube over the debris exhaust tube on the housing. Push the tube until the latching tabs on both sides click into place, securing the bag on the unit (Fig. 4).



Removing

NOTE: It is necessary to remove the Vacuum Bag to empty and clean the bag.

1. Press the latching tabs on both sides of the vacuum bag tube and pull the vacuum bag from the unit (Fig. 5).

2. Detach the vacuum bag from the vacuum bag hook (Fig. 3).



3. Replace Bag before using unit.

Installing and Adjusting the Shoulder Strap

1. Push the strap through the center of the buckle.

2. Pull the strap over the cross bar and down through the slot in the buckle (Fig. 6).



3. Fully extend the strap (Fig. 7).



4. Attach the metal clip of the shoulder strap to the latch support on top of the handle (Fig. 8).



5. Place the strap over your head and onto your shoulder.



6. While standing in the operating position (Fig. 9), adjust length to fit the operator’s size.

   • Lengthen the strap by pulling down on the strap and moving the buckle up (Fig. 10).

   • Shorten the strap by pulling the strap back through the buckle while moving the buckle down (Fig. 10).



These steps guide users on safe and effective operation, emphasizing proper installation and handling of the unit components.

Description

The Ryobi Electric Mulchinator Blower RESV1300 is a corded electric blower that delivers 130 mph of airspeed and 280 cfm of air volume. It has a comfortable handle with a soft grip and a cord retention system to keep the extension cord in place. The mulching function is activated by a simple switch and the blower has a collection bag for easy disposal of mulched debris. The blower also has a cruise control feature, allowing you to lock in a constant speed for extended use.

OPERATING INSTRUCTIONS

CONNECTING THE POWER CORD

Use a minimum 25 foot (7.6 m) long, 16AWG, outdoor electrical cord when using this unit. Other sizes include:

• Cord length (ft): 25, 50, 100, 150

• Ampere Rating: 10 to 12 amps

• Wire size (AWG): 16, 16, 14, 12

WARNING: To reduce the risk of electrical shock, this unit has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord. This unit plug will fit into a polarized extension cord only one way. If the plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. This plug will fit into a polarized wall outlet only one way. If the plugs does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the unit plug, extension cord receptacle, or extension cord plug in any way.

1. Secure the extension cord to motor housing as shown (Fig. 11) to prevent accidental removal of the electrical cord.



2. Plug the female end of the electrical cord into the receptacle at the back of the unit (Fig. 12).



STARTING AND STOPPING THE BLOWER/VAC

This unit is equipped with a three way OFF/LOW/HIGH switch (Fig. 13).

• Slide the switch all the way down for OFF.

• Slide the switch up to the first click for LOW.

• Slide the switch up to the second click for HIGH.



HOLDING THE BLOWER/VACUUM

Before operating the unit, stand in the operating position (Fig. 14). Check for the following:

• The operator is wearing proper clothing, such as boots, safety glasses or goggles, ear/hearing protection, gloves, long pants and long sleeve shirt.

• A dust mask or face mask should be worn in dusty conditions.

• The unit is in good working condition.

• The tubes and guards are in place and secure.

• The vacuum bag is installed and zipped closed.

WARNING: To prevent serious personal injury to yourself or others, or damage to the unit, make sure the vacuum bag, all tubes and guards are in place before operating your unit.

AIR VENTS

Never cover air vents. Keep them free from obstructions and debris. They must always remain clear for proper motor cooling (Fig. 15).

OPERATING TIPS

• Be sure the vacuum bag is zipped closed before operating the unit.

• Assure the unit is not directed at loose debris or persons before starting unit.

• Assure the unit is in good working condition with tubes and guards in place and secure.

• Always hold the unit with both hands when operating. Keep a firm grip on both the front and rear handle or grips.

• To reduce the risk of hearing loss associated with sound level(s), hearing protection is advisable.

• Operate power equipment only at reasonable hours, not early in the morning or late at night when people might be disturbed. Comply with listed local ordinance. Usual recommendations are 9:00 am to 5:00 pm, Monday through Saturday.

• To reduce noise levels, limit the pieces of equipment used at any one time.

• To reduce noise levels, operate power blowers at the lowest possible speed to do the job.

• Use rakes and brooms to loosen debris before blowing.

• Conserve water by using power blowers instead of hoses for many lawn and garden applications, such as gutters, screens, patios, grills, porches, and gardens.

• Watch out for children, pets, open windows, or freshly washed cars.

• After using blowers and other equipment, CLEAN UP! Dispose of debris in trash receptacles.

OPERATING AS A BLOWER

• Set the blower/vacuum mode change-over lever to the up position (Blower Mode) (Fig. 16).

  • NOTE: Never use the unit with the lever in the halfway position.



• Place the shoulder strap over your head and onto your shoulder and adjust properly, see Installing and Adjusting the Shoulder Strap Pg. 9.

  • Hold the blower as shown in Figs. 17, 18, and 19. Sweep from side to side with the nozzle several inches above the ground or floor. Slowly advance, keeping the accumulated pile of debris in front of you.

  • Most dry blowing operations are better suited to low speed than high, while high speed is better for moving heavier items like large debris or gravel.

  • Use the blower for trees, shrubs, flower beds and hard to clean areas (Fig. 17).



• Use the blower around buildings and for other normal cleaning (Fig. 18).



• Use the blower for walls, overhangs and screens (Fig. 19).



OPERATING AS A VACUUM

Set the blower/vacuum mode change-over lever to the down position (Vacuum Mode) (Fig. 20).

NOTE: Never use the unit with the lever in the halfway position.

Place the shoulder strap over your head and onto your shoulder and adjust properly, see Installing and Adjusting the Shoulder Strap Pg. 9. Hold the vacuum, tilting the blower/vacuum tube slightly, and use a sweeping action to collect light debris (Fig. 14, Pg. 11). Small leaves and twigs will flow into the vacuum bag and be mulched as they pass through the fan housing, allowing the vacuum bag to hold more debris.

WARNING: As a vacuum, the unit is designed to pick up dry material such as leaves, grass, small twigs, and bits of paper. To avoid serious personal injury, do not attempt to vacuum wet debris and/or standing water as this may result in damage to the Blower/Vacuum. To avoid severe damage to the impeller, do not vacuum metal, broken glass, etc.

WARNING: Avoid situations that could catch the vacuum bag on fire. Do not operate near an open flame. Do not vacuum warm ash from fireplaces, barbecue pits, brush piles, etc. Do not vacuum discarded cigars or cigarettes unless the cinders are completely cool.

When the bag is full, suction will noticeably decrease. Turn off the unit before removing the bag. Unzip the bag and empty the contents before continuing.

EMPTY THE VACUUM BAG

To avoid serious personal injury, be sure the unit is in the off position and unplugged before unzipping or removing the vacuum bag.

NOTE: Empty the bag after each use to avoid deterioration and obstructing air flow, which will reduce the performance of the vacuum.
WARNING: Wear eye protection and a dust mask when emptying the vacuum bag.

1. While pressing the latching tabs on both sides of the vacuum bag tube, pull the vacuum bag off the unit (Fig. 21).

2. Detach the vacuum bag from the vacuum bag hook.



3. Unzip the bag and empty the contents into a garbage bag or container.

4. Turn the bag inside out after initial emptying and vigorously shake out dust and debris.

5. Zip the bag closed and reinstall vacuum bag.

MAINTENANCE AND REPAIR INSTRUCTIONS

SERVICING OF DOUBLE INSULATED UNITS
This unit is double-insulated. In a double-insulated unit, two systems of insulation are provided instead of grounding. No means of grounding are provided on a double-insulated unit, nor should a means for grounding be added to this unit. Servicing of a double-insulated unit should be done only by qualified service personnel. Replacement parts for a double-insulated unit must be identical to the parts they replace. Refer any repair to an authorized service dealer. A double-insulated unit is marked with the words "DOUBLE INSULATED" or "DOUBLE INSULATION".

CLEARING A BLOCKED TUBE/IMPELLER

1. Push the switch to the OFF position and disconnect the Blower/Vacuum from the power source. Wait for the impeller to stop rotating.
2. Remove the blower/vacuum tube. See Attaching and removing the Blower/Vacuum Tube Pg. 7. The vacuum bag can also be removed. See Attaching and removing the Vacuum Bag Pg. 8.
3. Carefully remove material blocking the impeller or tube. Inspect the blades to assure no damage has occurred. Rotate the blades by hand to assure the blockage is completely cleared.
4. Reinstall the vacuum bag and blower/vacuum tube.
5. Reconnect to power source and resume use.

CLEANING THE UNIT

1. Push the switch to the OFF position and disconnect the Blower/Vacuum from the power source.

2. Use a small brush or the air discharge of a vacuum cleaner to clean the exterior vents for any obstructions.

3. Do not use detergents on the plastic housing or components. These can be damaged by certain household cleaners that contain solvents such as acetone and lemon, and by certain acidic oils such as kerosene or acetone. Moisture can also cause shock hazard. Wipe off any moisture with a soft cloth.

CLEANING THE VACUUM BAG

Empty the bag after each use to avoid deterioration and obstructing airflow, which will reduce the performance of the vacuum.

• Wear eye protection and a dust mask, clean the bag as needed. Turn the bag inside out after initial emptying and vigorously shake out dust and debris.

• Wash the bag once a year or more often if needed. Remove the vacuum bag.

• Turn bag inside out.

• Hose down thoroughly, washing from the outside to the inside.

• Hang to dry. f. Turn bag right-side out and reinstall.

INSPECT EXTENSION CORDS

Inspect all extension cords periodically. Look closely for deterioration, cuts or cracks in the insulation. Inspect the connectors for damage. Replace cords if defective or damaged.

STORAGE

Store the unit indoors, away from moisture and harmful substances such as fertilizers and solvents. Reach of children and high or locked-up place, out of the store the unit in a dry, well ventilated area. Store the unit out of the reach of children.

Ryobi Electric Mulchinator Blower RESV1300 Guide Setup Guide

To set up the Ryobi Electric Mulchinator Blower RESV1300, follow these steps:

1. Attach the collection bag to the blower.
2. Plug in the extension cord and wrap it around the cord retention system.
3. Slide the mulching switch to the "on" position.
4. Press the variable speed trigger to test the blower and adjust the speed as needed.
5. Activate the cruise control feature for extended use.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using this electric Blower/Vacuum, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. Carefully read and understand the entire Operator’s Manual before using your Blower/Vacuum. Pay close attention to the Operating Instructions and Safety Warnings.

READ ALL INSTRUCTIONS BEFORE USING

WARNING: To reduce the risk of fire, electric shock, or injury:

• Do not leave the Blower/Vacuum when plugged in. Unplug from outlet when not in use, changing attachments, and before servicing.

• Do not use on wet surfaces. Do not expose to rain. Store indoors.

• Use the right tool. Use this unit only as described in this manual. Do not use for any job except that for which it is intended. Use only the manufacturer's recommended attachments.

• Do not abuse the power cord. Do not pull or carry the unit by the cord, use as a handle, close a door on cord, or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces, oil and sharp edges.

• Turn off all controls before unplugging.

• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

• Do not handle the plug or Blower/Vacuum with wet hands or standing on wet surfaces.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dirt, debris and anything that may reduce the air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• Use extra care when cleaning on stairs.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

• This Blower/Vacuum is provided with double-insulation. Use only identical replacement parts. See instructions for Servicing of Double-Insulated Blower/Vacuums.

• Do not use with damaged cord or plug. If Blower/Vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, return it to an authorized service center.

• Inspect all extension cords and the unit power connection periodically. Look closely for deterioration, cuts or cracks in the insulation. Also inspect the connections for damage. Replace the cords if any defects or damage appear.

RULES FOR SAFE OPERATION

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

NOTE: Provides clarity and helpful information.

ATTACHING AND REMOVING THE BLOWER/VACUUM TUBE

WARNING: To avoid serious personal injury, the blower/vacuum tube and vacuum bag must be used when operating this unit.

ATTACHING

NOTE: The Blower/Vacuum Tube comes unassembled on this unit. Installation is required to provide safe and easy use for the operator.

WARNING: To avoid serious personal injury, be sure the unit is in the off position and unplugged before assembling tubes.

1. Remove the screws and nuts provided from the hardware pack.

2. Insert the blower/vacuum tube all the way into the opening on the motor housing until the holes in the tabs on the blower/vacuum tube align with the screw holes in the housing (Fig. 1).

3. Insert the two (2) 8-32 x 3/4" slotted T20 Torx screws into the right side of the motor housing and the two (2) nuts into the left side of the motor housing (Fig. 2).

4. Tighten the screws firmly. Do not over-tighten.

5. Install the 2 (two) remaining self-tapping 8-16 x 3/4" slotted T20 Torx screws into the holes on either side of the housing (Fig. 2). Tighten until snug, do not over-tighten.

MAINTAINING THE BLOWER/VACUUM WITH CARE

• Keep the unit clean and serviced for the best and safest performance. Follow the maintenance instructions always. Use a clean cloth when cleaning.

• Never use strong detergents, gasoline, petroleum-based products, or any strong solvents to clean the unit.

KEEP YOUR UNIT IN GOOD WORKING CONDITION

• Inspect your unit regularly, and if damaged, have it repaired by an authorized service facility. Inspect attachments periodically and replace if damaged.

• Keep these instructions, and refer to them frequently and use them to instruct others. If you loan someone this unit, also loan them these instructions.

SAVE THESE INSTRUCTIONS

The information and images captured in the images you provided have been transcribed as text. If you need more detailed transcription or specific parts to be focused, please let me know!

RULES FOR SAFE OPERATION

• Unplug the Blower/Vacuum before attempting to install or remove the blower/vacuum tube or vacuum bag. The unit must be unplugged, and the impeller blades stopped to avoid contact with the rotating blades.

• Store unit indoors. Store unit indoors in a dry place, up high or locked-up, out of the reach of children.

• Use only genuine replacement parts approved by Ryobi when servicing this unit. See servicing of double-insulated units in the maintenance and repair section, page 14. The use of non-standard parts, or other accessories or attachments not designed for this unit, could result in serious injury to the user or damage to the Blower/Vacuum and void your warranty.

OTHER SAFETY WARNINGS

• Maintain this Blower/Vacuum with care. Keep the unit clean and serviced for the best and safest performance. Follow the maintenance instructions. Always use a clean cloth when cleaning. Never use strong detergents, gasoline, petroleum-based products, or any strong solvents to clean the unit.

• Keep your unit in good working condition. Follow instructions for servicing and changing accessories. Inspect unit periodically, and if damaged, have it repaired by an authorized service facility. Inspect extensions cords periodically and replace if damaged.

• Keep these instructions. Refer to them frequently and use them to instruct others. If you loan someone this unit, also loan them these instructions.

SAFETY AND INTERNATIONAL SYMBOLS

This operator’s manual describes safety and international symbols and pictographs that may appear on this product. Read the operator’s manual for complete safety, assembly, operating and maintenance and repair information.

WEAR EYE AND HEARING PROTECTION

• WARNING: Wear safety glasses or goggles that are marked as meeting ANSI Z87.1-1989 standards, and ear/hearing protection when operating this unit.

DO NOT USE IN THE RAIN

• WARNING: Avoid dangerous environments. Never operate your unit in the rain, or in damp or wet conditions. Moisture is a shock hazard.

BLOWERS AND BLOWER/VACUUMS ROTATING IMPELLER BLADES CAN CAUSE SEVERE INJURY

• WARNING: Stop the engine and allow the impeller to stop before installing or changing tubes or bag.

KEEP BYSTANDERS AWAY

• WARNING: Keep all bystanders, especially children and pets, at least 50 feet (15 m) from the operating area.

BLOWER/VACUUM MODE CHANGE-OVER LEVER

• Vacuum mode

• Blower mode

THROWN OBJECTS

• WARNING: Objects can be thrown from blower. Keep away from blower outlet.

TROUBLESHOOTING

UNIT WILL NOT BLOW OR VACUUM

TWO-YEAR Warranty

All implied warranties are limited to a duration of two years, or ninety days for products used commercially


Pros & Cons

Pros

• Powerful and versatile with mulching capability
• Comfortable handle and cord retention system
• Variable speed trigger and cruise control feature
• Affordable price point

Cons

• Corded electric, limiting mobility
• May not be as powerful as gas-powered blowers

Customer Reviews about Ryobi Electric Mulchinator Blower RESV1300 Guide

Customers love the Ryobi Electric Mulchinator Blower RESV1300 for its powerful mulching capability and affordable price. Some common complaints include the short length of the extension cord and the weight of the blower after extended use.
