Introduction

On the purchase of your INALSA Cooktop, this is designed to include many superior features that permit you the fullest expression of your cooking skill and enthusiasm. You are now on the threshold of a whole new world of cooking pleasure. At INALSA, we have a reputation of manufacturing innovative, high quality appliances such as Food Processors, Mixer Grinders, Juicer Mixer Grinders, Cooking Ranges, Juice Extractors, Sandwich Toasters, Oven Toaster Grillers, Hand Blenders, Electric Kettles, Rice Cookers, and Electric Chimneys.

Your newly acquired INALSA Cooktop bears the same distinctive hallmark of excellence. It is all the result of vigorous quality consciousness in INALSA's design and development where uncompromising standards are maintained and rigid quality control measures are exercised on raw materials, components and finally, the finished product. Your INALSA Cooktop has a lot of thoughtful features built in to make your cooking convenient. Please read these instructions carefully, so that you may get the best out of the power packed features in your INALSA Cooktop. Welcome to the INALSA world of cooking pleasure!!

Technical Specification

• Model: 2 Burner
• Finish: Stainless Steel
• Burners: Cast Iron with Tri Brass Pins
• Gas Pressure: LPG Pressure 2.942 KN/m² (30 gf/cm²)
• Gas Consumption: 332 (g/h) Total
• Small Burner (g/h): 143x1
• Medium Burner (g/h): 189x1
• Gas Hose: 6.4 mm Rubber Hose

Note: Specifications are subject to change without prior notice.

Important: It is not recommended to use gas tandoor on glass top cooktop.

Description

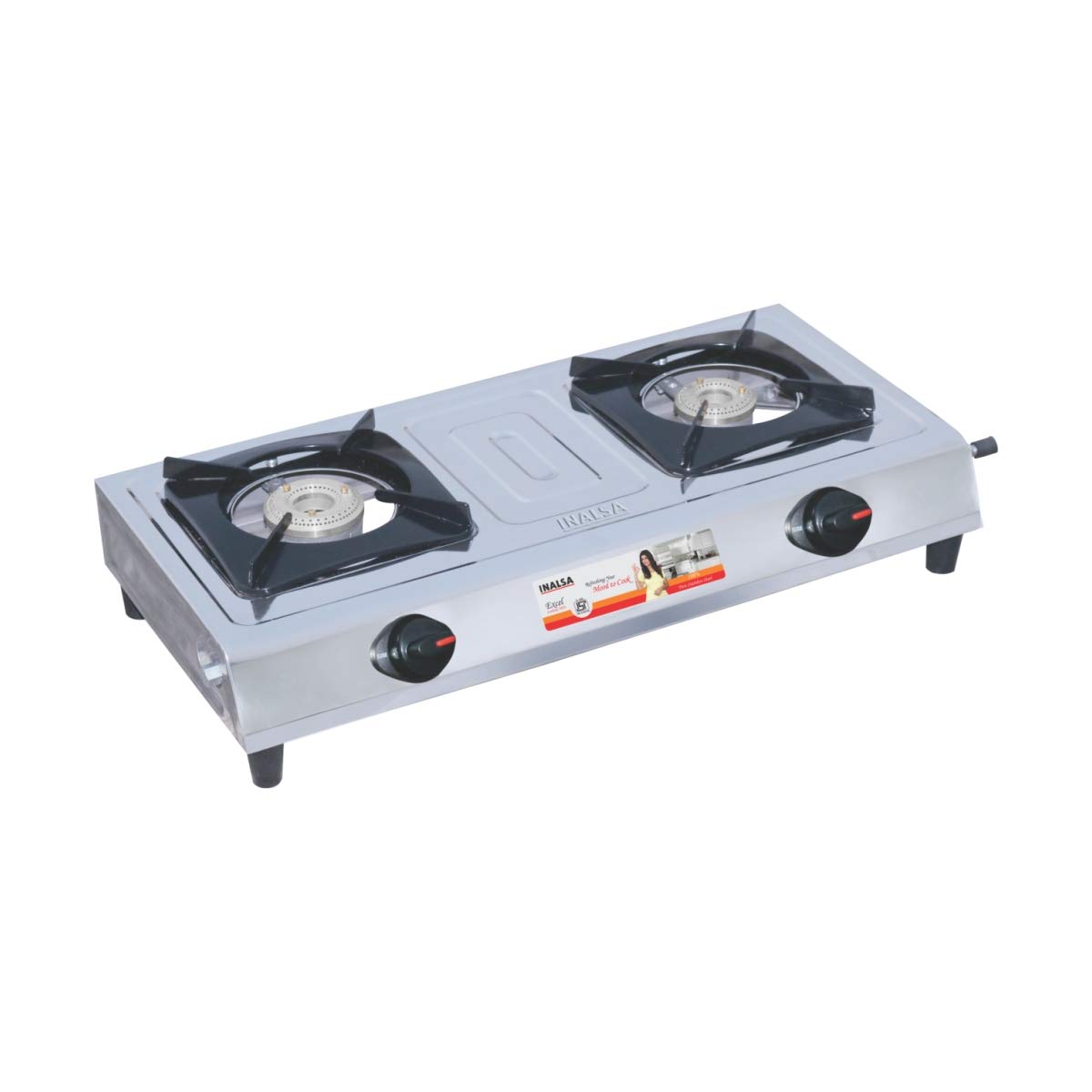

The Inalsa LP. Gas Stove Cook Top Excel-2B is a stylish and functional addition to any kitchen. Its stainless steel construction not only looks great but is also easy to clean and maintain. The two burners provide plenty of cooking power, and the independent controls allow you to cook multiple dishes at different temperatures. The safety features, such as flame failure protection and a cool-touch surface, give you peace of mind while cooking. The cooktop also features an electronic ignition system for easy and reliable lighting. With its compact size, the Inalsa Cook Top Excel-2B is perfect for small kitchens, apartments, or for use as an additional cooking range in larger kitchens.

Inalsa LP. Gas Stove Cook Top Excel-2B Important Safeguards

For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warning, precaution and instruction for use described here under and adhere to them.

Instructions For Use

• Unpack the cook top and remove all the packing material.
• Check and ensure that all the burner and pan support are in the position and seated properly.
• The gas control knob should be in OFF position at the time of installation.
• The cooktop should be placed at a convenient working height against a wall. It should be kept away from shelves & curtains.
• Windows should be closed and use of fan should be avoided during its operations.
• Do not use a vinyl plastic tube or tube with metallic cover, as this can be dangerous. It is suggested that only steel reinforced specially designed rubber hose for LPG to be used. Rubber hose should be supplied /approved by Gas Company providing the connection. The tube should not be twisted, looped or kinked, or subjected to external pressure of any kind.
• Push the rubber hose onto the nozzle as far as it will go.
• The tube not be extended from one room to another and must not be passed through doors, windows, walls, partition, ceilings or floors.
• After the use is fixed, the Cook top is ready to use.
• In case you find difficultly in assembling the Cook top, please call nearest lnalsa Service center.

Other Instructions for Use

• The Gas Cylinder should always be in vertical position, while in use.
• To turn the Cook Top "ON":
  • a. First open the gas regulator. Light a match stick over the operating burner, while simultaneously turning the operating knob towards "ON" position.
  • b. The burners may not ignite the first time you use them. This may be due to the result of air in the gas tube. Turn the gas control knob back to the "OFF" position and try again until burner ignite.
• Use the cook top for cooking purpose only. Do not dry towels, clothes etc. over it.
• When using high flame, ensure that you use large sized vessels to covers the entire flame to avoid wastage of gas.
• When using smaller vessels, reduce the flame intensity to the required optimum.
• While cooking always avoid the content being cooked to overflow and fall on the burner. This may extinguish the flame and also block the burner holes.
• Wipe clean the cook top, pan supports and drip pans with warm soapy water and use a soft cloth to avoid scratches.
• Clean the burner regularly so that they don't get clogged. Do not use abrasive materials for cleaning. If you clean the burners with water, make sure that you dry them properly before using.
• Always check the flexible tube periodically for any wear and tear to avoid gas leaks and prevent danger.
• If you find gas leakage smell, close the gas regulator of the cylinder / pipeline, open up all windows and call your Gas SUPPLY agents. Do not switch "ON" any electric switch or light matches/ lighter etc.
• Always remember NOT to check the gas leak with a flame. Keep the tube away from heat.
• Keep away any flammable material/ liquid from the Cook Top.
• When using a lighter to ignite the burner keep a distance of almost 0.5 cm between them to prevent gas from burning in the gas pipe. In case this happens, immediately switch off the burner and reignite.
• Do not try to dismantle/ repair the gas valve or burner nozzles yourselves as the same may not be replaced properly which may be hazardous for your health.
• Do not clean with alcohol or kerosene because it may damage the cook top.
• Do not leave the gas burner unattended while in on position.
• After the cooking is over, turn both the gas control knobs and gas regulator off, e.g., when going to bed or leaving the house.
• Keep the Gas Stove out of reach of children.

Setup Guide

Setting up the Inalsa Cook Top Excel-2B is easy and straightforward. Here are the steps to follow:

1. Place the cooktop on a flat, stable surface and ensure that it is level.
2. Connect the gas supply to the cooktop and turn on the gas supply.
3. Press the ignition button to light the burners.
4. Adjust the temperature using the knobs.
5. Place your pans on the pan support.

Replacement Parts

1. When replacement parts are required, be sure that the service technician has used replacement parts specified by lnalsa. That have same characteristics as the original parts.
2. Unauthorized substitution may result in hazards.

Safety Check

Upon completion of any service or repairs to the appliance, ask the services technician to perform routine safety check to determine that the appliance is in safe operating condition.

TroubleShooting Chart

WARRANTY

The "INALSA" Cook top is fully warranted against any manufacturing defect for a period of One Year from the date of purchase. Should any defect develop in the Cook top during the warranty period,

Inalsa Cook Top Excel-2B Pros & Cons

• Pros
  • Durable and easy to clean stainless steel construction
  • Two burners with independent controls
  • Safety features such as flame failure protection and a cool-touch surface
  • Easy-to-use knobs and push-button ignition
  • Compact size for small kitchens
• Cons
  • May not be suitable for large pans or commercial use
  • Limited to two burners

Customer Reviews

Customers who have purchased the Inalsa LP. Gas Stove Cook Top Excel-2B have praised its durability, ease of use, and compact size. Some have commented that the cooktop heats up quickly and evenly, making it perfect for cooking a variety of dishes. The safety features have also been appreciated by customers, as they provide peace of mind while cooking. However, some have noted that the cooktop may not be suitable for larger pans or commercial use. Overall, the Inalsa Cook Top Excel-2B is a highly recommended product for anyone looking for a reliable and efficient cooking range.
