Introduction of IOGear 4Kx2K HDMI Switch with Remote

You may connect up to five HDMI devices to a single HDMI display with ease with the high-performance IOGear 4Kx2K HDMI Switch with Remote Installation. When you need to connect numerous HDMI devices to a single monitor, such as in a home theater, gaming setup, or conference room, this switch is an excellent choice. This HDMI switch is an essential for those who want to streamline their HDMI connection configuration; it supports 4Kx2K resolution and may be installed remotely.

Package Contents

• 1 x GHDSW4K4 4-Port HDMI Switch
• 1 x IR Remote
• 1 x Quick Start Guide
• 1 x Warranty Card

Requirements

• Display
  • HDMI HDTV, Display or Projector
• Source
  • Media source with HDMI Out

Detailed Specifications

The IOGear 4Kx2K HDMI Switch with Remote Installation has the following key features:

• Supports up to 5 HDMI devices
• 4Kx2K resolution support
• Remote installation for added convenience
• Automatic switching between inputs
• Manual input selection with remote control
• HDCP 2.2 and HDCP 1.4 compliant
• Supports deep color and 3D
• LED indicators for power and input selection
• Compact design for easy installation

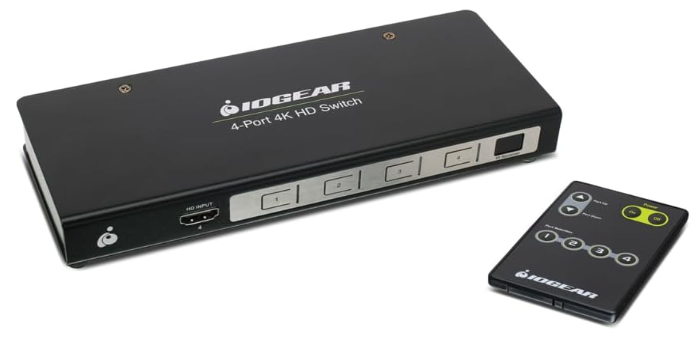

IOGear 4Kx2K HDMI Switch with Remote Overview

Remote

1. Select Next Port
2. Port 1
3. Port 2
4. Port 3
5. Port 4

Switch

1. Input Port 1
2. External IR Receiver Port (Optional)
3. IR Receiver
4. Port 1 LED
5. Port 2 LED
6. Port 3 LED
7. Port 4 LED
8. Output Port LED
9. Port Selection Button
10. Input Port 2
11. Input Port 3
12. Input Port 4
13. Output Port
14. USB Power Port (Optional)

Description

A high-quality HDMI switch, the IOGear 4Kx2K HDMI Switch with Remote Installation lets you connect as many as five HDMI devices to a single HDMI display. This switch is ideal for environments that require high-quality video, such as home cinemas, gaming sets, and conference rooms, thanks to its capability for 4Kx2K resolution. You can set it up and start using it right away thanks to the remote installation capability, and you'll never miss an input again thanks to the automated switching. With the ability to manually pick an input on the remote, you have full command over all of your HDMI connections.

Installation

1. Connect an HDMI cable from the output port of the switch to any available HDMI input on your HDTV, HD projector, or HDMI display.



2. Connect any HDMI media devices to the input ports of the HDMI switch. The switch will automatically power on when a powered HDMI device is connected.



   • Note: The switch will automatically select the input that a powered HDMI device is connected to.
3. Use the remote control or front panel selection button to switch to the desired port, then power on your HDTV or HD display and media source.

Setup Guide

The 4Kx2K HDMI Switch with Remote Installation from IOGear is simple to set up. To begin, please follow these steps:

1. Link the HDMI switch to your HDMI monitor by means of an HDMI cable.
2. Use HDMI cables to link up to five HDMI devices to the HDMI switch.
3. After you've put the batteries into the remote, flip on the HDMI switch.
4. To change the input that your HDMI display will show, use the remote control.
5. When you power on or off a new device, the HDMI switch will automatically swap inputs.

Troubleshooting

If you experience any issues with the IOGear 4Kx2K HDMI Switch with Remote Installation, try the following solutions:

• Make sure all devices are connected properly using HDMI cables.
• Check that the HDMI switch is turned on and that the remote control has batteries installed.
• Make sure the HDMI switch is set to the correct input for the device you want to display.
• Try resetting the HDMI switch by unplugging it from the power source and plugging it back in.

Warranty Information

This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, please go to IOGEAR Warranty.

Pros & Cons about IOGear 4Kx2K HDMI Switch with Remote

Pros

• Supports up to 5 HDMI devices
• 4Kx2K resolution support
• Remote installation for added convenience
• Automatic switching between inputs
• HDCP 2.2 and HDCP 1.4 compliant

Cons

• Remote control can be easy to lose
• May not work with all HDMI devices
• No audio output
• No ethernet or USB connections

Customer Reviews

Customers love the IOGear 4Kx2K HDMI Switch with Remote Installation for its high-quality video and easy setup. The remote installation feature is a standout feature that customers appreciate for its convenience. The automatic switching between inputs is also a popular feature amongst customers, as it ensures that they always see the correct source. However, some customers have noted that the remote control can be easy to lose, and that the switch may not work with all HDMI devices.
