Introduction

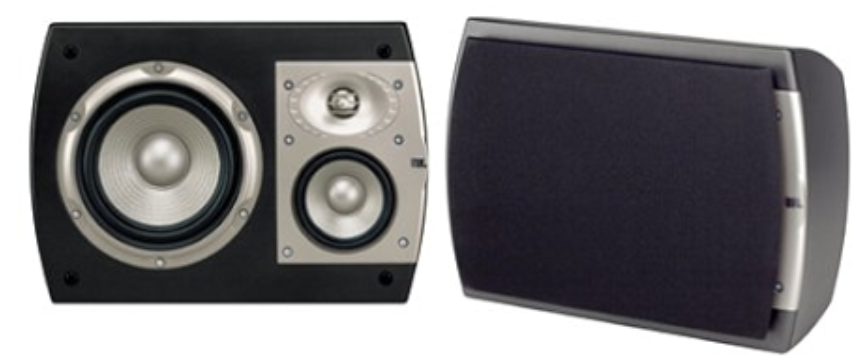

The JBL Speaker S36II and S36-AWII are high-quality speakers designed to deliver exceptional audio performance. Whether you want to enhance your home theater experience or enjoy music with crystal-clear sound, these speakers are a perfect choice.

SPECIFICATIONS

• Amplifier Power: 150W
• Nominal Impedance: 8 Ohms
• Sensitivity (2.83V/1m): 90dB
• Frequency Response (–3dB): 60Hz – 20kHz
• Crossover Frequencies: 650Hz, 3000Hz
• High-Frequency Transducer: 1" Pure-titanium dome, with rubber surround, shielded; Elliptical Oblate Spheroidal™ (EOS) waveguide
• Midrange Transducer: S36II – 4" PolyPlas™ (polymer-coated cellulose fiber) cone, rubber surround, shielded; Linear Field Proximity™ (LFP) bezel (model S36AWII uses a shielded WeatherPlas™ midrange)
• Low-Frequency Transducer: S36II – 6" PolyPlas™ (polymer-coated cellulose fiber) cone, rubber surround, SFG™,   magnetic shorting rings, high-temp oversized Kapton® voice coil, HeatScape™ motor structure, cast-aluminum baskets, shielded (model S36AWII uses a shielded WeatherPlas™ woofer)
• Baffles: Low diffraction, IsoPower™
• Enclosure: Sealed
• Network: Straight-Line Signal Path™ (SSP)
• Terminals: All-metal, gold-plated, 5-way binding posts
• Dimensions (H x W x D): 10-1/4" x 14-5/8" x 5" 260mm x 371mm x 127mm
• Weight: 11 lb/5kg

SPEAKER PLACEMENT

Proper placement of the speakers is an important step in obtaining the most realistic soundstage possible. These recommendations are for the optimal placement of the loudspeakers. Use these placement recommendations as a guide. Slight variations will not diminish your listening pleasure. The Studio Series S36II and S36AWII loudspeakers are video-shielded and can safely be placed near a television. The S36AWII loudspeakers are weather-resistant and are specifically designed for outdoor use, such as in a patio area. As noted below, we recommend mounting the speakers under an overhang, such as roof eaves, for added protection. The S36AWII speakers, because they are resistant to moisture, are also appropriate for mounting in a bathroom, although not inside a bathtub or shower stall. Although these loudspeakers are designed as a mirrored pair, the decision as to which one is left or right will depend on the amount of space left between them. A wider stereo image is presented with the tweeter/midrange array outboard, and a tighter image is presented with the array inboard.

For stereo-only applications:

For home theater applications:

This placement provides a wide spread in sound, supplemented by the center channel speaker.

WALL-MOUNTING

Do not attempt to mount these speakers on a ceiling, on the underside of roof eaves or in a shower stall. The S36II and S36AWII loud-speakers may be positioned on the wall either horizontally or vertically. The grille logo on each speaker may be rotated depending on how the speaker is positioned. Gently pull the logo away from the grille slightly, rotate it to the desired position, and let go. The logo will snap back into place.  When mounted vertically, the tweeter array may be positioned either up or down, depending on the height of the placement. If the speakers will be above ear level, the tweeter array should be positioned down, preferably no more than two feet above ear level. If the speakers will be mounted very low, it may be best to position the tweeter array upward so that it will be no more than two feet below ear level. The S36II and S36AWII enclosures are specially designed to angle the speakers toward the listener when mounted flush against the wall. When mounting the S36AWII speakers outdoors, we recommend that you place them under an overhang, such as roof eaves, for added protection, and that you use two of the supplied special angle-mount screws per speaker, which angle the speakers downward at a greater-than-usual angle, facilitating water drainage.

NOTE: When using the enclosed angle-mount screws, always use the top two screw locations appropriate for the specific mounting orientation of your S36AWII. Referring to the enclosed installation template, screw locations (1) and (2) are to be used when mounting the S36AWII horizontally so that these locations are on top. To mount the loudspeakers vertically, use locations (2) and (4) or locations (1) and (3), depending on the mounting orientation. Do not mount the S36AWII upside down (with screw locations (3) and (4) on top) because it won’t be able to lock onto the screw heads. Remember that the JBL logo on the tweeter/mid faceplate can be rotated with choice of speaker position (vertical or horizontal).  At least one screw per speaker should be installed in a wooden wall stud. Select an appropriate wall anchor for the other screw. If the special angle-mount screws are not being used, size 10 screws of at least 1-1/2" in length are recommended. If the screws are used in drywall or other surfaces incapable of holding the screw by itself, selection of proper anchors is essential. The customer is solely responsible for proper selection and installation of screws, anchors and other installation hardware. Further installation details are included on the installation template.

Installation of Self-Adhesive

Rubber Pads
 If the speaker is to be placed on a surface (such as a table top or shelf) rather than wall-mounted, the enclosed self-adhesive rubber pads are to be attached to the bottom of the speaker cabinet in their designated recessed locations. If the speaker is to be wall-mounted, then the four self-adhesive rubber pads should be attached to the back of the speaker, as shown in the bottom right diagram.  When angle-mounting the pads are required, and they need to be installed on the back of the loudspeaker, near the lower edge, so that they are located between the S36AWII back and the mounting surface. Please see the enclosed installation template for more details.
NOTE: The threaded inserts on the bottom of the speakers are to be used only with JBL accessories that have been developed specifically for the S36 and that may become available at a future date. Do not attempt to install bolts or any non-JBL brackets or accessories to these threads, as this might damage the speaker and dislodge the insert.

SPEAKER CONNECTIONS

CONNECTION TIPS
Speakers and electronics terminals have corresponding (+) and (–) terminals. It is important to connect both speakers identically: (+) on the speaker to (+) on the amplifier and (–) on the speaker to (–) on the amplifier. Wiring “out of phase” results in thin sound, weak bass and a poor stereo image. With the advent of multichannel surround sound systems, connecting all of the speakers in your system with the correct polarity remains equally important in order to preserve the proper ambience and directionality of the program material. To use the binding-post speaker terminals, unscrew the collar until the pass-through hole in the center post is visible under the collar. Insert the bare end of the wire through this hole; then screw the collar down until the connection is tight. The hole in the center of each collar is intended for use with banana-type connectors.

Description

The JBL Speaker S36II and S36-AWII are compact bookshelf speakers that offer powerful and immersive sound. They feature a 6.5-inch PolyPlas woofer and a 1-inch titanium-laminate tweeter, providing a wide frequency response and accurate audio reproduction. The speakers are magnetically shielded, allowing you to place them near your TV or other electronic devices without any interference. They have a sleek and modern design that blends well with any home decor. With a power handling capacity of up to 150 watts, these speakers can fill your room with rich and detailed sound. They have a nominal impedance of 8 ohms, making them compatible with a wide range of amplifiers. Whether you're watching movies, listening to music, or playing games, the JBL Speaker S36II and S36-AWII will provide an immersive audio experience that enhances your entertainment.
