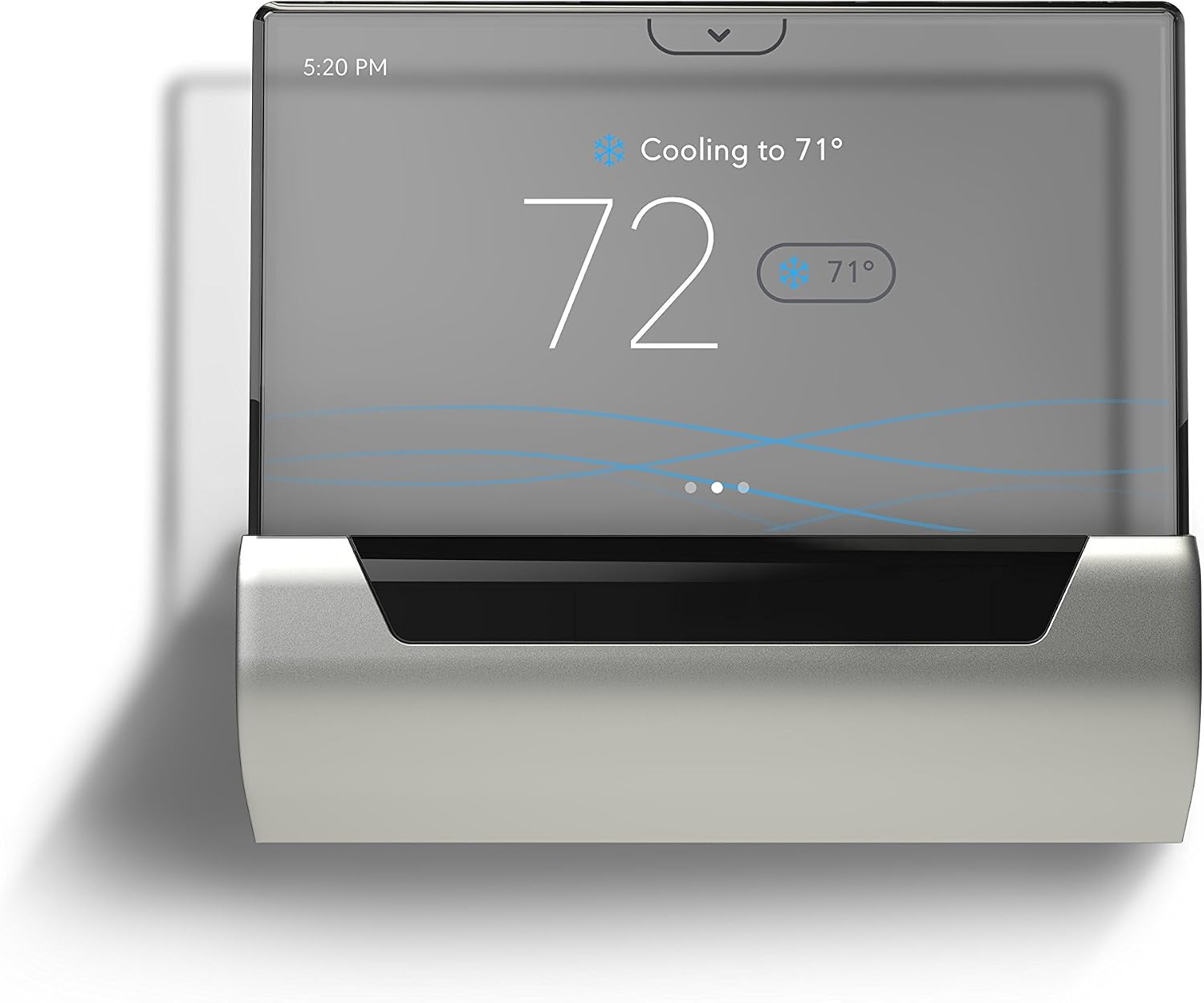

Johnson Controls GLAS Thermostat SiO2-10000 Introduction

The cutting-edge Johnson Controls is a smart thermostat that maximizes comfort in residential and business settings. With its svelte, translucent OLED touchscreen, it blends cutting-edge technology with contemporary design. The GLAS thermostat offers energy-saving insights, tracks indoor and outdoor air quality, and allows voice control with Google Assistant and Amazon Alexa. This smart thermostat increases economy and convenience by providing simple temperature control and a smooth integration with smart home technologies.

Johnson Controls invented the room thermostat 135 years ago. With your family’s comfort and energy savings in mind, we reinvented it with GLAS. The smart thermostat keeps your home comfortable, saves energy, and its clean translucent interface reimagines any space.

In the Box

• GLAS smart thermostat
• Front cover
• 6.9” x 7.4” backplate
• 4 screws
• 4 drywall anchors
• 4 to 5 wire adapter

Compatibility

GLAS can control the following types of split or packaged units:

• Conventional, single stage up to 2H/2C
• Heat pump, up to 2H/2C/2 Aux Heat GLAS is compatible with the following HVAC configurations:
• Gas Heat
• Oil Heat
• Electric Heat
• Ground-, Air-, and Water-source heat pumps
• Dual-fuel support for Heat Pump

Johnson Controls GLAS Thermostat SiO2-10000 Specifications

• Depth: 1.18 in. (30 mm)
• Width: 5.6 in. (142 mm)
• Height: 5 in. (127 mm)
• Weight: 0.5 lbs. (0.226 kg)
• Overall Dimensions: 1.18 in. D x 5.51 in. W x 5 in. H (30mm x 140mm x 127mm)
• Base unit dimensions: 5.51 in. W x 1.85 in. H (140mm x 47mm)
• Display: Transparent OLED 5.91”, 16:9 aspect ratio, with integrated touch controller
• Resolution: 480(H) X RGB X 272(V), 16M colors Viewing: 90° +/- 30°
• Optical characteristics (typical)
  • Luminance: 600 cd/m2
  • Transmittance: 40%

Sensors

• Temperature, with ability to configure offset
• tVOC & eCO2 Air Quality sensors
• Indoor real-time air quality reporting including:
  • Total volatile organic compounds (tVOC)
  • Equivalent carbon dioxide (eCO2)
• Outdoor real-time air quality reporting including:
  • Allergens, including tree pollen, grass pollen and ragweed pollen
  • Ultra violet (UV) index
  • Air pollution index (API), including carbon monoxide, sulfur dioxide, nitrogen dioxide and ozone
• Proximity (near-field): 3 ft. detection
• Occupancy (far-field): 15 ft. detection
• Microphone: Dual array
• Speaker: Audio feedback

Wireless

• Wi-Fi: 2.4 GHz, compatible with 802.11b/g/n networks
• Bluetooth: Bluetooth 4.1, BLE

Mobile Support

• Android (4.4 or later) and iOS (10 or later) mobile and tablets
• Automatic, OTA software updates for thermostat device and mobile apps
• Can work with up to 10 thermostats per location
• Can create up to 10 locations per user account

Voice Assistants
Connect your GLAS smart thermostat to a supported voice assistant. Be sure to enable the GLAS by Johnson Controls skill.

• Works with Amazon Alexa
• Works with Google Assistant

Operating System: Windows 10 IoT core

Language: English

Description

Designed for demanding industrial and commercial situations, the Johnson Controls Glas Thermometer SiO2-10000 is a robust and adaptable thermometer. It is appropriate for a wide range of applications, such as manufacturing, HVAC, and lab settings, thanks to its sturdy construction, SiO2 protective layer, and broad temperature range. For easy reading in any lighting condition, the bright, high-contrast LCD display has an adjustable backlight. Its networking options (RS-232, RS-485, and Modbus) also allow for easy integration with other industrial systems and equipment.

Features

• 7 Day scheduling
• 3 Events available including: sleep, home, away
• Temperature setpoints per event
• Arrival anticipation: returns to a “home” state even if user isn’t home yet, to ensure comfort when they return
• Pre-Start: pre-starts heating or cooling previous to end of sleep or away event to reach comfort set point at scheduled time
• Occupancy detection via integrated sensor to override schedule for comfort and energy savings
• Safety temperatures to protect building against excessive heat or cold
• Monitor and improve air quality through smart fan and ventilator control
• Scheduled vacations

Energy Reporting

• Daily 24-hour equipment run time in hours, as well as percentage estimated energy savings when compared to a standard thermostat when connected to Wi-Fi
• History up to 7 days of energy saved
• Equipment run-time reporting when not connected to Wi-Fi

Outdoor Weather
Information when Connected to Wi-Fi, Including:

• Current Forecast
• Current Temperature
• Temperature high and low for the day
• Humidity
• Windspeed

Operating Notifications

• Change air filter reminder
  • Manual: Timing based default 6 months. Options of: 3 months, 6 months, 9 months, 12 months
  • Auto: Based on fan runtime and air quality
• Service reminder
  • Timing based default 6 months. Options of: 3 months, 6 months, 9 months, 12 months
• Poor indoor air quality reading
• Safety control activated
• Thermostat connection unavailable (only when connected to Wi-Fi)

Setup Guide

To operate, assemble, and configure the Johnson Controls Glas Thermometer SiO2-10000, follow these steps:

1. Take out the protective materials and unpack the thermometer.
2. Make sure the thermometer is level and secure when you install it in the chosen spot.
3. After plugging in the power supply, switch on the thermometer.
4. Configure the thermometer settings using the onboard buttons or through the RS-232, RS-485, or Modbus interface.
5. Follow the manufacturer's directions for calibrating the thermometer.
6. Check the temperature readings and make any required adjustments to the thermometer's settings.

Troubleshooting

The following are typical issues with the Johnson Controls Glas Thermometer SiO2-10000 and their fixes:

• Problem: Erroneous temperature readings
  Solution: Follow the manufacturer's directions for calibrating the thermometer.
• Problem: Problems with connectivity
  Solution: Verify that the Modbus, RS-232, or RS-485 connections are safe. Check to see if the thermometer and the connected device are compatible.
• Problem: Problems with the power supply
  Solution: Verify that the power supply's voltage and frequency are within the designated range by checking them. If required, change the power supply.

Johnson Controls GLAS Thermostat SiO2-10000 Pros & Cons

Pros

• Wide temperature range
• Durable, robust design with SiO2 protective coating
• High accuracy and connectivity options
• Bright, high-contrast LCD display

Cons

• May be too expensive for some users
• May require technical expertise for setup and configuration

Customer Reviews

The Johnson Controls Glas Thermometer SiO2-10000 has received high marks from customers for its precision, robustness, and broad temperature range. They also value how user-friendly and brilliant the LCD display is. Some customers, however, have complained about problems with the initial setup and configuration, stating that more thorough instructions or technical know-how are required.
