Introduction

The Klipsch HD Home Theater Subwoofer 600 is part of a complete 5.1-channel system designed to deliver engaging cinematic sound. Featuring four satellite speakers, a center channel, and a robust subwoofer, this system enhances movie and gaming experiences with clear dialogue and powerful bass. The subwoofer is equipped with an 8-inch down-firing woofer and a 100-watt RMS amplifier, ensuring deep, impactful sound. The total cost for the HD Theater 600 system is approximately $600.

What's in the box

Specifications

• Driver Size: 10 inches
• Frequency Response: 29 Hz - 140 Hz
• Power Output: 400 Watts RMS, 800 Watts Peak
• Amplifier Type: Class D
• Crossover Frequency: 50 Hz - 150 Hz
• Connectivity: LFE/RCA Input, Phase Switch, Low-Pass Crossover
• Dimensions: 14.5" x 13.5" x 16.5" (H x W x D)
• Weight: 34 lbs

How to Pair

How to Connect Screws

Description

The Klipsch HD Home Theater Subwoofers 600 boasts a robust 10-inch driver powered by a Class D amplifier, ensuring efficient and powerful bass reproduction. The subwoofer's cabinet is crafted from high-quality MDF and features a sleek, compact design that fits easily into most rooms. The front-firing driver design helps to minimize cabinet resonance and maximize bass output. With its adjustable phase switch and low-pass crossover, users can fine-tune the subwoofer to their specific audio setup.

The subwoofer also includes an LFE/RCA input for easy connection to home theater receivers or amplifiers. Its durable construction and stylish finish make it a reliable addition to any home audio system.

NOTE: The A/V receiver/surround sound processor must be set to “Subwoofer On” and all speakers set to “small”.

The suggested crossover point is 150 Hz. If 150 Hz is not available, use 120 Hz.

Setup Guide

To set up the Klipsch HD Home Theater Subwoofers 600,

1. Start by placing it in a corner of the room to maximize bass response.
2. Connect the subwoofer to your home theater receiver or amplifier using an LFE/RCA cable.
3. Adjust the phase switch to align the subwoofer's output with your main speakers for a coherent soundstage.
4. Use the low-pass crossover to set the desired frequency range for the subwoofer, typically between 50 Hz and 150 Hz.
5. Once connected, turn on the subwoofer and adjust the volume to your preference.

You can also calibrate the subwoofer using an auto-calibration feature available in many modern home theater receivers.

IMPORTANT SAFETY INSTRUCTIONS

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. UNPLUG this apparatus during lightning storms or when unused for long periods of time.
14. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.
16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle.
17. The mains plug of the power supply cord shall remain readily operable. The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.

WARNING: No naked flame sources – such as candles – should be placed on the product.

WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel. Place the equipment near a main power supply outlet and make sure that you can easily access the power breaker switch.
WARNING: This product is intended to be operated ONLY from the AC Voltages listed on the back panel or included power supply of the product. Operation from other voltages other than those indicated may cause irreversible damage to the product and void the products warranty. The use of AC Plug Adapters is cautioned because it can allow the product to be plugged into voltages in which the product was not designed to operate. If the product is equipped with a detachable power cord, use only the type provided with your product or by your local distributor and/or retailer. If you are unsure of the correct operational voltage, please contact your local distributor and/or retailer.

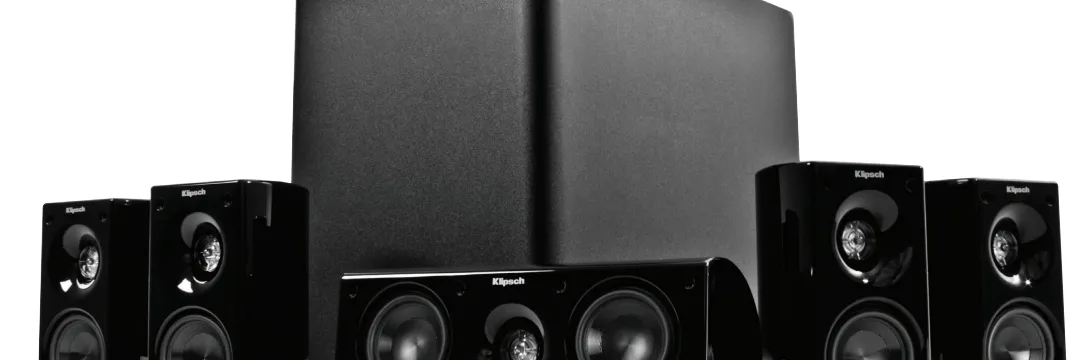

The Klipsch HD Theater 600 is a surround speaker system with 4 satellite speakers, 1 center channel speaker and 1 subwoofer. To enjoy this system, you must hook it to a separate “surround sound” Audio/Video (A/V) receiver (not included) with speaker wire and a subwoofercable (not included). Klipsch recommends the power level of the surround receiver you hook up to the HD Theater 600 is between 20-100 watts per channel. The nominal impedance of the speakers in the HD Theater 600 is 8 ohms so if the A/V receiver has an impedance selection choice, set it to 8 ohms.

• Hooking up the subwoofer to an AV receiver: Hook from the subwoofer output of an AV receiver (see receiver manual and Figure 3) to the “Left” “Line In” input on the back of the subwoofer. Use a high quality, shielded subwoofer cable for best results.
• Hooking up speakers to an AV receiver: Hook one end of dual lead speaker wire to red and black (- and +) terminals on speaker, then hook other end to corresponding (front left, front right, center, etc) red and black terminals (- and +) of the receiver (See Figure 3). Make sure to connect red speaker terminal to red receiver terminal and black speaker terminal to black receiver terminal of the same channel. Use the “dual woofer” speaker for the center channel speaker.
• Set the A/V receiver/surround sound processor speaker configuration settings to “Subwoofer On” and all speakers set to “Small”.
• The subwoofer “Level” control is factory preset at the “12 o’clock” position and, in most cases, this is the position it should be left in. The ability for additional gain on the control is provided strictly to compensate for the rare occurrence of a low subwoofer signal coming from an AV receiver. Turning it “up” may cause a signal overload (noticeable distortion) which is simply remedied by turning it back down.
• The subwoofer “Lowpass” control blends the sound of the subwoofer with the satellites and center channel speakers. It should be set to “150 Hz” on the subwoofer. Most AV receivers also have this “crossover” setting option. If your receiver does, set the receiver crossover setting to “150” Hz (120 if 150 is not available).
• The subwoofer has a three position switch labeled “On”, “Auto” or “Off”. Set to “On” the subwoofer is on all the time (Set to “Off” turns it off). Set to “Auto” the subwoofer automaticallyturns on when it senses a signal from the receiver, and automatically turns off after 20 minutes with no signal. “Auto” is the recommended position.
• The two-position “Phase” switch on the subwoofer is used to match the subwoofer’s sound with the speakers in your room. Select the position that has the most output at the main listening position.
• Although any subwoofer can be heard in an “open space’ (not next to a wall), placing the subwoofer near a wall (not against it, but with its back within 1-2 feet from a wall) will significantly increase its loudness (output), and placing it in a corner of a room on the same wall as your front channel speakers will significantly increase its output even more. When choosing your subwoofer’s location keep in mind that you will need to connect your subwoofer’s built-in amplifier to an AC outlet.

Troubleshooting

• If the subwoofer is not producing sound, check that it is properly connected to the receiver or amplifier and that the power is turned on.
• Ensure that the volume is not muted and that the low-pass crossover is set correctly.
• If the bass seems weak or distorted, adjust the phase switch and low-pass crossover settings.
• Also, ensure that the subwoofer is placed in an optimal location within the room.

For any electrical issues, refer to the user manual or contact Klipsch customer support. Always follow safety instructions when handling electrical equipment.

Klipsch HD Home Theater Subwoofers 600 Pros & Cons

Pros

• Powerful and deep bass response
• Compact and stylish design
• Adjustable phase switch and low-pass crossover
• High-quality construction and materials
• Ease of setup and integration with home theater systems

Cons

• Higher price point compared to some competitors
• May require calibration for optimal performance
• Large size may not fit into very small spaces
• No wireless connectivity option

Customer Reviews

Customers have praised the Klipsch HD Home Theater Subwoofers 600 for its exceptional bass performance and build quality. Many reviewers have noted that it significantly enhances their home theater experience, providing deep and clear bass that complements their main speakers well.

Some common complaints include the subwoofer's size and weight, as well as the need for careful placement and calibration to achieve optimal performance. However, overall satisfaction with the product remains high among users.
