Introduction

Thank you for purchasing this KoldFront Portable Ice Maker KIM202W . We are glad you chose us. We believe that your purchase of this product opens a relationship between you and KoldFront.

This manual contains important information regarding the proper installation, use and maintenance of your ice maker. Following this manual will ensure that your product will work at its peak performance and efficiency. Please save the original product packaging in case you need to safely transport your portable ice maker.

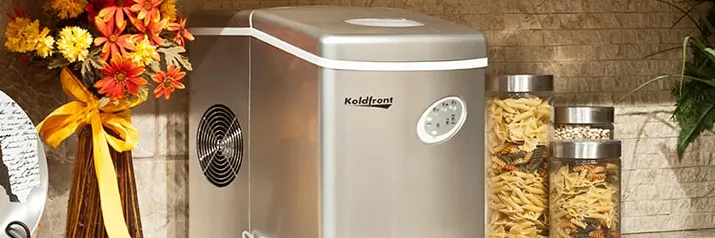

The Koldfront Portable Ice Maker KIM202W is a convenient and efficient appliance that can produce up to 26.5 pounds of ice in 24 hours. This compact ice maker is perfect for any home, office, or small event, and can produce a batch of ice in as little as 15 minutes. With a sleek and modern design, this ice maker is not only functional but also aesthetically pleasing. The Koldfront Portable Ice Maker KIM202W has an estimated price range of $150 to $200 and was launched in 2021.
To better serve you, please do the following before contacting customer service:
Visit us on the web at http://www.edgestar.com to register your product, download product manuals, and access additional troubleshooting resources and up-to-date information.

Portable Ice Maker KIM202W Specifications

The Koldfront Portable Ice Maker KIM202W has several key features that make it a great choice for anyone in need of a reliable and efficient ice maker. These features include:

• Produces up to 26.5 pounds of ice in 24 hours
• Makes a batch of ice in as little as 15 minutes
• LED control panel with easy-to-use touch buttons
• Transparent lid for easy viewing of ice production
• Automatic overflow protection
• Ice scoop included
• Made of durable stainless steel
• Compact and portable design
• Easy-to-clean ice basket and scoop

Note: Technical data and performance information provided for reference only. Specifications are subject to change. Check the rating label on the ice maker for the most accurate information.  The actual quantity of ice produced in a 24hour period will vary with room and water conditions.
Notes on ice storage: The ice maker will automatically shut off when the ice bin is full. The ice bin compartment is insulated, but not refrigerated and the ice in the bin will slowly melt and the water will be reused. Once enough of the ice has melted, the ice maker will automatically start making more ice.

Parts Identification

Inside View

Outer View

Important Safety Information

Improper handling can cause serious damage to the KoldFront ice maker and/or injury to the user. This ice maker is designed for domestic indoor use only. Do not use the unit for industrial or commercial use.  Any other use may invalidate the warranty. Please review the ratings label located on the rear panel of the unit for electrical and other technical data related to this unit. The unit must be used in a properly grounded wall outlet. Please read and follow the safety information listed below to reduce the risk of fire, electric shock or injury.

Electrical Safety

• Do not exceed the power outlet ratings.
• It is recommended that the ice maker be connected on its own circuit.
• A standard electrical supply (115 V, 60Hz), that is properly grounded in accordance with the National Electrical Code and local codes and ordinances is required
• Use outlets that cannot be turned off by a switch or pull chain.
• Always turn the unit off and unplug it from the outlet when cleaning.
• Unplug the unit if it is not going to be used for an extended period of time.
• Do not operate the unit with a power plug that is missing the ground plug, a damaged cord or a loose socket.
• Be sure the ice maker is properly grounded.
• Never plug or unplug the unit with wet hands.
• Do not bypass, cut or remove the grounding plug.
• Do not use extension cords or power strips with this unit. You may need to contact your electrician if it is necessary to use a longer cord or if you do not have a grounded outlet. Do not modify the power cord’s length or share the outlet with other appliances. If you must use an extension cord, use No.14AWG minimum size and rated no less than 1875 watts.
• Do not start or stop the unit by switching the circuit’s power on and off.
• If the power cord is damaged, it must be replaced by the manufacturer or a qualified technician.
• Never repair the unit while it is plugged in.
• Immediately unplug the unit if it makes strange sounds, emits an odor or smoke comes out of it, and contact customer service.
• Do not remove any part of the casing unless instructed by an authorized technician.
• You should never attempt to repair the unit yourself.
• Contact EdgeStar Support if the unit needs repair service.
• Do not tip the unit over while it has water in the reservoir.

General Safety

• Use at least two people to move and install the ice maker to prevent back and other types of injuries.
• Install the ice maker in a well ventilated area where the ambient temperature is above 50°F and below 90°F.
• This unit is designed to be installed indoors, and protected from rain, sleet, snow, etc. Do not use your ice maker outdoors. Place the ice-maker away from direct sunlight and make sure that there is at least 4 inches of space between the back of your unit and wall. Keep a minimum distance of 4 inches on each side of your unit free.
• This unit is not intended to be used by children and should be supervised to ensure that they do not play with this product.
• Never allow children to crawl inside the ice maker.
• Do not use this appliance near flammable gas or combustibles, such as gasoline, benzene, thinner, etc.
• Do not place the unit near heat sources such as ovens and grills.
• Only use in an upright position on a flat, level surface and provide proper ventilation.
• Discard the first batch of cubes produced by the ice maker.
• If the unit has not been used for an extended period, thoroughly clean it before using it.
• Do not leave any cleaning solutions in or on the unit
• Do not use solvent-based cleaning agents or abrasive solutions on the interior as they may transmit taste to the ice cubes and damage the interior.
• Do not clean the unit with flammable fluids. The fumes can create a fire hazard or cause an explosion.
• Other than water do not use other types of liquid to make ice.
• This appliance is not intended for use by persons, including children, with reduced physical, sensory or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by the person(s) responsible for their safety.

IMPORTANT: Do not remove any safety, warning, or product information labels from your ice maker.

Before you Begin: Preparing the Ice Maker for Use
Before you plug the ice maker in to a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle.
Unpacking the Ice Maker
Carefully remove the packaging materials. Remove any shipping tape and glue from your ice maker before using. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your icemaker. Check to make sure the ice basket and ice scoop are included. If any parts are missing, please contact our customer service. Put the ice maker on a level and flat surface away from direct sunlight and other sources of heat such as a stove, furnace, radiator, etc. The appliance must be positioned so that the power plug is accessible.
Cleaning the Ice Maker
Follow the Cleaning and Maintenance section to clean the ice maker.

Note: If the room temperature is lower than 60°F, it is best to select the small size setting; otherwise, the ice cubes may stick together.

Installation Requirements

The ice maker has been designed for free-standing installation which will allow you to install the unit in almost any place you desire provided you level the unit and follow the instructions for clearance, water and electrical requirements.
Clearance and Environment Requirements of Portable Ice Maker KIM202W

• Choose a well ventilated area with temperatures above 50°F and below 90°F. Operation outside these temperatures may result in lowered production or may cause other adverse effects.
• This unit MUST be installed in an area protected from the elements, e.g., wind, rain, water spray or drips. The icemaker should not be located next to ovens, grills or other high heat sources.
• The unit should be located on a firm and level surface that is able to support the ice maker’s total weight with water.
• There must be at least 4 inches of space around the back and sides of the unit for proper air circulation.

Water Requirements

• Only use potable water or water suitable for drinking.
• The temperature of the water should be between 51°F and 90°F.
• Change the water in the water reservoir every 24 hours to ensure a reasonable hygiene level.
  Note: The add water light uses an electronic sensor that may not detect purified, filtered, reverse osmosis, or distilled water. You may need to add a pinch of salt to the water to increase the mineral content.

Electrical Requirements
Read all safety precautions listed at the beginning of this manual. It is recommended that a separate circuit serving only your ice maker be provided. Use receptacles that cannot be turned off by a switch or pull chain. The ice maker is equipped with a power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-pronged and grounding-type wall receptacle providing 110-120V, 60Hz, grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the personal responsibility of the customer to have a properly grounded, 3-prong wall receptacle installed by a certified electrician.

Portable Ice Maker KIM202W Operation

Using Your Ice Maker

Before using your ice maker it is strongly recommended to clean it thoroughly. Read and follow the Cleaning and Maintenance section of the manual before proceeding.  Follow the steps below to start using your ice maker.

1. Open the top cover and remove any packaging tape that may be holding down the ice case, ice shovel, ice basket, and ice scoop. Remove the ice scoop.

2. Remove the ice basket and clean it.



3. Clean the water reservoir.

4. Pour water into the water reservoir. Keep the water level below the “MAX” water mark.



5. Insert the ice basket into the water reservoir.
6. Close the lid.
7. Plug the ice maker’s power plug in to a grounded outlet.
8. Press the On/Off button on the Control Panel.
9. Press the Select button on the Control Panel to choose between small and large sized cubes. If the room temperature is lower than 60°F, it is best to select the small size setting; otherwise, the ice cubes may stick together. The ice making cycle may take up to thirteen minutes for a single batch of ice.

Notes:  If the water pump is unable to detect or pump water, the unit will stop automatically, and the “Add Water” indicator will be lit. Add water to the unit and restart the unit by pressing the On/Off button twice.
The ice maker will continue making ice until the ice basket is full. When the ice basket is full “Ice Full” indicator will be lit.

IMPORTANT: Discard the first batch of ice produced by the portable ice maker.

CAUTION: Direct sunlight may cause the ice full infrared sensor to malfunction. If the unit continues to produce ice even though the basket is full, you may need to move the unit away from the sunlight.

Using the Control Panel Portable Ice Maker KIM202

IMPORTANT: Do not power on the unit without any water.

Power
Use the On/Off button to turn the portable ice maker on and off. The Power Indicator light will be solid green when the unit is in the “On” position. If the power light is blinking on and off, the unit is in standby mode, and indicates the unit is plugged in.
Ice Size Selector
Use the Select button to switch the ice size between small and large. The S indicator light corresponds to small ice while the L indicator light corresponds to large ice.

How the Portable Ice Maker Produces Ice

After the unit is powered on, the ice maker begins with rotating the ice case into a horizontal water fill position under the evaporator. The water pump is engaged and fills the ice case with water. Water overflows for a few seconds before the compressor turns on. The compressor then pumps refrigerant and the fan will turn on automatically after the condenser heats up. The unit will be producing bullet shaped ice around the stainless steel evaporator. When the batch of ice has been fully formed, the ice maker stops the freeze cycle and begins the harvest cycle. A valve opens diverting hot refrigerant gas into the evaporator. The gas heats the evaporator causing the ice cube bullets to slide off the evaporator. The ice shovel will automatically push the newly formed ice into the ice basket, and will move the ice case back into the water fill position for the next batch of ice. The ice maker will produce ice until ice reaches the ice full sensor, or until the unit is out of water.  The ice bin compartment is insulated, but not refrigerated and the ice in the bin will slowly melt and the water will be reused. Once enough of the ice has melted, the ice maker will automatically start making more ice.

WARNING! Do not tip the unit over while there is water in the reservoir.

Draining the unit
Follow the steps below to drain the unit.

• Carefully move the unit towards a sink or other suitable location for draining.
• Remove the rubber drain plug from the bottom of the water reservoir to drain all the water.
• Firmly install the rubber drain plug into the drain port.

Normal Sounds
Your new ice maker may make sounds that are not familiar to you. Most of the new sounds are normal. Hard surfaces like the floor, walls can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them.

• The ice case motor will make a whirling noise when the ice case and shovel are moving.
• Rattling noises may be produced from the flow of the refrigerant.
• The compressor may make a pulsating or high-pitched sound.
• The compressor may also produce a low tone humming sound.
• Water that is being pumped into the ice case will make trickling, dripping or splashing sounds.
• As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing.
• You may hear fan noise and air being forced over the condenser by the condenser fan.
• During the harvest cycle, you may hear the sound of ice cubes falling into the ice basket.
• If the ice maker is run without water, the water pump will make a screeching noise.

Note: Do not run the unit without water!

Description about Portable Ice Maker KIM202W

The Koldfront Portable Ice Maker KIM202W is a high-quality and reliable appliance that can produce large amounts of ice quickly and efficiently. With its LED control panel and easy-to-use touch buttons, this ice maker is incredibly user-friendly. The transparent lid allows for easy viewing of the ice production, while the automatic overflow protection ensures that the ice maker will not overflow. The ice scoop is included, making it easy to serve the ice. The stainless steel construction of the ice maker is not only durable but also adds a modern and sleek look to any kitchen or office. The compact and portable design of the Koldfront Portable Ice Maker KIM202W makes it easy to move and store, making it a great choice for any small event or gathering.

CLEANING AND MAINTENANCE

1. Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life.
2. Never use a solvent-based cleaning agent. These cleaners may transmit taste to the ice cubes, or damage and discolor the interior.
3. Unplug the unit before cleaning the exterior and interior.

Before using your ice maker, you are strongly recommended to clean it thoroughly. (This process should clean the unit of any impurities that may have been left behind during the manufacturing process.)

1. Take out the ice basket.
2. Clean the interior with a diluted cleaning solution, warm water and a soft cloth.(DO NOT use any caustic or abrasive solutions) (Do not clean your ice maker with flammable fluids.)
3. The outside of the ice maker should be cleaned regularly with a mild detergent and warm water.
4. Dry the interior and exterior with a soft cloth.

If the ice has a strange taste
If the ice has an unappealing taste, or the unit develops a musty odor, try running a few cycles of the ice maker with a mild white vinegar solution or lemon juice. Then empty out all the vinegar or lemon juice solution and run a few cycles with plain water to eliminate all traces of the vinegar or lemon juice.
If you find the bad taste remains after this procedure, use a solution of 2 tablespoons of baking soda to a full water reservoir of water left in the unit overnight to absorb any remaining odors/tastes. Drain the solution, rinse the water reservoir, and dry the interior.

Routine maintenance

1. Take out the ice basket.
2. Add a mild cleaning solution mixture to the water reservoir. Use a 10:1 ratio of water to either white vinegar or lemon juice.
3. Run the ice maker to make a couple of batches of ice (at least 2). Discard the ice.
4. Drain the cleaning solution from the water reservoir.
5. Add fresh water to the water reservoir up to the water level mark.
6. Run the ice maker to make a few batches of ice. Discard the ice.
7. Drain the water.
8. Add fresh water to the water reservoir to make ice, or dry the interior and exterior with a clean soft cloth to store the machine.
9. The ice scoop should be washed regularly. Wash it just like any other utensil.

If the ice maker will not be used for an extended period of time, you should unplug the unit from power, drain the water from the reservoir and dry the interior with a clean soft cloth.

• Do not touch the power plug when your hands are wet.
• Never unplug the unit by pulling on the plug.

Portable Ice Maker KIM202W TROUBLESHOOTING

Before Calling for Service
If the unit appears to be malfunctioning, the issue could be solved by following the suggestions in the “Solution” column.

Warranty

One (1) Year Parts & Ninety (90) Days Labor
This product is warranted by EdgeStar to be free from defective workmanship and materials, subject to any conditions set forth as follows:
WHAT IS COVERED
LABOR: For a period of NINETY (90) DAYS from the date of original purchase, labor will be performed free of charge at an authorized EdgeStar repair facility. At its option, EdgeStar will repair the product with new or remanufactured parts, or exchange the defective product with a new, refurbished, or remanufactured product. If a product is replaced, it will carry the remaining warranty of the original product. After the ninety (90) day period, EdgeStar will no longer be responsible for labor charges incurred. All defective products and parts covered by this warranty will be repaired or replaced on a mail-in basis to an EdgeStar authorized repair facility.
PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. All replacement parts or products will be new, remanufactured, or refurbished. All products and parts replaced by EdgeStar under warranty service become the property of EdgeStar.

This warranty applies to the original purchaser only, and only covers defects in workmanship experienced during operation of the product under normal service, maintenance, and usage conditions. This warranty applies to the purchase and use of this product in residential settings within the United States of America.
WHAT IS NOT COVERED
The following limitations apply to the coverage of this warranty. This warranty does not cover

• Labor charges for installation, setup or training to use the product.
• Shipping damage, and any damage caused by improper packaging for shipment  to an authorized service center, and any damaged caused by improper voltage or any other misuse, including abnormal service, handling, or usage.
• Cosmetic damage such as scratches and dents.
• Normal wear and tear on parts or replacement of parts designed to be replaced, e.g. filters, cartridges, batteries.
• Service trips to deliver, pick-up, or repair, install the product, or to instruct in proper usage of the product.
• Damages or operating problems resulting from misuse, abuse, operation outside environmental specifications, uses contrary to instructions provided in the owner’s manual, accidents, acts of God, vermin, fire, flood, improper installation, unauthorized service, maintenance negligence, unauthorized installation or modification, or commercial use.
• Labor charges incurred 91 days or more after the date of original purchase.
• The use of EdgeStar products in commercial settings.
• Optional accessories, attachments, and appearance items.
• Products that have been modified to perform outside of specifications without the prior written permission of EdgeStar.
• Products lost in shipment, or theft.
• Products sold AS IS or from an unauthorized reseller.
• Products that have had their serial numbers removed or defaced. Products with serial numbers that have been invalidated.

Pros & Cons of Portable Ice Maker KIM202W

Pros

• Produces large amounts of ice quickly and efficiently
• User-friendly LED control panel and touch buttons
• Transparent lid for easy viewing of ice production
• Automatic overflow protection
• Included ice scoop

Cons

• May be too small for large events or gatherings
• Some users may find it to be a bit noisy

Customer Reviews

Customers who have purchased the Koldfront Portable Ice Maker KIM202W have praised its quick and efficient ice production, as well as its user-friendly design. However, some customers have noted that the ice maker can be a bit noisy and may not be suitable for larger events or gatherings. The most common complaint is that the ice maker does not produce enough ice for their needs.
