Introduction

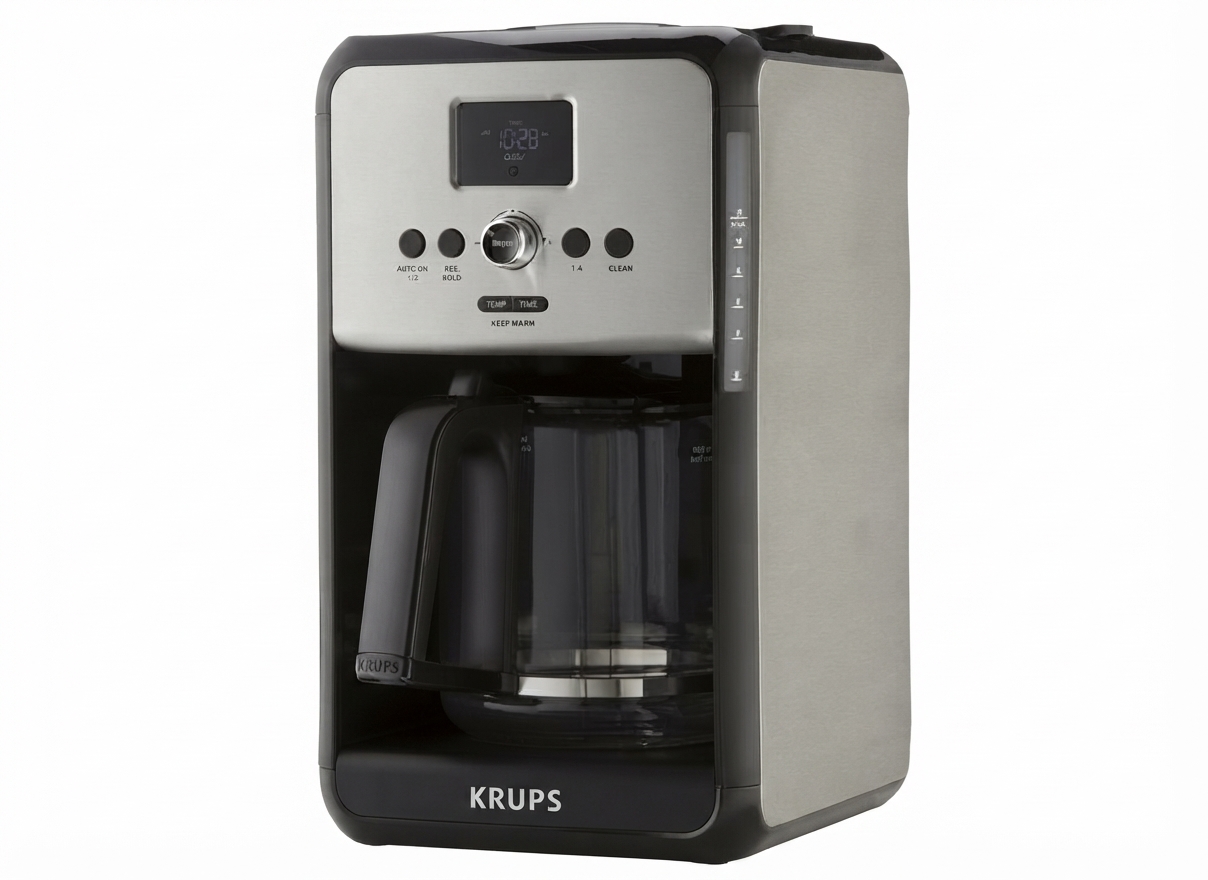

The Krups Savoy 12-Cups Coffee Maker EC314 is a versatile and convenient coffee maker that is perfect for any household or office. This coffee maker has a sleek and modern design, and it is made with high-quality materials that ensure durability and longevity. The EC314 has a 12-cup capacity, which makes it ideal for entertaining guests or for families who love to drink coffee throughout the day. It also has a programmable timer, a pause and serve function, and a removable gold-tone filter for easy cleaning.

Detailed Specifications

The Krups Savoy 12-Cups Coffee Maker EC314 has the following key features:

• 12-cup capacity
• Programmable timer with 24-hour delay
• Pause and serve function
• Removable gold-tone filter
• Water level indicator
• Cord storage
• Auto shut-off
• Dimensions: 8.6 x 14.2 x 10.8 inches
• Weight: 8.8 pounds
• Wattage: 1200 watts

Overview Parts

• a Body of the appliance
• b Lid
• c Water tank
• d Water level indicator
• e Carafe lid
• f Carafe handle
• g Carafe
• h Warming plate
• i Filter holder
• j Permanent filter (avoids paper filters)
• k BREW/control knob
• l Clock button
• m REGULAR/ BOLD button
• n 1-4 cup button
• p CLEAN button
• q AUTO ON button
• r Filter cartridge holder
• s Filter cartridge
• t Keep Warm TEMP Button
• u Keep Warm TIME button
• v Spoon
• w Replacement indicator of the filter cartridge

SETTING THE CLOCK

• Place the coffee maker on a hard flat surface.
• Connect the power cord to a 120V wall socket.

• When you connect the coffee maker for the first time, "1:00 pm" displays and flashes on screen. Fig. 1. Program the time by turning the brew knob (k) to the right to increase, to the left to decrease. Validate by pressing the clock button (l) or the brew button (k). The time is displayed. Fig. 2 and 3.







• You may also program or change the time at any other time. Press the clock button (l) and turn the brew knob (k). Set by pressing the clock button (l) or the brew button (k). The time is displayed.
• Your clock is now programmed and will continue to display the time even when your appliance is on standby.
• If the appliance is disconnected or there is a power failure, the clock will return to 1:00 PM. The steps above must be repeated to program the clock again.

BEFORE FIRST USE

• Remove stickers from your coffee maker.
• Before first use, run your coffee maker without coffee to flush the circuit. Fill the water tank up to the maximum level and begin a cycle by pressing the brew knob (k).
• IMPORTANT: Your appliance was designed to operate only with cold or water at room temperature.

MAKING COFFEE

• Open the lid of the coffee maker (b). Fig. 4.



• Fill the carafe (g) with cold or water at room temperature. Pour the water in the water tank (c) Fig. 5. The water level indicator displays the number of cups. Do not exceed 12 cups. Fig. 6.





• Place the carafe (g) with its lid on the warming plate (h) making sure that it is properly placed to activate the mechanism that will allow the coffee to flow. Fig. 7.



• It is best to remove the filter holder with the filter before adding the ground coffee. If ground coffee has accidentally been poured into the water tank, please do not run the cycle; instead clean the water tank. The ground coffee could plug the water circuit.

• Add 1 KRUPS (u) spoonful of ground coffee per cup. Do not exceed 12 spoons (2 ounces). Fig. 10.



• Make sure the filter holder (i) is inserted. Fig. 8. Place the permanent filter (j) in the filter holder (i) or a No. 4 paper filter. If you use a paper filter, be sure it is fully open and properly positioned in the filter holder. Fig. 9a and 9b.







• Close the lid (b).

• Press the brew button (k). The button lights up to indicate that the coffee maker has begun the brew cycle. It beeps once. Fig. 11.



• When the cycle has ended, the 'keep warm' feature turns on automatically (the countdown showing the time during which it will remain warm is displayed on screen). The brew button (k) flashes slowly.
• After the default keep warm time of 30 minutes your appliance beeps 3 times and the brew button (k) switches off.
• At any time during the brew cycle, you may turn off the coffee maker by pressing the brew button (k). The light on the brew button will also go out. It beeps 3 times prior to turning off.
• Even if the brew cycle has ended, there is still hot liquid in the filter. Wait a few minutes for the rest of the liquid to flow into the carafe before removing the filter.
• Note:
  • The amount of coffee in the carafe at the end of the cycle is less than the amount of water poured into the water tank, since the ground coffee and the filter absorb about 10% of it.
  • The water tank is equipped with an overflow outlet at the rear of the appliance. If you add too much water, it will come out of this opening.
  • Clean the permanent filter in between each use, or use a paper filter.

CAUTION

• To avoid overflowing, the carafe should be properly placed on the warming plate of the coffee maker, otherwise the hot water or hot coffee may overflow.
• The coffee maker becomes very hot during the brew cycle. Handle it carefully.

Description of Coffee Maker EC314

The Krups Savoy 12-Cups Coffee Maker EC314 is a programmable coffee maker that allows you to wake up to the smell of freshly brewed coffee. It has a large water reservoir that can brew up to 12 cups of coffee at a time, making it perfect for large families or office settings. The EC314 also features a pause and serve function, which allows you to pour a cup of coffee before the brewing cycle is complete. The removable gold-tone filter is easy to clean and can be used with both coffee grounds and paper filters. The water level indicator ensures that you always add the right amount of water, and the cord storage keeps your countertop organized and clutter-free. The EC314 is also equipped with an auto shut-off feature that turns off the coffee maker after two hours of inactivity, ensuring safety and energy efficiency.

OTHER FEATURES

AUTO START FUNCTION

• Programming the auto-start settings.
• Your appliance is equipped with two auto-start programs.
• Check whether the clock is set to the right time. If not, follow the instructions in the SETTING THE CLOCK section.

• Press the AUTO ON button. An AUTO 1 icon displays on screen. Fig. 12.



• Turn the brew knob (k) to set the time. Validate by pressing the brew button (k). The time is displayed. Fig. 13 and 14.





• Without validation with the brew knob (k), the time is recorded automatically after about 5 seconds.

• To set the second program, push the AUTO ON button twice, so that the AUTO 2 icon appears on screen. Fig. 15.



• Turn the brew knob (k) to set the time. Validate by pressing the brew knob (k). The time is displayed. Fig. 16 and 17.





• If you do not confirm using the brew knob (k), the time is recorded automatically after about 5 seconds. Activate a delayed start-up where the time is already regulated.
• Select AUTO 1 or AUTO 2 by pressing the AUTO ON button. Press the brew button (k) to launch autostart program.

REGULAR OR BOLD

• This feature allows you to make a coffee that is more or less full-bodied.
• The BOLD feature increases the time of the cycle for a stronger coffee.

• Press the REGULAR or BOLD button to select the intensity of your coffee. Fig. 18.



• The REG or BOLD icon appears on screen.
• The feature is stored in the memory for subsequent cycles.

1- 4 CUPS

• To activate this feature, press the 1-4 button (n) before starting the cycle. Fig. 19.



• This feature is especially designed for making small amounts of coffee, i.e. between 2 and 4 cups. It makes it easier to extract optimal aroma and flavor.

KEEP WARM TIME

• The default keep warm duration on your appliance is 2 hours.
• To cancel the keep warm function, press Time (t) and KEEP WARM will disappear from the screen.
• To set the keep warm duration:
  • If the keep warm function has already been activated, press Time (t) once to deactivate it.

  • If not, press Time (t) and turn the BREW button (k) to select the keep warm duration. The keep warm function may be set from 15 minutes to up to 4 hours. Fig. 20 and 21.



  • Confirm by pressing BREW (k). As a default setting, the duration is confirmed automatically after approximately 5 seconds. Fig.21



  • KEEP WARM will appear on the screen and the duration is confirmed.
• To cancel the keep warm function, press Time (t) and KEEP WARM will disappear from the screen.
• You can change the keepwarm duration while it is in operation by turning the BREW button (k).

TEMPERATURE

• You may program 3 temperature levels to keep your coffee warm: LOW, MEDIUM or HIGH.

• Press the TEMP button (s) and turn the brew button (k) to select the temperature level. Fig. 22 and 23.





• Set by pushing the brew knob (k) or by default, validation is done automatically about every 5 seconds.

Setup Guide

Setting up the Krups Savoy 12-Cups Coffee Maker EC314 is easy and straightforward. Here are the steps to follow:

1. Remove all packaging materials from the coffee maker.
2. Rinse the carafe and the gold-tone filter with warm water.
3. Place the filter in the filter basket and add your preferred coffee grounds or paper filter.
4. Fill the water reservoir with the desired amount of water, using the water level indicator as a guide.
5. Close the lid and plug in the coffee maker.
6. Select your preferred brewing time using the programmable timer.
7. Press the power button to start brewing.

CLEANING

To dispose of used ground coffee, remove the filter and the filter holder of the coffee maker. Fig. 24a-b and 25 a-b.

• Do not clean the appliance if it is still hot.
• Wash the carafe, the removable filter holder and the permanent filter with warm, soapy water. You may place the carafe in the dishwasher.
• CAUTION: Do not place the carafe in the microwave. Do not put other parts of the coffee maker into the dishwasher.
• Clean the coffee maker with a damp cloth or sponge. Never use abrasive or strong products on any part of the coffee maker.
• To clean the stainless steel parts of your coffee maker, dampen a soft cloth or sponge with warm water. Wipe carefully with a dry cloth.
• For difficult stains, use a cloth with white vinegar.
• Do not immerse the appliance in water or under the tap.

DESCALING

Why descale

• Limestone forms naturally in your coffee maker. Descaling preserves the coffee maker and ensures it will last longer and provide quality coffee over time.
• Limestone can permanently affect the machine's performance. Malfunctions associated with scaling will not be covered by the warranty if the product is returned.

When to descale

• When descaling is necessary, your machine will tell you and the CLEAN icon will appear on screen.
• How often you need to descale depends on the hardness of the water and the coffee cycle number. When you see the following signs: extended cycle times, high steam, a high noise level at the end of the cycle, stop page during a cycle, this means your machine is scaled.
• Descaling should be done about once a month, depending on the hardness of the water.

How to descale your KRUPS coffee maker

• Remove the filter cartridge. Fig. 26.



• Use the KRUPS descaling solution or 17 fl. oz of white vinegar diluted in 17 fl.oz of cold or water at room temperature or 1.5 oz of citric acid diluted in 17 fl. oz until complete dissolution of crystals. Fig. 27.



• Pour the solution into the water tank (without coffee). Fig. 28.



• Press the CLEAN button (o) and then the BREW button (k) to start the descaling cycle. Fig. 29.



• The cycle lasts for 30 min.
• Please wait until the end of the cycle.
• If the water tank is not empty, please launch another descaling cycle by pressing CLEAN button.

• To rinse the machine, run 2 full 12 cups cycles with water but without coffee. Fig. 30.





• Repeat the operation if needed.
• Replace the filter cartridge. Fig. 34 and 35.
• The warranty does not cover coffee makers that do not work, or do so poorly, due to lack of descaling.

DUO FILTER CARTRIDGE

• Your appliance allows you to filter with the DuoFilter filters: double action filter – reduces chlorine and scaling – based on active plant ingredients. This Duo Filter allows you to luxuriate in the most delicate aromas of your coffee and reduces the need to descale.
• In its upper part, the filter cartridge support is equipped with an indicator for replacement of the cartridge.

• Select the number of the month when you replace the filter. It will display the month when you should change your filter according to water hardness. Fig. 33.



• To change the filter, remove the DuoFilter from the tank. Fig. 32.



• Open it by unlatching and opening the lower part and replacing it. Fig. 34.





IMPORTANT

• The DuoFilter filter must only be used with water.
• Your coffee maker operates even if the water filter is not installed.
• If you have not used your coffee machine for over a month, rinse the DuoFilter filter under running water.
• It is recommended not to leave the DuoFilter water filter in place for over 5 months.
• The duo filter can cause the water to flow slow, excess steam, high noise lever. The filter may need to be replace.

Pros & Cons

Pros

• Large 12-cup capacity
• Programmable timer with 24-hour delay
• Pause and serve function
• Removable gold-tone filter
• Water level indicator
• Auto shut-off feature
• Sleek and modern design
• Easy to clean and maintain

Cons

• May be too large for small countertops
• Some users may prefer a glass carafe instead of a thermal one

Customer Reviews

Customers who have purchased the Krups Savoy 12-Cups Coffee Maker EC314 have given it mostly positive reviews. They have praised its large capacity, programmable features, and durable construction. However, some users have complained about the size of the coffee maker and the thermal carafe, which can be difficult to clean. Overall, the EC314 is a reliable and convenient coffee maker that is worth the investment.
