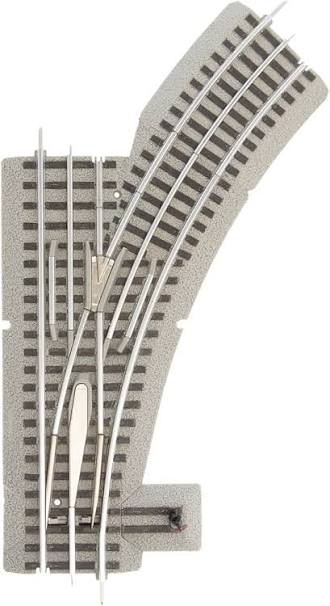

Introducing the Lionel FasTrack Manual Switch 036 Electric Gauge

Congratulations on your purchase of the Lionel FasTrack Manual Switch! This switch is controlled by rotating the switch stand. Use this switch to join two loops, create a switching yard, or add a siding.

Lionel Fastrack Manual Switch 036 Electric Gauge is a must-have for toy train enthusiasts. This manual switch allows for easy customization of your Fastrack layout. With a suggested retail price of $36.99, this product is perfect for those looking to add some variety to their Lionel Fastrack layouts. The Lionel Fastrack Manual Switch 036 Electric Gauge is set to be released in the fall of 2021.

Lionel Detailed Specifications

The Lionel Fastrack Manual Switch 036 Electric Gauge boasts several key features, including:

• Durable construction for long-lasting use
• Easy-to-use manual switch
• Compatible with all Fastrack track sections
• Can be used to create customized layouts
• Measures 4.75" x 4.75" x 1.25" (L x W x H)

Joining the FasTrack track sections

FasTrack track sections join together easily. With interlocking roadbed sections and large rail tabs, the track fits together securely so you always get good electrical contact.

1. Line up your two sections of track.
2. Insert the rail tabs into the openings at the ends of the corresponding rails.

3. Press the sections together until the interlocking roadbed snaps into place.



Throwing the switch

As illustrated in Figure 2, rotate the top of the switch stand to throw the switch. This switch is equipped with a non-derailing feature. The train’s wheels automatically throw the blades to the proper position when the train travels toward the converging track. If you experience difficulties, simply throw the switch into the correct position for the train to travel using the switch stand control.

Description of Lionel FasTrack Manual Switch

The Lionel Fastrack Manual Switch 036 Electric Gauge is an essential addition to any Fastrack layout. This manual switch allows for easy customization of your toy train layout, giving you the flexibility to create unique and interesting track configurations. The switch is made with durable materials to ensure long-lasting use, and it is compatible with all Fastrack track sections. Whether you are a seasoned toy train enthusiast or just starting out, the Lionel Fastrack Manual Switch 036 Electric Gauge is the perfect addition to your collection.

Changing the switch stand location

You may choose to position the switch stand either inside or outside the loop of track. Follow these steps and refer to Figure 3 to change the location of the switch stand.

1. Remove the two screws that secure the small roadbed section to the switch and lift away the roadbed section.
2. Place the “blades,” or moving rails, in the proper position to make removing the switch stand roadbed section easier.
   • If the switch stand is being removed from the curved side, the blades should be set to the through/straight position.
   • If the switch stand is being removed from the straight side, the blades should be set to the out/curve position.
3. Remove the two screws that secure the switch stand roadbed section to the switch. Please note that these screws are located towards the inside edge of the switch stand roadbed section. Lift away the switch stand roadbed section being careful to prevent the switch target and handle from rotating more than a quarter turn. (The handle and target are labeled in Figure 2 on page 2.)
4. Slide the blades to the opposite position to access the slot at the end of the switch control arm. The blades are illustrated in Figure 2 on page 2.
5. Install the switch stand roadbed section at its new location. The posts on the switch should be inserted into the holes on the switch stand roadbed section. The pin on the switch stand mechanism should be inserted into the slot on the switch control arm. Insert the two screws to secure the switch stand. Remove the switch target from the handle and replace in the proper direction. Painted target face should point toward straight exit when the blades are set in the out/curved position.
6.  Install the small roadbed section, securing it in place with the two screws.

7. Check for proper clearance of all locomotives and rolling stock. You may choose to move the switch target from the switch stand for additional clearance.



Troubleshooting of FasTrack Manual Switch Electric Gauge

Common problems with the Lionel Fastrack Manual Switch 036 Electric Gauge include difficulty in connecting the switch to the track or issues with the switch staying in the desired position. To troubleshoot, make sure that the switch is properly aligned with the track and that the connections are secure. If the switch still won't stay in the desired position, try adjusting the tension on the switch. As with any toy, it's important to follow all instructions and warnings carefully to avoid damage or injury.

Lionel Warranty

This Lionel product, including all mechanical and electrical components, moving parts, motors and structural components, except for light bulbs, is warranted to the original consumer-purchaser, for one year against original defects in materials or workmanship when purchased through an authorized Lionel merchant.

Pros & Cons

• Pros:
• Durable construction for long-lasting use
• Easy-to-use manual switch
• Compatible with all Fastrack track sections
• Cons:
• May be difficult for young children to use
• Some users may find the switch difficult to adjust

Customer Reviews about Manual Switch 036

Customers love the Lionel Fastrack Electric Gauge, with many praising its durability and ease of use. However, some users have noted that the switch can be difficult to adjust. Overall, the Lionel Fastrack Manual Switch 036 Electric Gauge is a great addition to any toy train layout and is sure to provide hours of fun.
