How to Connect: Logitech Ultrathin Tab Keyboard Folio Complete Guide

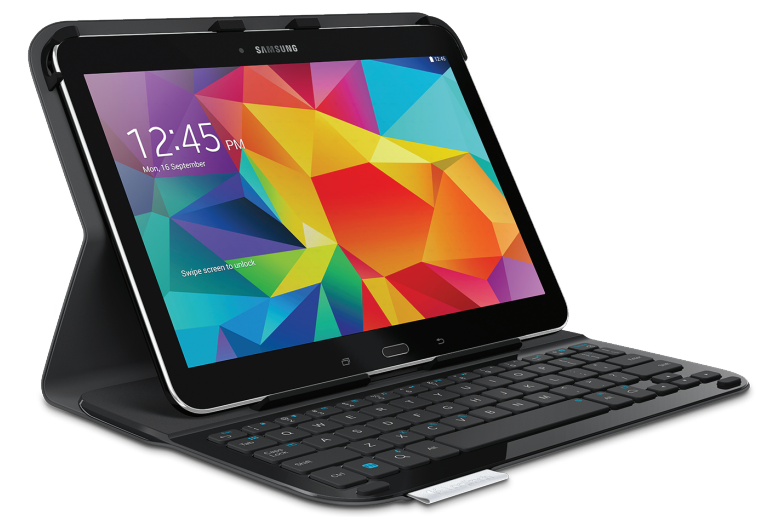

Logitech Ultrathin Tab Keyboard Folio

Introduction

The Logitech Ultrathin Tab Keyboard Folio is a versatile accessory designed to enhance your tablet experience. It provides a protective case for your tablet along with a built-in keyboard, offering convenience and functionality in one sleek package.

Know your product

1. Tablet holder
2. Protective folio
3. Hook
4. Magnet
5. Function keys
6. Keyboard
7. Bluetooth®/ battery status light
8. Bluetooth connect button
9. On/off switch
10. Micro-USB charging port
11. Micro-USB charging cable
12. Product documentation

Setting up the keyboard folio

Getting started

1. Open the keyboard folio and push your Samsung GALAXY Tab4 10.1 into the tablet holder:



2. Push your Samsung GALAXY Tab4 10.1 down into the hook:



3. Move the keyboard folio into the typing position by lifting the back of the protective folio and sliding the hook forward until it aligns with the magnet:



Connecting your keyboard and tablet
The keyboard folio links to your tablet via a Bluetooth® connection. The first time you use the keyboard folio, you must pair the keyboard with your tablet.

1. Turn on the keyboard. The status light blinks blue (fast blink) to indicate that the keyboard is discoverable, ready for pairing with your tablet. The first time you turn on the keyboard,, it remains discoverable for 15 minutes. If the status light turns red, charge the battery. For more information, see “Charging the keyboard battery.”



2. Make sure your tablet’s Bluetooth feature is on.
   From a Home screen, touch  Apps → Settings → Network connections section, and turn on the Bluetooth switch.
3. Pair the keyboard folio with your tablet.
   • In your tablet’s Bluetooth settings page, select “Ultrathin Keyboard Folio S410” in the list of Available devices.
   • When prompted, enter the PIN displayed using the folio keyboard.

When a successful connection is made, the status light turns solid blue for a short time, and then turns off.

Connecting to another tablet

1. Make sure the keyboard is turned on.
2. Make sure your tablet’s Bluetooth feature is on. From a Home screen, touch  Apps Settings  Network connections section, and turn on the Bluetooth switch.

3. Press the Bluetooth Connect button:
   The status light blinks blue (fast blink) to indicate that the keyboard is discoverable, ready for pairing with your tablet. The keyboard is discoverable for 3 minutes.



4. Pair the keyboard folio with your tablet.
   • In your tablet’s Bluetooth settings page, select “Ultrathin Keyboard Folio S410” in the list of Available devices.
   • When prompted, enter the PIN displayed using the folio keyboard.
   • When a successful connection is made, the status light turns solid blue for a short time, and then turns off.

Using the keyboard folio

Two viewing positions
The keyboard folio provides two viewing positions—one for typing and another for browsing. To type:

1. Move the tablet holder into the typing position, aligning it with the built-in magnet to secure it:



2. Turn on the keyboard:



If the status light turns red, charge he battery. For more information,  see “Charging the keyboard battery.” If you don’t use the keyboard for a while in the typing position, it enters sleep mode automatically. Pressing any key wakes it.  To browse, place the tablet holder in  the browsing position:
You can switch off the keyboard if you want to conserve battery power.

Status light indicators

Bluetooth and battery status light

Function keys

Note: To select a function key, press and hold the FN key, and then press the key indicated above.

Charging the keyboard battery

If the status light is red,, the keyboard folio battery needs to be charged.

1. Plug one end of the micro-USB cable into the charging port, and the other end into a USB port on your computer. The status light blinks green as the battery charges.
2. Charge the battery until the status light turns solid green.

Battery information

• A fully charged battery provides about three months of use when the keyboard is used about two hours a day.
• Charge the battery if the status light turns red briefly after the keyboard turns on.
• When not in use, turn off the keyboard to conserve battery power.
• The keyboard enters sleep mode automatically if not used for a while in the typing position. Press any key to wake it.

Battery disposal at the product's end of life

1. Pry off the top cover of the keyboard with a screwdriver.
2. Detach the battery from the circuit board and remove the battery.
3. Dispose of your product and its battery according to local laws.

When you’ve finished using the keyboard folio

Detaching your tablet

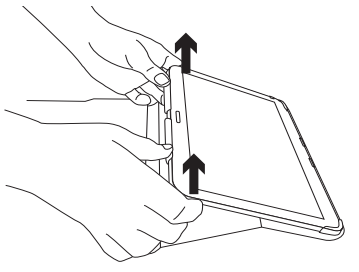

1. Release your tablet from the hook:

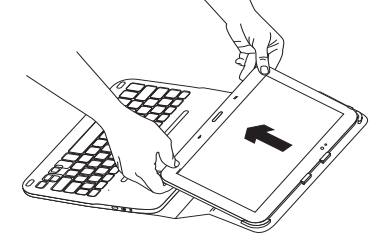

2. Slide your tablet out of the tab holders:



Your tablet is then released.

Storing your tablet for travel

1. Insert your tablet in the tablet holder.

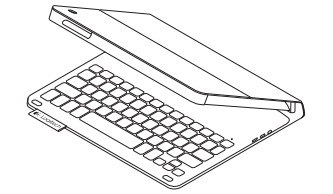

2. Close the keyboard folio:

Visit Product Central

There’s more information and support online for your product. Take a moment to visit Product Central to learn more about your new keyboard folio.
Browse online articles for setup help, usage tips, and information about additional features.
Connect with other users in our Community Forums to get advice, ask questions,  and share solutions.

Find a wide selection of content,, including:

• Tutorials
• Troubleshooting
• Support community
• Online documentation
• Warranty information
• Spare parts (when available)

Go to: www.logitech.com/support/ultrathin-keyboard-folio-galaxy-tab-4

Troubleshooting

The keyboard does not work

• Press any key to wake the keyboard from sleep mode.
• Turn the keyboard off and then back on.
• Recharge the internal battery.
• For more information, see “Charging the keyboard battery.”
• Verify that Bluetooth is turned on in your tablet’s settings ( Apps  Settings  Network connections section Bluetooth).
• Verify that “Ultrathin Keyboard Folio S410” is paired with your tablet ( Apps  Settings  Network connections section  Bluetooth).
• Re-establish Bluetooth connection between the keyboard and your tablet by selecting “Ultrathin Keyboard Folio S410” in the list of Available devices. The status light on your keyboard turns solid blue when a Bluetooth connection is established.
