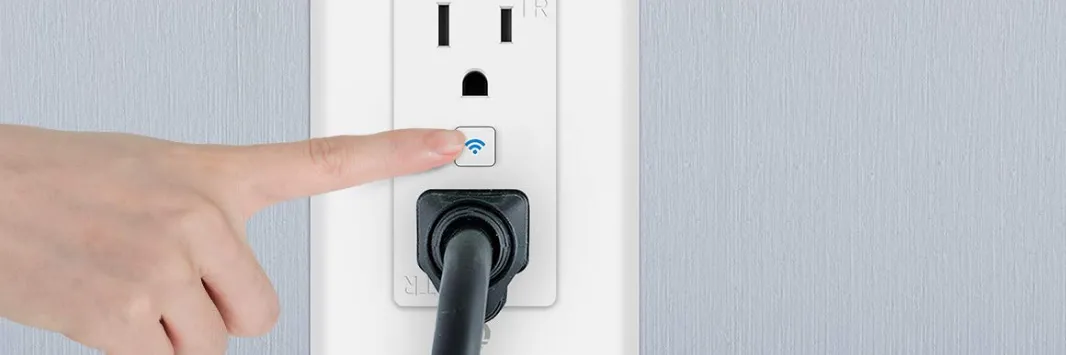

Introduction of Lumary Smart Wall WiFi Outlet

Introducing the Lumary Smart Wall WiFi Outlet, a revolutionary device that brings convenience and efficiency to your home. This sleek and modern outlet allows you to control your appliances and devices remotely using your smartphone or other WiFi-enabled devices. With an estimated price range of $30 to $40 and a planned launch date in mid-2023, this product is a must-have for anyone looking to upgrade their home technology.

Detailed Specifications

The Smart Wall WiFi Outlet boasts a number of impressive features, including

• WiFi connectivity for remote control and monitoring
• Compatibility with Amazon Alexa and Google Assistant for voice control
• Scheduling and timer functions for energy savings and convenience
• Over-current, over-voltage, and leakage protection for safety
• A compact and durable design for long-lasting use

What’s in the Box

• 1 x Smart Wi-Fi Outlet
• 1 x Face Plate
• 2 x Screws for Outlet
• 2 x Screws for Faceplate
• Start Guide
• Voice Control Guide

Setup Guide

Setting up the Smart Wall WiFi Outlet is quick and easy

1. Download the Lumary app and create an account
2. Plug the outlet into a wall outlet and wait for the LED to flash
3. Connect the outlet to your WiFi network using the Lumary app
4. Add the outlet to your Lumary account and start controlling your devices

Get Ready

• Turn OFF AC Power at the circuit breaker or fuse. Use a noncontact voltage tester to ensure that power is off. More than one disconnect CURRENT may be required to turn off power.
• Use Copper Conductors Only.

1. Download the Lumary app



2. Register a Lumary account



   1. Enter your email address.

   2. Enter the verification code and create a password.
      Reset Password



   3. Follow the prompts to reset your password.

Description of Lumary Smart Wall WiFi Outlet

The Smart Wall WiFi Outlet is a smart plug that allows you to control your appliances and devices from anywhere using your WiFi connection. With the Lumary app, you can turn devices on and off, set schedules and timers, and even monitor energy usage. This outlet is also compatible with Amazon Alexa and Google Assistant, allowing you to use voice commands to control your devices. The compact and durable design makes it easy to install and use, while the advanced safety features protect your devices and home. Whether you're looking to save energy, increase convenience, or enhance your home automation, the Lumary Smart Wall WiFi Outlet is the perfect choice.

Install

1. Shut off power at the circuit breaker for the CURRENT that you are replacing. More than one disconnection may be required to turn off power. Use a noncontact voltage tester to ensure that power is off.



2. Remove old outlet by disconnecting all wires. Disconnect all wires.



3. Connect CURRENT’s neutral wire (white) to your home’s neutral wire. Connect CURRENT’s line (Black), Neutral (White), and Ground  (Green) wires as shown.




    Place stripped wire into the hole and tighten down the screw.



4. Use the two A screws to secure the CURRENT to the junction box.




   Use the two B screws provided to secure the faceplate bracket to the CURRENT.



5. Restore power by turning the breaker back on.
6. Once power is connected,the blue indicator light will blink to indicate that CURRENT is ready to connect to Wi-Fi.

Reset and restart, cont

How do I reset the device and what does the blinking light mean?
Reset CURRENT by pressing and holding the reset button for  5 seconds until the indicator light is flashing rapidly.

• Reset one time (press and hold) to reach Easy mode (Fast blinking blue, 2x per second)
• Reset again (press and hold) to reach AP Mode  (Slow blinking blue, every 3 seconds)

• Blinking fast: Ready for Easy Mode
• Blinking slow: Ready for AP
• Mode Solid: Device power on

Connection

Easy Mode

1. Open the Lumary app. In the top corner of the Devices screen, click (+). Choose “Socket (Wi-Fi)”

2. Make sure CURRENT’s light is rapidly flashing blue.  If not, reset to reach Easy Mode to connect (Page 9).  Press “Next Step” in the app.



3. Enter your Wi-Fi network and password.
4. The Lumary app will connect to your CURRENT.

NOTE: Lumary can’t connect to 5GHz networks. If the connection fails, try to connect using AP Mode.

AP Mode

1. Make sure CURRENT’s light is slowly flashing blue. If not, reset to reach AP mode
2. Open the Lumary app. In the top corner of the Devices screen, click (+). Choose “Socket (Wi-Fi)”.  Choose “AP Mode” in the top corner.

3. Press “Next” and enter your Wi-Fi details.



4. Follow the instructions to choose the device from your Wi-Fi list.
5. The Lumary app will connect to your CURRENT.

Auto Scan

1. Connect your smartphone to a 2.4GHz Wi-Fi, and open the Lumary app. In the top right corner of the screen, click (+). Choose “Auto Scan”.



2. Power on the smart device, press and hold the reset button for 5 seconds until it is rapidly flashing blue.
3. Click “Start scan”, the app will search for device automatically. Wait 5-20s until the device appears on the screen. Click “Next”, customize the device name as needed, then click “Done” to complete the connection.

Reset the device
Reset CURRENT by pressing and holding the button for 5 seconds until the indicator light is flashing rapidly.

• Reset one time (press and hold) to reach Easy mode (Fast blinking blue, 2x per second).
• Reset again (press and hold) to reach AP Mode (Slow blinking blue, every 3 seconds).

Troubleshooting

If you experience any issues with the Lumary Wall WiFi Outlet, try the following solutions

1. Make sure the outlet is properly plugged in and the LED is flashing
2. Check your WiFi connection and make sure the outlet is connected to the correct network
3. Restart the Lumary app and try again
4. If the issue persists, try resetting the outlet by pressing and holding the button for 10 seconds

Technical Specifications

• Input: 100-130VAC, 60Hz
• Single Output: 15A Max. / outlet
• Total Output : 15A Max.

Pros & Cons of Lumary Smart Wall WiFi Outlet

Pros

• Remote control and monitoring of appliances and devices
• Compatibility with Amazon Alexa and Google Assistant
• Scheduling and timer functions for energy savings
• Advanced safety features
• Compact and durable design

Cons

• May be more expensive than traditional outlets
• Requires WiFi connection for remote control
• May have compatibility issues with certain devices

Customer Reviews of Wall WiFi Outlet

Customers love the Smart Wall WiFi Outlet for its convenience, energy savings, and advanced features. Some common compliments include: "This outlet is so easy to use and has saved me so much energy," "I love being able to control my devices from anywhere using my smartphone," and "The compatibility with Alexa and Google Assistant is a game-changer for me." However, some customers have reported issues with compatibility and connectivity.
