Introduction

In order to improve the level of comfort and energy efficiency in your house, Lux Products has developed a Wi-Fi Thermostat called the GEO-WH. This thermostat is intelligent, multifunctional, and simple to operate. Using a smartphone, tablet, or computer, you are able to regulate the temperature in your home from any location because to its streamlined design and Wi-Fi connectivity. Because of its user-friendly programming, energy-saving settings, and compatibility with the majority of HVAC systems, this thermostat is an excellent option for contemporary homes that are looking for climate management that is both convenient and economical (in terms of cost).

Detailed Specifications

The Lux Products Wi-Fi Thermostat GEO-WH Manual offers the following key features:

• 7-day programmable schedule
• Smart Wi-Fi connectivity
• Vacation hold mode
• Large backlit display
• Energy-saving mode
• Touchscreen interface
• Compatible with most HVAC systems
• Alexa and Google Assistant compatibility

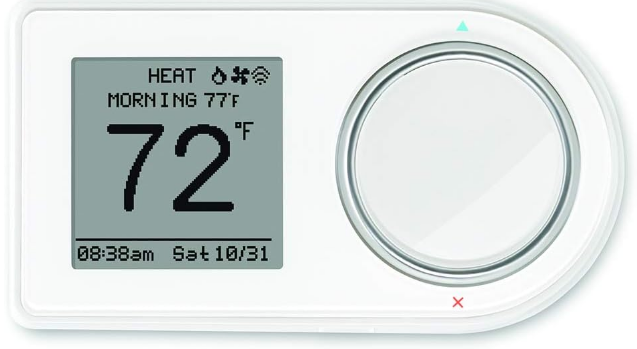

Lux Products Wi-Fi Thermostat GEO-WH

Well beyond traditional with soft curves in a pearl white, gloss finish with matte pearl and chrome accents. With its attractive design and soft curves, LUX/GEO has both brains and beauty. The large display, control wheel interface, and free Android/iOS App offer intuitive functionality both online and at the device. The LUX/GEO gives the user full control with easy-to-understand programming and built-in geofencing to automatically save energy when the user is out of the house.

UPC: 0 21079 15001 4

• Dimensions Width: 5.7" (145mm)
• Dimensions Height: 3.12" (79mm)
• Dimensions Depth: 1.32" (33mm)

7-day programmable – through the web, App or at the device. To learn more about the LUX/GEO, visit https://luxproducts.com/geo/

FEATURES

• Easy installation and WiFi connection
• Easy to program from unit or with APP
• Large, backlit display
• Wheel control interface or smartphone App
• 7-day programming
• User option: 2 or 4 periods per day
• 3-year warranty
• Selectable Fahrenheit/Celsius setting
• Adjustable temperature swing
• Low battery detection
• Air filter monitor
• Adjustable temp swing (differential)
• Adjustable 2nd stage heat offset
• Wall plate included
• Operates on 24VAC, 2-AA lithium batteries (included) or micro-USB (cable not included)
• High and Low temperature alerts
• Geofencing for automatic savings
• Dual mount: vertical or horizontal
• Finish: white with white chrome trim
• Mercury-free
• Find rebates and other info: https://luxproducts.com/geo/

Description

The Lux Products Wi-Fi Thermostat GEO-WH is a programmable thermostat that enables you to schedule your home's heating and cooling systems for a period of seven days. The thermostat can be remotely managed from your smartphone, tablet, or computer via its intelligent Wi-Fi connectivity feature. The thermostat also features a vacation hold mode, which enables you to set the temperature up to 30 days in advance, making it ideal for use while you are away from home. The temperature, time, and other parameters are readily visible on the large, backlit display. The energy-saving mode is designed to reduce your energy expenses, and the touchscreen interface is user-friendly. This thermostat is a convenient addition to your smart home setup, as it is compatible with most HVAC systems and is compatible with Alexa and Google Assistant.

FOR USE ON

• Universal compatibility for conventional heat & A/C up to 2-stage heat/2-stage cool
• Universal compatibility for heat pumps with up to 2-stage heat/1-stage cool (including aux/emergency heat)
• 2-wire heat only hydronic systems (hot water, baseboard, and radiator)
• Gas millivolt heaters

NOT FOR USE ON

• Heat pump with (Y2) two compressor stages
• 3-wire heat only hydronic systems (hot water, baseboard & radiator)
• Line voltage systems (120/240 VAC)

Setup Guide

The following procedures should be taken to configure the Lux Products Wi-Fi Thermostat GEO-WH:


• Place the thermostat on the wall in the same location as the old thermostat.
• Connect the thermostat wires to the corresponding terminals on the thermostat's rear.
• Activate the HVAC system.
• To establish the date, time, and other preferences, adhere to the on-screen instructions.
• Use the touchscreen interface to connect the thermostat to your Wi-Fi network.
• To connect the thermostat to the Lux Products app, download the app onto your smartphone, tablet, or computer and follow the instructions.

Troubleshooting

Here are some common problems and solutions for the Lux Products Wi-Fi Thermostat GEO-WH:

• Problem: The thermostat is not responding to touch inputs.
  Solution: Make sure the thermostat is powered on and the display is lit. If not, check the wiring and make sure it is connected properly.
• Problem: The thermostat is not connecting to Wi-Fi.
  Solution: Make sure you have entered the correct Wi-Fi password and that your network is working properly. You can also try resetting the thermostat to its factory settings and reconnecting it to your network.

Lux Products Wi-Fi Thermostat GEO-WH Pros & Cons

Pros

• Easy to use with touchscreen interface
• Smart Wi-Fi connectivity for remote control
• 7-day programmable schedule
• Vacation hold mode
• Energy-saving mode

Cons

• May not be compatible with all HVAC systems
• No built-in motion sensor
