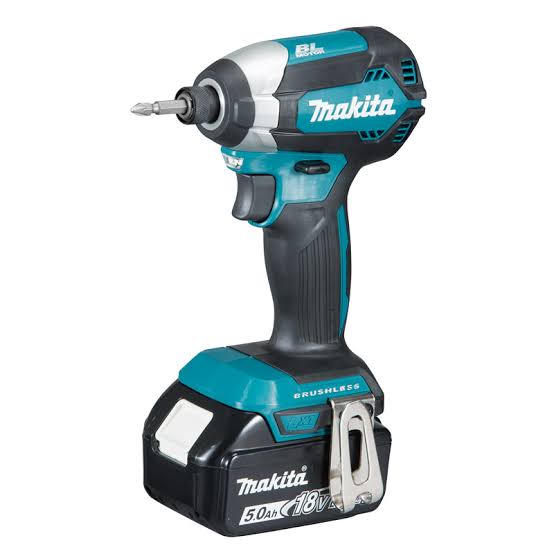

Introduction of Makita Cordless Impact Driver DTD153

The Makita Cordless Impact Driver DTD153 is a powerful and versatile tool designed to make your DIY projects more manageable. Launched in 2021, this cordless impact driver is an excellent addition to any toolbox. It has a suggested retail price of $199, making it an affordable option for both professionals and DIY enthusiasts.

Specifications

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.

• Specifications may differ from country to country.

• The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heaviest combinations, according to EPTA-Procedure 01/2014, are shown in the table.

FUNCTIONAL DESCRIPTION

CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking the function of the tool.

Installing or removing the battery cartridge

CAUTION: Always switch off the tool before installing or removing the battery cartridge. Hold the tool and the battery cartridge firmly when installing or removing the battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury.

1. Red indicator

2. Button

3. Battery cartridge

To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge. To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely.

CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.

Indicating the remaining battery capacity

Only for battery cartridges with the indicator

1. Indicator lamps

2. Check button

Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for a few seconds.

NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.

Tool / battery protection system

The tool is equipped with a tool/battery protection system. This system automatically cuts off power to the motor to extend tool and battery life. The tool will automatically stop during operation if the tool or battery is placed under one of the following conditions:

1. Overload protection
   When the battery is operated in a manner that causes it to draw an abnormally high current, the tool automatically stops without any indication. In this situation, turn the tool off and stop the application that caused the tool to become overloaded. Then turn the tool on to restart.

2. Overheat protection
   When the tool/battery is overheated, the tool stops automatically. In this situation, let the battery cool before turning the tool on again.

3. Over-discharge protection
   When the battery capacity is not enough, the tool stops automatically. In this case, remove the battery from the tool and charge the battery.

NOTE: Overload protection will work only with batteries with star marking.

Star marking

Switch action

Switch trigger

CAUTION: Before installing the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the “OFF” position when released. To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

Makita Cordless Impact Driver DTD153 Lighting up the front lamp

Lamp

CAUTION: Do not look in the light or see the source of light directly. Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. The lamp goes out approximately 10 seconds after releasing the switch trigger.

NOTE: Use a dry cloth to wipe the dirt off the lens of the lamp. Be careful not to scratch the lens or the lamp, or it may lower the illumination.

Reversing switch action

Reversing switch lever

CAUTION

• Always check the direction of rotation before operation.

• Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.

• When not operating the tool, always set the reversing switch lever to the neutral position.

This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A-side for clockwise rotation or from the B side for counterclockwise rotation.
When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.

Makita Cordless Impact Driver DTD153 Assembly

CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

Installing or removing driver bit/socket bit

Use only the driver bit/socket bit that has the inserting portion shown in the figure. Do not use any other driver bit/socket bit.

For tool with shallow driver bit hole

For a tool with a deep driver bit hole

For tools without a one-touch type sleeve

Driver bit 2. Sleeve

To install the driver bit, pull the sleeve in the direction of the arrow and insert the driver bit into the sleeve as far as it will go. Then release the sleeve to secure the driver bit.

For tool with a one-touch type sleeve
To install the driver bit, insert the driver bit into the sleeve as far as it will go.

Procedure 2
In addition to Procedure 1, insert the bit piece into the sleeve with its pointed end facing in.

Driver bit 2. Bit-piece 3. Sleeve

To remove the driver bit, pull the sleeve in the direction of the arrow and pull the driver bit out.

NOTE:

• If the driver bit is not inserted deep enough into the sleeve, the sleeve will not return to its original position and the driver bit will not be secured. In this case, try re-inserting the bit according to the instructions above.

• When it is difficult to insert the driver bit, pull the sleeve and insert it into the sleeve as far as it will go.

• After inserting the driver bit, make sure that it is firmly secured. If it comes out, do not use it.

Installing hook

CAUTION: When installing the hook, always secure it with the screw firmly. If not, the hook may come off from the tool and result in personal injury.

Groove 2. Hook 3. Screw

The hook is convenient for temporarily hanging the tool. This can be installed on either side of the tool. To install the hook, insert it into a groove in the tool housing on either side and then secure it with a screw. To remove, loosen the screw and then take it out.

Description

The Makita Cordless Impact Driver DTD153 comes with a powerful brushless motor that delivers 1,600 in.lbs. of max torque. It has a variable speed of 0-3,400 RPM and 0-3,600 IPM, which makes it suitable for a wide range of applications. The tool is compact and lightweight, weighing only 2.8 lbs, allowing you to work in tight spaces with ease. The Makita DTD153 also features an LED light that illuminates the work area, making it easier to see what you're doing. The tool is compatible with Makita 18V LXT batteries, giving you the freedom to work without the hassle of cords.

Operation of Makita Cordless Impact Driver DTD153

The proper fastening torque may differ depending upon the kind or size of the screw/bolt, the material of the workpiece to be fastened, etc. The relation between fas-tening torque and fastening time is shown in the figures.

Proper fastening torque for a standard bolt

Fastening time (second) 2. Fastening torque

Proper fastening torque for high tensile bolt

Fastening time (second) 2. Fastening torque
Hold the tool firmly and place the point of the driver bit in the screw head. Apply forward pressure to the tool to the extent that the bit will not slip off the screw and turn the tool on to start operation.

NOTICE

• If you use a spare battery to continue the operation, rest the tool for at least 15 min.

• Use the proper bit for the head of the screw/bolt that you wish to use.

• When fastening an M8 or smaller screw, carefully adjust the pressure on the switch trigger so that the screw is not damaged.

• Hold the tool pointed straight at the screw.

• If the impact force is too strong or you tighten the screw for a time longer than shown in the figures, the screw or the point of the driver bit may be over-stressed, stripped, damaged, etc. Before starting your job, always perform a test operation to determine the proper fastening time for your screw.

The fastening torque is affected by a wide variety of factors including the following. After fastening, always check the torque with a torque wrench.

1. When the battery cartridge is discharged almost completely, the voltage will drop and the fastening torque will be reduced.

2. Driver bit or socket bit
   Failure to use the correct size driver bit or socket bit will cause a reduction in the fastening torque.

3. Bolt

   • Even though the torque coefficient and the class of bolt are the same, the proper fasten-ing torque will differ according to the diameter of the bolt.

   • Even though the diameters of bolts are the same, the proper fastening torque will differ according to the torque coefficient, the class of bolt, and the bolt length.

4. The manner of holding the tool or the material of the driving position to be fastened will affect the torque.

5. Operating the tool at a low speed will cause a reduction in the fastening torque.

Setup Guide

To set up the Makita Cordless Impact Driver DTD153, follow these steps:

1. Insert the battery into the battery port.
2. Turn on the tool by pressing the power button.
3. Adjust the speed by turning the variable speed control dial.
4. Select the appropriate bit and insert it into the chuck.
5. Tighten the chuck by squeezing the chuck jaws together.

Applicable battery cartridge and charger

Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

Intended use

The tool is intended for screw driving in wood, metal, and plastic.

Noise

• The typical A-weighted noise level is determined according to EN62841:

• Sound pressure level (LpA): 96 dB(A)

• Sound power level (LWA): 107 dB (A)

• Uncertainty (K) : 3 dB(A).

NOTE

• The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.

• The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING

• Wear ear protection.

• The noise emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

• Be sure to identify safety measures to protect the operator that is based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Vibration

The vibration total value (tri-axial vector sum) deter-mined according to EN62841: Work mode: impact tightening of fasteners of the maxi-mum capacity of the tool Vibration emission (ah) : 13.0 m/s2 Uncertainty (K) : 1.5 m/s2.

NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission during actual use of the power tool can differ from the declared value (s) depending on the ways in which the tool is used especially what kind of workpiece is processed. Be sure to identify safety measures to protect the operator that is based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your  mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmo-spheres, such as in the presence of lammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodiied plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec-tric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet con-ditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location  is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inluence of drugs, alcohol or med-ication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your inger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewel-lery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such pre-ventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of chil-dren and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of oving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use.
• Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, tak-ing into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

• Recharge only with the charger speciied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of ire when used with another battery pack.
• Use power tools only with speciically desig-nated battery packs. Use of any other battery packs may create a risk of injury and ire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery termi-nals together may cause burns or a ire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact acci-dentally occurs, lush with water. If liquid con-tacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

• Have your power tool serviced by a qualiied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
• Follow instruction for lubricating and chang-ing accessories.
• Keep handles dry, clean and free from oil and grease.

MAINTENANCE

CAUTION
Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.

NOTICE
Never use gasoline, benzene, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance with more details regarding these accessories, ask your local Makita Service Center.

• Driver bits

• Socket bits

• Bit piece

• Hook

• Plastic carrying case

• Battery protector

• Tool hanger

• Makita genuine battery and charger

NOTE: Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

Makita Cordless Impact Driver DTD153 Troubleshooting

Here are some common problems and solutions you may encounter while using the Makita Cordless Impact Driver DTD153:

• Problem: The tool won't turn on.
• Solution: Check the battery level and ensure that it is properly inserted.
• Problem: The tool is not delivering enough power.
• Solution: Adjust the speed setting to deliver more power.
• Problem: The bit is slipping.
• Solution: Ensure that the bit is properly inserted and tightened.

Pros & Cons

Pros

• Powerful brushless motor
• Variable speed control
• Compact and lightweight design
• Compatible with Makita 18V LXT batteries
• LED light for illuminating work area

Cons

• May be too expensive for some users
• The battery and charger are sold separately
