Introducing the McCulloch Steam Canister Cleaner MC1385

The McCulloch Steam Canister Cleaner MC1385 is a versatile and powerful steam cleaning solution designed to tackle tough dirt and grime on various surfaces. Utilizing ordinary water heated to over 200ºF, it provides chemical-free cleaning for floors, countertops, and appliances. The MC1385 comes with 23 accessories, including brushes and nozzles, to enhance its functionality. Priced at approximately $150, this steam cleaner is ideal for those seeking an effective and eco-friendly cleaning option.

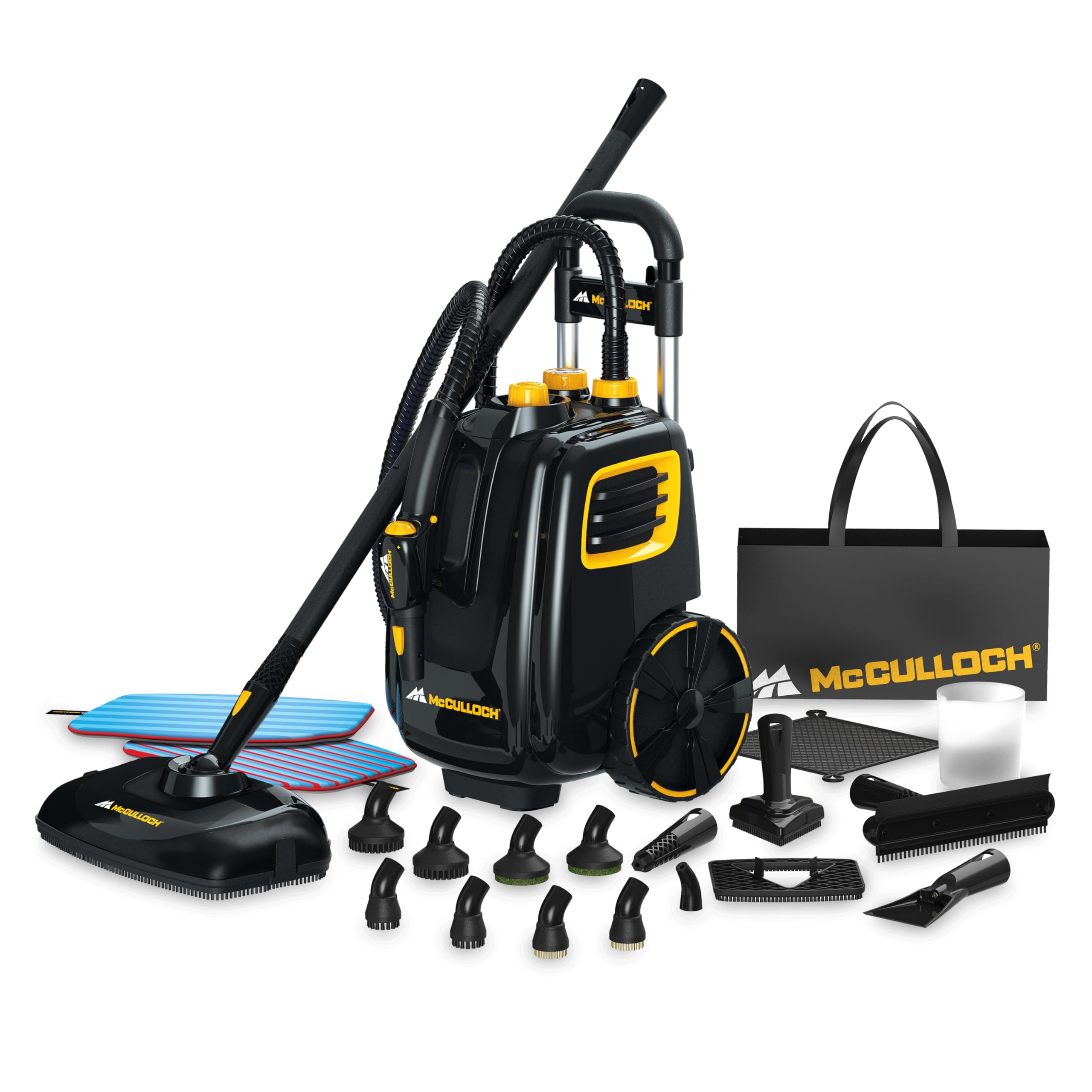

ACCESSORIES

1. 2 - 16.5" Extension Wands
2. Microfiber Mop Pad
3. Scrubbing Mop Pad
4. 5.5" Jet Nozzle
5. 4" Triangle Brush
6. 6" x 4.5" Large Brush
7. 2 - 1.5" Nylon Utility Brush
8. 2 - 1.5" Brass Utility Brush
9. Angled Nozzle
10. 3" Scraper
11. 9" Squeegee
12. 13" x 8.5" Large Mop Head
13. Bristle Brush Attachment
14. Storage Bag
15. Fill Cup
16. AccessoryNet
17. 2 - 2.5" Round Brush
18. 2 - 2.5" Round Scrub Pad

• The 16.5" Extension Wand (1) connects to the Steam Nozzle. Used with mop attachment or for high or hard-to-reach places.
• The Microfiber Mop Pad (2) attach to the Mop Head, and are designed for removing scuffs and stains from hard floors. The Pads are reusable and machine washable.
• The Scrubbing Mop Pad (3) attach to the Mop Head, and are designed for removing scuffs and stains from hard floors. The Pads are reusable and machine washable.
• The 5.5" Jet Nozzle (4) focuses the flow of steam from the Steam Nozzle, and serves as the base to which the Utility Brushes and Scrub Pad connect.
• The Triangle Brush (5) connects to the Steam Nozzle or Extension Wands, and is designed for cleaning corners and other difficult angles.
• The Large Brush (6) attaches to the Triangle Brush to cover large surfaces.
• The 1.5" Nylon Utility Brush (7) connects to the Jet Nozzle, providing extra scrubbing power for removing exceptionally tough dirt and stains.
• The 1.5" Brass Utility Brush (8) connects to the Jet Nozzle and is designed for removing tough stuck-on grease and grime from durable surfaces such as ovens and grills.
• The Angled Nozzle (9) is designed for reaching difficult angles and areas that the Jet Nozzle may not completely reach.
• The 3" Scraper (10) attaches to the Steam Nozzle to scrape off stuck on grime.
• The 9" Squeegee (11) attaches to Steam Nozzle to remove bugs from windshield or windows or soap scum from showers.
• The 13" x 8.5" Large Mop Head (12)attaches to Extension Wands to clean garage floors, decks or any other extra large surface areas.
• The Bristle Brush Attachment (13) attaches to Large Mop Head to scrub away stubborn spots on floors.
• The Storage Bag (14) stores all attachments neatly in one convenient bag.
• The Fill Cup (15) is used to fill Boiler without spills.
• The Accessory Net (16) stores brushes and other small accessories.
• The 2.5" Round Brush (17) connects to the Jet Nozzle to scrub especially tough stains. The Round Brush functions similar to the Nylon Utility Brush, only designed to more efficiently scrub larger surface areas.
• The 2.5" Round Scrub Pad (18) connects to the Jet Nozzle and is designed to scrub tough dirt and scuffs from surfaces.

McCulloch Steam Canister Cleaner MC1385 Specifications

• 64-ounce water tank for extended cleaning sessions
• 1500-watt power for strong steam output
• Multiple attachments: extension wand, floor mop, upholstery tool, and various brushes
• Automatic shut-off for safety
• Secure locking mechanism for steam trigger
• Weight: approximately 12 pounds
• Dimensions: 12.5 x 12 x 34 inches

These features and accessories are included with your Deluxe Canister Steam System. To obtain additional parts, refer to Product Support on Page 19 of this manual.

UNIT FEATURES

1. 10' SteamHose
2. Pressure Gauge
3. Integrated Handle
4. Boiler Cap
5. Steam Handle Cradle
6. Cord Wrap
7. Illuminated On/Off Switch
8. SteamNozzle
9. Steam Trigger Lock
10. SteamTrigger
11. Steam AdjustmentKnob

• The 10' Steam Hose (1) safely channels the flow of steam from the Boiler to the Steam Nozzle.
• The Pressure Gauge (2) measures the pressure in the Boiler.
• The Integrated Handle (3) is engineered to stay cool while providing maximum grip and comfort.
• The Boiler Cap (4) is designed to safely contain steam inside the Boiler. The Boiler Cap must be unscrewed and removed in order to fill the Boiler with water.
• The Steam Handle Cradle (5) functions as a convenient holder for the Steam Nozzle.
• The Cord Wrap (6) neatly stores the Power Cord.
• The Illuminated On/Off Switch (7) illuminates when the unit is powered On.
• The Steam Nozzle (8) emits a flow of hot, penetrating steam whenever the Steam Trigger is pressed and held.
• The Steam Trigger Lock (9) locks Steam Trigger to "on" position for continuous steam.
• The Steam Trigger (10) is pressed and held in order to start the flow of steam from the Steam Nozzle, then released when you wish to stop.
• The Steam Adjustment Knob (11) is conveniently located on the handle to adjust the intensity of the steam at your fingertips.

Description

The McCulloch Steam Canister Cleaner MC1385 is constructed with durability in mind, boasting a robust design that can withstand consistent use. The device's wheeled base and long extension wand facilitate effortless maneuvering, enabling users to cover large surfaces and access lofty areas without exertion. Additionally, the steam cleaner is environmentally friendly, as it employs only water vapor to clean surfaces, rendering it a healthier alternative to chemical-based cleansers.
MC1385 is a comprehensive cleaning solution that includes a variety of attachments. This steam cleaner is capable of performing a wide range of duties, including the sanitization of upholstery and curtains and the cleaning of hard floors. Furthermore, its capacity to generate high-pressure vapor renders it effective against stubborn stains and grime.

Assembling Your Deluxe Canister Steam System

STEAM MOPPING ACCESSORIES

WARNING: Do not try to connect accessories while unit is emitting steam.

EXTENSION WANDS

1. Select one of the Extension Wands. Insert end (A) of Wand onto Steam Nozzle (B) with yellow lock/release button slightly off center with hole. Fully insert and rotate wand slightly to allow button to snap into hole.
2. Using the same instruction, attach remaining Extension Wand (C) to the first Wand. Both Extension Wands should now be connected to the Steam Nozzle.

MOP HEAD

1. Align Mop Head with open end of Extension Wand, so that hole in Mop Head aligns with yellow lock/release button on Wand.
2. Press down on yellow lock/release button. While continuing to hold button down, slide Mop Head onto Extension Wand (See figure 1-A). Fully insert and rotate wand slightly until button snaps through hole (See figure 1-B).
   NOTE: Do not use excessive force when mopping or using Extension Wands as this may cause the Wands to break.

BRISTLE BRUSH ATTACHMENT

1. Align Mop Head with Bristle Brush Attachment, so that the release tabs (A) on the Bristle Brush align with the sides of the Mop Head (B).
2. Firmly press the Bristle Brush Attachment onto Mop Head until it securely snaps into place.
   Note: Do not use Bristle Brush Attachment with Microfiber or Scrubbing Mop Pad.

MICROFIBER PADS

1. Lay one Microfiber Pad on flat surface, with two fastener strips facing upward.
2. Align Mop Head with Microfiber Pad. Make sure Mop Head is oriented with Pad as shown, and centered as best as possible (See figure 2-A).
3. Press Mop Head firmly down onto Microfiber Pad. Fastener strips will adhere to Pad Grips on underside of Mop Head. Pad should now be attached and ready for use (See figure 2-B).

CAUTION: Use care when handling a recently used Microfiber Pad, as it may still be hot.

NOTE: Microfiber Pads are machine washable. To avoid picking up lint, washing separately from other fabrics is recommended. Only use liquid detergent. Avoid using any fabric softeners or bleach. Air drying is recommended; machine drying on a low heat or air dry setting is acceptable as well.

The Mop Head and Microfiber Pads are perfect for use on these hard floor surfaces:

• Sealed Hardwood
• Stained Concrete
• Sealed Laminate
• Linoleum
• Glazed Ceramic
• Granite
• Marble
• Tile
• Vinyl

IMPORTANT: Do not use on unsealed hardwood or unglazed ceramic surfaces. Surfaces that are not properly sealed may be warped or damaged by exposure to heat and moisture.

• Care should also be taken when steaming sealed hardwood floors, as prolonged exposure to steam in a single spot may cause damage and discoloration. To avoid this, keep the Mop Head in constant motion on these surfaces.
• Steam may remove the sheen from some floors that have been treated with wax.
• Extremely rough textured floors may tear or damage Microfiber Pads.

Before steaming any flooring, it is recommended to consult the manufacturer’s guidelines. For flooring in question, always test on a small inconspicuous area before proceeding.

STEAM CLEANING ACCESSORIES

WARNING: Do not connect accessories while unit is emitting steam.

JET NOZZLE / SCRAPER / SQUEEGEE / TRIANGLE BRUSH

1. Select one of the three accessories (Jet Nozzle shown as example) and push onto the Steam Nozzle (A).
2. Rotate accessory until the yellow lock/release button snaps into the accessory hole (B).

NOTE: The Jet Nozzle, Scraper, Squeegee and Triangle Brush can be connected to the end of an Extension Wand for reaching high or difficult spots. Connect the Extension Wand (or Wands) as outlined on Page 8, then connect your desired accessory to the Wand in the same way as you would normally connect to the Steam Nozzle.

UTILITY BRUSHES / ANGLED NOZZLE / SCRUB PAD

NOTE: Accessories connect to the Jet Nozzle, not the Steam Nozzle.

1. Firmly press accessory onto tip of Jet Nozzle. Press it on as far as possible to prevent steam leakage (See figure 3).
2. To remove accessory, simply grip it firmly and pull it off Jet Nozzle.

LARGE BRUSH

NOTE: Large Brush connects to the Triangle Brush, not the Jet Nozzle.

1. Place Large Brush over the Triangle Brush, and firmly press it on to the Triangle Brush as far as possible (See figure 4).
2. To remove Large Brush, simply grip it firmly and pull it off of the Triangle Brush.

INTEGRATED HANDLE

1. Align the poles with the holes located on unit (A).
2. Push down until the buttons snap into place (B).
3. To collapse the Integrated Handle, push both buttons at the same time to release (C). Then push down.

ORDERING ACCESSORIES & PARTS
Replacement accessories and parts for your Deluxe Canister Steam System (model MC1385) may be ordered through our Website: http://www.mccullochsteam.com

Accessory Recommendations

WARNING: Do not use on unsealed hardwood or unglazed ceramic surfaces. For flooring in question, always test on a small inconspicuous area before proceeding.
NOTE: Before cleaning electrical appliances, check and follow appliance manufacturer’s cleaning guidelines. Never apply to electrical parts.
NOTE: Some delicate surfaces, such as painted wood or stainless steel may be scratched or damaged by the bristle of the brushes, especially the Brass Utility Brush. Use careful judgment when deciding what surface to clean with any of the brushes. If you are unsure if a surface will be damaged, it is recommended that you test a small inconspicuous spot before proceeding.

Using Your Deluxe Canister Steam System

FILLING BOILER

1. Place Deluxe Canister Steam System on a flat, level surface.
2. Make sure illuminated On/Off Switch is turned to “Off” and grounded power cord is unplugged from electrical outlet.
   WARNING: If unit has been in use, always use the following safety precautions before removing the Boiler cap to add water:

   • Allow unit to cool for 20 minutes or until pressure gauge is at zero.
   • Press and hold Steam Trigger to release ALL remaining steam.
     WARNING: Failure to follow these precautions may result in burns from escaping steam when the Boiler Cap is removed.
3. Cautiously unscrew and remove Boiler Cap.
4. Drain any water remaining inside Boiler.
   NOTE: The Boiler should be emptied after each use – this will help minimize mineral build-up and prevent over-filling.
5. Using the Fill Cup, fill the unit with 64 oz (1,892 ml) of water.
   NOTE: In order to significantly reduce mineral build-up and prolong the life of your Deluxe Canister Steam System, use of distilled or de-mineralized water in the unit is highly recommended. Refer to Page 16 for more information about mineral build-up. WARNING: Caution should always be used when pouring water into the Boiler. Do not look directly down into fill hole when filling. Keep your free hand and any children or pets at a safe distance.
6. Replace Boiler Cap, ensuring that it is screwed on tightly to prevent hot steam from escaping and causing injury.

GENERAL OPERATION

NOTE: Be sure that Boiler has been filled and that desired accessories areconnected before following these steps.

1. For first time use, remove protective plastic cover from electrical plug. Plug power cord into a electrical outlet.
2. Switch Lighted On/Off Switch to “On” position.
3. The pressure gauge indicates the operating pressure of the steam cleaner. Once the needle is in the green section, the unit is ready to begin steaming.
   During use and as steam is released, pressure will drop. This may cause the needle to move down in the green section. This is a normal condition. As long as the needle is in the green section, the product is operating normally. If the needle is continuously in the yellow or red section.
4. Direct Nozzle (and any connected accessory) towards surface you desire to steam, and press Steam Trigger. To sanitize surfaces, point Nozzle, press Trigger and hold approximately 1/2 inch from surface for at least 5 seconds. This will insure that you have killed germs and bacteria.
   CAUTION: Always be sure that Nozzle and any accessory are pointed in a safe direction (away from yourself, other people, pets, and plants) before pressing Steam Trigger.
5. Keep Steam Trigger pressed for a continuous flow of steam. You may also hold the Steam Trigger, then push the Steam Trigger Lock to lock it down. This will allow a continuous flow
   of steam without need of holding the Steam Trigger down manually. Steam output can be adjusted by simply turning the Steam Adjustment Knob.
6. Using a back-and-forth motion over the area you are steaming will further enhance the cleaning process. Wipe steamed areas with a clean cloth to remove loosened dirt and grime. Wiping the area while it is still wet is recommended, but use caution when wiping surfaces such as metal that may still be hot.
7. Once steaming tasks are complete, turn the unit “Off” and unplug.

STEAM MOPPING

NOTE: Be sure that Boiler has been filled and that all steam mopping accessoriesare connected before following these steps.

It is recommended to sweep or vacuum hard floors before mopping.

1. Follow Steps 1-3 of General Operation section above. Refer to Page 9 for a listing of hard floor surfaces that are recommended for cleaning with the Deluxe Canister Steam System.
2. For best results, use a continuous back-and-forth motion over floor surface, pushing the Mop Head away and pulling it back towards you. Work your way backwards over the floor, in order to avoid walking over freshly mopped areas.
   NOTE: To avoid warping or damage caused by heat and moisture, do not use on unsealed hardwood or unglazed ceramic surfaces. Steam may remove the sheen from some floors that have been treated with wax.
3. The Microfiber Pad will absorb dirt and moisture during mopping. However, when you are finished you may find some residual moisture has been left behind. In this case, it is recommended to allow floor time to air-dry. A fan may be directed towards mopped area to facilitate drying.

Storage & Care

PROPER STORAGE
Preparing your Deluxe Canister Steam System for storage is quick and simple. When you have finished your steaming tasks, follow the steps listed below.

1. Turn unit “Off” and unplug power cord.
2. Press and hold Steam Trigger to release all remaining steam.
3. Allow unit to completely cool (at least 30 minutes).
4. Remove all accessories from unit.
5. Carefully remove Boiler Cap.
6. Drain any remaining water from Boiler into a sink or tub – this will help to minimize mineral build-up and prevent over-filling during your next use. Replace Boiler Cap loosely.
7. Store accessories. Utility Brushes can be conveniently stored in the Accessory Net. Remaining accessories can be stored in the Storage Bag.
8. Store Deluxe Canister Steam System in a cool, dry location.

MINERAL BUILD-UP
A common maintenance need for steam appliances is the removal of build-up caused by high mineral content in many municipal water supplies. This mineral build-up may limit the effectiveness and reduce the life of your Deluxe Canister Steam System. The best way to minimize mineral build-up is to use distilled or de-mineralized water when using your Deluxe Canister Steam System. If you are unable to use distilled water, it is recommended that the following procedure be followed monthly to remove any mineral build-up:

1. Turn unit “Off” and unplug power cord.
2. Allow unit to completely cool (at least 30 minutes).
3. Press and hold Steam Trigger to release all remaining steam.
4. Remove all accessories from unit.
5. Carefully remove Boiler Cap.
6. Drain water from Boiler into a sink or tub.
7. Using Measuring Cup, measure 8 oz. (237 ml.) of vinegar.
8. Slowly pour vinegar into Boiler.
9. Allow to stand for 40 minutes.
10. Drain vinegar from Boiler.
11. Rinse Boiler with fresh water, drain and repeat until vinegar odor dissipates.
12. Replace Boiler Cap.

Setup Guide

To set up and operate the McCulloch Steam Canister Cleaner MC1385, follow these steps:

1. Unpack the device and all included accessories.
2. Fill the water tank with distilled or tap water up to the maximum level.
3. Plug in the device and turn it on. Wait for approximately 8-10 minutes for it to heat up.
4. Select the appropriate attachment for your cleaning task and attach it securely to the extension wand.
5. Use the steam trigger to release steam as needed, adjusting the steam control dial for optimal pressure.
6. For safety, ensure the locking mechanism is engaged when not actively using the steam trigger.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock, or injury, the following basic safety precautions should always be followed when using an electrical appliance.
READ ALL INSTRUCTIONS BEFORE USE

1. The Deluxe Canister Steam System Boiler is designed to hold a maximum of 64 oz. (1,892 ml.) of water. Unplug electrical cord before filling with water.
2. DO NOT leave your Deluxe Canister Steam System unattended when plugged in or not in use. Use only for its intended purpose as indicated in this manual.
3. This unit is not a toy. Close supervision is required when using unit near children, pets, and plants. Steam produced by unit is hot and pressurized. Care must be taken to avoid burns or other injuries. Never point nozzle at people or pets.
4. To reduce the risk of contact with hot water emitting from steam vents, hold appliance away from body and check for signs of condensation or leakage.
5. DO NOT use this unit if electrical cord or outlet is damaged. DO NOT use unit if it is not working properly or has been dropped, damaged or left outdoors. If such damage occurs, DO NOT disassemble or attempt repairs, take unit to a qualified service person for examination and repair. Incorrect reassembly or repair could cause a risk of fire, electrical shock, or injury to persons when steam cleaner is used.
6. To reduce risk of electrical shock, DO NOT immerse in water or other liquids. DO NOT use electrical cord as a handle. DO NOT allow cord to be crimped by closing it in doors. DO NOT pull or stretch cord around sharp corners or edges.
7. Do not allow cord to touch hot surfaces. Let appliance cool completely before putting away. Loop cord loosely around appliance when storing.
8. DO NOT use this unit with extension cords or electrical outlets that have inadequate current capacity. A three-prong outlet or a properly grounded adapter is necessary when using Deluxe Canister Steam System.
9. In order to unplug Deluxe Canister Steam System, grasp plug and pull smoothly and firmly from outlet. DO NOT attempt to unplug unit by pulling or tugging on cord.
10. Use caution, as burns could occur from touching hot metal parts, hot water or steam.
    WARNING: To reduce the risk of electrical shock, this appliance has a three-pronged plug. This plug will fit in a polarized wall outlet only one way. If the plug does not fit fully in the outlet, contact a licensed electrician to install a proper outlet. DO NOT attempt to modify the plug or defeat this safetyfeature.
11. The Deluxe Canister Steam System is only meant to be used with recommended Deluxe Canister Steam System accessories. Other types of attachments are not to be used with the Deluxe Canister Steam System. Doing so may cause injuries or damage to unit.
12. Attachments become hot during use. To avoid injuries, DO NOT touch attachments while using this appliance. DO NOT attempt to change attachments while unit is emitting steam.
13. When filling your Deluxe Canister Steam System, only water should be used in unit. Other cleaning agents will damage unit and can cause injuries.
14. DO NOT operate unit if steam opening is blocked. Should this occur, immediately cease usage and unplug from electrical outlet.
15. Store your Deluxe Canister Steam System in a cool, dry place.
16. To avoid burns from escaping steam when removing Boiler Cap to refill unit:
    • Always allow unit to cool for 20minutes.
    • Press and hold Steam Button to release ALL remaining steam.

Troubleshooting

Replacement Parts & Accessories

Refer to the part numbers below when ordering parts and accessories for your Deluxe Canister Steam System.
Replacement Accessories
Part Numbers for Fast Reordering at www.mccullochsteam.com

Replacement Parts

• Boiler Cap

McCulloch Steam Canister Cleaner MC1385 Pros & Cons

Pros

• Powerful steam output for effective cleaning
• Versatile with multiple attachments for various surfaces
• Large water tank for extended use
• Safety features like automatic shut-off and secure locking mechanism
• Environmentally friendly, using only water vapor

Cons

• Heavier than some other models, making it less portable

Customer Reviews

Customers have praised the McCulloch Steam Canister Cleaner MC1385 for its effectiveness in deep cleaning and sanitizing various surfaces. Many appreciate its ease of use and the variety of attachments included. However, some users have noted that it can be heavy and that the heating time is longer than expected.

A common complaint is the occasional issue with durability, but overall, the product is well-regarded for its performance and value.

Warranty Information

2-YEAR WARRANTY

What is covered
McCulloch is a licensed brand of Steamfast, a division of Vornado Air, LLC (“Steamfast”). Subject to the terms and conditions of this 2-Year Limited Warranty (“Warranty”) as set forth below, Steamfast warrants to the original consumer or purchaser (“Buyer”) that this McCulloch®-branded steam product, excluding all accessories and attachments, (the “Product”) is to be free from defects in material and workmanship for a period of two (2) years from the date of purchase when used and maintained in accordance with the Owner’s Guide (the “Warranty Period”).

How do you register the Warranty?
Buyer must complete an application to register this Warranty within sixty (60) days following the date of purchase. Buyer may either visit Steamfast’s website at www.mccullochsteam.com and complete an online application or mail a completed application to Steamfast. Failure to register this Warranty within sixty (60) days following the date of purchase will render this Warranty null and void.
