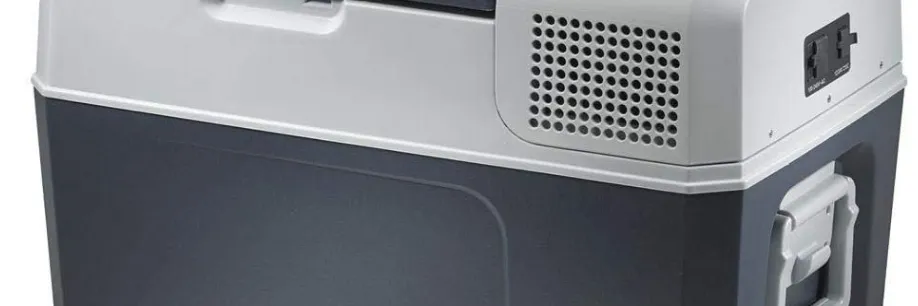

Introduction of Mobicool Compressor Cooler FR40 DC

The Mobicool Compressor Cooler FR40 DC is a versatile and efficient cooling solution designed for mobile use, perfect for road trips, camping, or outdoor events. With a generous 40-liter capacity, it can accommodate a variety of food and beverages while maintaining optimal temperatures through its powerful compressor cooling technology. The cooler features a multi-level battery monitor to protect your vehicle's battery from excessive discharge. Priced at approximately $499, it combines performance and convenience for all your cooling needs.

Scope of delivery

• Compressor cooler: 01
• DC connection cable: 01
• AC connection cable: 01
• Operating manual: 01

Intended use

The compressor cooler is suitable for cooling and freezing foods. The compressor cooler is also suitable for use on boats.
The compressor cooler is designed to be operated from a DC power supply socket of a vehicle, boat or caravan or from an AC mains.

CAUTION! Health hazard!
Please check if the cooling capacity of the cooling device is suitable for storing the food or medicine you wish to cool.

Technical data

NOTE
If the ambient temperature is above +32 °C (+90 °F), the minimum temperature cannot be attained.

Mobicool Compressor Cooler FR40 DC Description

The cooling device can chill products, keep them cool as well as freeze them.

• A low maintenance refrigerant circuit with compressor provides the cooling. The foamed in place insulation and compact compressor ensure optimum cooling.
• The cooling device is portable.
• When used on boats, the cooling device can withstand a constant heel (inclination) of 30°.

Scope of functions

• Three-level battery monitor to protect the vehicle battery
• Display with temperature gauge switches off automatically at low battery voltage
• Temperature setting: With two buttons in steps of 1 °C (2 °F)

Operating and display elements

Operating panel

(fig. 2)

Connectors

(fig. 3)

1. AC socket
2. Fuse holder
3. Cover AC socket
4. Cover DC socket
5. DC socket

Operation

Before initial use

NOTE
Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and mainte-nance” on page 15).

Selecting the temperature units
You can switch the temperature display between Celsius and Fahrenheit. Proceed as follows:

• Switch on the cooling device.
• Press the “SET” button twice.
• Use the “+” and “–” buttons to select Celsius or Fahrenheit.

The selected temperature units then appear in the display for a few seconds. The display flashes several times before it returns to the current temperature.

Energy saving tips

• Choose a well ventilated installation location which is protected against direct sunlight.
• Allow warm food to cool down first before placing it in the cooling device to keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.
• Defrost the cooling device once a layer of ice forms.
• Avoid unnecessarily low temperatures.

Connecting the cooling device

The cooling device can be operated with DC or AC voltage.

NOTICE! Danger of damage!
Disconnect the cooling device and other consumer units from the vehicle battery before you connect the vehicle battery to a quick charging device.
Overvoltage can damage the electronics of the cooling device.

For safety reasons the cooling device is equipped with an electronic system to prevent the polarity reversal. This protects the cooling device against short-circuiting when connecting to a battery.

• Plug the DC connection cable into the DC socket and connect it to a DC power socket or …
• Plug the AC connection cable into the AC voltage socket and connect it to an AC mains.
• Close the covers of the sockets not in use to prevent accidentally touching the sockets. This also prevents dust, water and dirt from entering the socket.

Using the battery monitor

The cooling device is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the cooling device is connected to the DC power supply.
If the cooling device is operated when the vehicle ignition is switched off, the cooling device switches off automatically as soon as the supply voltage falls below a set level. The cooling device will switch back on once the vehicle battery has been recharged to the restart voltage level.

NOTICE! Danger of damage!
When switched off by the battery monitor, the vehicle battery will no longer be fully charged. Avoid starting repeatedly or operating current consumers without longer charging phases. Ensure that the vehicle battery is recharged.

In “HIGH” mode, the battery monitor responds faster than at the levels “LOW” and “MED” (see the following table).

Proceed as follows to select the battery monitor mode:

• Switch on the cooling device.
• Press the “SET” button three times.
• Use the “+” and “–” buttons to select the battery monitor mode.

The selected mode then appears in the display for a few seconds. The display flashes several times before it returns to the current temperature.

NOTE
When the cooling device is supplied by the vehicle battery, select the battery monitor mode “HIGH”. If the cooling device is con-nected to a supply battery, the battery monitor mode “LOW” will suffice.

Using the cooling device

NOTICE! Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the heat that generated during operation can dissipate. Ensure that the ventilation slots are not covered. Make sure that the cooling device is sufficiently far away from walls and other objects so that the air can circulate.

• Place the cooling device on a firm foundation.

NOTE
Place the cooling device as shown (fig. 1, page 2). If you oper-ate the cooling device in a different position it can be damaged.

• Connect the cooling device, see chapter “Connecting the cooling device” on page 11.

NOTICE! Danger from excessively low temperature!Ensure that only those objects are placed in the cooling device that are intended to be cooled at the selected temperature.

• Press the “ON/OFF” button for between one and two seconds.

✓ The “POWER” LED lights up.
✓ The display switches on and shows the current cooling temperature.

NOTE
The temperature displayed is that of the middle of the interior. The temperatures elsewhere can deviate from this temperature.

✓ The cooling device starts cooling the interior.

NOTE
When operating with the battery, the display switches off auto-matically if the battery voltage is low. The LED “POWER” flashes orange.

Latching the cooling device lid

• Lift the latch (fig. 1) and close the lid.
• Release the latch.

The latch audibly clicks in place and secures the cooling device lid.

Setting the temperature

• Press the “SET” button once.
• Use the “+” and “–” buttons to select the cooling temperature.

The cooling temperature appears in the display for a few seconds. The display flashes several times and then the current temperature is dis-played again.

Switching off the cooling device

• Empty the cooling device.
• Switch the cooling device off.
• Pull out the connection cable.
  • If you do not want to use the cooling device for a longer period of time:
• Leave the lid slightly open. This prevents odour build-up.

Defrosting the cooling device

Humidity can form frost in the interior of the cooling device or on the evapo-rator. This reduces the cooling capacity. Defrost the cooling device in good time to avoid this.

NOTICE! Danger of damage!
Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.

To defrost the cooling device, proceed as follows:

• Take out the contents of the cooling device.
• If necessary, place them in another cooling device to keep them cool.
• Switch off the cooling device.
• Leave the lid open.
• Wipe off the defrosted water.

Replacing the fuse

Replace the fuse (8 A 32 V) as shown (fig. 4).

Setup Guide

Setting up the Mobicool Compressor Cooler FR40 DC is straightforward and requires minimal effort:

• Place the cooler on a flat surface.
• Connect the cooler to a DC power source (12V or 24V).
• Turn on the cooler using the power button.
• Adjust the temperature using the control panel.
• Load your items into the cooler and close the lid.

Cleaning and maintenance

WARNING!
Always disconnect the device from the power supply before you clean and service it.

NOTICE! Risk of damage

• Never clean the cooler under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

Occasionally clean the device interior and exterior with a damp cloth.
Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.

Safety instructions

General safety

WARNING!

• Do not operate the device if it is visibly damaged.
• If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
• This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
• This device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the device safely and are aware of the resulting risks.
• Cleaning and user maintenance must not be carried out by children without supervision.
• Children must not play with the device.
• Children must be supervised to ensure that they do not play with the device.
• Always keep and use the device out of the reach of children under the age of 8 years.
• Do not store any explosive substances such as spray cans with a flammable propellant in the device.

CAUTION!

• Disconnect the device from the power supply
  • before each cleaning and maintenance
  • after every use
• Food may only be stored in its original packaging or in suitable containers.

NOTICE!

• Check that the voltage specification on the type plate corresponds to that of the energy supply.
• Only connect the device as follows:
  • With the DC cable to a DC plug socket in the vehicle (e. g. cigarette lighter)
  • Or with the 230 V connection cable to the 230 V AC mains supply
• Never pull the plug out of the socket by the cable.
• If the cooler is connected to the DC socket: Disconnect the cooler and other power consuming devices from the battery before connecting the quick charging device.
• If the cooler is connected to the DC socket: Disconnect the cooler or switch it off when you turn off the engine. Otherwise you may discharge the battery.
• The cooling device is not suitable for transporting caustic materials or materials containing solvents.

The cooling device contains inflammable cyclopentane in the insulation. The gases in the insulation material require special disposal procedures. Deliver the device at the end of its life-cycle to an appropriate recycling.

Operating the device safely

CAUTION!

• Before starting the device, ensure that the power supply line and the plug are dry.

NOTICE!

• Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose.
• Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
• Danger of overheating!
  Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluid.
• Never immerse the device in water.
• Protect the device and the cable against heat and moisture.

Explanation of symbols

WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!
Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE
Supplementary information for operating the product.

Action: This symbol indicates that action is required on your part. The required action is described step-by-step.

This symbol describes the result of an action.

Fig. 1 5, This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.

Troubleshooting

Guarantee

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

Mobicool Compressor Cooler FR40 DC Pros & Cons

Pros

• Efficient Cooling: Maintains consistent temperatures even in extreme conditions.
• Durable Build: Rugged design withstands rough handling.
• Convenient Power Options: Can be powered via DC connection or external batteries.
• Additional Features: Includes LED display, battery protection, and USB charging port.

Cons

• Cost: Pricier compared to some other portable coolers on the market.
• Weight: Heavier due to its robust construction and compressor system.
• Noice Level: Can be slightly noisy during operation.

Customer Reviews

Customers have generally praised the Mobicool Compressor Cooler FR40 DC for its performance and durability. Here are some common feedback points:

• "The FR40 DC has been a game-changer for our camping trips. It keeps everything cold for days!"
• "I was skeptical about the price, but this cooler is worth every penny. It's so reliable and efficient!"
• "The only downside is that it's a bit heavy, but the quality and features make up for it."

Some common complaints include the noise level during operation and the higher price point compared to other models.
