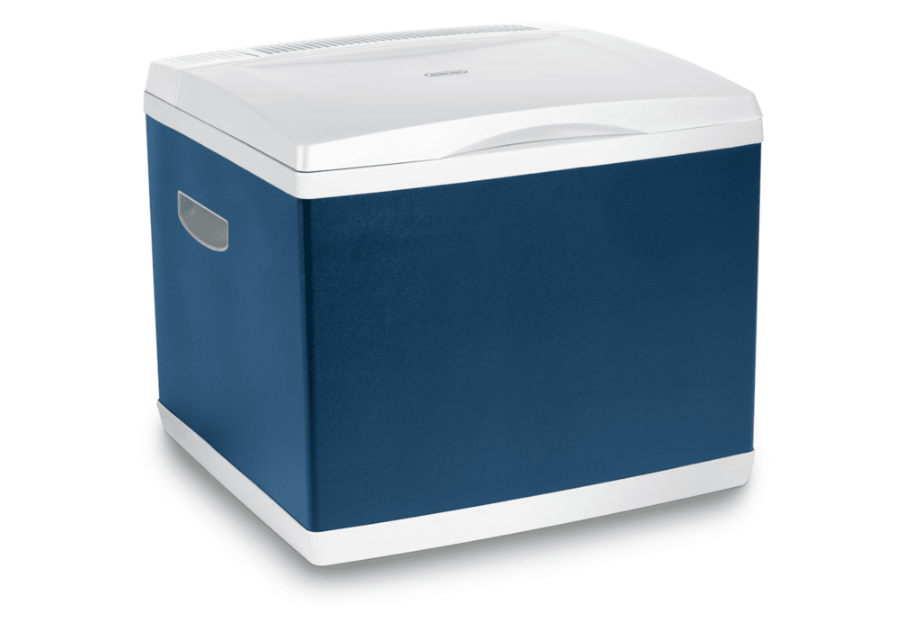

Mobicool Cool Boxes MB40-DC Instruction Guide

cover-image

Content

Introduction

Introducing the Mobicool Cool Boxes MB40-DC, a must-have for all your outdoor adventures and activities. This portable cooler is designed to keep your food and drinks cool for up to 12 hours, making it perfect for camping, picnics, fishing, and road trips. With its compact size and easy-to-carry handle, you can take it anywhere you go. The MB40-DC is available for an estimated price of $70 to $80 and was launched in 2021.

Scope of delivery

No. in fig. 1, page 2QuantityDescription
11Cooling device
-1Instruction manual

Accessories

  • Y2: 24/12 DC/DC converter for connecting 12 Vg cooling device to 24 Vg

Intended use

In compressor mode the cooler is suitable for cooling and deep freezing food-stuffs. In thermoelectric mode the cooler is only suitable for cooling food-stuffs.
The device is designed for use with:

  • a 12 V vehicle electrics socket of a car (such as a cigarette lighter), boat or caravan (see voltage specification on the type plate)
  • a 230 V AC mains supply

The appliance may also be used for camping use. The appliance shall not to be exposed to rain.

CAUTION! Health hazard!
If you wish to cool medicines, please check if the cooling capacity of the device is suitable for the medicine in question.

Please read this manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

Explanation of symbols

  • WARNING!
    Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
  • CAUTION!
    Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
  • NOTICE!
    Indicates a situation that, if not avoided, can result in property dam-age.
  • NOTE
    Supplementary information for operating the product.

Safety instructions

WARNING! Fire hazard / Flammable materials

  • Keep the ventilation openings on the device housing or in installations free of obstructions.
  • Do not use any mechanical objects or other media to speed up the defrosting process, unless they have been recommended by the manufacturer for this purpose.
  • Do not damage the refrigerant circuit.
  • Do not use electrical devices in the food compartments of the cooler unless they are recommended by the manufacturer for this purpose.

WARNING! Failure to obey these warnings could result in death or serious injury.
Electrocution hazard

  • Do not operate the cooling device if it is visibly damaged.
  • If this cooling device's power cable is damaged, it must be replaced by the manufacturer, customer service, or a similarly qualified person to prevent safety hazards.
  • This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.

Fire hazard!

  • When positioning the device, ensure the supply cord is not trapped or damaged.
  • Do not locate multiple portable socket outlets or portable power supplies at the rear of the device.

Health hazard

  • This device can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
  • Children shall not play with the device.
  • Cleaning and user maintenance shall not be done by children without supervision.
  • Children aged from 3 to 8 years are allowed to load and unload cooling devices.

Explosion hazard

  • Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device.

CAUTION! Failure to obey these cautions could result in minor or moderate injury.
Electrocution hazard

  • Before starting the cooling device, ensure that the power supply line and the plug are dry.
  • Disconnect the cooling device from the power supply
    • before each cleaning and maintenance
    • after every use

Health hazard

  • Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.
  • Food may only be stored in its original packaging or in suitable containers.
  • Opening the cooling device for long periods can cause a significant increase in the temperature in the compartments of the device.
  • Clean regular surfaces that can come in contact with food and accessible drainage systems.
  • Store raw meat and fish in suitable containers in the device, so that it is not in contact with or can drip onto other food.
  • If the device is left empty for long periods:
    • Switch off the device.
    • Defrost the device.
    • Clean and dry the device.
    • Leave the door open to prevent mold from developing within the device.

NOTICE! Damage hazard

  • Check that the voltage specification on the type plate corresponds to that of the energy supply.
  • Only connect the cooling device as follows:
    • With the DC connection cable to a DC power supply in the vehicle
    • Or with the AC connection cable to an AC power supply
  • Connect the cooling device with an AC connection cable to the AC power supply.
  • Never pull the plug out of the socket by the cable.
  • If the cooling device is connected to a DC outlet: Disconnect the cooling device and other power consuming devices from the bat-tery before connecting a quick charging device.
  • If the cooling device is connected to a DC outlet: Disconnect the cooling device or switch it off when you turn off the engine. Otherwise you may discharge the battery.
  • The cooling device is not suitable for transporting caustic materials or materials containing solvents.
  • The insulation of the cooling device contains flammable cyclo-pentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling center.
  • Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for the purpose.
  • Do not place the cooling device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)

Risk of overheating!

  • Ensure at all times that there is a minimum of 50 mm ventilation on all four sides of the cooling device. Keep the ventilation area free of any objects that could restrict the air flow to the cooling components.
  • Do not place the cooling device in closed compartments or areas with none or minimal air flow.
  • Ensure that the ventilation openings are not covered.
  • Do not fill the inner container with ice or fluids.
  • Never immerse the cooling device in water.
  • Protect the cooling device and cables against heat and moisture.

Technical data

SpecificationDetail
Voltage12 V---, 220–240 V~, 50 Hz
Power consumptionDC: 47 W, AC: 65 W
Cooling capacityThermoelectric mode (12 V): max. 20 °C under ambient temperature, Compressor mode (230 V): continuously variable from +12 °C to –15 °C
RefrigerantR600a
Amount of coolant17 g
Category1
Energy efficiency classA++
Energy consumption84 kWh/annum
Gross capacity40 L
Usable capacity38 L
Climate classN
Ambient temperature+16 °C to +32 °C
Noise emission46 dB
Weightapprox. 21 kg
Dimensions520 x 510 x 450 mm
Inspection/certificationCE

Technical description

  1. The hybrid cooler is suitable for portable use. It is equipped with two separate cooling systems. The device features a Peltier cooling system with heat dis-charged by a fan, as well as a compressor cooling system. The cooling sys-tem is non-wearing.
  2. In thermoelectric mode (connection to 12 Vg), it can cool goods down to max. 20 °C below ambient temperature and keep them cool. In compressor mode (connection to 230 V), it can cool goods down to –15 °C and keep them cool.
  3. In compressor mode, you can use the continuously variable thermostat to set the temperature within a range from +12 °C to –15 °C.

Description of the device

No. in fig. 2, page 2Description
1Handle
2Ventilation slots
3Thermostat

Operation

CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable containers.

NOTE

  • Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 11).
  • A few water drops may form inside the cooler if it has been cooling for a lengthy period. This is normal because the mois-ture in the air condenses to water when the temperature in the cooler falls. The cooler is not defective. Wipe it out with a dry cloth if necessary.

Energy saving tips

  • Choose a well ventilated location which is protected from direct sunlight.
  • Allow warm food to cool down first before placing it in the cooling device to keep cool.
  • Do not open the cooling device more often than necessary.
  • Do not leave the cooling device open for longer than necessary.

Using the cooler

NOTICE! Risk of damage

  • Do not switch on the device immediately after transporting it. This could damage the cooling system. Leave the device to stand for about 30 minutes after transporting, before you switch it on. This allows the refrigerant to collect again in the compres-sor, and the compressor does not run dry.
  • Only operate the device from a single energy source. Simulta-neous use of the thermoelectric cooling system and the com-pressor is not permitted.
  • Ensure that the objects or goods placed in the cooling device are suitable for cooling to the selected temperature.
  • Ensure that food or liquids in glass containers are not exces-sively refrigerated. Liquids expand when they freeze and can therefore destroy glass containers.
  • Ensure that your cooler is well ventilated so that any heat cre-ated can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents.

Place the cooler on a firm base.

Connecting the cooler to 12 V (thermoelectric mode)

NOTE: In thermoelectric mode, the thermostat has no function and the device cannot deep freeze.

  • Make sure the cable between the cooler and the battery is protected by a fuse (maximum 5 A).
  • Plug the 12 V connection cable (fig. 1 2, page 2) into the cigarette lighter socket or a 12 V socket in the vehicle.
    The cooler starts cooling the interior.
  • To switch off the cooler:
    • Disconnect the plug.
    • Wind the cable around the two holders on the back of the device for storage.

NOTE
Disconnect the cooler from the battery when the engine is not run-ning, as otherwise the battery will run down.

Connecting the cooler to 230 V (compressor mode)

  • Connect the 230 V connection cable (fig. 1 3,) to the 230 V AC mains supply.

  • Open the lid of the thermostat (fig. 2,3) by pressing down on it.



    NOTE: Press down on the lid again to close it.

  • Turn the thermostat (fig. 2, 3) clockwise to the required position.

NOTE
The further you turn the thermostat towards “MAX”, the lower the refrigerating temperature.

The cooler starts cooling the interior.
To switch off the cooler:

  • Turn the thermostat (fig. 2,3,) anti-clockwise to “0”.
  • Disconnect the plug.
  • Wind the cable around the two holders on the back of the device for storage.

Connecting to vehicle power

NOTE
If you connect the cooling device to the vehicle power, remember that you may have to turn on the ignition to supply it with power.

Setup Guide

Setting up the Mobicool Cool Boxes MB40-DC is easy. Simply remove the cooler from its packaging, and ensure that it is clean and dry before use. To use the cooler, follow these steps:

  1. Place ice packs or loose ice in the bottom of the cooler.
  2. Place your food and drinks in the cooler, using the removable wire basket to keep them organized and easy to access.
  3. Close the lid and secure the locking system.
  4. Place the cooler in a cool, shaded area to maximize its cooling performance.

Cleaning and maintenance

NOTICE! Risk of damage

  • Never clean the cooler under running water or in dish water.
  • Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

Occasionally clean the device interior and exterior with a damp cloth.
Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.

Troubleshooting

ProblemPossible causeSuggested remedy
Your device is not working (plug is inserted).There is no voltage flowing from the DC socket (cigarette lighter) in your vehicle.The ignition must be switched on in most vehicles to supply current to the cigarette lighter.
 No voltage present in the AC voltage socket.Try using another plug socket.
 The inner fan or the cooling element or the compressor is defective.This can only be repaired by an authorised repair centre.
When operating from the DC socket (cigarette lighter):The fuse of the DC plug is dirty. This results in a poor electrical contact.If the plug of your cooler becomes very warm in the DC socket fitting, either the fitting must be cleaned or the plug has not been assembled correctly.
The ignition is on and the cooler is not working.The fuse of the DC plug has blown.Replace the fuse of the DC plug with one of the same rating (fig. 3, 1, page 2).
 The vehicle fuse has blown.Replace the vehicle’s DC socket fuse (usually 15 A). Please refer to the operating manual of your vehicle.

Pros & Cons

Pros

  • Keeps food and drinks cool for up to 12 hours
  • Insulated lid and walls for maximum cooling performance
  • Compact and lightweight design with easy-to-carry handle
  • Removable wire basket for easy cleaning
  • Hinged lid with a secure locking system

Cons

  • May not be large enough for extended camping trips or large groups
  • The locking system can be difficult to use

Customer Reviews

Customers love the Mobicool Cool Boxes MB40-DC for its compact size, lightweight design, and impressive cooling performance. Many note that it is easy to carry and store, and that it keeps their food and drinks cool for long periods of time. Some common complaints include the size being too small for extended trips and the locking system being difficult to use.

Faqs

What is the Mobicool Cool Boxes MB40-DC?

Designed to keep food and drinks cold while on the go, the Mobicool Cool Box MB40-DC is a portable thermoelectric cooler. It is perfect for use on camping vacations, boats, and automobiles.

Which power sources are compatible with the Mobicool Cool Boxes?

Boats and automobiles may easily utilize the MB40-DC because it can run on a 12V DC vehicle socket.

Is there a dual cooling system on the Mobicool Cool Boxes?

Indeed, the Mobicool Cool Boxes MB40-DChas a dual cooling system that combines compressor and thermoelectric cooling to provide effective and flexible cooling.

What is the Mobicool Cool Boxes MB40-DC cooling capacity?

With thermoelectric cooling, the Mobicool Cool Boxes can cool contents up to 20°C below room temperature; with compressor cooling, it can cool contents down to -15°C.

What is the warranty on the Mobicool Cool Boxes MB40-DC?

The Mobicool Cool Boxes MB40-DC comes with a 2-year warranty.

Is it possible to use the Mobicool Cool Boxes in any kind of weather?

MB40-DC is suited for outdoor use because it is made to function well in a variety of weather conditions.

How is the Mobicool Cool Boxes MB40-DC cleaned?

Remove the Mobicool from the power source and use a moist towel to clean the exterior and interior. Steer clear of abrasive items and harsh chemicals.

How energy-efficient is the Mobicool Cool Boxes MB40-DC?

Because of its energy-efficient design, theMobicool Cool Boxes is a reasonably priced choice for keeping goods cool while traveling.

Is it simple to move the Mobicool?

MB40-DC is portable and perfect for usage when on the road thanks to its strong grip and small size.

What components make up the Mobicool Cool Boxes MB40-DC?

Because of its sturdy construction and superior components, the Mobicool Cool Boxes performs dependably and lasts a long time.
