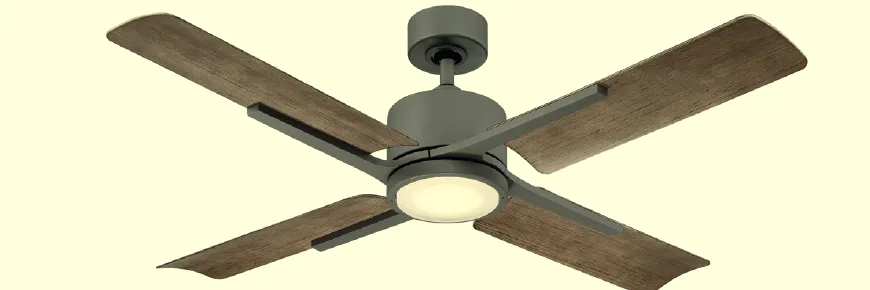

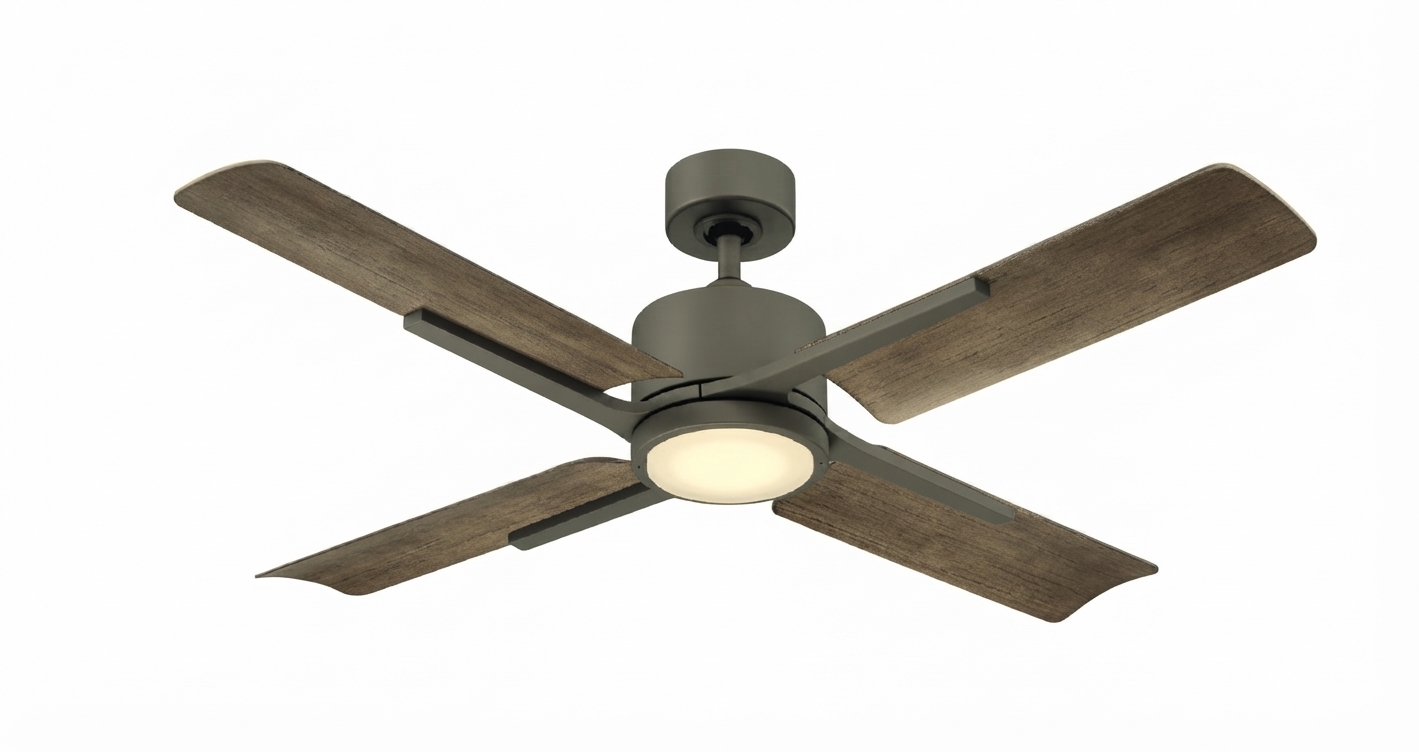

Modern Forms Cervantes Fans FR-W1806-56L Instruction Manual
Content
Introduction
The Modern Forms Cervantes Fans FR-W1806-56L is a high-quality, stylish, and energy-efficient fan that is perfect for any room in your home or office. With its sleek design and powerful motor, this fan is sure to keep you cool and comfortable all year round. The estimated price of the fan is around $500, and it is now available for purchase. The fan is designed to be a modern take on the traditional fan, with a sleek and minimalist design that will fit in with any decor.
OPTIONAL ACCESSORIES
Bluetooth Wall Control |  |
F-WCBT |
WT |
White |
Control fan speed and light brightness, and switch between Summer and Winter Modes. Additional Wall Controls can be purchased separately for multiple location control. | |
Bluetooth RemoteControl |  |
F-RCBT |
WT |
White |
Control fan speed and light brightness, and switch between Summer and Winter Modes. Compatible with Moder Forms Smart Fans. Includes easy-to-install wall cradle and batteries. | |
Downrod |  |
XF-12 XF-18 XF-24 XF-36 XF-48 XF-60 XF-72 |
12IN 18IN 24IN 36IN 48IN 60IN 72IN |
All our downrods are .75 (in) and are threaded on the motor end to create an extra layerof security andallow for adjustments in the field. | ||
Downrod Couplers |  |
XF-I |
Connects two downrods together. | |||
Sloped Ceiling Kit |  |
XF-SCK |
Designed to accommodate buildings with steepersloped ceilings up to 45° or 12/12 pitch. | |||
For Example
- Wall Control: F-WCBT-WT
- Remote Control: F-RCBT-WT
- Downrod: XF-12-BN
- Downrod Coupler: XF-I-MB
- Sloped Ceiling Kit: XF-SCK-MW
SUGGESTED DOWNROD HEIGHT USAGE
Ceiling Height | 15' | 14' | 13' | 12' | 11' | 10' | 9' |
Downrod | 72" | 60" | 48" | 36" | 24" | 18" | 12" |
SLOPED CEILING DEGREE CONVERSION CHART
Degree | 4-8° | 9-13° | 14-17° | 18-21° | 22-25° | 26-29° | 30-32° | 33-35° | 36-38° | 39-41° | 42-44° | 45° |
Ceiling Slope | 1/12 | 2/12 | 3/12 | 4/12 | 5/12 | 6/12 | 7/12 | 8/12 | 9/12 | 10/12 | 11/12 | 12/12 |
Pitch | pitch | pitch | pitch | pitch | pitch | pitch | pitch | pitch | pitch | pitch | pitch | pitch |
Supplied mounting brackets allow mounting on ceiling slopes up to 30° (7/12 pitch). Optional slope kit allows mounting on ceilings up to 45° (12/12 pitch). The receiver will mount inside the canopy up to 45°.
NOTE: Recommended maximum downrod length of 72” with 80” lead wire.
SPECIFICATIONS
- Construction: Aluminum, ABS
- Blade: 14º Pitch, 56” sweep
- Downrod: .75"W x 4.5"H included
- Mounting Slope: Up to 30°
- Wire: 80”
- Hanging Weight: 20 lbs
- Total Power: 48.5W
- Standards: UL/cUL Wet Location listed, Title 24 JA8-2016 Compliant, Title 20, Energy Star rated
- Motor Type: 125 x 30 sensorless DC motor
WIRELESS PERFORMANCE
- Wi-Fi Range: Up to 150 ft*
- Bluetooth Range: Up to 150 ft
LUMINAIRE PERFORMANCE
- Light Source: LED
- Light Wattage: 19.5W
- Lumens/Delivered: 1600/429
- Dimming: Integrated
- CRI: 90
- Color Temperature: 3000K (2700K/3500K options available)
- Rated Life: 50,000 hours
PRODUCT DESCRIPTION
Modern luxury is all about making life simpler - that’s exactly what Cervantes does for you. With our Modern Forms app, you can map out schedules, optimize energy use, and integrate with smart home devices you already own, like Amazon Alexa and Google Assistant. And Cervantes’s clean, offset blades slice through the air with barely a whisper - that’s because the powerful DC motor keeps things running smooth and super quiet. Available in versatile oil-rubbed bronze and graphite finishes.
FEATURES
- 6 fan speeds through both Summer and Winter Modes
- Silent DC motor
- Includes Bluetooth remote control
- Optional wall control for 3, 4-way control sold separately
- Compatible with Modern Forms app
Setup Guide
Setting up the Modern Forms Cervantes Fans FR-W1806-56L is easy and straightforward. First, make sure that you have all of the necessary components, including the fan, the remote control, and the installation hardware. Next, follow the instructions in the manual to assemble the fan. Once the fan is assembled, use the installation hardware to mount the fan to the ceiling. Finally, use the remote control to test the fan and adjust the settings to your liking.
AIRFLOW/ENERGY EFFICIENCY
- Weighted-Average/High Airflow CFM: 2798/6577
- Weighted-Average/High Energy Use (W): 13/29
- Estimated Yearly Energy Cost ($): 4
- Weighted-Average/High Efficiency (CFM/W): 211/228
- Max RPM: 153
ORDER NUMBER
| Model | Housing | Blade |
|---|---|---|
| FR-W1806-56L | GH - Graphite | WG - Weathered Gray |
| MB - Matte Black | BW - Barn Wood | |
| OB - Oil Rubbed Bronze | DW - Dark Walnut |
Example: FR-W1806-56L-MB/BW
For 2700K add "-27" ; for 3500K add "-35" before the finish: FR-W1806-56L27MBBW
*Results may vary based on application and surroundings.
*This fan comes uni-pack - blade select options are not available
Troubleshooting
- If you experience any problems with the Modern Forms Cervantes Fans FR-W1806-56L, consult the troubleshooting section of the manual. Common problems include the fan not turning on, the fan making strange noises, and the remote control not working.
- If the fan is not turning on, make sure that it is properly connected to a power source and that the switch is in the "on" position. If the fan is making strange noises, check to make sure that all of the components are properly assembled and that there are no loose parts.
- If the remote control is not working, check the batteries and make sure that the remote is within range of the fan.
Pros & Cons
- Pros: Sleek and minimalist design, powerful DC motor, energy-efficient, quiet, remote control, built-in LED light
- Cons: Higher price point, installation hardware not included
