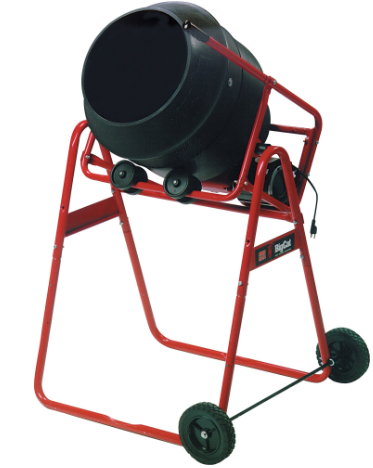

Introduction of Monarch Industries Red Lion Big-Cat Mixer 636001

Monarch Industries has launched its latest product, the Big-Cat Electric Cement Mixer, designed for heavy-duty concrete mixing tasks. With an estimated price range of $800 to $1000, this powerful machine is perfect for construction sites and DIY projects. The launching date is set for the beginning of March 2023.

Detailed Specifications

• Drum Capacity: 3.5 cubic feet

• Motor: 1/3 HP, 115 Volt high torque motor with thermal overload protection and push-button restart

• Power Consumption: Draws 6.1 Amps

• Drum Material: Lightweight but sturdy polyethylene, easy to clean and resistant to rust

• Mixing Capacity: Can mix up to 220 lbs of material in minutes

• Drive System: High-quality pre-assembled drive system, smooth and quiet operation with no chains or belts to adjust

• Weight: The mixer is designed to be portable with a knock-down frame for easy storage and transport

BASIC TOOLS REQUIRED

• 12” Adjustable Wrench

• Hammer or Mallet

OPTIONAL TOOLS

• 1/2" Socket &/or Wrench

BEFORE USE

• Make certain the oil cup has been filled with clean unused vegetable oil, or light oil such as air tool oil. Oils such as canola or corn oil are also recommended.

• Side frame (19) is to be assembled to the motor side of bowl base assembly.

Note

• The U-shaped ends of the side frames face inward to the drum.

• The Big Cat mixer is shipped with vegetable oil, as it is environmentally friendly, and has proved in testing to be an effective lubricant for the gears. The Big Cat can also be lubricated with other light oils such as air tool oil. It is important to use only clean oil in the oil cup.

ASSEMBLE UPPER FRAME TO BOWL ASSEMBLY

NOTE: Fasteners should only be tightened after final alignment is achieved. Use fastener package number 1 for all steps in this manual. Circled items make reference to the repair parts list.

Refer to Fig. 1.

• Assemble upper side frames (15) & (19) to bowl base assembly, using four 5/16 x 2 1/4 bolts (7) and 5/16 nuts (4). DO NOT TIGHTEN.



Refer to Fig. 2.

• With drum support assembly (20) positioned as shown in Fig. 2 (note location of crimped end), slide on pivot sleeves (3) (open section of pivot sleeve should be facing you and hex slot for the bolt facing out). Fasten pivot sleeves (3) using 5/16 x 1 3/4 bolts (5) and 5/16 nuts (4). OVERTIGHTENING WILL CRACK PIVOT SLEEVE (3).



• Assemble drum support assembly (20) to upper side frames using 5/16 x 1 3/4 bolts (5), and 5/16 nuts (4). DO NOT TIGHTEN.

Refer to Fig. 3.

• Assemble handle grip (22) onto the right side frame (19). If hard to assemble, apply a soap/water solution to the side frame.



ASSEMBLE FRAME

Refer to Fig. 4.

• Place A-frame (2) onto drum support assembly. Align dump stop (18) with top holes in A-Frames (2), on the motor side of the mixer align the top eyelet of the bottle holder (46) with the dump stop. Fasten both sides of the dump stop using two 5/16 x 1 3/4 bolts (5) and 5/16 nuts (4).



ASSEMBLE LEGS TO UPPER FRAME ASSEMBLY

Refer to Fig. 5.

• Place legs (1) into the side frame (2) fasten using four 5/16 x 1 3/4 bolts (5) and 5/16 nuts (4). Ensure the bolt goes through the bottom eyelet of the bottle holder.



Refer to Fig. 6/7.

• Raise the mixer into the upright position. This step may require 2 people. Standing in front of the mixer (Fig. 6), check the drum assembly (26) position relative to the drum support wheels (35). Center the drum support wheels in relation to the drum by pressing against the bowl base assembly (Fig. 7). Once centered, starting on the right-hand side (Fig. 6), tighten all fasteners. A gap may occur between the drum assembly (26) and the drum support wheels (35). This is normal when the mixer is unloaded.





Refer to Fig. 8.

• Slide washers (45) onto axle (44), assemble wheels (43) onto axle (44) (making sure the six ribs on the rim are facing toward the center of the mixer). Using a mallet or hammer, tap the push nuts (42) onto the ends of the axle. Center the axle assembly to the frame on the end with four pre-punched holes. Using U-bolts (40) and 5/16 nuts (41), attach the axle assembly to the mixer frame.



Description

The Monarch Industries Big-Cat Electric Cement Mixer is designed to provide efficient and reliable concrete mixing. The machine features a durable steel drum and a powerful motor, ensuring consistent and accurate mixing of concrete. It is easy to operate, with a simple on/off switch and variable speed control. The machine is also easy to clean, with a removable drum and a drain plug for easy water removal.

BEFORE USING THE MIXER

Ensure all bolts are tightened.

• Read all safety messages!



• A "GROUND FAULT INTERRUPTER" protected circuit is recommended for all outdoor electric devices!

• Remove oil cup cap. Remove oil wick and ensure straight section of wick is 1 3/8” in length.

• Make certain oil cup has been filled with clean unused vegetable oil, or light oil such as air tool oil. Oils such as canola or corn oil are also recommended.

The Big cat mixer is shipped with vegetable oil, as it is environmentally friendly, and has proved in testing to be an effective lubricant for the gears. The Big cat can also be lubricated with other light oils such as air tool oil. It is important to use only clean oil in the oil cup.

Note: Oil cup is designed to lubricate the gear system through a drip process. It is normal to have oil drip through the gear system especially if the mixer is left stationary for long periods of time.

• Let the mixer run empty for up to two minutes before adding the first load.

• Refer to mix instructions (see below)!

POWER CORD SAFETY

• Do not use multiple extension cords.

• Do not use over 145 ft. cord (see chart).

• Do not use a cord gauge of less than 16 AWG.

• Make certain oil cup has been filled with clean unused vegetable oil, or light oil such as air tool oil. Oils such as canola or corn oil are also recommended.

CEMENT MIX INSTRUCTIONS

Note: Refer to mix instructions from the cement manufacturer.

1. Make certain oil cup has been filled with clean unused vegetable oil, or light oil such as air tool oil. Oils such as canola or corn oil are also recommended.

The Big cat mixer is shipped with vegetable oil, as it is environmentally friendly, and has proved in testing to be an effective lubricant for the gears. The Big cat can also be lubricated with other light oils such as air tool oil. It is important to use only clean oil in the oil cup.

1. Start the mixer.

2. Add half the required amount of water.

3. Add a small amount of aggregate.

4. Add half the quantity of cement.

5. Add aggregate, cement, and water until desired consistency is attained.

6. Dump the load gently to avoid spillage.

PRE-MIXED CEMENT MIX INSTRUCTIONS

Note: Refer to mix instructions from the pre-mix manufacturer.

Make certain oil cup has been filled with clean unused vegetable oil, or light oil such as air tool oil. Oils such as canola or corn oil are also recommended.

The Big cat mixer is shipped with vegetable oil, as it is environmentally friendly, and has proved in testing to be an effective lubricant for the gears. The Big cat can also be lubricated with other light oils such as air tool oil. It is important to use only clean oil in the oil cup.

1. Start the mixer.

2. Add half the required amount of water.

3. Slowly add pre-mixed cement and water until desired consistency is attained.

4. Dump the load gently to avoid spillage.

Monarch Industries Red Lion Big-Cat Mixer 636001 MAINTENANCE

BEFORE USE

Make certain oil cup has been filled with clean unused vegetable oil, or light oil such as air tool oil. Oils such as canola or corn oil are also recommended.

The Big cat mixer is shipped with vegetable oil, as it is environmentally friendly, and has proved in testing to be an effective lubricant for the gears. The Big cat can also be lubricated with other light oils such as air tool oil. It is important to use only clean oil in the oil cup.

AFTER USE

Clean out the drum with water. If cement has dried to the inside of the mixer, tap the outside of the drum with a rubber or plastic mallet. Dump the mixer to empty dried cement from the drum (DO NOT use a steel hammer to dislodge dried cement from the mixer).

AT THE END OF EACH PROJECT

1. To avoid continuous drip, empty the oil cup after each project.

2. If the mixer will be sitting idle for more than two weeks, remove and wipe off the wick. Replace the wick in the cup.

MOTOR

• Ensure that the motor is connected to a 115V outlet.

• Ensure long extension cords are of 16AWG construction or better. Do not use extension cords over 145 ft. Refer to POWER CORD SAFETY (see above).

NOTE: Insufficient conductor size (incorrect gauge) &/or too long an extension cord will result in a low voltage condition causing premature motor failure.

TRUCK AND TRAILER MOUNT OPTION

Simply remove legs (1) from the unit and secure all four corners of the side frame (2). Front (dump side) frame corners must be secured the same width as the back side to ensure the frame is parallel.

Setup Guide

To set up the Big-Cat Electric Cement Mixer, follow these steps:

1. Unpack the machine and remove all packaging materials.
2. Place the machine on a level surface, making sure it is stable and secure.
3. Fill the drum with the appropriate amount of water and concrete mix.
4. Close the drum and engage the locking mechanism.
5. Plug in the machine and turn it on using the on/off switch.
6. Adjust the speed control to the desired level.
7. Monitor the mixing process, ensuring even mixing of the concrete.+

SAFETY

• CAREFULLY READ THE CAUTION AND WARNING MESSAGES.

• MOTOR EQUIPPED WITH MANUAL RESET CAUTION BUTTON.

• Review these instructions before operating the mixer. Retain for future reference.

• Two people may be required for some assembly steps.

• All bolts should be fastened with the nuts facing toward the center of the mixer. Do not tighten fasteners until final alignment is achieved.

• Parts may have sharp edges. Gloves should be worn. Use caution when assembling. Safety glasses should be worn while operating this mixer.

WARNING - ELECTRICAL PRECAUTIONS

• All wiring, electrical connections, and system grounding must comply with the National Electrical Code (NEC) and with any local codes and ordinances. Employ a licensed electrician.

WARNING - RISK OF ELECTRICAL SHOCK

• A ground fault interrupter (GFI) protected circuit is recommended for all outdoor electrical devices.

• Keep the motor operating area as dry as possible.

• Always disconnect the power before servicing.

TROUBLESHOOTING

Warranty

For one year from date of purchase, Monarch Industries will replace or repair for the original purchaser, free of charge, any part or parts, found upon examination by any Monarch Industries Authorized Service Depot or by the Monarch Industries factory, to be defective in material or workmanship or both. Equipment and accessories not manufactured by Monarch Industries are warranted only to the extent of the original manufacturer's warranty. All transportation charges on parts submitted for replacement or repair under this warranty must be borne by the purchaser. For warranty service, see your nearest Monarch Industries Authorized Service Depot

Pros & Cons

Pros

• Powerful 1.5 HP motor
• Durable steel drum
• Variable speed control
• Easy to clean
• 1-year warranty

Cons

• Heavy and difficult to move
• Expensive compared to some other cement mixers
• May require two people to assemble and operate

Customer Reviews about Monarch Industries Red Lion Big-Cat Mixer 636001

Customers have praised the Big-Cat Electric Cement Mixer for its power and durability. Many have commented on the machine's ability to handle heavy-duty concrete mixing tasks with ease. However, some have criticized the machine for being heavy and difficult to move. Others have noted that the machine may require two people to assemble and operate, which can be inconvenient.
