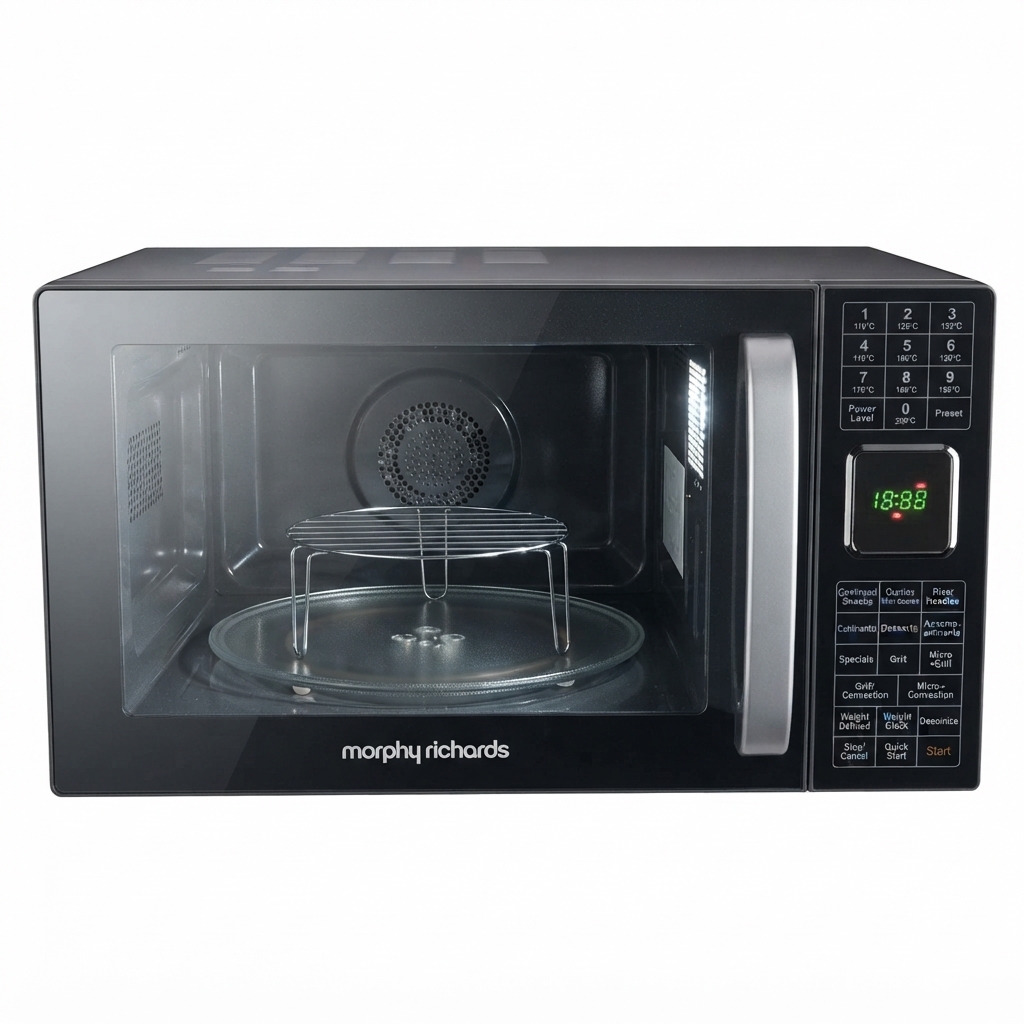

Morphy Richards Microwave Oven MWO 25CG Introduction

The Morphy Richards MWO 25CG is a versatile 25L convection microwave oven that offers a range of cooking functions, including baking, grilling, and defrosting. Its stainless steel cavity and mirror glass door provide a sleek and durable design. With 200 auto cook menu options, this microwave oven ensures convenient and precise cooking. $141.02

Please read these instructions carefully before installing and operating the oven

Precaut ions to avoid possible exposure to excessive microwave energy

1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven's front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door is closed properly and that there is no damage to the
   • Door (bent),
   • Hinges and latches (broken or loosened),
   • Door seals, and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except Morphy Richards service center.

Before you call for service

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFY THE SITUATION, THEN CONTACT MORPHY RICHARDS  SERVICE CENTER. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

Know your MICROWAVE

Parts and features:

1. Door Safety Lock System
   Oven Window
   Shaft
   Turntable Support
   Control Panel
2.  Oven Air Vent
3.  Glass Tray
4. Grill Heater
5. Baking plate

Control panel

• DISPLAY WINDOW
  Used to indicate clock, cooking time, etc.
• NUMBER PADS
  Used to enter clock, cooking time, temperature, etc.
• POWER LEVEL
  Press to select the microwave power level.
• GRILL
  Press to set a grill-cooking program.
• GRILL+ CONVECTION
  Press to program grill+convection cooking.
• MICRO + GRILL
  Press to select one of two combination cooking settings.
• MICRO + CONVECTION
  Press to select one of four combination cooking settings.
• WEIGHT DEFROST
  Touch to defrost food by weight.
• TIMER/CLOCK
  Use to set the clock and the oven timer.
• AUTO COOK MENU BUTTONS
  Press any of these buttons for the 200 auto cook menu recipes-Breakfast/Snacks, Cur r ies/Main course, Rice/Noodles, Continental, Desserts, Accompaniments, Specials
• START
  Press to start cooking program.
• QUICK START
  Touch to start the oven quickly at full power.
• STOP/CANCEL
  Touch to stop cooking program or clear all previous settings before cooking starts.
• DEODORIZE
  Press to deodorize the microwave oven.
• PRESET
  Press and select the time to start a delayed function.

Specifications

• Operation Frequency: 2450MHz
• Outside Dimensions: 281mm(H)×483mm(W)×415mm(D)
• Oven Cavity Dimensions: 220mm(H)×340mm(W)×344mm(D)
• Oven Capacity: 25Litres
• Cooking Uniformity: Turntable System
• Net Weight: Approx. 14.5 kg

Description

The Morphy Richards Microwave Oven MWO 25CG is characterized by its compact and sleek design, making it an excellent addition to any modern kitchen. The exterior features a stainless steel body that is both durable and easy to clean. The digital control panel with an LED display provides clear instructions and is simple to navigate. The interior is spacious enough to accommodate a variety of dishes, including large plates and bowls. The oven also comes with a set of pre-set cooking programs for common tasks such as defrosting and reheating, ensuring that your meals are cooked to perfection every time.

Richards Microwave Oven MWO 25CG Installation

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact Morphy Richards service center.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

Grounding instructions

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.
WARNING: Improper use of the grounding plug can result in a risk of electric shock.
NOTE:

1. If you have any questions about the grounding or electrical instructions, consult Morphy Richards service center.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

• Green and Yellow = EARTH
• Blue = NEUTRAL
• Brown = LIVE

Radio interference

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

Important safety instructions

When using electrical appliance basic safety precautions should be followed, including the following:
WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, contact Morphy Richards  service center.
5. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
6. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
7. To reduce the risk of fire in the oven cavity:
   1. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.
   2. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
   3. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
   4. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
8. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
9. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
10. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
11. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
12. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
13. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
14. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
15. Utensils should be checked to ensure that they are suitable for use in microwave oven.
16. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover that gives protection against exposure to microwave energy.
17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
18. Children should be supervised to ensure that they do not play with the appliance.

Microwave cooking principles

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

Utensils guide

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round/oval di shes rather than square/oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don’t use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

This table lists different types of cookware and their compatibility with Microwave, Grill, Con

Combination: applicable for both "microwave+grill", and "microwave+convection" cooking. 5

How to set the oven controls

SETTING THE CLOCK

When the oven is first plugged in, you can set the clock time. To set the clock time later, The display shows Hr24, to set in twenty four hour cycle, press it again, it can be set in 12 hour cycle.

1. Press and hold down TIMER/CLOCK for 3 sec. (The display shows Hr24, to set in twenty four hour cycle, press it again, it can be set in 12 hour cycle.)
2. Use the number pads to enter the correct time.
3. Press TIMER/CLOCK to confirm.

MICROWAVE COOKING

Microwave cooking allows you to customize cooking power and time. First, you select a power level by pressing the POWER LEVEL pad a number of times (see the table below). Then you set the cooking time using the numeric pads, before pressing the START pad.

Press POWER pad to select cooking power

Suppose you want to cook for 5 minutes at a 60% power level.

1. Press the POWER LEVEL pad a number of times to set power.

    Press the number pads to enter the cooking time until the correct cooking time (5:00) is displayed.

2. Press the START pad.

NOTE

1. If you want to temporarily stop a cooking session, press the STOP/CANCEL once and then you can restart the cooking again by pressing START; or press the STOP/CANCEL twice to cancel the cooking program altogether.
2. After the total time elapsed, the system will sound beeps with END in display. And the beeps will continue to sound every two minutes automatically until the door is opened or any pad is touched.

GRILL
Grill cooking is particularly useful for thin slices of meat, chops, kebabs and pieces of chicken. It is also suitable for hot sandwiches and au gratin dishes. Suppose you want to program grill cooking for 12 minutes.

1. If needed, press the STOP/CANCEL pad once to reset the system.
2. Press GRILL button.
3. Use the number pads to enter cooking time.
4. Press the START button.

CONVECTION
During convection cooking, hot air is circulated throughout the oven cavity to brown and make crisp foods quickly and evenly. This oven can be programmed for ten different cooking temperatures. The maximum cooking time is 9 hours, 99 minutes.

To Cook with Convection
To cook with convection, press 'GRILL + CONVECTION' once and then press the number pads to enter the desired convection temperature.
0--200°C, 1--110°C, 2--120°C, 3--130°C, 4-- 140°C, 5--150°C, 6--160°C, 7--170°C, 8-- 180°C, 9--190°C
Suppose you want to cook at 180°C for 40 minutes.

1. Press 'GRILL + CONVECTION' once.
2. Press number once 8.
3. Press number once to enter cooking time.
4. Press START once.

NOTE: After total time elapsed, the system will sound beeps with END in display. And the beeps will continue to sound every two minutes automatically until the door is opened or any pad is touched.

To Preheat and Cook with Convection

Your oven can be programmed to combine preheating and convection cooking operations. Suppose you want to preheat to 170 C and then cook 35 minutes.

1. Press 'GRILL + CONVECTION' once.
2. Press number pad 7 to indicate convection temperature.
3. Press START button. "PREH" will flicker in the display until it reaches the designated temperature
4. Open the door and place container of food at the center of the turntable.
5. Use the number pads to enter cooking time.
6. Press START button MICROWAVE + GRILL

This feature allows you to combine grill and microwave cooking on two different settings. First, press this button once or twice to choose an proper combination setting, then, at the screen prompt, enter the desired cooking time. After you have pushed the start button, the system begins to count down.

COMBINATION 1
30% time for microwave cooking, 70% for grill cooking. Use for fish or au gratin. Suppose you want to set combination 1 cooking for 25 minutes.

1. Press MICRO + GRILL button once.
2. Use the number pads to enter 25:00.
3. Press START button

COMBINATION 2
55% time for microwave cooking, 45% for grill cooking. Use for pudding, omelets, baked potatoes and poultry. Suppose you want to set combination 2 cooking for 12 minutes.

1. Press MICRO + GRILL button twice.
2. Use the number pads to enter 12:00.
3. Press START button.

MICROWAVE + CONVECTION
This oven has four pre-programmed settings that make it easy to cook with both convection heat and microwave automatically. Press MICRO+ CONVECTION button and then use the number pads 1-4 to program convection temperature:

Suppose you want to bake food for 24 minutes on COMB3.

1. Press MICRO + CONVECTION button.
2. Use the number pads to enter convection temperature.
3. Use the number pads to enter cooking time as desired.
4. Press START button to start.

NOTE: The maximum cooking time is 9 hours, 99 minutes. After total time elapsed, the system will sound beeps with END in display. And the beeps will continue to sound every two minutes automatically until the door Is opened or any pad is touched. You can check the convection temperature while cooking is in progress by pressing the MICRO + CONVECTION button.

WEIGHT DEFROST
The oven can be used to defrost meat, poultry, and seafood. Suppose you want to defrost frozen meat.

1. Press WEIGHT DEFROST once or repeatedly to select weight (100g - 1800g)
2. Press START.

NOTE: During defrosting program, the system will pause and sound beeps to remind user to turn food over, and then press START to resume the defrosting.

MULTI-STAGE COOKING

Your oven can be programmed for up to 3 automatic cooking sequences. Suppose you want to set the following cooking program.

Microwave cooking

Convection cooking

1. Press POWER LEVEL button to set power level.
2. Use the number pads to enter cooking time
3. Press 'GRILL + CONVECTION' once.
4. Use the number pads to enter convection temperature.
5. Use the number pads to enter convection cooking time.
6. Press START button.

AUTO COOK MENU
Press any of these buttons for the 200 auto cook menu recipes - Breakfast/Snacks, Curries/Main course, Rice/Noodles, Continental, Desserts, Accompaniments, and Specials.

OTHER CONVENIENT FEATURES

MINUTE TIMER

To use the timer feature, as when you need to be reminded of the cooking or some other things,

1. Press TIMER/CLOCK
2. Use the number pads to enter the time to be counted down.
3. Press START.

NOTE: When the countdown ends, the system buzzer will beep.
Time countdown can be seen in display for 5 seconds before clock or cooking time is returned to exhibit.

CHILD PROOF LOCK

• The child proof lock prevents unsupervised operation by little children.
• To set the child proof lock: Press STOP/CANCEL button for 3 seconds, then a beep will sound and the indicator light will come on. In the lock state, all buttons are disabled.
• To cancel the child proof lock: Press STOP/CANCEL button for 3 seconds, then a beep will sound and the indicator light will come off.

QUICK START Richards Microwave Oven MWO 25CG

Use this feature to program the oven to microwave food at 100% power conveniently. Press QUICK START button in quick succession to set the cooking time. The oven will auto-start immediately. After time has gone beeps sound and END appears in display.
TO STOP THE OVEN WHILE THE OVEN IS OPERATING

1. Press STOP/CANCEL button. You can restart the oven by pressing START pad. Touch STOP/CANCEL to erase all instructions.
2. Open the door. You can restart the oven by closing the door and pressing START pad.

NOTE: Oven stops operating when door is opened.

AUTOMATIC PROTECTION MECHANISM

Anytime in the operation of the oven, when the oven cavity temperature reaches a phenomenon of 300°C, the oven automatically enters into self-protection mode. The display shows E 01, with one beeping every 1.5 sec until the said phenomenon disappears, and STOP/CANCEL is pressed to make the oven back to normal. If the sensor is short-circuited, the system enters protection mode with a display of E03 which, when cleared, press STOP/CANCEL to back into normal.

COOLING FEATURE
The electronic controlling system of the microwave oven has the feature of cooling. As for any cooking mode with a cooking time above 2 minutes, after finishing cooking, the oven fan will work about 3 minutes automatically to cool the oven for prolonging the life of the oven.

PRESET FUNCTION
This function allows the oven to start a cooking program at an appointed time automatically. For eg. If the present time is 09:00 (am), and you want to cook for 20 mins. with 80% power level beginning at 11.00am

• • Press the 'Power Level' button repeatedly for 80% power.
• • Press the number pad buttons to show 20:00.
• • Press the Preset button.
• • Press the number pad buttons to show 11:00.
• • Press the Start/Quick Start button to confirm.

DEODORIZE FUNCTION
Press the 'Deodorize' button to select the deodorize function. Press the Start/Quick Start button to confirm. This will remove any odor of previously cooked food from the microwave oven.

Cleaning and care

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave the oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwaving for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
11. Please do not dispose this appliance into the domestic rubbish bin, it should be disposed to the particular disposal center provided by the municipalities.

Technical Data

• Power Consumption: 230V - 50Hz
  • 1400W (Microwave)
  • 1950W (Convection)
  • 1000W (Grill)
• Rated Microwave Power Output: 900W

Troubleshooting

Common issues and solutions for the Morphy Richards Microwave Oven MWO 25CG include:

• Oven Not Turning On
  Check if the oven is properly plugged in and if there are any power outages in your area.
• Uneven Cooking
   Ensure that the turntable is rotating properly during cooking cycles. -
• Error Messages
  Refer to the user manual or contact customer support for assistance with error messages.
• Cleaning Issues
  Avoid using abrasive cleaners or metal utensils that could damage the interior surfaces.

Pros & Cons

Pros

• Compact design suitable for small kitchens.
• User-friendly digital control panel.
• Quick and efficient cooking with 800 watts power.
• Multiple cooking modes including defrosting and grilling.
• Child safety lock for added security.

Cons

• Smaller capacity might not be ideal for large families.
• No convection cooking feature is available.
• Some users find the turntable a bit smaller compared to other models.

Customer Reviews

Customers have generally praised the Morphy Richards Microwave Oven MWO 25CG for its ease of use, quick cooking times, and affordable price. However, some users have noted that the capacity is somewhat limited, making it less suitable for larger families. Here are some common compliments and complaints:

• "This microwave has been a game-changer in my kitchen It's easy to use and cooks food evenly." - Ramesh K.
• "I love how compact it is, but I wish it had a bit more space inside." - Priya S.
