Introduction

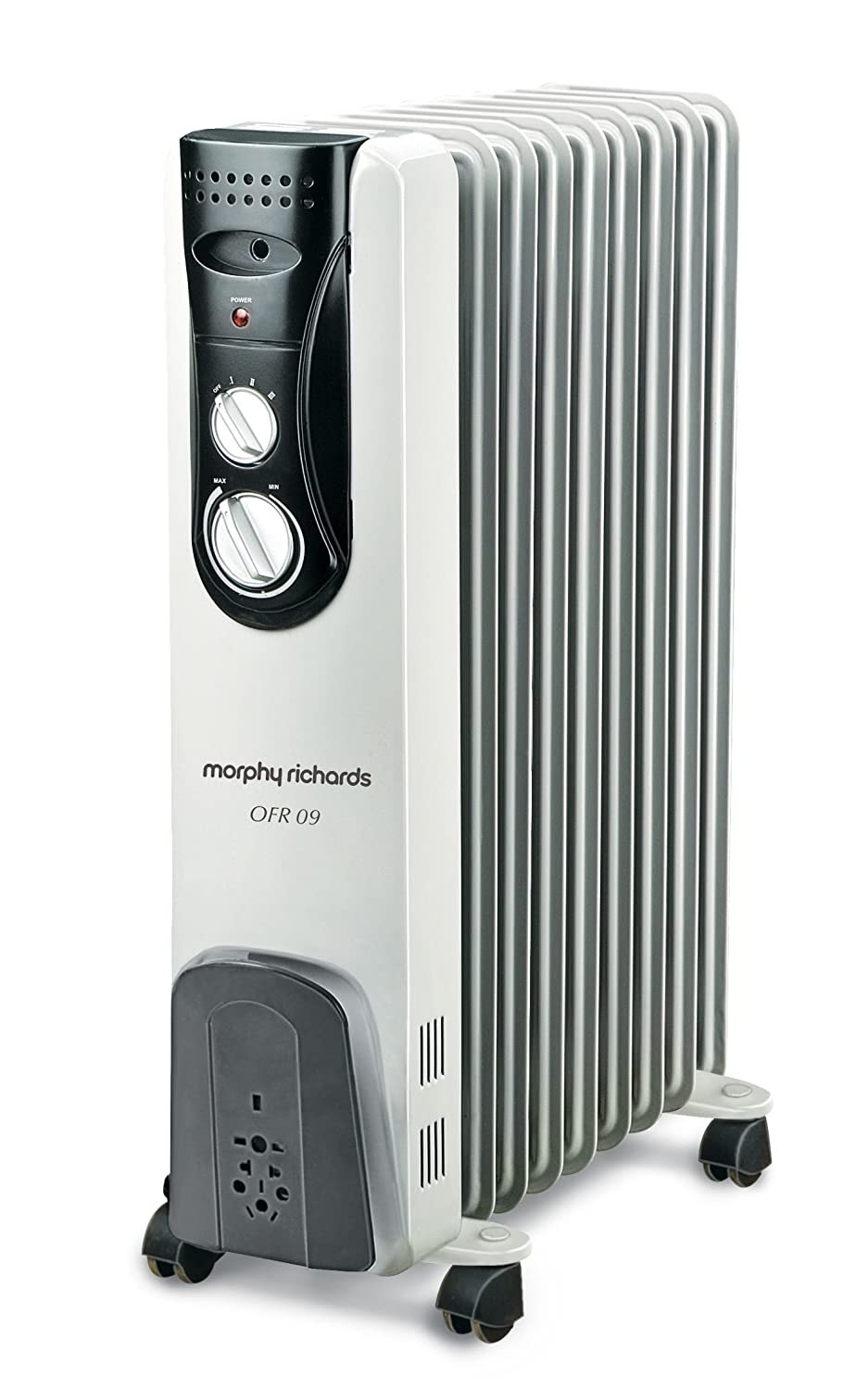

For medium-to-large-sized rooms, the efficient and dependable Morphy Richards Oil Filled Radiator OFR09 is a heating option that delivers constant warmth. The nine fins on this oil-filled radiator efficiently transmit heat, creating a cozy atmosphere. It provides individualized comfort to meet your demands, with a variety of heat settings and changeable thermostat settings. To ensure safe operation, the OFR09 has safety features such a tip-over switch and overheat prevention. Its lightweight construction, which has carry handles and easy-gliding castors, makes it easy to move from room to room and an excellent option for heating a home in the winter.

Detailed Specifications

Morphy Richards Technical Data

• Power Supply : 230V ~ 50/60 Hz
• Wattage: (OFR 09/11/13F) 2000W / 2500W / 2900W

Product Overview

1. Carry handle
2. Power selection knob
3. Thermostat control
4. Power cord
5. Radiator fins
6. Front cover
7. P.T.C. Fan Heater Switch
8. P.T.C. Fan Heater*
9. Castor-mounting plate
10. Castor Wheels

This feature is available only with OFR 13F.
The appliance is equipped with additional function for convection warm air. To activate this function, simply press the fan switch in front of the oil heater.

Description

The OFR09 Morphy Richards Oil Filled Radiator is an excellent and economical heating option. With its oil-filled construction and 2500 watts of capacity, it's ideal for heating medium-sized rooms and provides long-lasting heat. The castor wheels make it simple to move from room to room, and the digital timer and thermostat allow for exact temperature control. Its cord storage and overheat protection features further enhance its convenience and safety. The OFR09 is a fantastic option for any house or business thanks to its sleek and contemporary appearance.

Assembly Instructions

The heater is packaged with the feet unattached. You must attach them before operating the heater.
WARNING: Do not operate without feet attached. Do operate the heater only in upright position (feet on the bottom, controls on the top), any other position could create a hazardous situation.

1. Place the radiator body upside-down on a scratch-free location, make sure it is stable and will not fall.
2. Screw off the wing nuts from the U- shaped bolt provided, attach the U- shaped bolt to the U-facing flange between first and second fins (near the front cover).
3. To attach the castor mounting plate to the radiator body, you should insert the threaded ends of the U bolt in the holes on the castor mounting plate
4. Screw the wing nuts back to the U bolt and fasten the wing nut properly.
   • Note: do not over tighten, which may cause the damage of radiator flange.
5. Screw off spherical nut from the castor, align the shaft to the hole of the castor mounting plate, insert in, and screw on the spherical nut. Repeat 2, 3, 4 and 5 on the rear of radiator for mounting of the rear castors. Note: the rear castors must be mounted between the end two fins.

Instructions for use

1. Before using the heater, make sure that it is on a flat and stable surface. Damage may occur if it is placed on an incline or decline.
2. Set all the controls to OFF position and insert the plug into a socket-outlet with well grounded. Be sure that plug fits firmly.
3. Rotate the thermostat knob clockwise to MAX position and switch the heater on as follow: the switch I for low heat, the switch Il for medium heat and both switches on for high heat.
4. When your room reaches the desired temperature, now slowly rotate the thermostat knob counter clockwise until the pilot light goes out. The thermostat can now be left at this setting. As soon as the room temperature has dropped below the set temperature, the unit will switch it self on automatically until the set temperature has been reached again. In this way the room temperature remains constant with the most economical use of electricity.
5. If you want to change the room temperature setting, rotate the thermostat knob clockwise to raise the temperature, or counter clockwise to lower it.
6. This heater includes an overheat protection system that shuts off the heater when parts of the heater are getting excessively hot.
7. To completely shut the heater off, turn all the controls to OFF, and remove plug from the socket-outlet.

The following ratings can be achieved by using the power selection knob :

Setup Guide

It is simple to assemble the Morphy Richards Oil Filled Radiator OFR09:

1. Position the radiator on a level, sturdy platform.
2. Turn on the radiator by plugging in the power cord.
3. To adjust the temperature and timer, use the digital controls.
4. The radiator will automatically begin to heat up and maintain the desired temperature.

Morphy Richards Oil Filled Radiator OFR09 Maintenance

1. Always remove the plug from the socket- outlet and allow the radiator to cool down before clean the heater.
2. Wipe radiator with a soft damp (not wet) cloth.
   Warning
   • Do not immerse the heater in water.
   • Do not use any cleaning chemicals such as detergents and abrasives.
   • Do not allow the interior to get wet as this could create a hazard
3. To store away the heater, wind the cable round bobbin and store the heater in a clean dry place.
4. In case of malfunction or doubt, do not try to repair the radiator yourself, it may result in a fire hazard or electric shock.

Important Safeguards
When using an electrical appliance, basic safety precautions should always be observed, including the following: Read all instructions before using
WARNING: To reduce the risk of fire, electrical shock, or injury to person:

• The product is for household use only.
• Connect the appliance to single phase AC supply of the voltage specified on the rating plate.
• The meaning of figure in marking is "DO NOT COVER".
• In order to avoid overheating, do not cover the heater.
• Never leave the heater unattended while it is in use. Always turn the product to the OFF position and unplug it from the electrical outlet when not in use.
• Extreme caution is necessary when any heater is used by or near children,  invalids or elderly person and wheneverthe heater is left operating and unattended.
• The heater must not be located immediately below an electrical socket- outlet.
• Do not run cord under carpeting and do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic area and where it will not be tripped over.
• Do not operate the heater with a damaged cord or plug, or after the heater malfunctions, has been dropped, or damaged in any manner.
• If the supply cord is damaged, it must be replaced by the manufacturer or its  service agent or a similarly qualifiedperson to avoid a hazard.
• Avoid the use of an extension cord as this may overheat and cause a risk of fire.
• Use the heater in a well-ventilated area.
• Do not insert or allow objects to enter any ventilation or exhaust opening.
• To prevent a possible fire, do not block air intakes or exhaust openings in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked. Use the heater on flat, dry surfaces only.
• Do not place this heater near flammable matenals, surfaces or substances, as there may be a risk of fire. Keep the above flammable materials, surfaces or substances at least 1m from the front of the product and keep them away from the sides and rear. 14. Do not use the heater in any areas where petrol, paint or other flammable liquids are stored e.g. Garages or workshops as a hot, arcing or sparking parts inside the heater.
• Don't use this heater in the immediate surroundings of a bath, a shower or a swimming pool. Never locate the heater where it may fall into bathtub or other water container.
• This heater is hot when in use. To avoid burns and personal injury, do not let bare  skin touch hot surfaces. If provided, usehandles when moving the product.
• Be sure that no other appliances are in use on the same electrical circuit as your product as an overload can occur.
• This heater is filled with a precise quantity of special oil.
• Repair requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leakage.
• Regulations concerning the disposal of oil when scrapping the appliance have to be followed.
• The heater should not be used in a room, of which the floor area is less than 5 M*.
• The images shown in the manual are indicative the actual product may be different.

Troubleshooting

Here are some common issues and solutions for the Morphy Richards Oil Filled Radiator OFR09:

• Radiator won't turn on: Check that the power cord is plugged in securely and that the radiator is receiving power.
• Radiator isn't heating up: Check that the thermostat is set to a temperature above the current room temperature.
• Radiator is making strange noises: This could be due to trapped air in the system. Try bleeding the radiator to release any excess air.
• Radiator is leaking oil: If the radiator is leaking oil, stop using it immediately and contact Morphy Richards for assistance.

Pros & Cons about Morphy Richards Oil Filled Radiator OFR09

• Pros
  • Powerful and efficient heating
  • Precise temperature control
  • Long-lasting heat
  • Easy to move and store
  • Sleek and modern design
• Cons
  • May be too large for small rooms
  • Oil-filled design may be difficult to clean
  • No remote control feature
