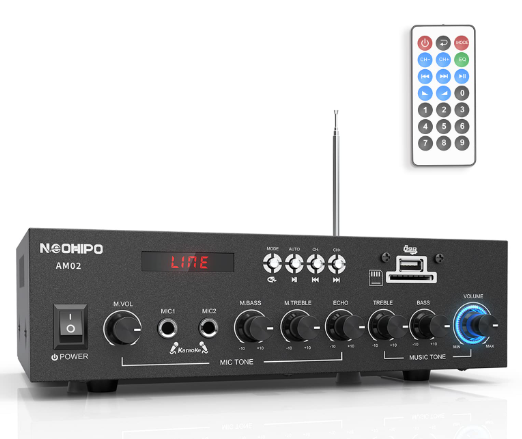

Introducing the Neohipo AM02 Amplifier: Unleash the Power of Sound

The Neohipo AM02 Amplifier is an innovative and powerful device designed to elevate your audio experience to new heights. Engineered for versatility, this amplifier caters to both professionals and audiophiles alike, delivering crystal-clear sound and immersive audio experiences. The Neohipo AM02 Amplifier is priced around $350, providing excellent value for its advanced features and exceptional performance.

Neohipo AM02 Amplifier Details

• Sophisticated Class D amplifier technology
• Supports input signals up to 7.1 channels
• Frequency response: 10Hz - 50kHz
• Signal-to-noise ratio: >100dB
• Total harmonic distortion: <0.05% (1W, 1kHz)
• Built-in Bluetooth 5.0 for seamless wireless connectivity

Front Panel

1. Power ON/OFF Switch
2. Volume Control for Mic
3. Microphone Inputs
4. Master Volume Control
5. USB/SD Socket
6. Player Control
7. Mic Tone Control
8. Music Tone Control

Back Panel

1. Line Input
2. Line Output
3. L+R 2X 4-8Ω Horn-Speaker
4. DC 12V Power Input
5. AC 110-240V Power Socket

Remote Control

AM02 Amplifier Specifications

Start Up

Note

• Be sure that the volume/power switch is in the OFF position before connecting the power supply.



• When you use a 12V power adapter, AM02 Amplifier will automatically turn on and the power switch will not work, If you want to power off, you need to unplug the 12V power adapter.

AUX Mode

Note: After starting the amplifier, the default input setting is AUX mode (priority order of input modes: AUX > Bluetooth > FM > USB/TF).

Bluetooth Mode

Note

• Press the mode button to select the Bluetooth mode. When the voice prompts "ding dang", please use the Bluetooth devices to search for the AM02 amplifier and connect it.
• Press and hold the mode bluetooth for 3 seconds to remove the Bluetooth connection.

FM Mode

1. Press Mode button to select FM mode (A radio-like sound will appear here).
2. Press "AUTO" button, AM02 amplifier will search channels automatically. Press "AUTO" button again, you can interrupt the search; when the automatic channel search is finished, AM02 amplifier will automatically save the searched channels, you can press "|<<“ or ”>>|" button to select the saved radio stations.
3. Antenna on the back panel can be stretched to enhance the signal.

USB / TF Mode

Note: Insert the U-disk or TF-card into the USB or TF port on the front panel after starting the AM02 amplifier, AM02 will automatically recognize the music formats and loop the music in it. You can press "|<<“ or ”>>|" button to select your music.

Description

The neohipo AM02 Amplifier is a high-performance audio device that harnesses cutting-edge Class D amplifier technology to deliver stunning sound quality. Boasting a wide frequency response and an impressive signal-to-noise ratio, the AM02 ensures accurate audio reproduction with minimal distortion. Whether you're a professional sound engineer, a dedicated gamer, or a music enthusiast, the neohipo AM02 Amplifier is designed to cater to your unique needs. With built-in Bluetooth 5.0, enjoy seamless wireless connectivity with a diverse range of devices, allowing you to create an unparalleled audio ecosystem in your home or studio.

Pros & Cons

Pros

• Superior sound quality with minimal distortion
• Versatile connectivity options, including wireless Bluetooth
• User-friendly design with an intuitive interface
• Engineered for both professionals and audiophiles
• Compact and stylish appearance

Cons

• Potential compatibility issues with some legacy devices
• Limited integration with specific audio platforms

Trouble shooting

Customer Reviews

The Neohipo AM02 Amplifier has garnered rave reviews from audiophiles and industry professionals alike. Users appreciate its superior sound quality, seamless wireless connectivity, and versatility across various applications. Some users have reported minor compatibility issues with specific legacy devices, but overall, the Neohipo AM02 Amplifier has been praised for its excellent performance and value.
