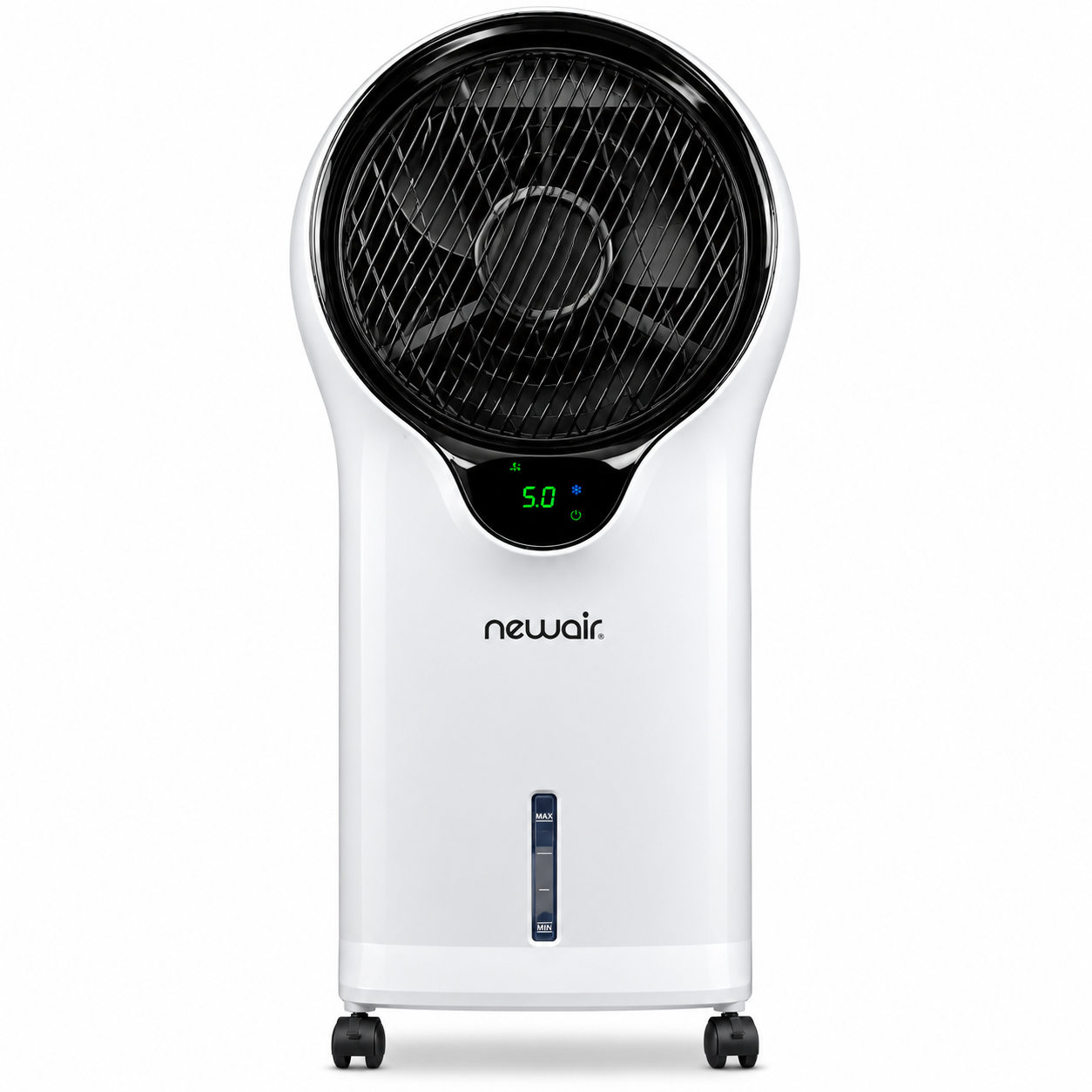

Newair Evaporative Cooler EC111W Introduction

Stay cool and comfortable with this portable unit that combines cooling, humidifying, and fan functions. Ideal for personal spaces, it offers multiple speed settings and a remote control for easy operation. is estimated to cost $199.99. With a sleek and modern design, the EC111W is set to launch in the summer of 2023.

Newair Evaporative Cooler EC111W PARTS LIST

1. Fan head
2. Display panel
3. Water level indicator
4. Caster
5. Control panel
6. Remote control storage slot
7. Carrying handles
8. Cooling pad knob
9. Cooling pad slot
10. Dustproof air filter
11. Water tank
12. Power cord bracket
13. Power cord
14. Water tank knob
15. Ice pack
16. Remote control

Description

By means of evaporation technology, the Newair Evaporative Cooler EC111W offers effective and strong chilling. This method essentially cools the air by absorbing heat from it using water, therefore relieving the heat load. With a big water tank that can be readily filled and a washable, reusable filter, the cooler is simple to operate and maintain. For even more convenience, the EC111W also boasts a remote control, a programmed timer, and oscillating louvers. Any house or business would benefit much from the elegant and contemporary Newair Evaporative Cooler EC111W.

OPERATING INSTRUCTIONS

Carefully remove all packaging materials and retain for future storage/use. Make sure there is no residual foam left in any of the components. No tools will be required to assemble this evaporative cooler.

FILLING THE WATER TANK

1. Remove the water tank by turning the water tank knob counterclockwise 900.
2. Before using the evaporative cooler for the first time, we recommend cleaning the tank with a warm water and light detergent solution.
3. Fill the tank with clean water. Pay attention to the water level indicator located on the front of the cooler to avoid overfilling the evaporative cooler. The approximate tank size of the EC111W is 1.5 gallons (5.5 liters).

4. Replace the tank back onto the back of the unit. Turn the water tank knob clockwise 900. This locks the water tank back into place.



USING THE ICE PACK

The EC111W evaporative cooler includes an optional ice pack for added cooling.

1. Place the ice pack in the freezer until frozen. Do not open the ice pack or ingest its contents.
2. Put the ice pack into one of the water tank’s chambers.
3. The ice pack is not necessary for operation, but will help enhance the cooling effect in higher temperatures.

4. The ice pack will last approximately four hours before melting.



USING THE REMOTE CONTROL

The EC111W is equipped with a remote control. A CR2032 3V coin-type replacement battery is included for your convenience.

1. To use the remote control, aim it at the unit and select one of the functions on the remote control. The effective distance is approximately 24”.
   • ON/SPEED = Power ON and adjusts speed.
   • OFF = Power OFF
   • TIMER = Timer function of up to 7.5 hours
   • SWING = Swinging air louvers
   • COOLER/HUMIDIFIER = Controls cooling/humidification function
   • MODE = Adjust the airflow mode

CONTROL & DISPLAY PANELS

After the tank is filled with water, connect the evaporative cooler to a power outlet. The unit will beep twice, indicating that the power source is connected. The cooler will be in standby mode at this time.

ON/SPEED & OFF BUTTONS

1. Press the ON/SPEED button to turn on the evaporative cooler.

2. To adjust the fan speed, press the ON/SPEED button again until your desired speed has been reached. The current fan speed will be indicated on the display panel. To turn the unit off and revert back to standby mode, press the OFF button.



COOLER/HUMIDIFIER BUTTON

After the desired fan speed has been selected, press the COOLER/HUMIDIFIER button to activate the cooling/humidifying function. This powers the water pump and will cool and add moisture to the air at the same time. The blue cooling icon will also be visible on the display panel.

Please note that if the initial fan speed is set to 3, the unit will revert back to the second speed setting for five minutes. After five minutes, the unit will automatically switch to the third fan speed. This is to allow the cooling pad to be thoroughly absorbed with water, which results in optimized cooling. The cooler will not revert back to other speeds if the initial fan speed was set to either 1 or 2.

MODE BUTTON

The EC111W has two different automatic airflow modes. Setting the airflow mode is optional. To set the airflow mode, press the MODE button.

• Natural Mode
  Indicated by the palm tree icon on the display panel, this setting will adjust the airflow speed between 1, 2, and 3.
• Sleep Mode
   Indicated by the moon icon on the display panel, this setting will cycle through the fan speed settings, and gradually lower the speed at different intervals, depending on the selected fan speed.

TIMER BUTTON

1. This evaporative cooler is equipped with a 7.5-hour programmable timer. To set the timer, press the TIMER button. Each press of this button will add 0.5 hours to the set time.
2. The set time will be indicated in the middle of the display panel.

SWING BUTTON

To activate the oscillation feature, press the SWING button. The fan head will automatically oscillate counterclockwise, which directs cool air into a cyclone for a more focused cooling effect.

ADDITIONAL FEATURES

1. If the water level in the tank drops below the minimum level, the unit will produce an audible alert that will last for ten seconds. After ten seconds, the evaporative cooler will automatically turn off.
2. If the water tank is removed while the unit is on, it will automatically turn off.

Setup Guide

It's simple and quick to set up the Newair Evaporative Cooler EC111W:

• Avoid direct sunlight and drafts and position the cooler in a location with good ventilation.
• Attach the cooler to a regular wall socket.
• Add clean water to the water tank.
• Install the filter in accordance with the user manual's recommendations.
• Connect the cooler's plug and use the power button to turn it on.
• To choose your preferred cooling settings, use the cooler's control panel or the remote control.

MAINTENANCE

Regular cleaning and maintenance is an essential step in maintaining the longevity of your evaporative cooler and ensuring that it operates free of defects. Maintain your evaporative cooler by following these steps:

GENERAL MAINTENANCE INSTRUCTIONS

1. Always unplug the evaporative cooler from the power supply before servicing or cleaning.
2. Use a soft cloth and a mild soap and warm water solution to clean the unit’s exterior. Do not use harsh cleaners, gasoline, paint thinner, benzene, etc., as these substances can damage the evaporative cooler.
3. Thoroughly dry all of the cooler’s parts with a soft cloth before reconnecting the unit to the power supply.
4. Empty the water tank after the evaporative cooler has been in use. Regular, scheduled cleaning of the water tank before each use is also recommended.
5. If the evaporative cooler will not be in use for an extended period of time, place the unit back in its original carton and keep it stored in a clean, dry place.
6. The evaporative cooler’s filter, tank, and cooling pad will need to be removed prior to cleaning. Once all of the different components have been cleaned, place them back into the unit in this order: water tank, cooling pad, and dust filter.

CLEANING THE DUST FILTER & COOLING PAD

To prevent clogging of the dust filter, we recommend cleaning the filter at least once a month.

1. To clean the dust filter, remove it from the back of the unit by pushing down on the two tabs located above the filter and pull it out. Gently scrub it with a soft brush and rinse with water. Allow it to thoroughly air dry before placing it back in the unit.



2. To clean the cooling pad, first remove the dust filter to expose the pad. Turn the knob on the pad clockwise and pull it out from the back of the unit. Rinse it with clean water and allow it to thoroughly air dry before placing it back in the unit.

CLEANING THE WATER TANK

1. Unplug the evaporative cooler from the power supply and empty the water tank after the evaporative cooler has been in use. Regular, scheduled cleaning of the water tank before each use is also recommended.
2. To clean the water tank, rinse it in a warm water and light detergent solution or a water and vinegar solution. Rinse it with clean water and dry it thoroughly before placing it back into the cooler.

TROUBLESHOOTING

Newair Evaporative Cooler EC111W Warranty

This appliance is covered by a limited manufacturer’s warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer.
Warranty Terms: During the first year, any components of this appliance found to be defective due to materials or workmanship will be repaired or replaced, at the manufacturer’s discretion, at no charge to the original purchaser.

Pros & Cons

• Pros
  • Energy-efficient
  • Powerful cooling
  • Portable and easy to move
  • Low maintenance
  • Sleek and modern design
• Cons
  • Not suitable for use in humid environments
  • May require frequent water refills in hot and dry environments

Customer Reviews

The Newair Evaporative Cooler EC111W has received high marks from customers for its strong cooling, low maintenance requirements, and energy economy. Customers have given the cooler an average rating of 4.5 out of 5 stars, saying that it cools well even in big areas. Nevertheless, a few consumers have complained about the cooler's potential for noise and the possibility that hot, dry conditions may require regular refilling of the water tank.
