Introduction

Congratulations on your purchase and welcome to Philips Avent! To fully benefit from the support that Philips Avent offers, register your product at www.philips.com/welcome.
The Philips Avent manual breast pump has a unique design that enables you to sit in a more comfortable position while expressing. The soft massage cushion* is designed to feel soft and warm and imitates your baby’s sucking action to provide fast milk flow - quietly, comfortably and gently. The pump is compact, easy to assemble and all parts are dishwasher-safe and  BPA-free. Healthcare professionals say that breast milk is the best nutrition for babies during the first year, combined with solid food after the first 6 months. Your breast milk is specially adapted to your baby’s needs and contains antibodies which help protect your baby against infection and allergies. A breast pump can help you to breastfeed longer.

You can express and store your milk so that your baby can still enjoy the benefits of it, even if you cannot be there to provide it yourself. As the pump is compact and discrete to use, you can take it with you anywhere, allowing you to express milk at your own convenience and maintain your milk supply.
The massage cushion included with this pump was designed to comfortably fit the majority of mothers. However, should you need it, you can buy a massage cushion for larger nipples separately.

Detailed Specifications

The Philips Avent SCF330 Breast Pump with Bottle is a closed system breast pump that features Natural Motion technology, which simulates a baby's natural feeding rhythm. It has a let-down mode that helps stimulate milk flow and a stimulation mode that allows for comfortable expression. The pump also has an adjustable vacuum with 8 suction settings. It comes with a 4-ounce bottle and a breast pump motor. The pump is battery operated and can also be used with a power adapter (sold separately).

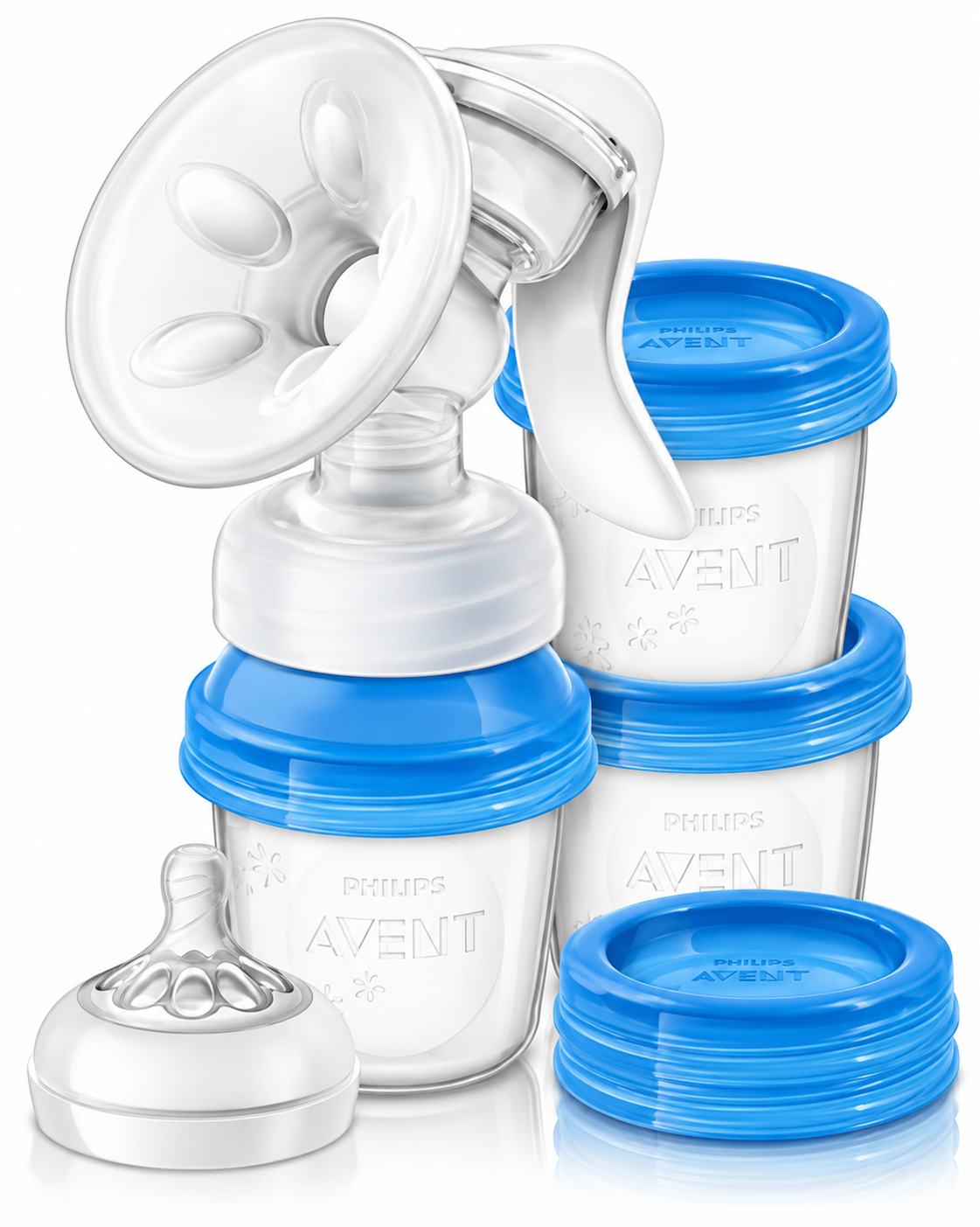

Description

The Philips Avent SCF330 Breast Pump with Bottle is a compact and lightweight breast pump that is perfect for mothers who are always on-the-go. It is easy to use and assemble, and can be used with just one hand. The closed system design ensures that milk does not enter the pump motor, making it more hygienic and easy to clean. The Natural Motion technology of the pump provides a more comfortable pumping experience, and the adjustable vacuum allows for a personalized fit. The pump also comes with a 4-ounce bottle, making it easy to express, store and feed milk to your baby.

1. Handle
2. Silicone diaphragm with stem
3. Pump body
4. Massage cushion
5. Cover
6. White valve
7. Philips Avent Natural bottle (except SCF330/13)
8. Cap (except SCF330/40)
9. Screw ring
10. Teat (except SCF330/40)
11. Sealing disc (except SCF330/13)
12. Lid of storage cup (SCF330/13 only)
13. Philips Avent storage cup (SCF330/13 only)
14. Adapter ring (SCF330/13 only)

Philips Avent SCF330 Breast Pump with Bottle Preparing for use

Clean and disinfect all parts of the breast pump before first use in the correct way (see 'Cleaning and disinfection'). Clean all parts after each subsequent use and disinfect  all parts before each subsequent use.

Assembling the breast pump

Note: Make sure you have cleaned and disinfected all parts of the breast pump. Wash your hands thoroughly before you handle cleaned parts.

Warning: Be careful, the cleaned parts may still be hot. Only start assembling the breast pump when cleaned parts have cooled down.

Tip: You may find it easier to assemble the breast pump while it is wet.

1. Insert the white valve into the pump body from underneath. Push the valve in as far as  possible (Fig. 2).
2. Screw the pump body clockwise onto the bottle (Fig. 3) or storage cup (Fig. 4) until it is securely fixed.
   Note: If you use a storage cup, you have to screw the adapter ring onto the storage cup first (Fig. 4).
3. Insert the silicone diaphragm into the pump body from above. Make sure it fits securely around the rim by pressing down with your fingers to ensure a perfect seal (Fig. 5).
4. Attach the handle onto the diaphragm with stem by hooking the hole in the handle over the end of the stem. Push down the handle onto the pump body until it clicks into place (Fig. 6).
5. Place the massage cushion into the funnel-shaped section of the pump body (Fig. 7). Push in the inner part of the massage cushion as far as possible and make sure that it is perfectly sealed all around the rim of the pump body (Fig. 8). Press in between the petals to remove any trapped air (Fig. 9).

Note: Place the cover over the massage cushion to keep the breast pump clean while you prepare for expressing.

Warning: Always use the breast pump with a massage cushion.

Using the Philips Avent SCF330 Breast Pump with Bottle

When to express milk
If breastfeeding goes well, it is advisable (unless advised otherwise by your healthcare professional/breastfeeding advisor) to wait until your milk supply and breastfeeding schedule are established (normally at least 2 to 4 weeks after giving birth) before you start expressing.
Exceptions

• If breastfeeding does not go well immediately, expressing regularly can help to establish and maintain your milk supply.
• If you are expressing milk for your baby to be given in hospital.
• If your breasts are engorged (painful or swollen), you can express a small amount of milk before or between feeds to ease the pain and to help your baby latch on more easily.
• If you have sore or cracked nipples, you may wish to express your milk until they are healed.
• If you are separated from your baby and wish to continue to breastfeed when you are reunited, you should express your milk regularly to stimulate your milk supply.

You need to find the optimum times of the day to express your milk, for example just before or after your baby’s first feed in the morning when your breasts are full, or after a feed if your baby has not emptied both breasts. If you have returned to work, you may need to express during a break. Using a breast pump requires practice and it may take several attempts before you succeed. Fortunately, the Philips Avent manual breast pump is easy to assemble and use so you will soon get used to expressing with it.
Tips

• Familiarize yourself with the breast pump and how to operate it before you use it for the first time.
• Choose a time when you are not in a rush and will not be interrupted.
• A photograph of your baby can help encourage the ‘let-down’ reflex.
• Warmth can also help: try to express after a bath or shower, or place a warm cloth or Philips Avent Thermopad on the breast for a few minutes before you start expressing.
• You may find it easier to express while your baby is feeding from the other breast, or immediately after a feed.
• If expressing becomes painful, stop and consult your breastfeeding advisor or healthcare professional.

Operating the breast pump

1. Wash your hands thoroughly and make sure your breasts are clean.
2. Relax in a comfortable chair (you may wish to use cushions to support your back). Make sure you have a glass of water nearby.
3. Press the assembled pump body against your breast. Make sure that your nipple is centered, so that the massage cushion creates an airtight seal.
   Note: Make sure that your nipple fits correctly in the massage cushion (Fig. 10). Not too tight, it is important that the nipple can move freely, while expressing breast milk (Fig. 11). The massage cushion should not be too large, because this can cause pain or less effective expression (Fig. 12). If the cushion is not the right size for your nipples, you can purchase a cushion of a different size separately. Two cushion sizes are available: 19.5 mm and 25 mm. You can find the size of the cushion (19.5 or 25 mm) on the cushion itself (Fig. 13).
4. Gently start to press down the handle until you feel the suction on your breast (Fig. 14). Then allow the handle to return to its resting position.
   Note: You do not have to press down the handle fully, only as much as is comfortable.  Your milk will soon start flowing, even though you are not using all the suction the pump can generate.
5. Repeat step 4 rapidly 5 or 6 times to initiate the ‘let-down’ reflex.
   Warning: Do not continue pumping for more than five minutes at a time if you do not succeed in expressing any milk. Try to express at another time during the day.
6. Adopt a slower rhythm by pressing down the handle and keeping it pressed down for up to 3 seconds before you let it return to its resting position. Continue in this way while your milk is flowing. If your hand becomes tired, try to use the other hand to operate the breast pump or rest your arm across your body to pump from the opposite breast.
   Note: Do not worry if your milk does not flow immediately. Relax and continue pumping. Repositioning the breast pump on your breast from time to time can help stimulate milk flow.
7. On average, you need to pump for 10 minutes to express 60-125 ml (2-4 fl oz) of breast milk from one breast. However, this is just an indication and varies from woman to woman.
8. When you have finished expressing, carefully remove the breast pump from your breast and unscrew the bottle or storage cup from the pump body, ready for feeding or storage. Clean the other used parts of the breast pump.
   Note: If you regularly express more than 125 ml per session, you can purchase and use a 260 ml (9 fl oz) Philips Avent bottle to prevent overfilling and spillage.

After use

Storing breast milk

Warning: Only store breast milk collected with a clean and disinfected pump.

Breast milk can be stored in the fridge (not in the door) for up to 48 hours. Expressed milk should be refrigerated immediately. If you store milk in the fridge to add to during the day, only add milk that has been expressed into a clean and disinfected bottle or breast milk container. Breast milk can be stored in the freezer for up to three months as long as it is kept in either disinfected bottles fitted with a disinfected screw ring and sealing disc or in disinfected storage cups with a disinfected lid. Clearly label the bottle or storage cup with the date and time of expression and use older breast milk first.

If you intend to feed your baby with the expressed breast milk within 48 hours, you can store the breast milk in the fridge in an assembled Philips Avent bottle or storage cup. Unscrew the bottle or storage cup and remove it from the pump body.

1. Insert a disinfected sealing disc into a disinfected screw ring and screw this onto the bottle  (Fig. 15). Seal the teat with the cap.
2. Assemble a disinfected teat and screw ring onto the bottle (Fig. 16) or storage cup according to the separate instructions provided with the bottle or storage cup and seal the teat with the cap.
3. In case a storage cup is included with the manual breast pump, screw the lid onto the storage cup. Make sure you properly close it to avoid leakage (Fig. 17).

Do’s

• Always refrigerate or freeze expressed milk immediately.
• Only store milk collected with a cleaned and disinfected breast pump in cleaned bottles.

Don’ts

• Never refreeze thawed breast milk.
• Never add fresh breast milk to frozen breast milk.

Feeding your baby expressed breast milk
You can feed your baby with breast milk from Philips Avent bottles and storage cups:

1. If you use frozen breast milk, let it defrost completely before you heat it.
   Note: In case of an emergency, you can defrost the milk in a bowl of hot water.
2. Heat the bottle or storage cup with defrosted or refrigerated breast milk in a bowl of hot  water or in a bottle warmer.
3. Remove the screw ring and sealing disc from the bottle or remove the lid from the storage cup.
4. If you are using a storage cup, screw the adapter ring onto the cup.
5. Screw a disinfected screw ring with disinfected teat onto the bottle or onto the storage cup  with adapter ring.

Do’s

• Always check the temperature of the milk before you feed it to your baby.
• Always discard any breast milk that is left over at the end of a feed.

Don’ts

• Never heat milk in a microwave, as this can cause uneven heating, which can lead to hot spots in the milk. It may also destroy nutrients in the milk.
• Never immerse a frozen storage cup in boiling water, as this may cause it to crack.
• Never fill a storage cup with boiling water. Let the water cool down for 20 minutes before you pour it into the storage cup.

Setup Guide of Philips Avent SCF330 Breast Pump with Bottle

1. Wash your hands and clean all parts of the breast pump before use.
2. Attach the breast shield to the pump motor.
3. Connect the bottle to the breast shield.
4. Turn on the pump and select the let-down mode to stimulate milk flow.
5. Once milk starts flowing, switch to the stimulation mode for comfortable expression.
6. Adjust the vacuum as needed by pressing the "+" or "-" button.
7. When finished, turn off the pump and detach the bottle.

Warning: This breast pump is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the breast pump.
• Inspect the breast pump for signs of damage before each use. Do not use the breast pump if it does not work properly.
• Never use the breast pump while you are sleepy or drowsy.
• Do not expose the breast pump to extreme heat and do not place it in direct sunlight.
• If you are a mother who is infected with Hepatitis B, Hepatitis C or Human Immunodeficiency Virus (HIV), expressing breast milk will not reduce or remove the risk of transmitting the virus to your baby through your breast milk.

Philips Avent storage cups, Natural bottle, cap, screw ring and teat.

For your child's safety and health

WARNING!

• Always use this product with adult supervision.
• Continuous and prolonged sucking of fluids will cause tooth decay.
• Always check the food temperature before feeding.
• Do not allow children to play with small parts or walk/run while using bottles or cups.
• The bottle may break if dropped.
• For glass bottles: Glass bottles may break.
• Do not place the bottle or storage cups in a hot oven or on any other hot surface.
• Never use feeding teats as a soother, to prevent choking hazard.
• Inspect the bottle and feeding teat before each use and pull the feeding teat in all directions to prevent a choking hazard. Throw away at the first signs of damage or weakness.
• Do not leave a feeding teat in direct sunlight or heat, or leave in disinfectant (sterilizing solution) for longer than recommended, as this may weaken the teat.
• Keep all components not in use out of the reach of children.
• Clean and disinfect before each use.

Caution

• The breast pump is only intended for repeated use by a single user.
• Never drop or insert any foreign object into any opening.
• Never use any accessories or parts from other manufacturers or that Philips Avent does not specifically recommend.
• Wash, rinse and disinfect all pump parts before each use.
• Do not use antibacterial or abrasive cleaning agents when you clean breast pump parts.
• Do not continue pumping for more than five minutes at a time if you do not succeed in expressing any milk.
• If the pressure generated is uncomfortable or causes pain, break the seal between the breast and the pump body with your finger and remove the pump from your breast.

Cleaning and disinfection

Caution: Wash your hands thoroughly before you touch disinfected items and make sure the surfaces on which you place disinfected items are clean.

Clean and disinfect all parts of the breast pump before first use. Clean all parts after each use and disinfect all parts before each subsequent use.

1. Disassemble the breast pump completely. Also remove the white valve.
   Caution: Be careful when you remove the white valve and when you clean it. If it gets damaged, your breast pump does not function properly. To remove the white valve,  gently pull at the ribbed tab on the side of the valve.
2. Clean all parts in hot water with some mild washing-up liquid and then rinse them thoroughly. You can also clean the parts in the dishwasher (on the top rack only). Do not put any other objects on top of them.
   Note: To clean the valve, rub it gently between your fingers in warm water with some washing-up liquid. Do not insert objects into the valve, as this may cause damage.
3. Disinfect all parts in a Philips Avent steam steriliser or by boiling them for 5 minutes. For boiling, fill a household pot with enough water to cover all parts. Bring the water to the boil. Place the parts in the household pot and boil them for 5 minutes. During disinfection with boiling water, prevent the bottle or other parts from touching the side of the pan. This can cause irreversible product deformation or damage that Philips cannot be held liable for. Allow water to cool and gently remove the parts from the water. Place the parts neatly on a clean paper towel or in a clean drying rack and allow them to air-dry. Avoid using cloth towels to dry the parts because they can carry germs and bacteria that are harmful to your baby.

Note: Do not use abrasive or antibacterial cleaning agents.
Note: Excessive concentration of detergents may eventually cause plastic components to crack. Should this occur, replace immediately.
Note: Food colorings may discolor parts.
Note: Philips Avent storage cups and bottles are suitable for all methods of disinfection.
Storage
Keep the breast pump out of direct sunlight as prolonged exposure may cause discoloration. Store the breast pump and its accessories in a safe and dry place.

Compatibility
The Philips Avent manual breast pump is compatible with Philips Avent bottles in our range and Philips Avent storage cups. When you use other Philips Avent bottles, use the same type of teat that was supplied with that bottle. For details on how to assemble the teat and general cleaning instructions, see chapters 'Feeding your baby expressed breast milk' and 'Cleaning and disinfection'.

• Spare teats are available separately. Make sure you use a teat with the correct flow rate when you feed your baby.
• Do not mix Philips Avent Anti-colic bottle parts and teats with parts of the Philips Avent Natural bottles. They may not fit and could cause leakage or other issues.
• The high-quality plastic Philips Avent Natural bottle is compatible with most Philips Avent breast pumps, spouts, sealing discs and cup tops.

Ordering accessories
To buy accessories or spare parts, visit https://www.philips.com.pk/c-w/support-home.html  or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country.

Philips Avent SCF330 Breast Pump with Bottle Troubleshooting

This chapter summarizes the most common problems you could encounter with the manual breast pump. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

• If the pump is not turning on, make sure the battery is inserted properly or try using a power adapter.
• If the pump is not creating suction, make sure the breast shield is properly attached and the vacuum is adjusted to the correct setting.
• If milk is entering the pump motor, make sure the pump is properly assembled and the silicone diaphragm is in place.
• Always clean the pump after each use and store in a dry place.

Pros & Cons

Pros

• Compact and lightweight design
• Natural Motion technology for a more comfortable pumping experience
• Adjustable vacuum for a personalized fit
• Closed system design for added hygiene
• Comes with a 4-ounce bottle

Cons

• Power adapter is sold separately
• Not as powerful as some other breast pumps on the market
