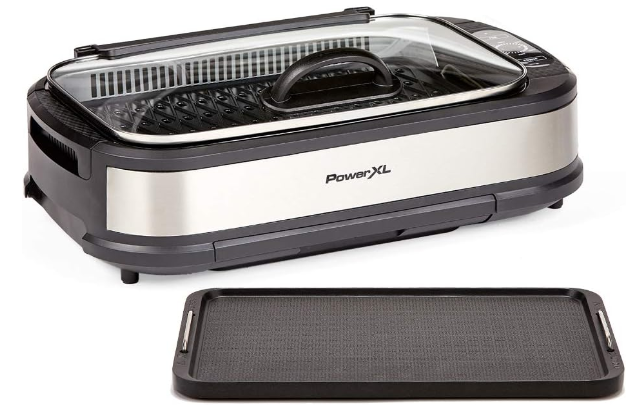

Power-XL Smokeless Grill PG-1500FDR

Introducing the Power-XL Smokeless Grill PG-1500FDR is a fantastic addition to any kitchen, perfect for those who love grilling but hate the smoke and mess that comes with it. This smokeless grill is designed to provide a healthier and more convenient way of cooking, with an estimated price range of $150 to $200. Although the official launching date is yet to be announced, it's expected to hit the market soon.

Parts & Accessories

NOTE: Unpack all listed contents from packaging. Contents vary by model. Please remove any clear or blue protective film on the components before use.

NOTE: This unit has been designed and engineered to reduce the smoke and visible vapors usually associated with grilling to a minimum. Delivers outdoor results indoors.

NOTE: Ensure that your Power XL Smokeless Grill has been shipped with the components that you ordered (some accessories may be sold separately). Check everything carefully before use. If any part is missing or damaged, do not use this product. Contact shipper using the customer service number located in the back of the owner's manual.

Caution

Wait for all components to cool thoroughly after use before disassembling. Always handle hot components with oven mitts while cooking.

Detailed Specifications

The Power-XL Smokeless Grill PG-1500FDR boasts some impressive features that make it stand out from other smokeless grills. It has a temperature range of 220°F to 450°F, a non-stick ceramic grate, and a removable drip tray for easy cleanup. The grill also features a turbo smoke extraction system, which eliminates up to 80% of smoke, making it perfect for indoor grilling. Additionally, it has a large cooking surface of 150 square inches and a power rating of 1500 watts.

Using the Control Panel

1. Plug the Power Cord into an outlet. LED Light will blink on and off.
2. Select Power Button, and LED will stay lit.
3. Select Fan Button. Fan will run and Fan LED will light up.
   NOTE: Fan should be kept running throughout the grilling process to prevent grease buildup.
4. Use Temperature Buttons to adjust cooking temperature from 200°F to 450°F.
   NOTE: You may raise or lower the cooking temperature at any time during the cooking process. To keep food warm, set the temperature between 200°F and 250°F.
5. When you are finished grilling, press the Power and Fan Buttons to shut down the Unit. Unplug the Power Cord and allow the unit to cool fully before disassembling for cleaning.

Special Features

• Smokeless grill with built-in fan
• Silicon-sealed hinged lid
• Heats up quickly and maintains a constant temperature
• Dishwasher-safe parts and easy to clean
• Heats up to 450°F
• Nonstick coating

Removable Glass Lid Assembly

1. Insert the Screw through the Metal Washer and the Rubber Gasket.
2. Attach the handle to the Glass Lid with a Phillips screwdriver.

3. Attach the assembled Glass Lid onto the Base Unit.



NOTE: The Glass Lid is removable for certain cooking and cleaning. It may come preassembled.

Product Description

The Power-XL Smokeless Grill PG-1500FDR is a versatile and easy-to-use appliance that lets you cook healthy and delicious meals without the hassle of outdoor grilling. The grill heats up quickly, and the non-stick ceramic surface ensures that food doesn't stick, making it easy to clean up. The turbo smoke extraction system ensures that your kitchen remains smoke-free, while the removable drip tray catches all the excess fat and grease, making it easier to dispose of.

General Operating Instructions

Before First Use

• Remove all packing materials, labels, and stickers.
• Hand wash the Glass Lid, Nonstick Grill Plate, Drip Tray, and Collection Pan with warm, soapy water.
• Wipe the inside and outside of the Base Unit with a clean, moist cloth. NEVER wash or submerge the Heating Element, Electric Fan, or Base Unit in water or liquid of any kind.
• Finally, heat up the Unit for a few minutes to burn off any residue.

Using the Power XL Smokeless Grill

1. Place the appliance on a stable, level, horizontal, and heat-resistant surface.
2. Assemble the Unit as shown in the manual.
3. Add about 2 cups of water to the Collection Pan.
4. Leave ample air space on all sides of the Unit to facilitate airflow.
5. Plug the Power Cord into a dedicated outlet.
6. If you are starting with a cold grill, you may preheat the grill using a medium or high heat setting for 4–6 minutes.
7. Prepare and season your food according to your favorite recipe. You may spray or wipe the Grill Plate's cooking surface with cooking oil.
8. Select the cooking temperature, add the food, put the Lid in place, and grill to your personal taste. Turn the food as needed.

NOTE: Cooking with the Lid on the Unit is recommended because it maintains the cooking temperature, seals in flavor, and prevents splatter.
CAUTION: The glass lid and handle get very hot. Always use oven mitts.

Removing the Electric Fan

If you are thoroughly cleaning the Base Unit with water and detergents, remove the Electric Fan. When reinserting the Fan, make sure to insert the two-prong connection into the receptacle.

CAUTION: Unplug the Unit before removing the fan. Fan blades are sharp; use care when removing and reinserting.

1. Turn over the Base Unit.
2. Remove the screw in the Fan Cover and remove the cover.
3. Lift the Fan out of the Base Unit. You may need to press on the fan prongs to push the fan out if it will not lift out easily.

Switching Out the Grill and Griddle Plates

To remove the Grill Plate or Griddle Plate from the Power XL Smokeless Grill, use two hands to hold the two metal handles on each side of the Plate. Pull straight upward to remove the Plate from the Power XL Smokeless Grill.

NOTE: If the Power XL Smokeless Grill was recently used to cook food, the Plate and its handles will be hot. Use oven mitts to handle the Plate.

To attach the new Plate, use two hands to hold the two metal hands on each side of the Plate. Lay the Plate evenly on top of the Heating Element and let go of the handles.

Tips

• Be careful not to transfer germs from raw meat to cooked meat. Use separate utensils and platters for raw and cooked meat.
• Always marinade in a tightly covered nonmetal dish and turn the food occasionally. Be sure to refrigerate all meats while marinating.
• If leftover wet marinade is to be used as a sauce with the cooked food, be sure to place it in a small pan and heat to a rolling boil before serving to eliminate bacterial growth.
• Similar to a stove top frying pan, grease from high-fat foods, such as bacon or sausage, may splatter on the countertop. Protect the countertop as necessary.
• Before grilling, partially cook bone-in chicken, ribs, and uncooked smoked or fresh sausages for best results. If not partially cooked, these meats may become overbrowned on the outside before the center is done.
• To prevent scratching the coating, use only nonmetallic utensils. Do not cut food on the Grill Plate using sharp utensils, such as forks or knives, that can scratch the cooking surface.
• Do not use steel wool or other metal pads. They could leave coarse scratches. Always rinse thoroughly and dry immediately with a soft towel.

Cooking Chart

Setup Guide

Setting up the Power-XL Smokeless Grill PG-1500FDR is a breeze. First, remove all packaging and parts from the box. Next, assemble the grill by attaching the legs, temperature control, and smoke extractor. Plug in the grill and let it heat up to your desired temperature. Once it's hot, you're ready to start grilling. To clean up, simply remove the drip tray and non-stick grate and clean with warm soapy water.

Care & Cleaning

• Before cleaning, be sure to unplug the cord from the outlet. If necessary, wipe the cord with a damp cloth.
• Allow the appliance to cool completely before cleaning. The Grill Plate, Drip Tray, Collection Pan, and Glass Lid can be placed in the bottom rack of the dishwasher or washed by hand. The Base Unit can be washed by hand with a warm, damp cloth and mild cleaning liquid. For more thorough cleaning of the Base Unit, remove the Electric Fan.
• Always be sure to wash the Grill surface after each use to remove any grease that may have accumulated. To keep grease from dripping outside of the base, always ensure that you are using your Grill on a level surface and that the Drip Tray is completely clear of food particles.
• Do not use scouring pads or harsh cleaners on this unit. If necessary, use a nylon bristle brush or plastic scrubbing pad.
• Any other servicing should be performed by an authorized service representative.

Important Safeguards Power-XL Smokeless Grill PG-1500FDR

When using electrical appliances, basic safety precautions should always be followed, including:

• NEVER IMMERSE the Main Unit Housing, which contains electrical components and heating elements, in water. Do not rinse under the tap.
• TO AVOID ELECTRICAL SHOCK, DO NOT put liquid of any kind into the Main Unit Housing containing the electrical components.
• This appliance has a three-prong plug. This plug is intended to fit into a polarized outlet only one way. DO NOT ATTEMPT to modify the plug in any way.
• MAKE SURE the appliance is plugged into a wall socket.
• While cooking, the internal temperature of the Unit reaches several hundred degrees Fahrenheit. TO AVOID PERSONAL INJURY, never place hands inside the Unit unless it is thoroughly cooled.
• This appliance is NOT INTENDED FOR USE by persons with reduced physical, sensory, or mental capabilities or a lack of experience and knowledge unless they are UNDER THE SUPERVISION of a responsible person or have been given proper instruction in using the appliance. This appliance is NOT INTENDED FOR USE by children.
• When cooking, DO NOT PLACE the appliance against a wall or against other appliances. Leave at least 5 inches of free space on the back and sides and above the appliance. Do not place anything on top of the appliance.
• DO NOT USE this Unit if the plug, the Power Cable, or the appliance itself is damaged in any way.
• DO NOT PLACE The Unit on stove top surfaces.
• DO NOT USE outdoors.
• If the power cord is damaged, YOU MUST HAVE IT REPLACED by the manufacturer, its service agent, or a similarly qualified person in order to avoid hazard.
• Keep the appliance and its Power Cable OUT OF THE REACH of children when it is in operation or in the cooling process.
• KEEP THE POWER CORD AWAY from hot surfaces. DO NOT PLUG in the Power Cable or operate the Unit controls with wet hands.
• NEVER CONNECT this appliance to an external timer switch or separate remote-control system.
• NEVER use with an extension cord. A short power-supply cord (or detachable power-supply cord) is provided to reduce the risk from becoming entangled in or tripping over a longer cord.
• DO NOT OPERATE the appliance on or near combustible materials, such as tablecloths and curtains.
• DO NOT USE the Power XL Smokeless Grill for any purpose other than described in this manual.
• NEVER OPERATE the appliance unattended.
• WEAR OVEN MITTS when handling hot components or touching hot surfaces.
• Should the Unit emit black smoke, UNPLUG IMMEDIATELY and wait for smoking to stop before removing oven contents.
• Always operate the appliance on a horizontal surface that is level, stable, and noncombustible.
• This appliance is intended for normal household use only. It is not intended for use in commercial or retail environments.
• If the Power XL Smokeless Grill is used improperly or for professional or semi-professional purposes or if it is not used according to the instructions in the user manual, the guarantee becomes invalid and the manufacturer will not be held liable for damages.
• Always unplug the appliance after use.
• Let the appliance cool for approximately 30 minutes before handling, cleaning, or storing.
• The glass lid and handle get very hot. Always use oven mitts.

SAVE THESE INSTRUCTIONS – FOR HOUSEHOLD USE ONLY.

Electric Power

If the electrical circuit is overloaded with other appliances, your new Unit may not operate properly. This Unit should be operated on a dedicated electrical circuit.

Shut-Off

You can manually shut off the appliance by pressing the Power Button at any time during cooking.

Electromagnetic Fields

This appliance complies with all standards regarding electromagnetic fields. If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Caution

• Do not operate Unit without the Grill or Griddle Plate.
• Do not place lid on the Unit without the Grill or Griddle Plate.

Unit Specifications

• Model Number: PG-1500FDR
• Supply Power: AC 120V 60Hz
• Rated Power: 1500W

Troubleshooting

If Your Unit Is Not Working Properly:

• Make sure the Power Cord is plugged into an electrical socket.
• Make sure the Power Cord is properly connected to the Heating Element.
• Make sure you have set the temperature higher than 120°F.
• The Unit may not be able to draw enough operating power from the outlet. Try switching the Power Cord to an outlet that has no other appliances attached to it.
• If food is undercooked or overcooked, change the cooking time and temperature accordingly.
• If the Electric Fan is not working, the assembly may not be fully connected. Disassemble the Unit and reattach the Fan component. Follow instructions in the manual.

60-Day Money-Back Guarantee

If you decide that you don’t love this product, your order is covered by our 60-Day Money-Back Guarantee. You have 60 days from the day you receive your product to request a replacement product or refund of the purchase price minus processing and handling fees.

Pros & Cons

Pros

• Smokeless grilling that's perfect for indoor use
• Large cooking surface for cooking multiple items at once
• Easy to clean and maintain
• Heats up quickly and evenly
• Adjustable temperature control

Cons

• May take up a lot of counter space
• Might be pricier than other smokeless grills on the market
• May not replicate the same flavor as outdoor grilling
• Grease may splatter during cooking
• May take some time to master the temperature settings

Customer Reviews about Power-XL Smokeless Grill PG-1500FDR

Customers who have purchased the Power-XL Smokeless Grill PG-1500FDR have praised it for its ease of use, versatility, and smokeless grilling capabilities. Many have noted that the grill heats up quickly and evenly, with minimal smoke. However, some have complained about the grease splattering during cooking and the size of the grill taking up a lot of counter space. Overall, the Power-XL Smokeless Grill PG-1500FDR has received positive reviews and is a great investment for those who want to enjoy grilled meals without the hassle of outdoor grilling.
