Introduction

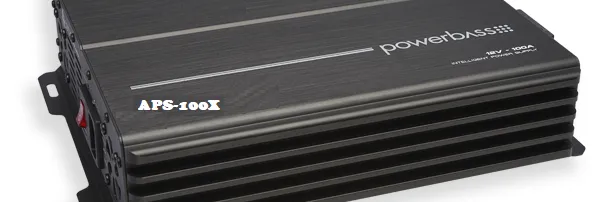

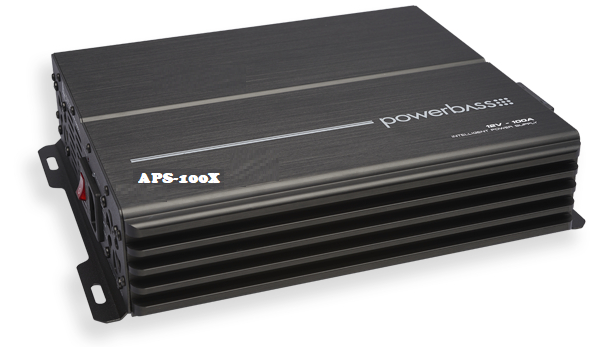

The PowerBass Auto Sound Power Supply APS-100X is a reliable and efficient power supply designed for automotive audio systems. It provides a stable voltage output, ensuring optimal performance for your car's audio components. With features like short circuit protection and thermal overload protection, it guarantees safety and durability during operation. This power supply is compact and easy to install, making it a great choice for enhancing your car audio experience. Priced at $99.99, it offers excellent value for quality sound performance.

Specifications

AC 220V-240V

• Input Voltage: 220V Ac±10%
• Input Frequency: 50Hz
• Adjustable Output: 10V-16V DC±0.5Volts
• Output Current: 100 Amps DC Continuous(Maximum)
• Line Regulation: Less Than ±5%
• Load Regulation: Less Than ±5%
• Efficiency: More Than 85%
• Overload Protection: FUSE 10A/250V (Input Voltage: 220V)
• Output Ripple: 150mV RMS
• Design: Switching Type
• Protection Temperature: 75°C
• Cooling Fan: 4PCS (40 x 40 x 10mm)
• Input Cable: UL 14 AWG - 0 AWG
• Power Switch: 10A / 250V AC
• Dimensions (WHD): 262.4 x 67 x 240mm

Specifications are typical; Individual units might vary. Specifications are subject to change and Improvement without notice.

TECHNICAL FEATURES

The APS-100 uses AC power to power equipment that requires 10~16V DC power.
The APS-100 converts standard 110~130V AC household power to an adjustable 10~16V DC power, and supplies up to 100 amps of continuous power.
The APS-100X converts standard 220~240V AC household power to an adjustable 10~16V DC power, and supplies up to 100 amps of continuous power.
The APS-100 Is a versatile piece of equipment that can be used in several applications such as retail audio displays, show cars, and test benches.

• Adjustable regulated output voltage 10~16V
• Up to 100 amp output current
• Cooling fans
• Thermal overload shut off protection
• Current overload shut off protection
• Combo output connectors act as both binding posts and banana plug terminals
• Pulse charging to inhibit battery sulfation
• Remote mount LCD Voltage Display
• Link up to 4 units for up to 400 amps of current

Description

Designed with the most recent technologies, the PowerBass Auto Sound Power Supply APS-100X guarantees dependable and effective running. For high-power automobile audio systems, its high-efficiency design reduces heat production and maximizes power output, thereby optimizing their choice. The small and light weight of the device makes installation in many different vehicle setups simple. Strong building and thorough protective elements help to shield the linked equipment and power supply from any damage.

CONNECTIONS

CAUTION: Make all connections before you connect the power supply to AC Power.

1. Turn off the device requiring power.

2. Set the APS-100 Power Switch to off.



3. Set the APS-100 correct output voltage for the device being connected.
4. Turn the sleeves of the + and - binding output posts counterclockwise to expose the wire hole.
5. Insert the device’s positive wire into the + binding post wire hole,then tighten the binding post sleeve to secure the wire in place.
6. Insert the device’s negative wire into the - binding post wire hole, then tighten the binding post sleeve to secure the wire in place.
7. If you are using a banana plug style connector, simply insert the plugs into the corresponding positive and negative terminal jacks. To avoid risk of damage to both the power supply and the connected device:
   • Verify and follow the correct polarity when connecting the power supply to the device
   • Do not let the ends of the positive and negative wires touch each other
   • The binding post wire holes can accommodate up to 0 gauge wire
8. Connect the APS-100 AC cord to a standard 110~130V AC (220~240V AC APS-100X) outlet.
9. Connect the supplied LED voltage display panel to the port labeled Volt Meter.
10. Master and Slave ports are only used when connecting multiple power supplies together.

OPERATION

To use the APS-100 after you have correctly connected a device to it, flip the power switch to the on position. The LED should illuminate indicating the unit is on.

If the LED does not illuminate check all connections. If all connections are good turn the unit off and confirm the wall AC outlet has power. If the outlet has power disconnect the power supply from the device then turn the power supply on again. If the power supply now operates normally verify the connected device does not require more than 100 amps of current which will cause the APS-100 to go into protection.

Your power supply might cause TV or FM radio interference. To determine whether your power supply is causing interference, simply turn off your power supply. If the interference goes away, your power supply is causing it. Try moving your power supply away for the affected source.

WIRING EXAMPLE

SINGLE APS-100, MULTIPLE BATTERIES

Fuse all connected devices as recommended by the manufacturer.

MULTIPLE APS-100 in PARALLEL MULTIPLE BATTERIES

Up to four APS-100 can be connected in parallel. The maximum available current will be determined by the sum of the rated capacity of each APS-100 in the circuit. In the example below the four parallel units of APS-100 will supply about 400A of current.

NOTE: Voltage adjustment is controlled only by the master power supply in this configuration.

WARNING: Do not overload AC power outlets to avoid danger of electric shock and fire. A minimum current of 20A per APS-100 will be required. Avoid connecting multiple power supplies to a single AC outlet using power strips.

Setup Guide

To operate the APS-100X,

1. Check first whether the electrical system of your car fits the 11V–15V DC input voltage range.
2. Safely ground the electrical source to the battery of your automobile.
3. Connect your audio components then to the power supply's output ports. Verify that every connection is insulated and safe to stop short circuits.
4. To test the configuration, turn on your car first then power on your stereo system.
5. See the included user manual for comprehensive assembly and configuration instructions.
6. Make sure all wiring is done following manufacturer recommendations to prevent any possible problems.

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important safety and operating instructions for the APS-100. To reduce the risk of fire, electric shock, and injury to person or equipment; carefully read the following before you use the power supply. Please read all cautionary markings on both the APS-100 and on the product that you will connect to the power supply.

WARNINGS

• This product is not recommended for outdoor use.
• Do not expose the power supply to excessive moisture.
• This product is not intended to be used as a stand alone battery charger. lt is designed for the purpose of providing supplemental power when a DC power generator isn’t available.
• Do not connect the APS-100 to a battery that is deeply discharged. The initial high level of current draw will force the power supply into current limit mode for prolonged periods. This type of use is harmful to the power supply.
• When used as a supplemental power supply, the APS-100 will not damage connected batteries. When a connected battery reaches a fully charged state, the APS-100 will decrease its output cur-rent to a safe level by degree.
• Make sure the power supply is securely mounted to avoid injury or damage to the unit.
• The power supply should be operated only from a standard AC outlet that provides 120V AC/60Hz (220V AC/50Hz APS-100x), as indicated on the label.
• Do not overload AC power outlets to avoid danger of electric shock and fire. A minimum current of 20A will be required.
• Avoid using extension cords.
• The power plug is polarized for safety. Do not defeat the ground feature.
• Do not block or cover the power supply’s cooling fan openings to avoid overheating.
• Unplug the power supply during lightning storms to avoid power surge damage.
• If your unit should require service or new parts contact the manufacturer. Do not attempt to service the unit.

APS-100 Power Supply
It is important that you closely follow the wiring instructions contained in this Owners Manual so that you get the most from your PowerBass AutoSound power supply.

Caution
High-powered audio systems in a vehicle are capable of generating higher then “Live Concert” levels of sound pressure. Continued exposure to excessively high volume sound levels will cause hearing loss or damage. Also, operation of a motor vehicle while listening to audio equipment at high volume levels may impair your ability to hear external sounds such as horns, warning signals, or emergency vehicles—thus creating a potential traffic hazard. In the interest of safety, PowerBass USA highly recommends listening at lower volume levels when driving.

Troubleshooting

Should the APS-100X give you problems,

• Look for poor wiring or weak connections.
• Verify the output terminals are not overloaded and the input voltage falls within the specified range.
• Typical issues include overheating (provide appropriate airflow) and overvoltage protection triggering—that is, battery voltage.
• Steer clear of exposing the power supply to extremes or dampness.
• Never try to fix the item yourself; call a manufacturer's agent or expert for help.

PowerBass Auto Sound Power Supply APS-100X Pros & Cons

Pros

• High-efficiency design aiming for low heat output
• Strong building with all-encompassing safeguards
• Short and light for simple installation
• High continuous and peak output
• Stable power supply for best audio performance

Cons

• More expensive than some alternative choices for power supplies.
• Demands cautious installation to prevent any problems.
• Might call for more setting time and wire.

Customer Reviews

The APS-100X has drawn compliments from consumers for its consistent functioning and dependability. Many have pointed out notable enhancements in the sound quality and steadiness of their automobile audio system. Some consumers have pointed out, meantime, the higher price point as a disadvantage.

Common Complaints

Typical criticisms center on the requirement of exact installation and sporadic overheating problems resulting from inadequate ventilation.

Warranty

PowerBass Autosound Power Supplies are to be free of defects in material and workmanship for a period of one (1) year.
