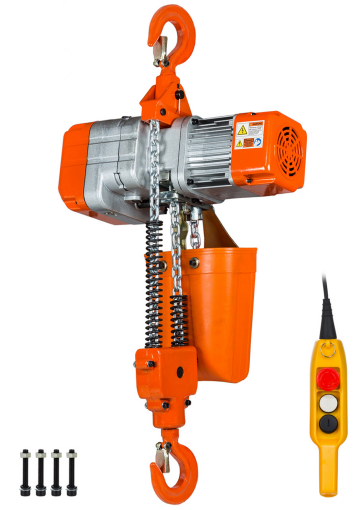

Introduction of ProWinch 1 Ton Electric Chain Hoist PWHF1000u

The ProWinch 1 Ton Electric Chain Hoist PWHF1000u is a powerful and efficient lifting solution for various industrial and commercial applications. With a lifting capacity of 1000 kg, this electric chain hoist offers a safe, reliable, and effortless way to lift and lower heavy loads. The estimated price of this product is around $800 to $1000, and it is now available for purchase.

Packaging Details

ProWinch Specifications

Weight & Dimensions

Key Features

• Voltage 110V at 60Hz; Single Phase Motor; Capacity 1 ton or 2200 pounds, lifting height 3m or 10ft, Lifting speed 3.9 meters per min or 13 feet per min, Power 0.75 kw, Wired remote control 5 feet long with Up and Down and Emergency Stop;
• Different from the standard Hoist equipped with Zinc Plated Steel Wire. This hoist is equipped with a G80 steel chain and a built in chain bag that keeps chain out of the way during operation;
• Key safety features such as all-way limit switches, emergency stop, and automatic brake system;
• Pendant Control; This hoist comes with a pendant control with a safety emergency stop button;
• 3 Year Warranty, Service and Parts Available in Stock in USA and Latin America

ProWinch 1 Ton Electric Chain Hoist PWHF1000u Instructions

Electric Chain Hoist Description

This 1/2 ton Electric Chain Hoist uses a powerful motor to raise and lower loads up to 20 feet in the air. The single phase power supply makes it ideal for home or industrial applications. The hoist is easy to use which helps you complete large projects with ease. TEST

Prowinch Single Phase Electric Chain Hoist

All of our Electric Chain Hoists are created with the goal of offering the best price–performance ratio. Key components such as lifespan factors are constantly tested and improved in order to offer the best product for the price.

Key Components

All internal components have been upgraded to meet the highest quality standards. Key electronic components are produced by American or German brands, and we use American-made lubricants to ensure the lifespan of gears and reducers. Final assembly and all tests are performed in the US before shipping to ensure that every unit meets the corresponding standard.

Duty Classification

Duty classification is a key factor when choosing the right chain hoist. These H2 hoists are suitable for light machine shop fabricating, service, and maintenance. For uniformly distributed work periods, the hoists have 12.5% max. operational time per hour and can handle up to 75 starts per hour. When being used for infrequent work periods, the hoist can be operated for 15 minutes from a cold start with up to 100 starts per hour. Operational time ratings are calculated at a 65% load factor, as per ASME HST-1-2012.

Control System

This electric chain hoist comes standard with a pendant control. The length of the control is 4 feet less than the lifting height, which allows it to be easily operated from ground-level. An optional wireless control is available for extra convenience.

Braking System

The electromagnetic brake system is tested at 125% of the hoist capacity and is .designed to automatically engage immediately upon any loss of power.

ProWinch 1 Ton Description

The ProWinch 1 Ton Electric Chain Hoist PWHF1000u features a robust design that ensures durability and longevity. It has a compact and lightweight structure, making it easy to install and operate in different working environments. The hoist is equipped with a variable frequency drive (VFD) motor that provides smooth and precise control over the lifting speed, reducing the risk of accidents and damages. The PWHF1000u model features a double-brake system that ensures the load's safety and stability during lifting and lowering operations.

PWHF 500u

• Light die-casting aluminium housing.

• Electromagnetic Safe Brake holds load with no power.

• Upper and lower limit switches prevent over-travel 14ft Pendant Control with Emergency Stop switch

• Overload Protection

• Forged 3600 swivel hook

PWHF100u

Setup Guide

To operate the ProWinch 1 Ton Electric Chain Hoist PWHF1000u, follow these steps:

1. Install the hoist in a secure and stable position, ensuring it is level and plumb.
2. Connect the hoist to a suitable power source and set the lifting speed according to the load's weight and height.
3. Attach the load to the hook using a suitable sling or lifting device.
4. Use the push-button control to lift the load slowly and smoothly, ensuring the load's stability and balance.
5. Lower the load by reversing the direction of the push-button control.

Electric Chain Hoist PWHF1000u Troubleshooting

Here are some common problems and solutions:

• Problem: The hoist does not start.
• Solution: Check the power supply and fuse box to ensure they are working correctly. Make sure the hoist is properly connected to the power source and the switch is in the "on" position.
• Problem: The hoist stops suddenly during operation.
• Solution: Check the load and sling for any damages or deformities. Adjust the load's position and balance, and ensure the hoist is not overloaded. If the problem persists, contact the manufacturer's customer service.

Pros & Cons

Pros

• High lifting capacity (1000 kg)
• Smooth and precise control over the lifting speed
• Robust and durable design
• Double-brake system for safe and stable lifting
• Compact and lightweight structure

Cons

• May be expensive for some users
• May require professional installation and maintenance

Customer Reviews about ProWinch 1 Ton Electric Chain Hoist PWHF1000u

Most customers who have used the ProWinch 1 Ton Electric Chain Hoist PWHF1000u are satisfied with its performance and reliability. They praised its smooth and precise control over the lifting speed, easy operation, and robust design. However, some customers complained about its high price and the need for professional installation and maintenance.
